CRL LR20PB Polished Brass 50.8mm Cap Rail for 21.52/25.52mm Glass - 3m LongC.R. Laurence LR20PB Polished Brass 50.8 mm Premium Cap Rail for 21.52 mm or 25.52 mm Glass - 3 m Long offers a sophisticated and durable solution for your glass railing needs. Designed with precision tooling, this cap rail maintains uniform profiles, ensuring seamless transitions at splices, corners, and end caps. It effectively accommodates laminated glass thicknesses of 27/32" (21.52 mm) and 1-1/16" (25.52 mm) by utilizing CRL’s specialized rubber protective inserts. Measuring 118-1/8" (3 m) in length, the LR20PB cap rail is available in multiple architectural finishes, including polished brass, making it a versatile choice for any design aesthetic. It is compatible with fabricated corners and end caps, enhancing its adaptability in various installations. For ease of connection, use the designated Connector Sleeves. Constructed from high-quality brass, this cap rail not only enhances the visual appeal of your project but also guarantees longevity. Note that brass is susceptible to oxidation, which may lead to a tarnished appearance over time. For specific glass sizing and installation guidance, consult the recommended rubber inserts and reach out to CRL Technical Sales for further assistance or custom fabrication options.
Polished Brass 50.8 mm Premium Cap Rail for 21.52 mm or 25.52 mm Glass - 3 m Long
- Bump-Formed and Welded 118-1/8" (3 m) Stock Lengths are Available in Two Diameters and Four Architectural Finishes
- Connect to Fabricated Corners and End Caps
- Use with Sleeve Number L20CSB
- Cut to Size or Custom Fabricated Lengths
- For Stainless, Alloy 316 is Standard
All
CRL Premium Cap Rails for Laminated Glass are formed using precision tooling to maintain uniform profiles, allowing for smooth hairline transitions at splices, corners, and end caps. Both Cap Rails support 27/32" (21.52 mm) and 1-1/16" (25.52 mm) laminated glass thicknesses by using CRL different rubber protective inserts. Sold in 3 meters lengths.
Use the
Connector Sleeves to connect Cap Rails. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order.
Please contact
CRL Technical Sales for more information or for a quote.
NOTE: When using 21.52 mm laminated glass, we recommend using
LR21PV Series Rubber Insert, for 25.52 mm laminated glass, use
LR22PV Series Rubber Insert with shim and silicone.

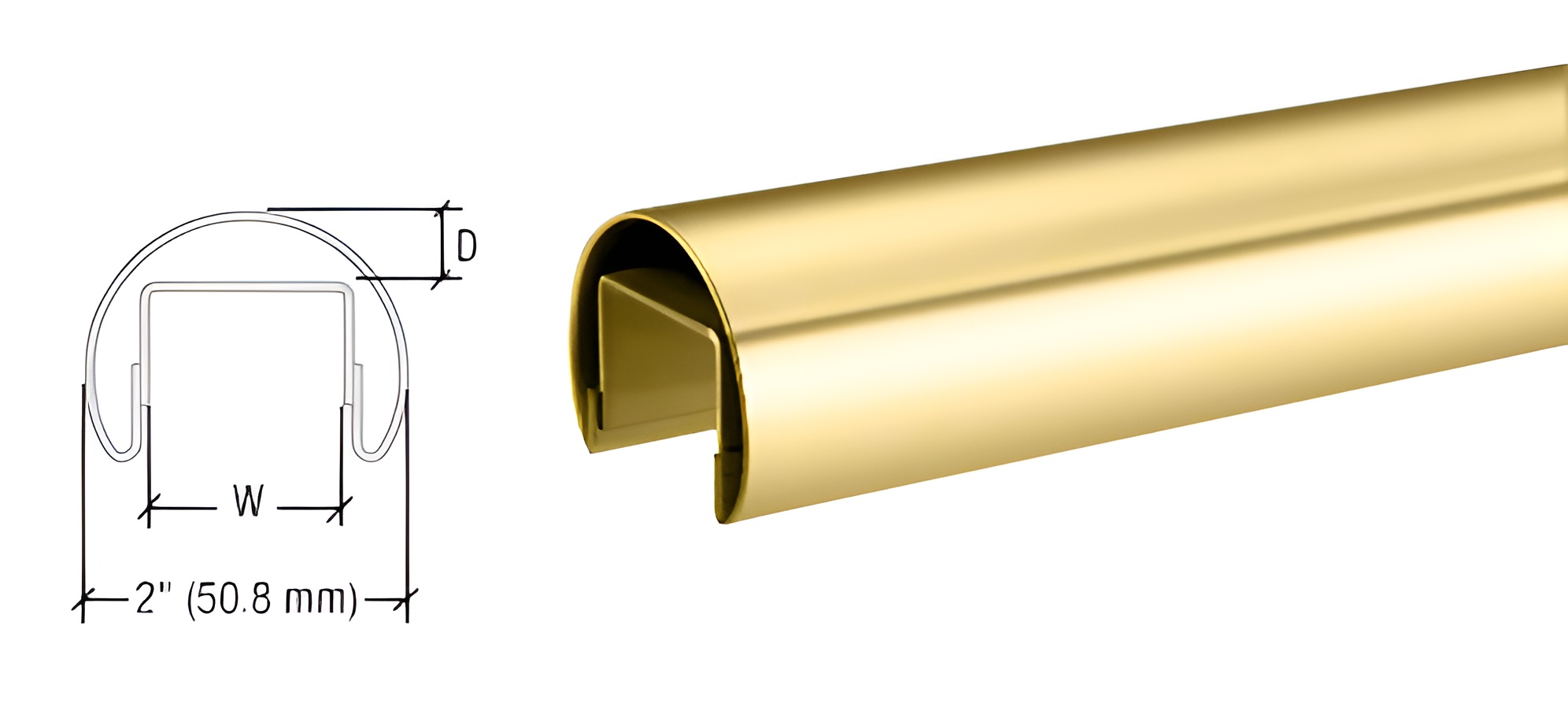

Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Rubber Insert.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 27/32 in. & 1-1/16 in. (21 mm & 27 mm)
Length: 118-1/8 in. (3000 mm)
Material: Brass
Shipping Limitations: No UPS - Common Carrier Only
