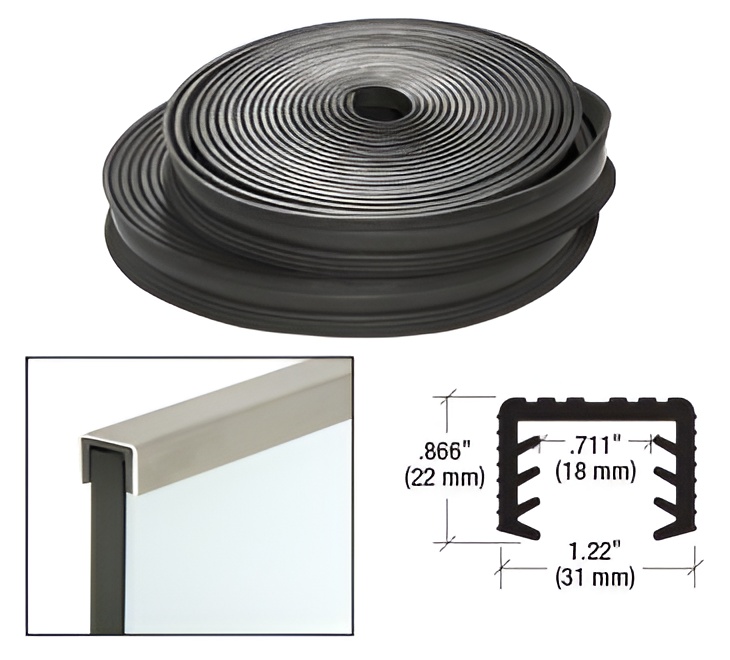

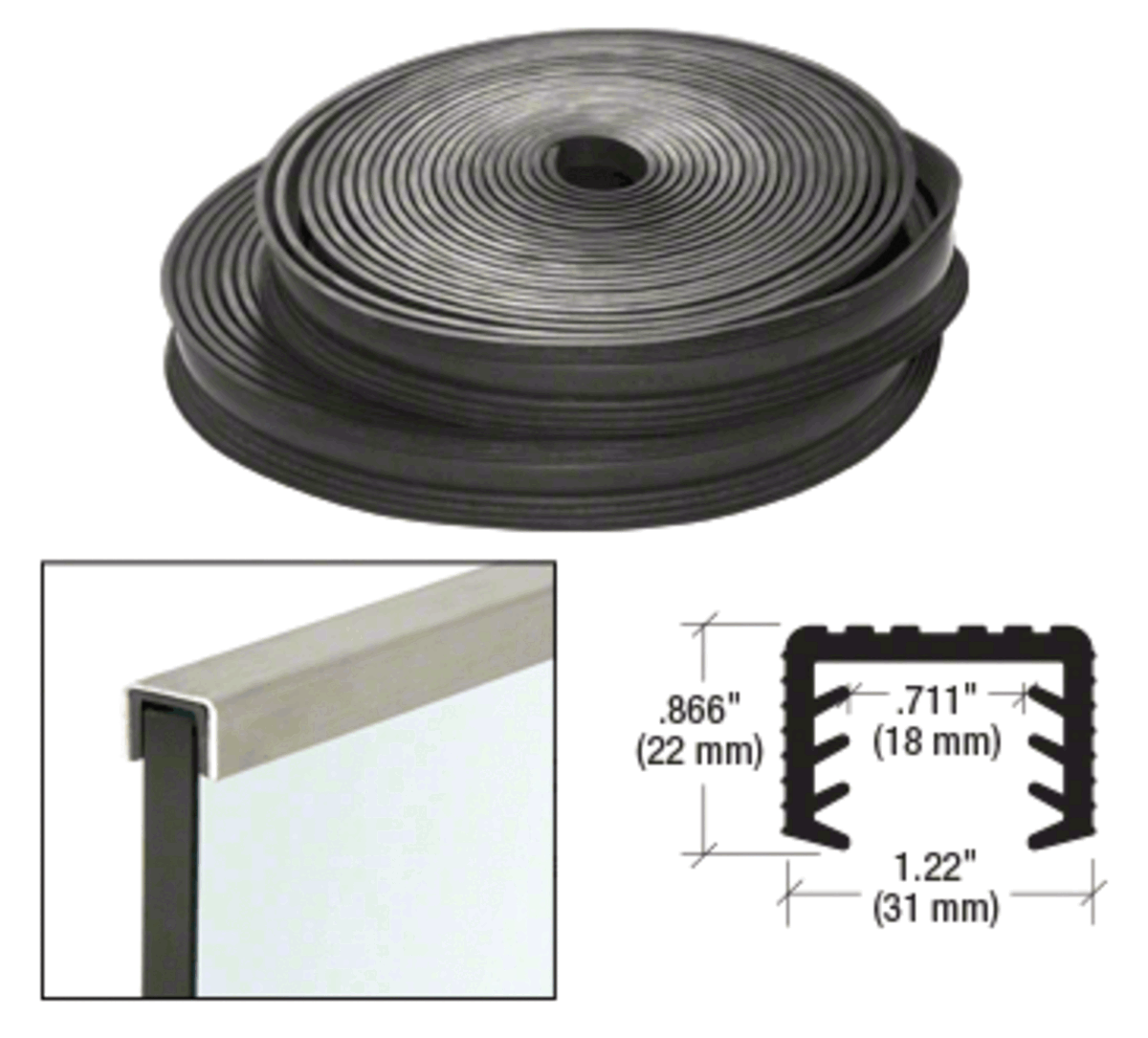

CRL LR21PV Black Flexible Rubber LR20 Cap Rail Insert for 21.52mm Glass - 100'

C.R. Laurence LR21PV Black Flexible Rubber LR20 Series Cap Rail Insert for 21.52 mm Laminated Glass is an essential component designed for use with the L10 Series U-Channel Cap Railing. This high-quality flexible black rubber insert serves as a protective barrier between metal cap rails and laminated glass, ensuring that your installations maintain their aesthetic appeal while safeguarding the glass from potential damage. Measuring precisely to accommodate 27/32" (21.52 mm) laminated tempered glass, the LR21PV insert also aids in aligning glass panels during installation, streamlining the process for building professionals and knowledgeable homeowners alike. By temporarily stabilizing the glass, it allows for a more precise and secure final installation. For optimal performance, it is recommended to use CRL 95CBL Silicone to secure the insert within the cap railing pocket and bond it to the glass. Additionally, it’s important to note that LR56PV vinyl should not be used in CRS systems, and the GR5PV alternative is suggested instead. With its robust construction and user-friendly features, the C.R. Laurence LR21PV insert is a reliable choice for enhancing the durability and functionality of your railing systems. For further inquiries or technical support, the CRL Railing Products Technical Sales Department is readily available.

Black Flexible Rubber LR20 Series Cap Rail Insert for 21.52 mm Laminated Glass - 100' (30.5 m)

• For 27/32" (21.52 mm) Laminated Glass
• Flexible Black Rubber Provides Protective Barrier Between Metal Cap and Glass
• Helps Align Glass Panel During Installation
• Use Laminated Tempered Glass

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• LR21PV Safety Data Sheet
• Windscreen and Pool Fencing Systems Product Information
