Images may not represent actual product and finish

CRL LR25BS Brushed Stainless 63.5mm Cap Rail for 21.52/25.52mm Glass - 3m Long

Your Price: $823.59

Retail Price:$985.98

Your Savings:$162.39(16%)

CRL LR25BS Brushed Stainless Cap Rail, 3m long, for 21.52mm or 25.52mm glass; precision-formed for seamless transitions.

Part Number : CRL_LR25BS

Availability: 23 In Stock

Quantity

Description

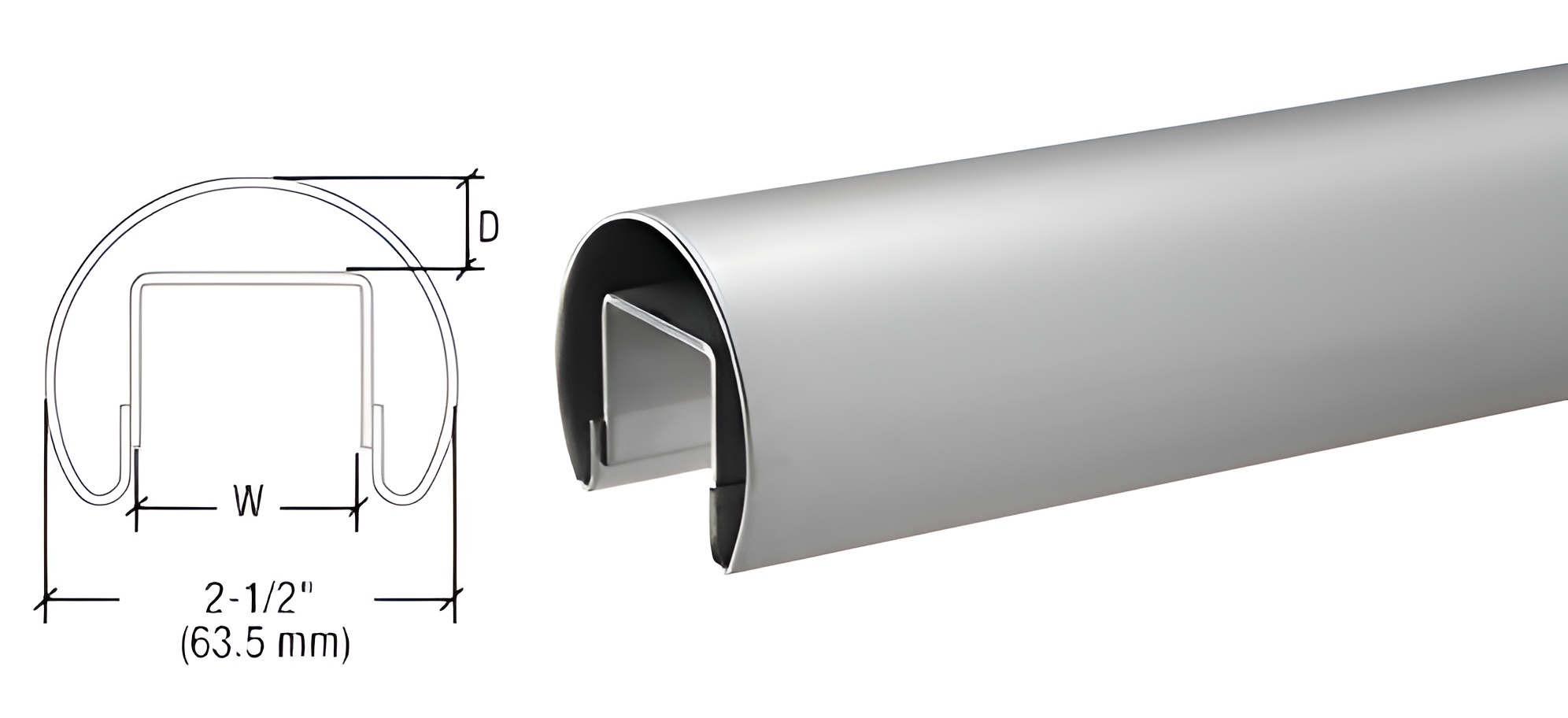

CRL LR25BS Brushed Stainless 63.5mm Cap Rail for 21.52/25.52mm Glass - 3m Long

C.R. Laurence LR25BS Brushed Stainless 63.5 mm Premium Cap Rail for 21.52 mm or 25.52 mm Glass - 3 m Long offers an ideal solution for enhancing the aesthetics and functionality of your glass installations. Crafted with precision tooling, this cap rail maintains uniform profiles that ensure smooth transitions at splices, corners, and end caps, making it an excellent choice for both residential and commercial applications. Available in a generous 3-meter length, the LR25BS supports laminated glass thicknesses of 21.52 mm and 25.52 mm, allowing for versatility in various projects. It is designed to connect seamlessly with fabricated corners and end caps, and can be easily cut to size or custom fabricated to meet specific project requirements. This premium cap rail is made from durable stainless steel alloy 316, ensuring long-lasting performance and resistance to corrosion, while maintaining a sleek brushed finish that complements modern design aesthetics. For optimal installation, utilize CRL Connector Sleeves and choose the appropriate rubber protective inserts-LR21PV for 21.52 mm glass and LR22PV for 25.52 mm glass. Periodic maintenance is recommended to preserve the factory finish. For more details or quotes, contact CRL Technical Sales.

Brushed Stainless 63.5 mm Premium Cap Rail for 21.52 mm or 25.52 mm Glass - 3 m Long

Bump-Formed and Welded 118-1/8" (3 m) Stock Lengths are Available in Two Diameters and Four Architectural Finishes
Connect to Fabricated Corners and End Caps
Use with Sleeve Number L25CSS
Cut to Size or Custom Fabricated Lengths
For Stainless, Alloy 316 is Standard

All CRL Premium Cap Rails for Laminated Glass are formed using precision tooling to maintain uniform profiles, allowing for smooth hairline transitions at splices, corners, and end caps. Both Cap Rails support 27/32" (21.52 mm) and 1-1/16" (25.52 mm) laminated glass thicknesses by using CRL different rubber protective inserts. Sold in 3 meters lengths.

Use the Connector Sleeves to connect Cap Rails. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order.

Please contact CRL Technical Sales for more information or for a quote.

NOTE: When using 21.52 mm laminated glass, we recommend using LR21PV Series Rubber Insert, for 25.52 mm laminated glass, use LR22PV Series Rubber Insert with shim and silicone.

Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Rubber Insert.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 27/32 in. & 1-1/16 in. (21 mm & 27 mm)

Length: 118-1/8 in. (3000 mm)

Material: Stainless Steel

Shipping Limitations: No UPS - Common Carrier Only
