CRL LR25PS Polished Stainless 63.5mm Premium Cap Rail for 21.52/25.52mm Glass - 3m

Your Price: $908.79

Retail Price:$1,087.98

Your Savings:$179.19(16%)

CRL LR25PS Premium Cap Rail in polished stainless steel, 3m long, for 21.52mm or 25.52mm glass; customizable lengths available.

Part Number : CRL_LR25PS

Availability: 0 Ship time varies. We email you if your order is delayed.

Quantity

Description

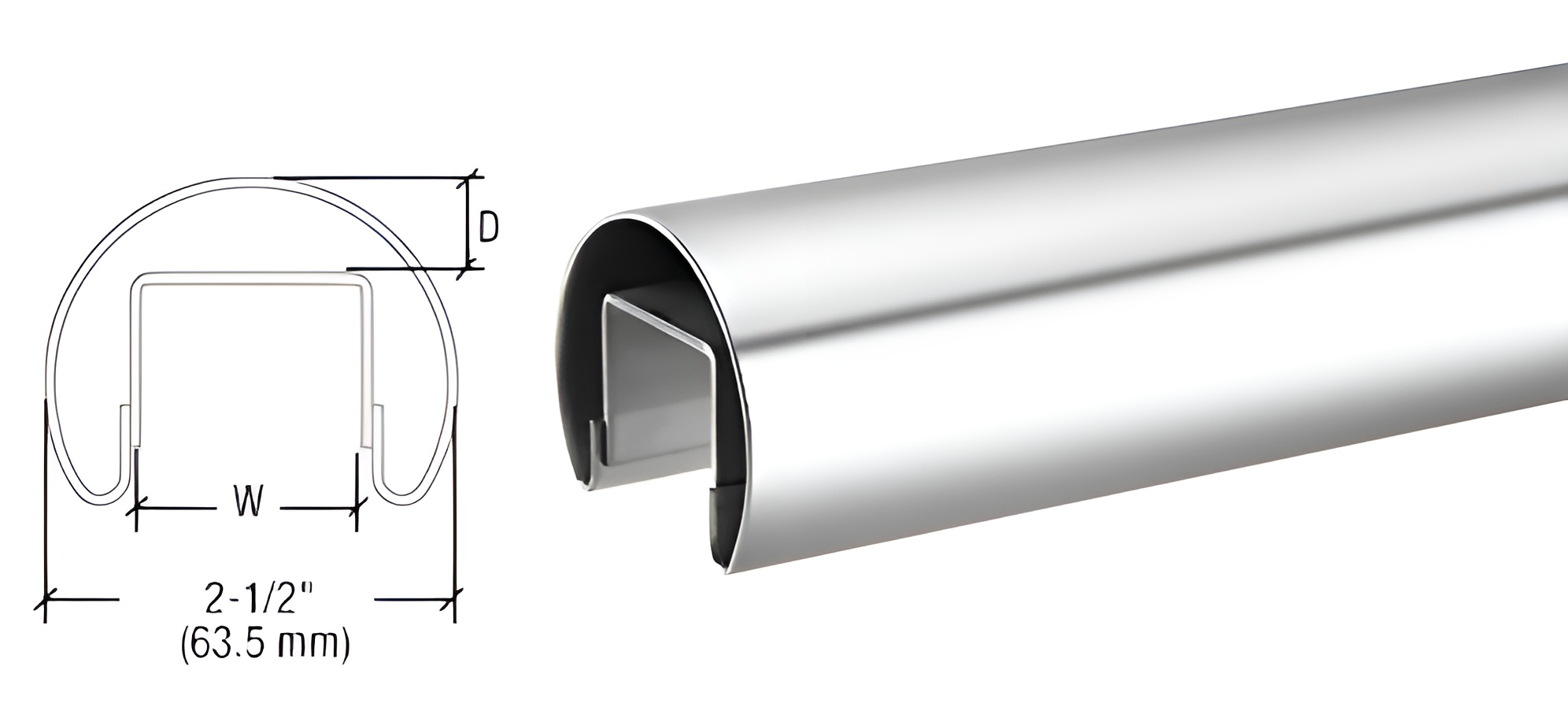

CRL LR25PS Polished Stainless 63.5mm Premium Cap Rail for 21.52/25.52mm Glass - 3m

C.R. Laurence LR25PS Polished Stainless 63.5 mm Premium Cap Rail for 21.52 mm or 25.52 mm Glass - 3 m Long offers a robust and stylish solution for your glass railing needs. Crafted from high-quality stainless steel alloy 316, this cap rail is designed for durability and aesthetic appeal, making it an excellent choice for both residential and commercial applications. Available in a 3-meter length, this cap rail supports laminated glass thicknesses of 21.52 mm and 25.52 mm, utilizing specially designed rubber protective inserts for added security. Its precision-formed construction ensures uniform profiles and smooth transitions at splices, corners, and end caps, providing a polished finish to any installation. The LR25PS cap rail can be easily connected to fabricated corners and end caps, and is compatible with CRL connector sleeves for a seamless assembly process. Custom lengths are also available, allowing for tailored solutions that fit your specific project requirements. To maintain its pristine appearance, regular maintenance is recommended, as stainless steel is corrosion-resistant but not entirely stain-proof. Elevate your architectural projects with the durability and elegance of the C.R. Laurence LR25PS Premium Cap Rail.

Polished Stainless 63.5 mm Premium Cap Rail for 21.52 mm or 25.52 mm Glass - 3 m Long

Bump-Formed and Welded 118-1/8" (3 m) Stock Lengths are Available in Two Diameters and Four Architectural Finishes
Connect to Fabricated Corners and End Caps
Use with Sleeve Number L25CSS
Cut to Size or Custom Fabricated Lengths
For Stainless, Alloy 316 is Standard

All CRL Premium Cap Rails for Laminated Glass are formed using precision tooling to maintain uniform profiles, allowing for smooth hairline transitions at splices, corners, and end caps. Both Cap Rails support 27/32" (21.52 mm) and 1-1/16" (25.52 mm) laminated glass thicknesses by using CRL different rubber protective inserts. Sold in 3 meters lengths.

Use the Connector Sleeves to connect Cap Rails. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order.

Please contact CRL Technical Sales for more information or for a quote.

NOTE: When using 21.52 mm laminated glass, we recommend using LR21PV Series Rubber Insert, for 25.52 mm laminated glass, use LR22PV Series Rubber Insert with shim and silicone.

Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Rubber Insert.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 27/32 in. & 1-1/16 in. (21 mm & 27 mm)

Length: 118-1/8 in. (3000 mm)

Material: Stainless Steel

Shipping Limitations: No UPS - Common Carrier Only
