CRL LS106PS Laguna Series Polished Stainless Top Sliding Tube Wall Mount End CapC.R. Laurence LS106PS Polished Stainless Laguna Series Top Sliding Tube Wall Mount End Cap is an essential component for installations where the top sliding tube terminates at a wall. This non-handed fitting is designed for use with the Cat. No. LS104BS Top Sliding Tube, ensuring a seamless finish for your sliding system. The elongated hole and internal sleeve allow for quick and easy final adjustments, enhancing the installation process. Engineered to accommodate panel widths between 37-13/16" (960 mm) and 53-9/16" (1.36 m), this end cap supports a maximum panel weight of 220 lbs. (100 kg). For optimal performance, it’s important to note that the panel height should not exceed 2.5 times the width. The maximum available length of the top track is 104" (2.64 m), providing flexibility in design. While the LS106PS is crafted from polished stainless steel for a sleek appearance, it is important to remember that periodic maintenance is recommended to preserve its finish. This fitting is not suitable for use with laminated glass. For any specific inquiries regarding installation or product limitations, consulting CRL’s Technical Sales Department is advised.
Polished Stainless Laguna Series Top Sliding Tube Wall Mount End Cap
- Used for Installations Where Top Sliding Tube Terminates at Wall
The

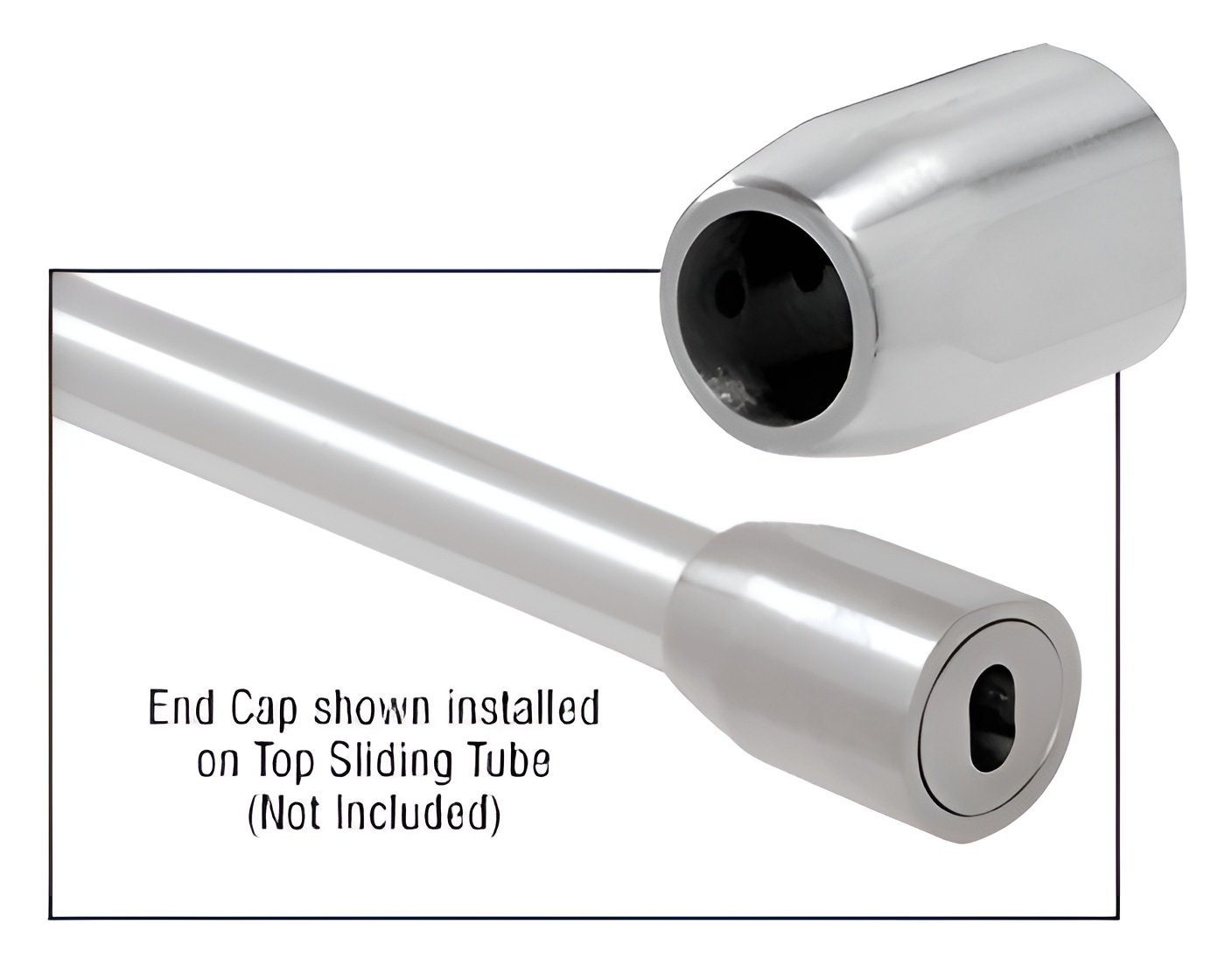

CRL Top Sliding Tube Wall Mount End Cap is a non-handed fitting. It is used in conditions where the Cat. No. LS104BS Top Sliding Tube terminates into a wall. The elongated hole and internal sleeve make final minor adjustments quick and easy. Fastener to wall is not included.
SYSTEM LIMITATIONS:
The following are recommended limitations for this system:
Minimum Panel Width: 37-13/16" (960 mm)
Maximum Panel Width: 53-9/16" (1.36 m)
Maximum Panel Weight: 220 Lbs. (100 kg)
The panel height should never exceed 2.5 times the width of the panel. Maximum available length of the top track is 104" (2.64 m).
Please contact our Technical Sales Department if any of these limitations cannot be met.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
NOTE: These Fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Shipping Limitations: None
