CRL LS11BS Brushed Stainless Laguna Transom/Sidelite Door Stop FittingC.R. Laurence LS11BS Brushed Stainless Laguna Series Transom/Sidelite Door Stop Fitting provides a reliable and stylish connection between sidelite panels and glass transoms. Featuring a sleek brushed stainless finish, this fitting is designed to complement a variety of architectural styles while ensuring durability and long-lasting performance. The LS11BS comes equipped with both flush mount and surface mount fasteners, allowing for versatile installation options. It is compatible with tempered monolithic glass, with a glazing thickness of 3/8 inch (10 mm). This fitting supports a maximum height of 98-1/2 inches (2500 mm) and a weight capacity of 176 lbs. (80 kg), making it suitable for a wide range of door configurations. If your door exceeds these specifications, it is recommended to utilize full door rails for additional support. C.R. Laurence emphasizes the importance of consulting a structural engineer to ensure the suitability of this product for your specific application and site conditions. Regular maintenance is advised to preserve the factory finish, as stainless steel, while resistant to corrosion, is not entirely rust or stain-proof. Enhance your architectural projects with the C.R. Laurence LS11BS, where functionality meets contemporary design.

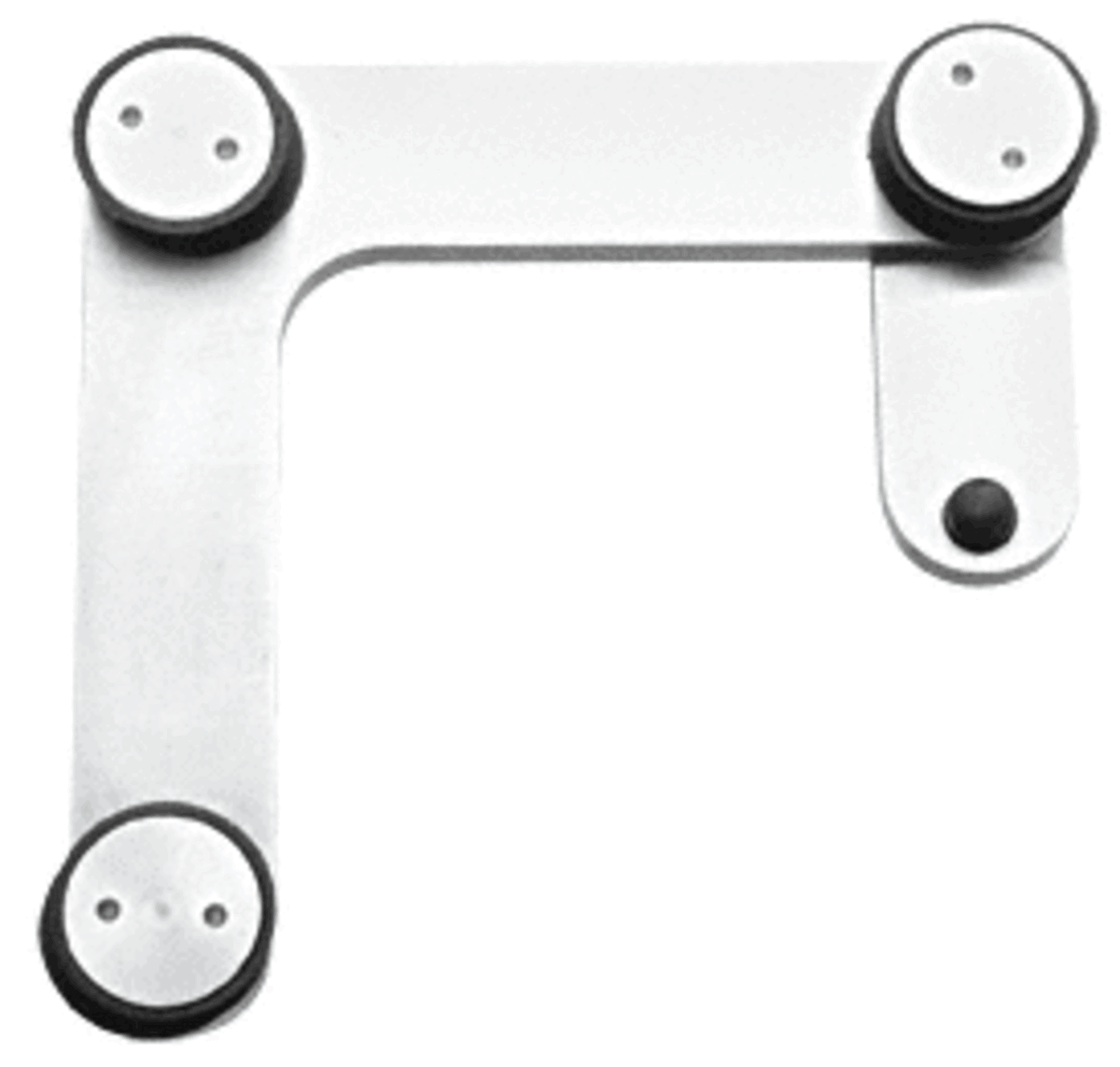

Brushed Stainless Laguna Series Transom/Sidelite Door Stop Fitting
The
CRL Transom/Sidelite Door Stop Fitting connects the sidelite panel to the glass transom. Comes with both Flush Mount and Surface Mount Fasteners.
NOTE: The following guidelines are to be used when making a door using this hardware:
Maximum Height: 98-1/2" (2500 mm)
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 47-1/4" (1200 mm)
If the door exceeds any of these limitations, full door rails should be used.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Attachment: Flush, Surface
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. (10 mm)
Glazing Type: Tempered Insulated
Shipping Limitations: None
