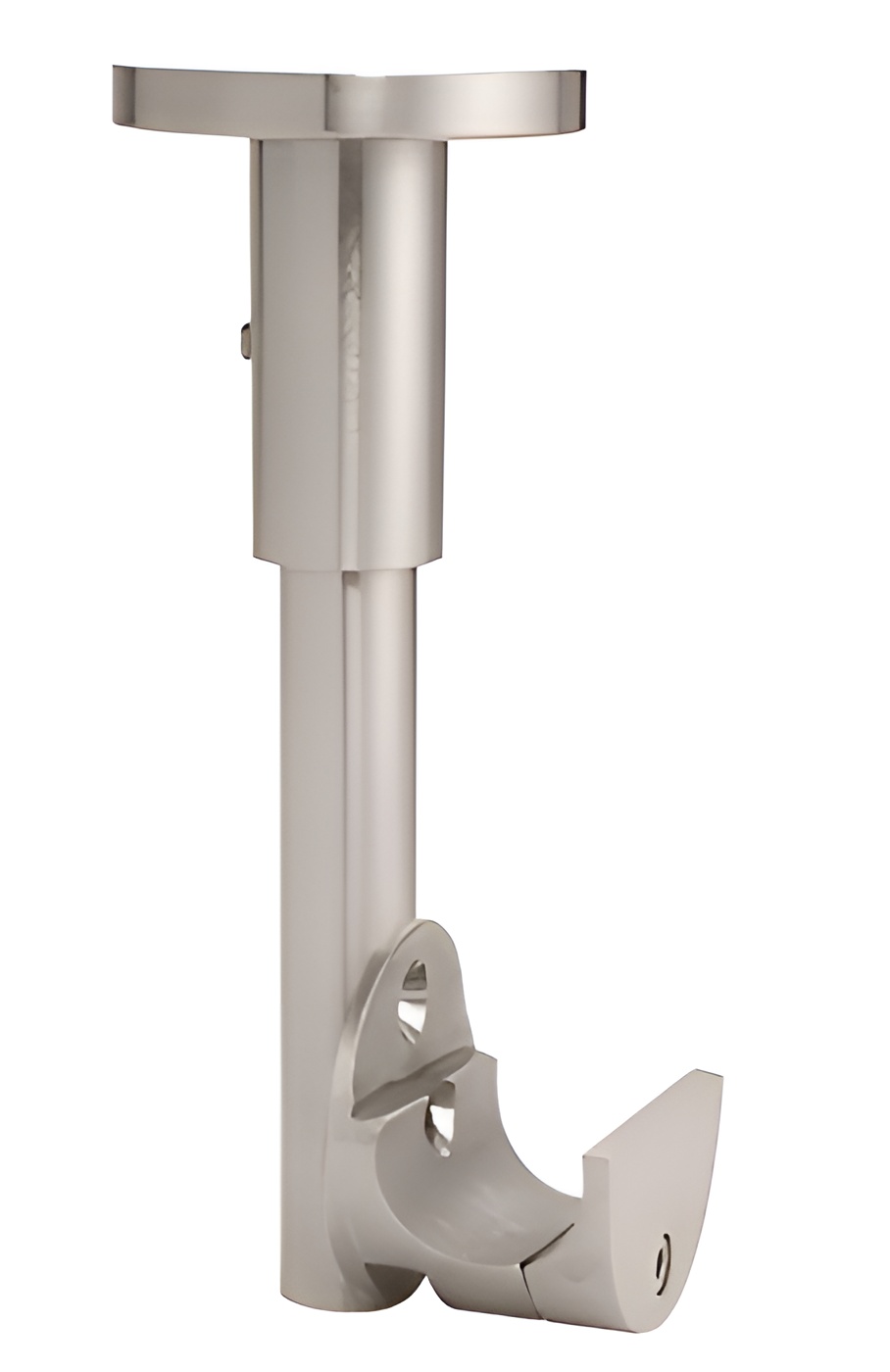

CRL LS412BS Brushed Stainless Laguna Ceiling Mount Clamp for Sliding Tubes

C.R. Laurence LS412BS Brushed Stainless Laguna Top Sliding Tube Ceiling Mount Clamp offers a reliable solution for ceiling mount applications in sliding glass door systems. Designed to attach securely to a structural ceiling, this clamp ensures that it can effectively bear the loads associated with sliding glass doors, which are ordered separately from the kits. One of the standout features of the LS412BS is its improved anti-lift system, providing added security and stability. The clamp positions the top sliding tube 4-11/16" (119 mm) down from the ceiling, with an adjustable range of 3/16" (5 mm) both up and down, enabling precise leveling during installation. This adaptability ensures that the installation process is smooth and efficient. Completing the installation is easy with the included snap-on cover, which provides a polished finish. It’s important to note that all customers should consult a structural engineer to assess the suitability of this product for their specific applications, ensuring compliance with local regulations and safety standards. Crafted in brushed stainless steel, this clamp is not only functional but also aesthetically pleasing. Regular maintenance is recommended to preserve its finish, as stainless steel is resistant to corrosion but not entirely stain-proof. Elevate your sliding door installations with the durable and stylish C.R. Laurence LS412BS.

Brushed Stainless Laguna Top Sliding Tube Ceiling Mount Clamp

• Used in Laguna Ceiling Mount Applications
• Improved Anti-Lift System

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Laguna Series Ceiling Mount Bi-Parting Slider System CAD Drawings.dwg
• Laguna Series Ceiling Mount Bi-Parting Slider System CAD Drawings.pdf
• Laguna Series Ceiling Mount Single Slider System CAD Drawings.dwg
• Laguna Series Ceiling Mount Single Slider System CAD Drawings.pdf
