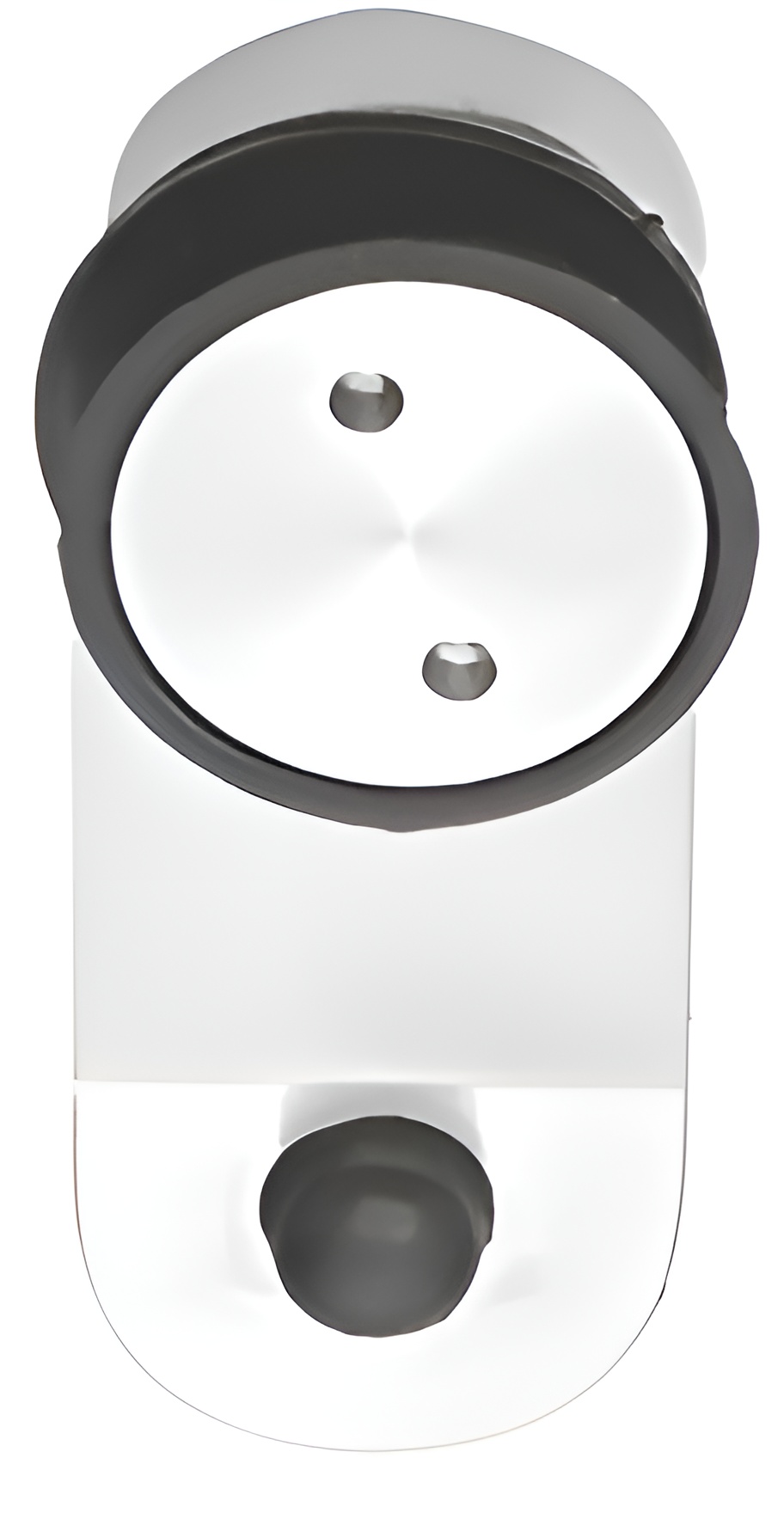

CRL LS9BS Brushed Stainless Laguna Glass-Mounted Door Stop FittingC.R. Laurence LS9BS Brushed Stainless Laguna Series Glass Mounted Door Stop Fitting offers a sleek and practical solution for controlling door movement. Designed for use individually or in pairs, this fitting effectively prevents doors from swinging in undesired directions, ensuring both functionality and safety in various settings. Crafted with a brushed stainless finish, the LS9BS not only enhances the aesthetic appeal of your installation but also provides durability and resistance to wear. This fitting is suitable for doors with a maximum height of 98-1/2" (2500 mm), a maximum weight of 176 lbs. (80 kg), and a maximum width of 47-1/4" (1200 mm). For doors exceeding these specifications, it is advisable to use full door rails to ensure adequate support. Please note that these fittings are not compatible with laminated glass, and it is crucial to consult a structural engineer to verify suitability for your specific application. Additionally, periodic maintenance is recommended to preserve the factory finish of the stainless steel. With its flush and surface attachment options, the LS9BS is designed to accommodate 3/8 in. (10 mm) tempered monolithic glazing, making it an ideal choice for modern architectural projects. Experience the reliability and style that C.R. Laurence products are known for with the LS9BS door stop fitting.
Brushed Stainless Laguna Series Glass Mounted Door Stop Fitting
This
CRL Glass Mounted Door Stop Fitting is used individually or in pairs to prevent the door from swinging in a given direction.
NOTE: The following guidelines are to be used when making a door using this hardware:
Maximum Height: 98-1/2" (2500 mm)
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 47-1/4" (1200 mm)
If the door exceeds any of these limitations, full door rails should be used.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Attachment: Flush, Surface
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. (10 mm)
Glazing Type: Tempered Insulated
Shipping Limitations: None
