CRL LSGM25BS Laguna Series 316 Stainless Double Roller Glass Mount Slider Kit

CRL LSGM25BS Laguna Series 316 Stainless Double Roller Glass Mount Slider Kit

C.R. Laurence LSGM25BS 316 Brushed Stainless Double Roller Laguna Series Glass Mount Single Slider Kit is expertly designed for seamless glass mounting in modern architectural applications. This robust kit features anti-lift double rollers and is constructed from durable Alloy 316 stainless steel, ensuring long-lasting performance and resistance to corrosion. The assembly includes all necessary hardware for installation with 3/8" or 1/2" (10 or 12 mm) tempered glass, allowing for versatility in design. It accommodates a maximum door weight of 220 lbs. (100 kg) and provides a range of sizes, with a minimum door width of 37-13/16" (960 mm) and a maximum width of 53-9/16" (1.36 m). The maximum height stands at 98-7/16" (2.50 m), and the track length can extend up to 104" (2.64 m). The anti-lift top rollers can be attached using either surface mount or flush mount fittings, both included in the kit. An essential feature is the 1/8" (3 mm) vertical adjustment for easy door alignment. Please note that laminated glass is not compatible with this system. For optimal performance, periodic maintenance of the stainless steel finish is recommended. Enhance your glass door installations with the reliability and elegance of the CRL Laguna Series.

316 Brushed Stainless Double Roller Laguna Series Glass Mount Single Slider Kit

• This Kit Designed for Glass Mounting
• Anti-Lift Double Roller
• Alloy 316 Steel Construction
• Assembly Contains All Necessary Hardware to Complete the Installation With 3/8" or 1/2" (10 or 12 mm) Tempered Glass
• Spanner Wrench for Installation Sold Separately

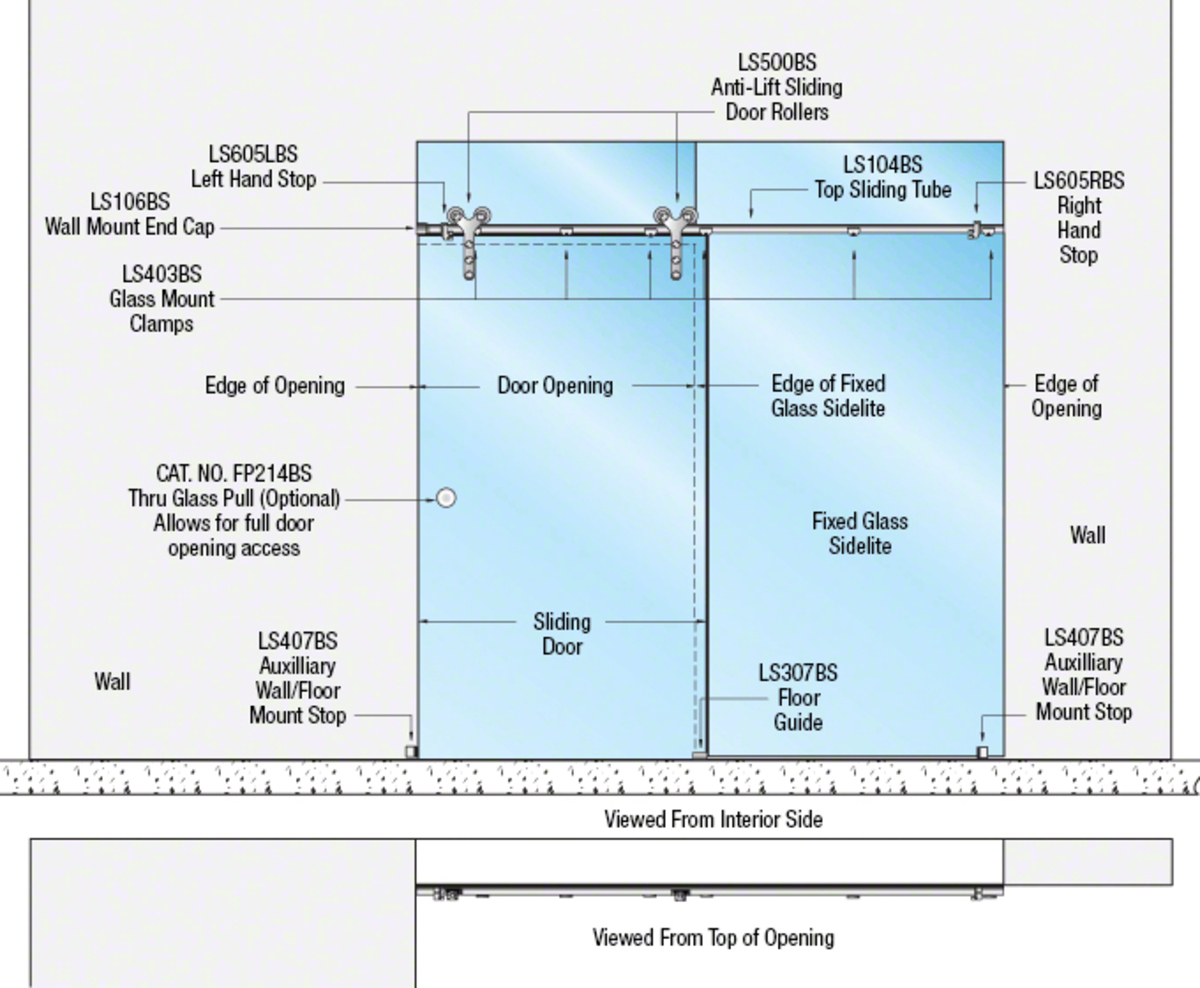

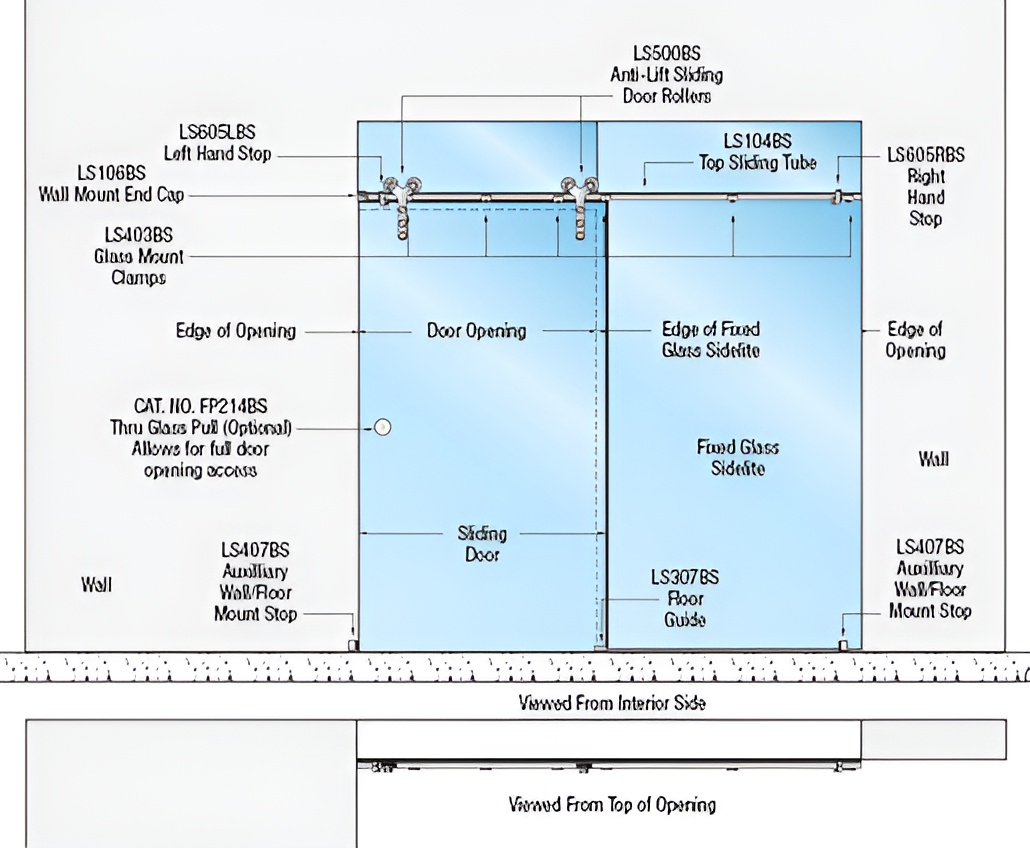

The CRL Double Roller Laguna Series Glass Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door in an 'all-glass' opening where you have a wall on one end next to the door, a glass transom above the door, and a fixed glass panel on the other side of the door. NOTE: Bi-parting double doors are not possible for this application.


The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)




Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Double Roller Laguna Series Sliding Door Kits Installation Instructions
