CRL LSWM25MBL Matte Black Laguna Series Wall Mount Single Slider KitC.R. Laurence LSWM25MBL Matte Black Double Roller Laguna Series Wall Mount Single Slider Kit is engineered for seamless functionality and stylish design. This wall-mounted system is perfect for installations involving a single sliding door, where a reinforced wall is available. Crafted from durable Alloy 316 stainless steel, it ensures long-lasting performance in various environments. The innovative anti-lift double roller design enhances security and reliability, providing peace of mind while operating the door. This kit includes all necessary hardware components for installation with either 3/8" or 1/2" (10 or 12 mm) tempered glass, ensuring versatility in your projects. With a maximum door weight capacity of 220 lbs. (100 kg) and adjustable roller fittings, achieving precise door alignment is a breeze. This system accommodates door widths from 37-13/16" (960 mm) to a generous 53-9/16" (1.36 m) and heights up to 98-7/16" (2.50 m), with a track length of 104" (2.64 m). The flush door attachment option allows for a sleek, modern aesthetic, complemented by the matte black finish. Please note that laminated glass is not compatible with this system, and it is crucial to consult a structural engineer to determine suitability for specific applications.
Matte Black Double Roller Laguna Series Wall Mount Single Slider Kit
- This Kit Intended for Wall Mounting
- Improved Anti-Lift Double Roller Design
- Alloy 316 Stainless Steel Construction
- Assembly Contains All Necessary Hardware to Complete the Installation With 3/8" or 1/2" (10 or 12 mm) Tempered Glass
The

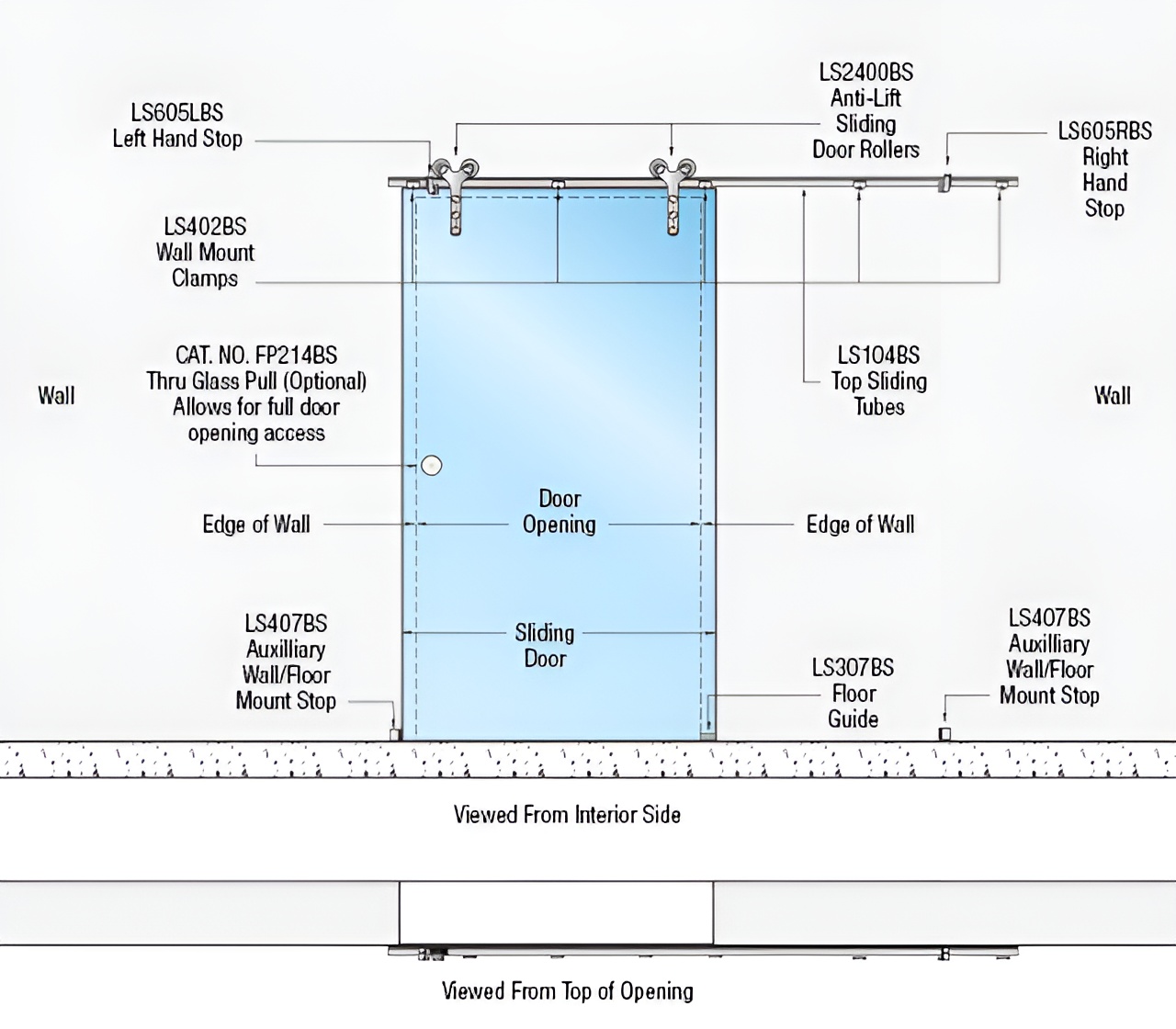

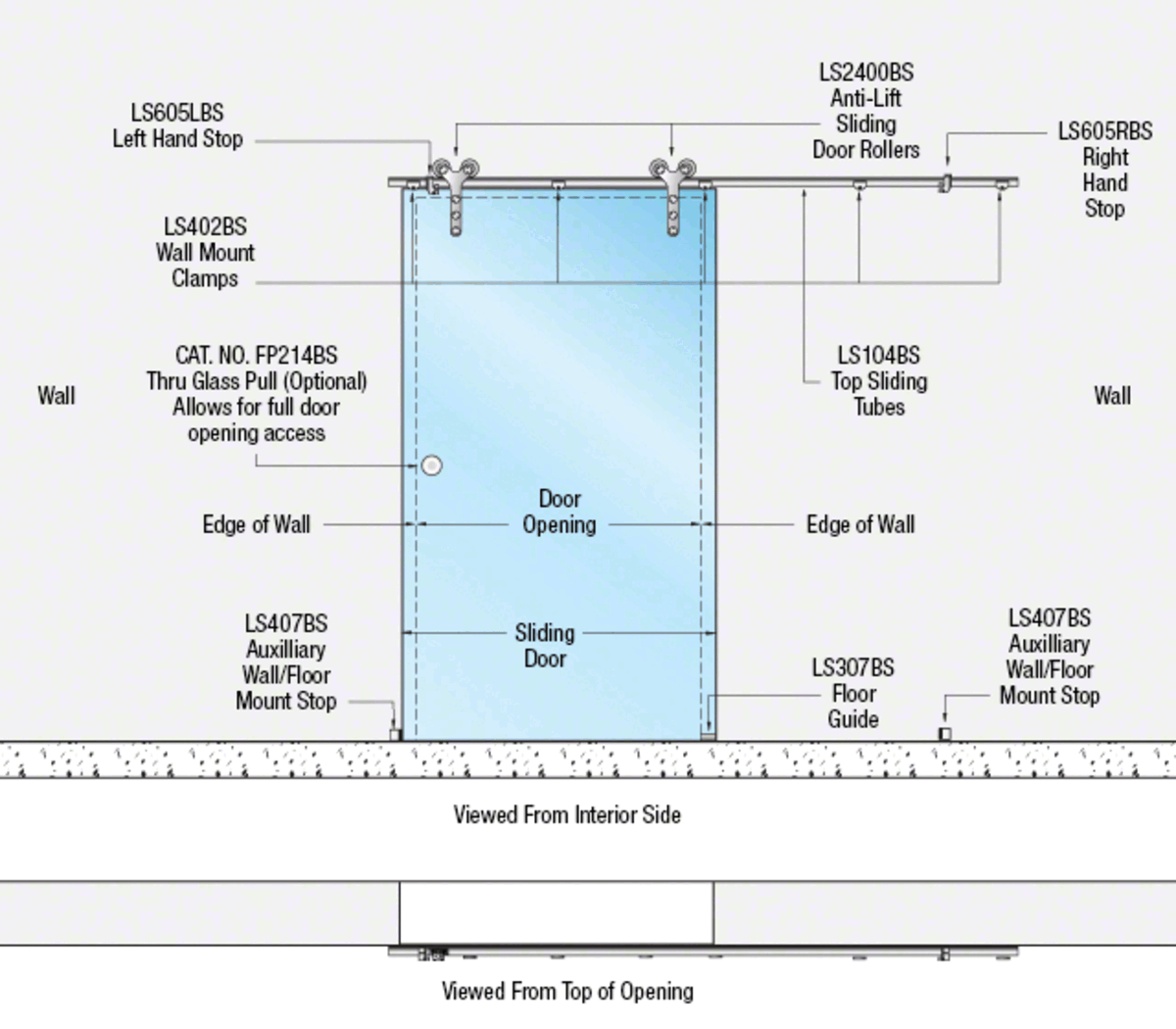

CRL Double Roller Laguna Series Wall Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Anti- Lift: Yes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Attachment: Flush
Door Configuration: Double Door
Finish/ Color:: Matte Black
Frame Depth: 3-3/16 in. (81 mm)
Glazing Thickness: 3/8 in. (10 mm), 1/2 in. (13 mm)
Glazing Type: Tempered Insulated
Material: Stainless Steel (Alloy 316)
Maximum Door Height: 98-7/16 in. (2500 mm)
Maximum Panel Weight: 220 lbs. (100 kg)
Minimum Door Width: 37-13/16 in. (960 mm)
Mounting Application: Wall
Self- Closing: No
Shipping Limitations: No UPS - Common Carrier Only
Track Diameter: 1-1/4 in. (32 mm)
Track Length: 104 in. (2642 mm)
