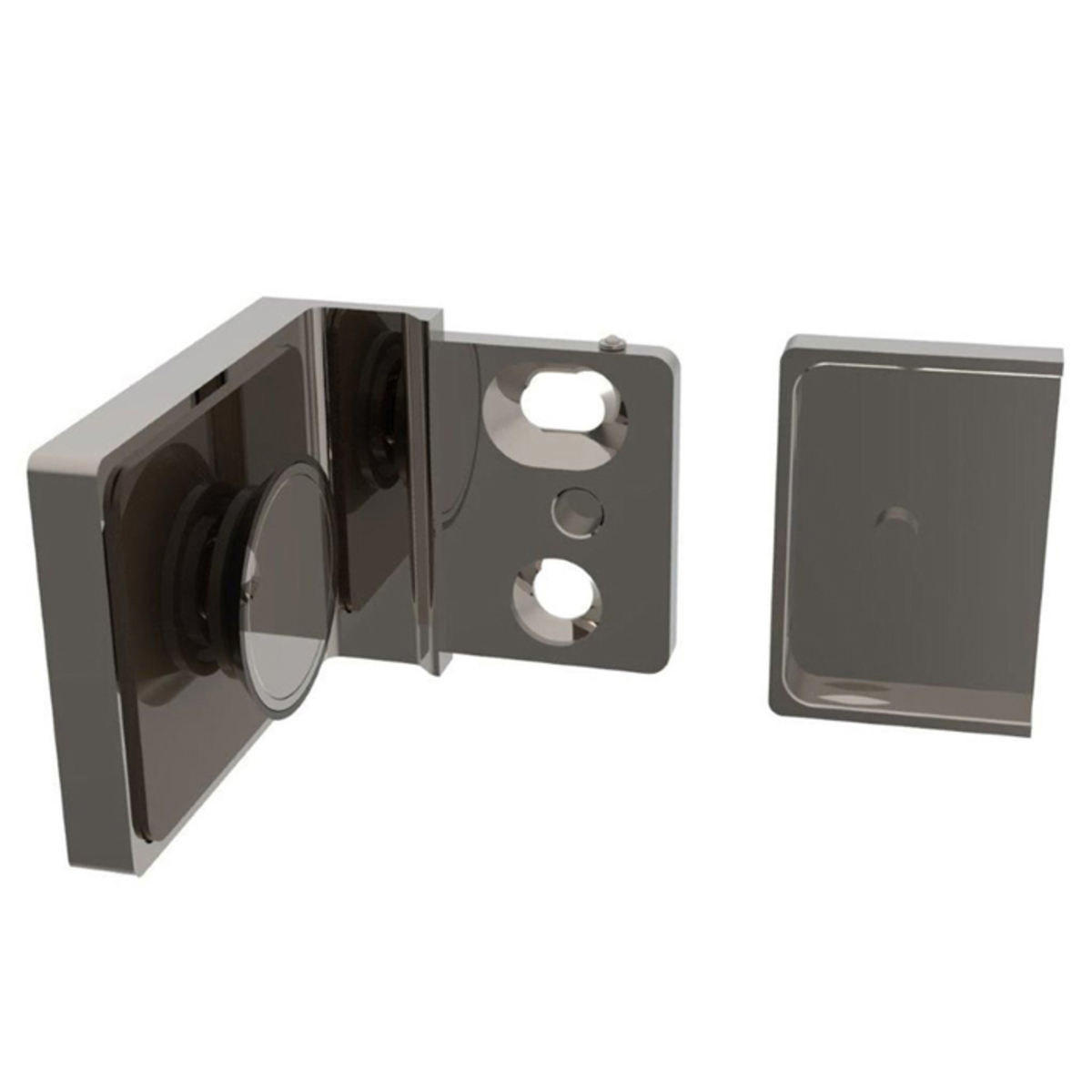

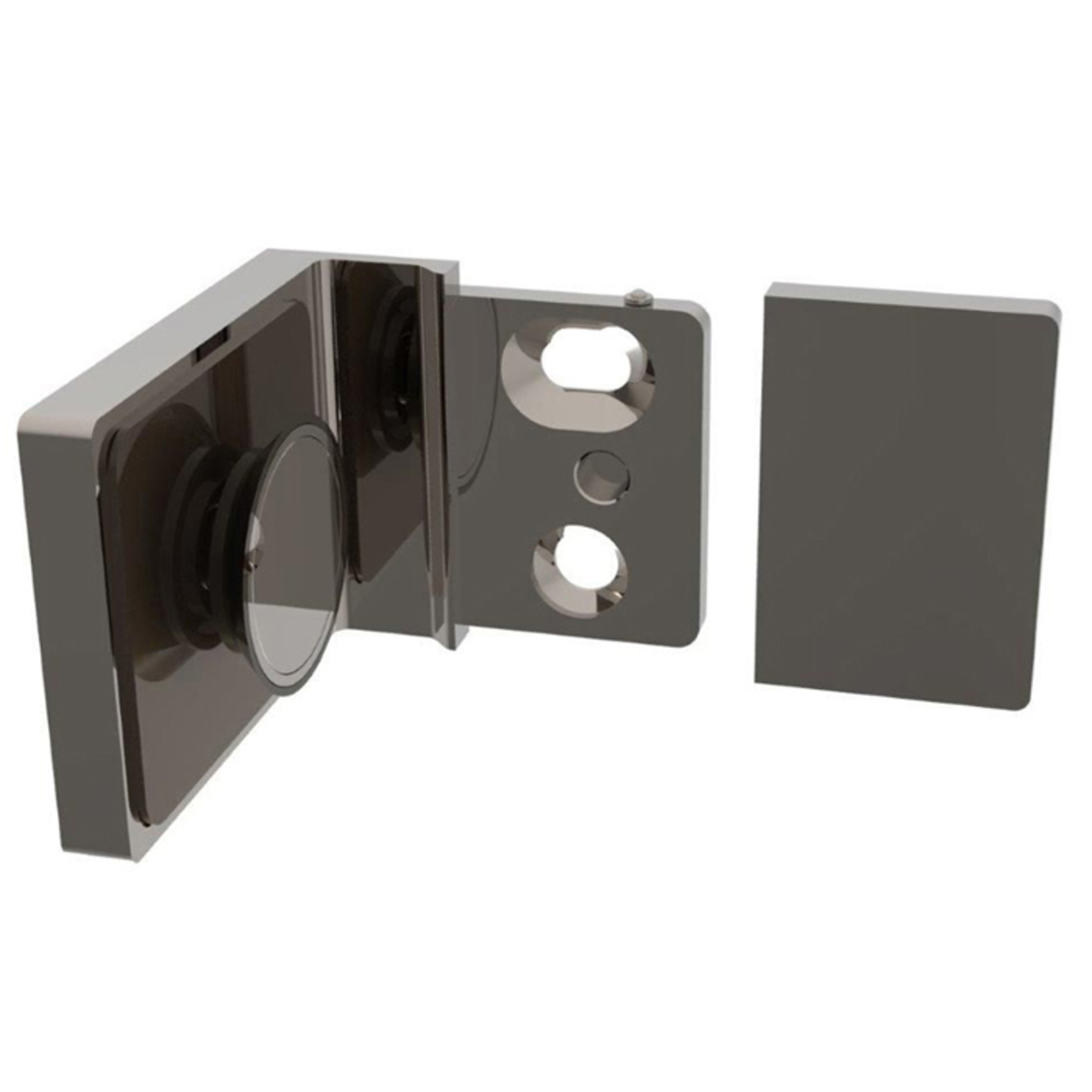

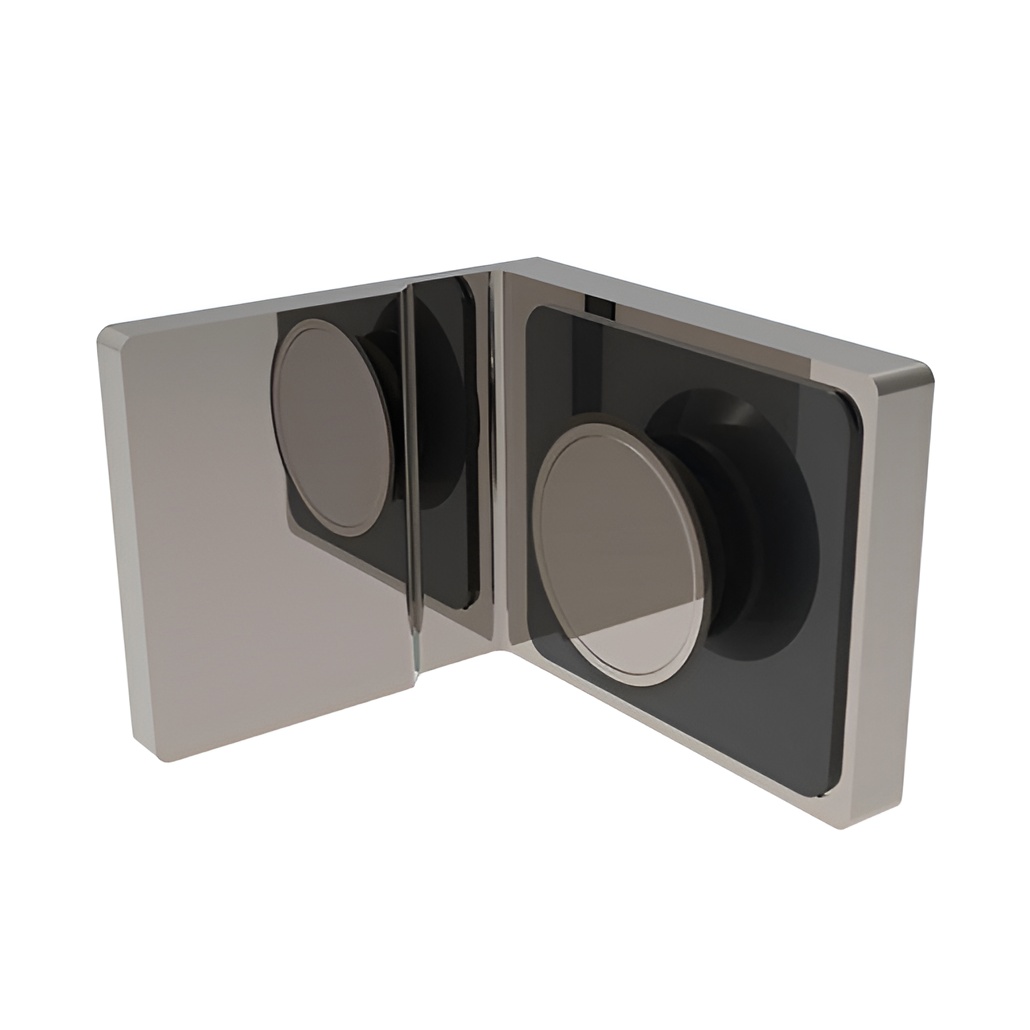

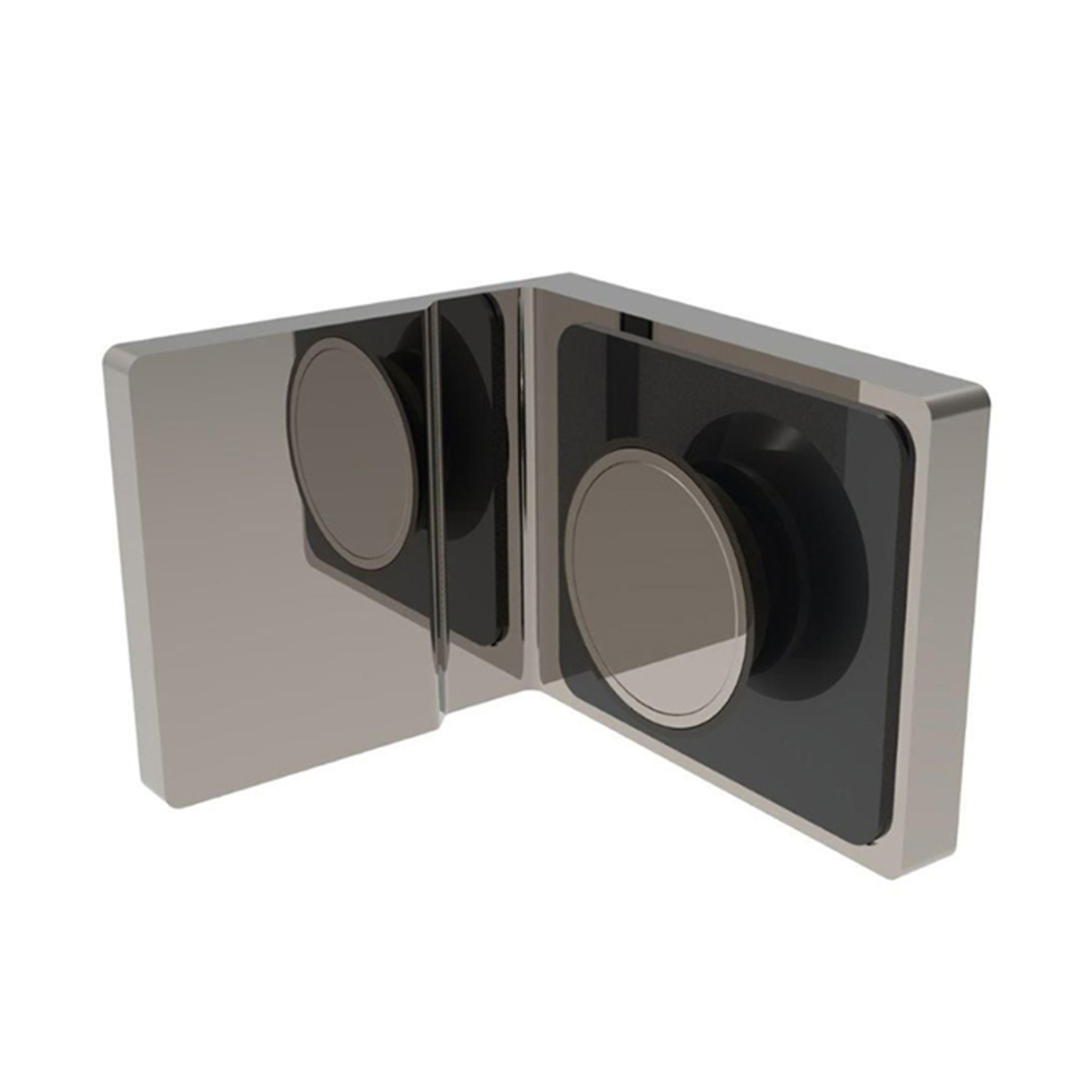

C.R. Laurence LU90SBN Brushed Nickel Lugano Series Wall Mount Bracket is expertly crafted to accommodate 5/16" to 3/8" (8 mm to 10 mm) thick glass, making it an ideal choice for various applications. Designed to complement the CRL All Glass Restroom Partition System, this bracket showcases an ultra-compact design that allows for easy cleaning of glass surfaces. Constructed from solid brass, it features a sleek brushed nickel finish that adds a touch of elegance to any space. The flush mount inside provides a seamless appearance, while the snap-on covers effectively conceal screws, enhancing the overall aesthetic. With the ability to serve as both a wall mount and horizontal shelf bracket, the LU90SBN is versatile and practical for different installation needs. The bracket requires one countersunk hole with a diameter of either 1" (25 mm) or 1-1/4" (32 mm) per unit, ensuring secure and stable attachment. It supports a maximum door weight of 99 lbs. (44.9 kg) and a maximum door width of 35-7/16 in. (900 mm), making it suitable for various environments. Elevate your design with the C.R. Laurence Lugano Series Wall Mount Bracket, where style meets functionality.
Brushed Nickel Lugano Series Wall Mount Bracket
CRL Lugano Series Wall Mount Brackets are designed to work with 5/16" to 3/8" (8 mm to 10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 1-15/16
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35-7/16 in. (900 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width - Sidelite Portion: 2-9/16
Width - Wall Portion: 2-15/16
