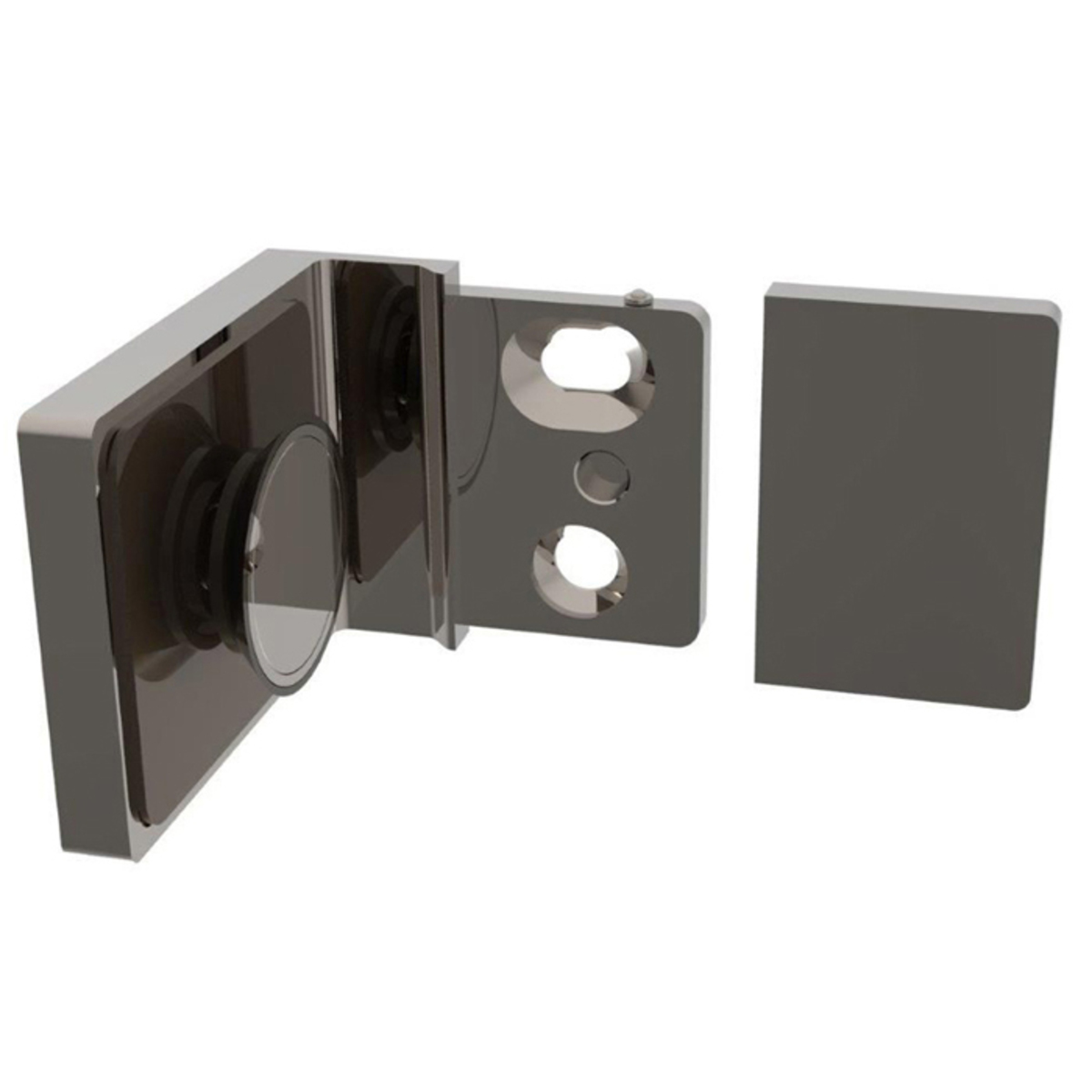

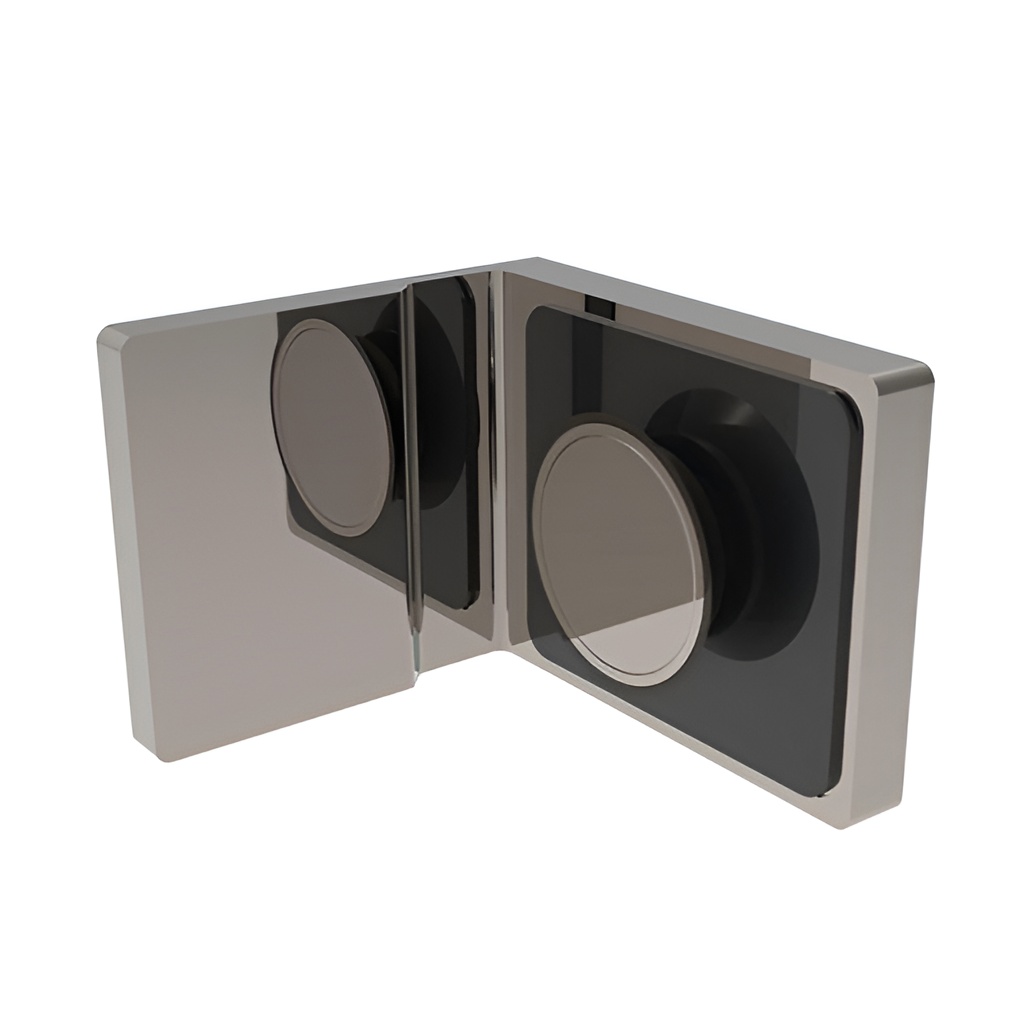

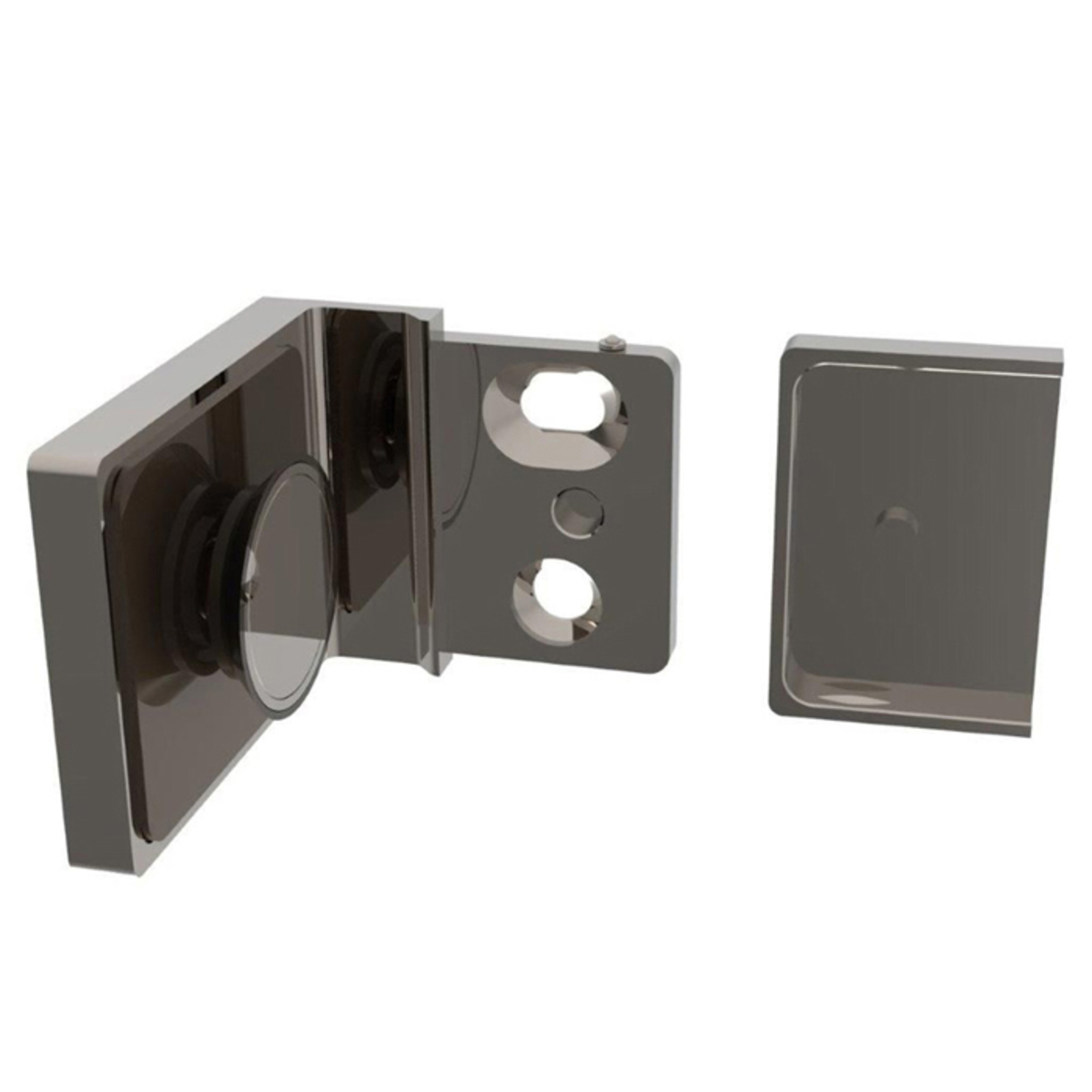

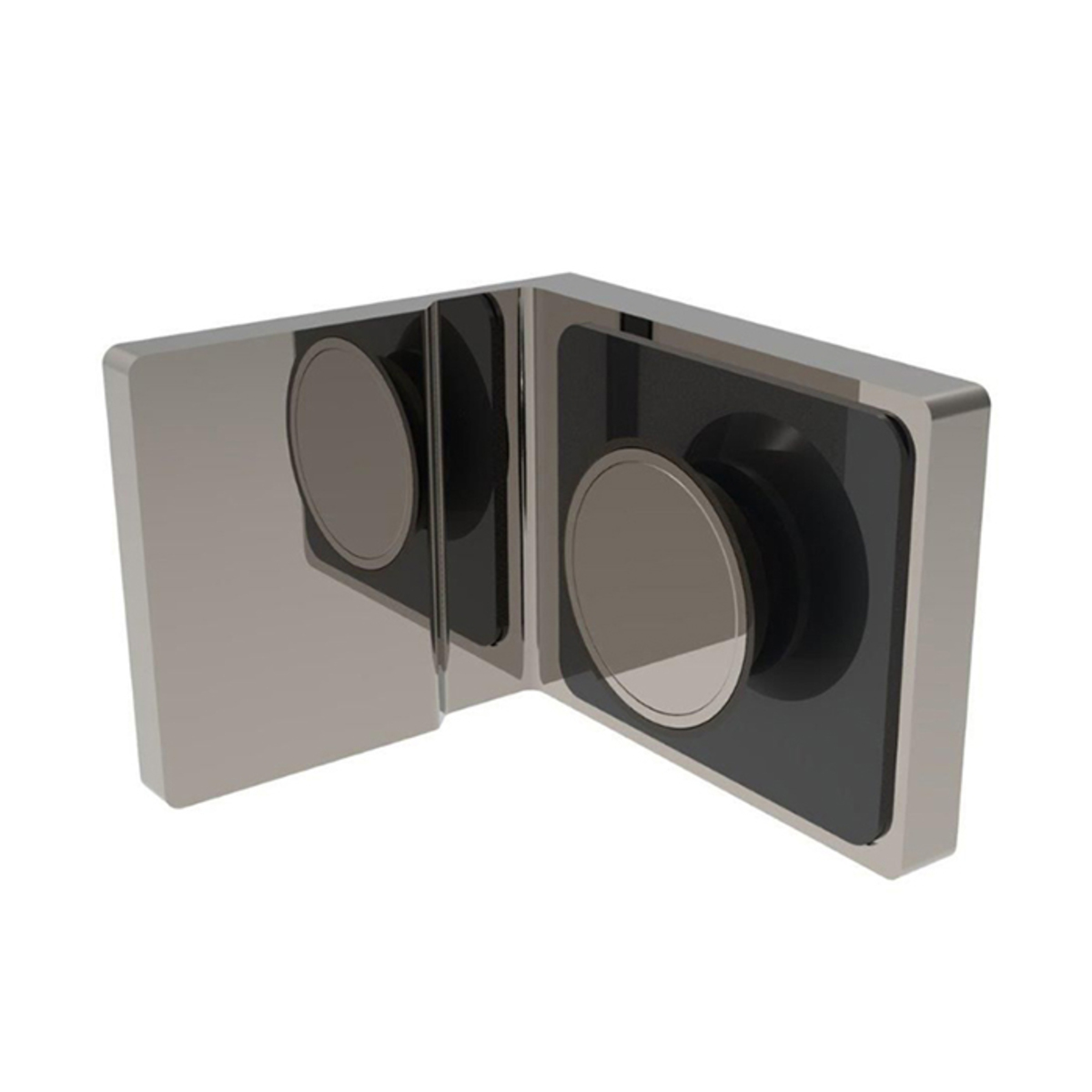

C.R. Laurence LU90SCH Polished Chrome Lugano Series Wall Mount Bracket is the ideal solution for securely mounting glass in a variety of applications. Designed to accommodate 5/16" to 3/8" (8 mm to 10 mm) tempered glass, this versatile bracket can also function as a horizontal shelf support, making it suitable for both residential and commercial environments. Its ultra-compact design ensures a sleek appearance while facilitating easy cleaning of the glass surface. Constructed from solid brass, the LU90SCH not only promises durability but also features a polished chrome finish that adds a touch of elegance to any space. The flush mount design allows for seamless integration into your walls, while snap-on covers effectively conceal screws, enhancing its aesthetic appeal. With a height of 1-15/16 in. (49 mm) and a width of 2-9/16 in. (65 mm) for the sidelites, this bracket is as functional as it is stylish. For installation, simply ensure one countersunk hole is made with either a 1" (25 mm) or 1-1/4" (32 mm) diameter per bracket. The LU90SCH is compatible with the CRL All Glass Restroom Partition System, making it a versatile choice for modern design needs.
Polished Chrome Lugano Series Wall Mount Bracket
CRL Lugano Series Wall Mount Brackets are designed to work with 5/16" to 3/8" (8 mm to 10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 1-15/16 in. (49 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35-7/16 in. (900 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width - Sidelite Portion: 2-9/16 in. (65 mm)
Width - Wall Portion: 2-15/16 in. (75 mm)
