C.R. Laurence LU90SMBL Matte Black Lugano Series Wall Mount Bracket is expertly engineered for 5/16" to 3/8" (8 mm to 10 mm) thick glass, making it a versatile choice for various applications, including the CRL All Glass Restroom Partition System. Crafted from solid brass, this bracket not only offers exceptional durability but also boasts an ultra-compact design that enhances any interior space with its sleek matte black finish. This wall mount bracket features flush mounting for easy glass cleaning and snap-on covers that neatly conceal screws, providing a polished look. With square corners and edges, it harmonizes beautifully with many popular hinge and clamp series, ensuring a cohesive aesthetic throughout your project. Installation requires one countersunk hole with a diameter of either 1" (25mm) or 1-1/4" (32mm) per bracket, and it includes gaskets and mounting screws for added convenience. The Lugano Series is designed to support a maximum door weight of 99 lbs. (44.9 kg) and a maximum door width of 35-7/16 in. (900 mm), making it a reliable choice for both residential and commercial applications. Enjoy the perfect blend of style and functionality with the C.R. Laurence Lugano Series Wall Mount Bracket.

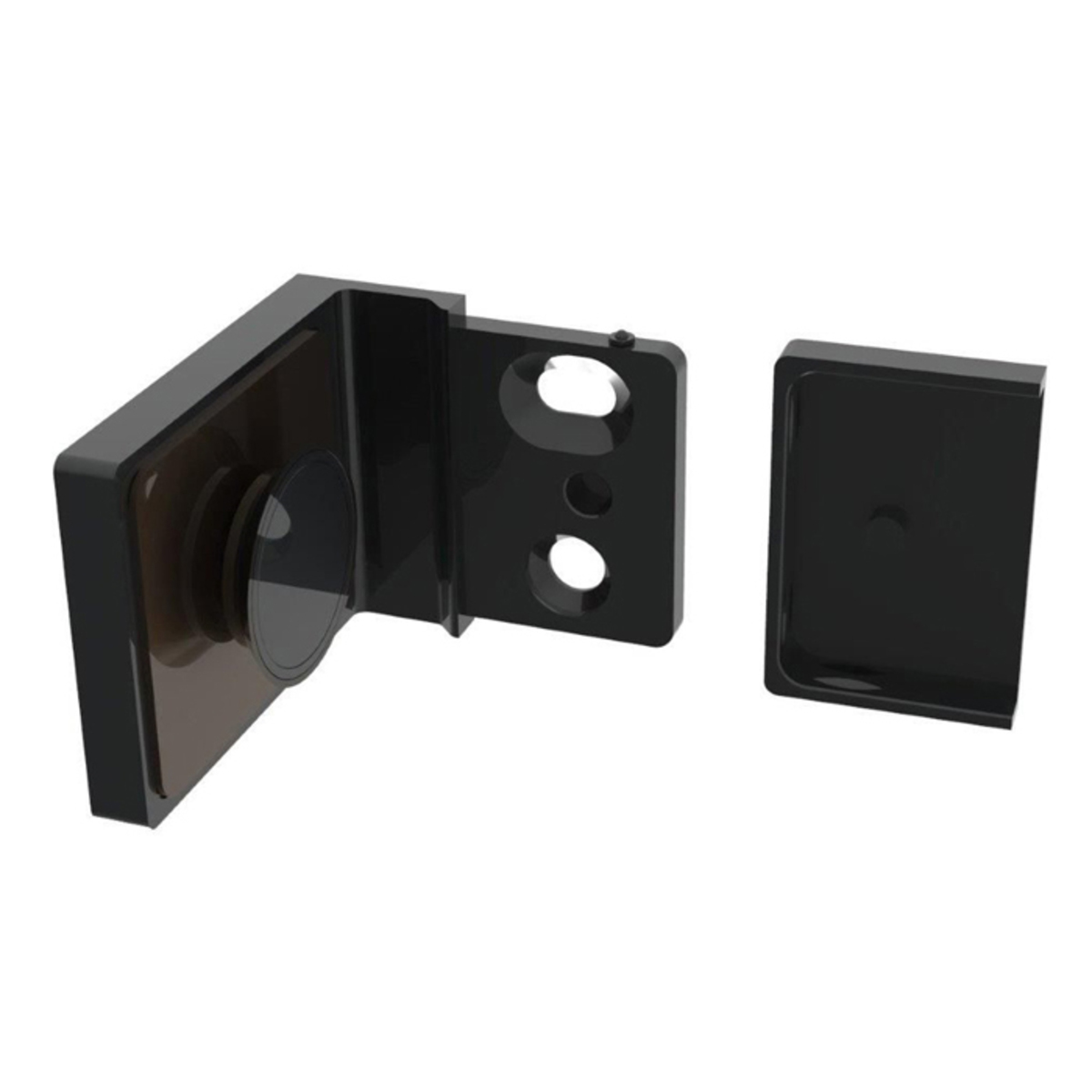

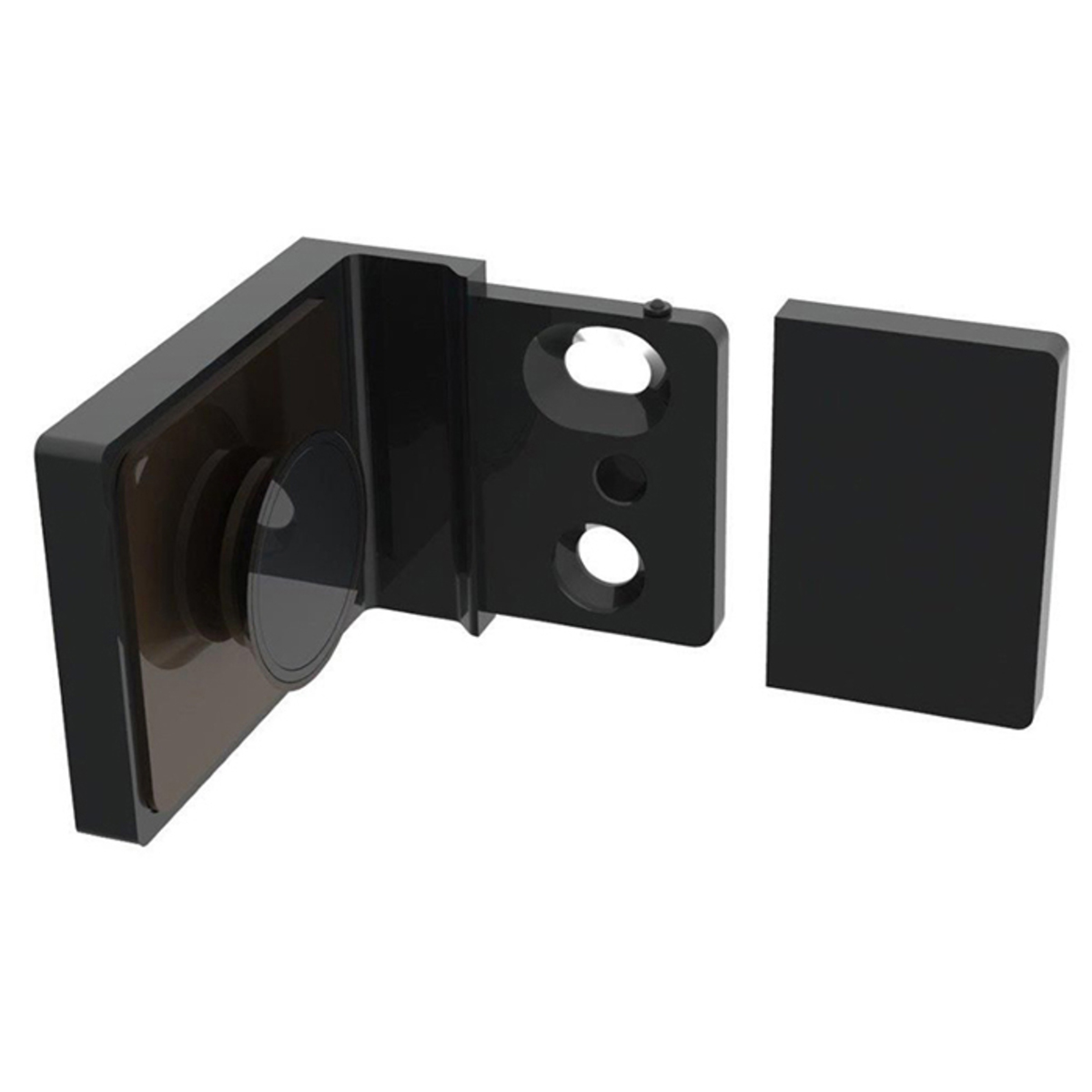

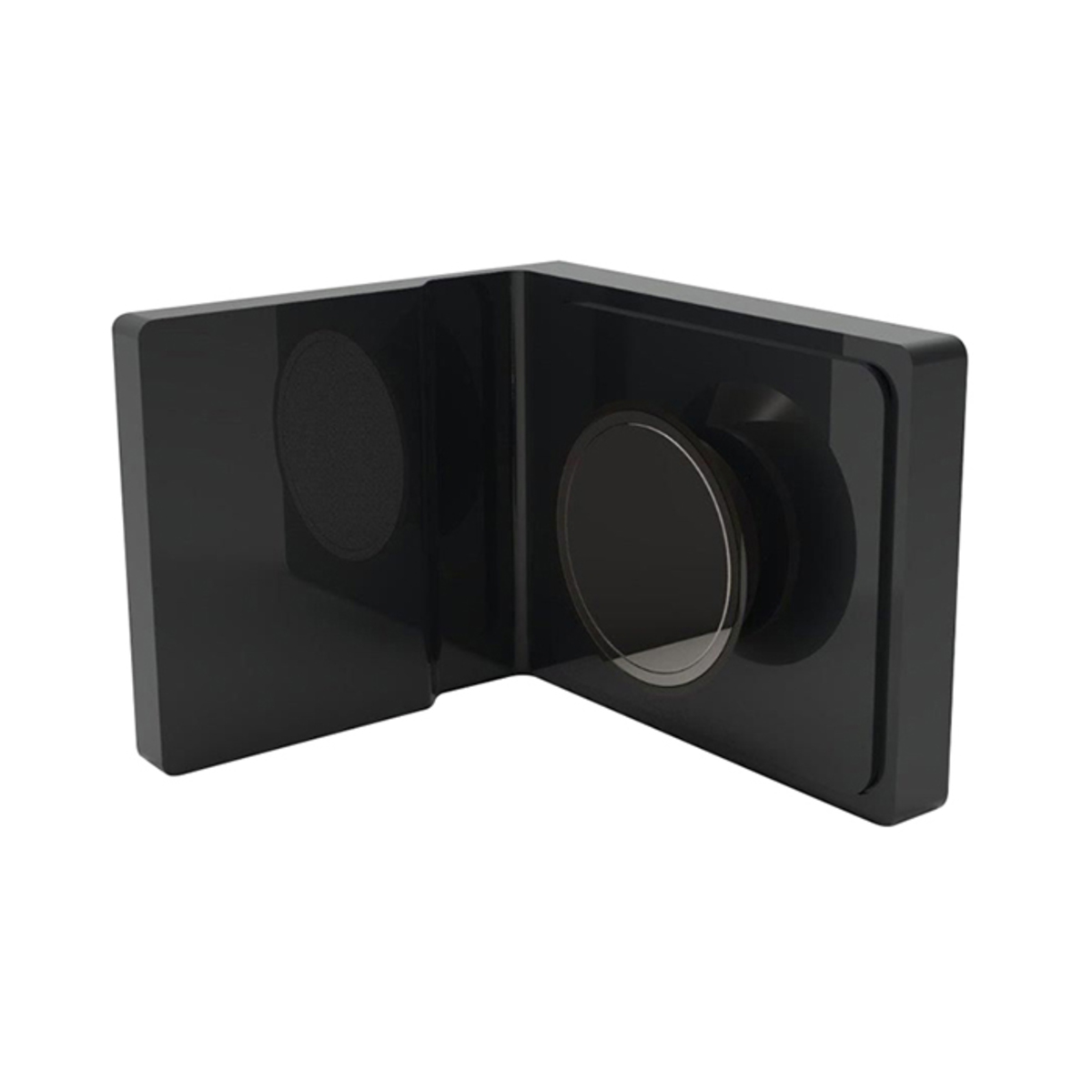

Matte Black Lugano Series Wall Mount Bracket
CRL Lugano Series Wall Mount Brackets are designed to work with 5/16" to 3/8" (8 mm to 10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Matte Black
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 1-15/16
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35-7/16 in. (900 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width - Sidelite Portion: 2-9/16
Width - Wall Portion: 2-15/16
