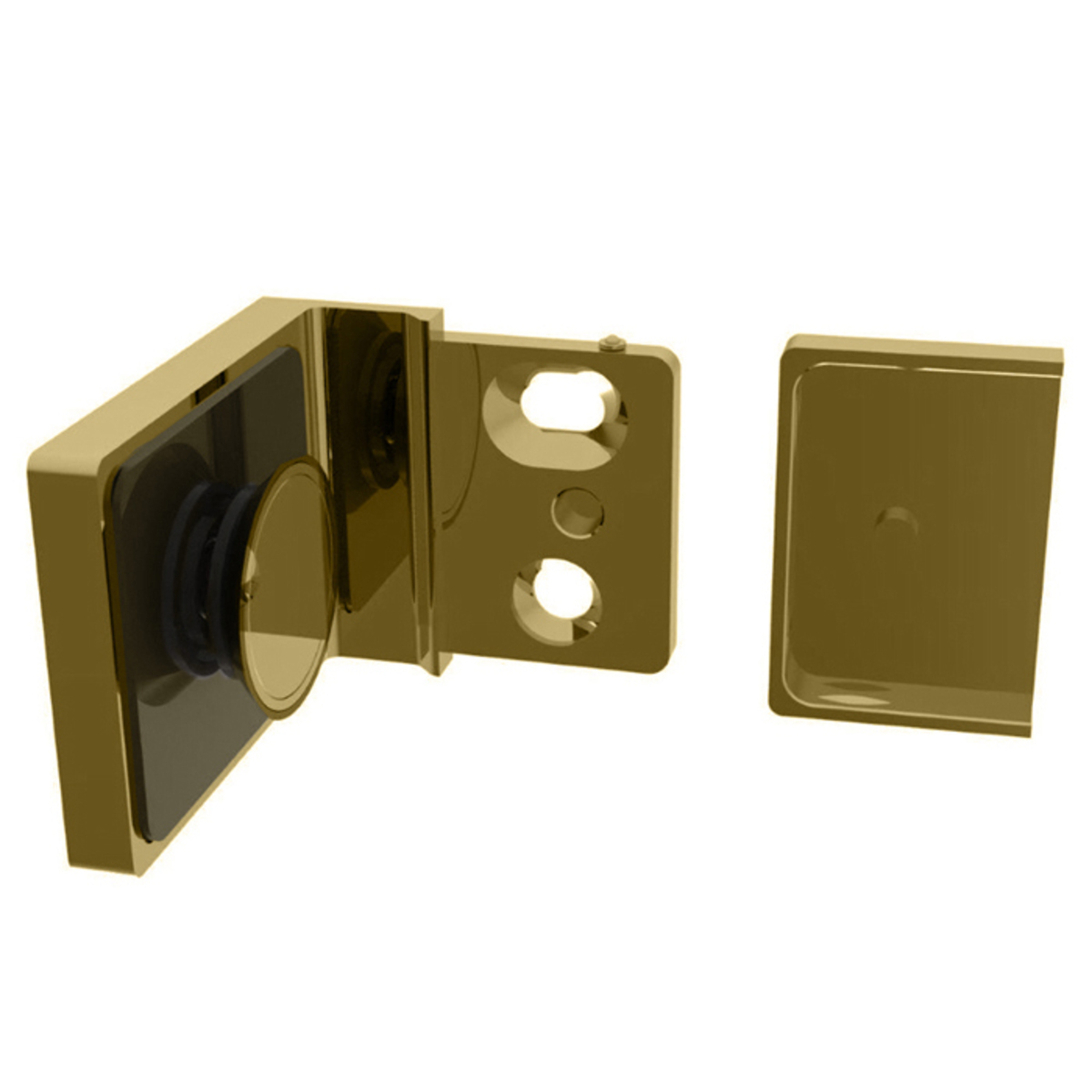

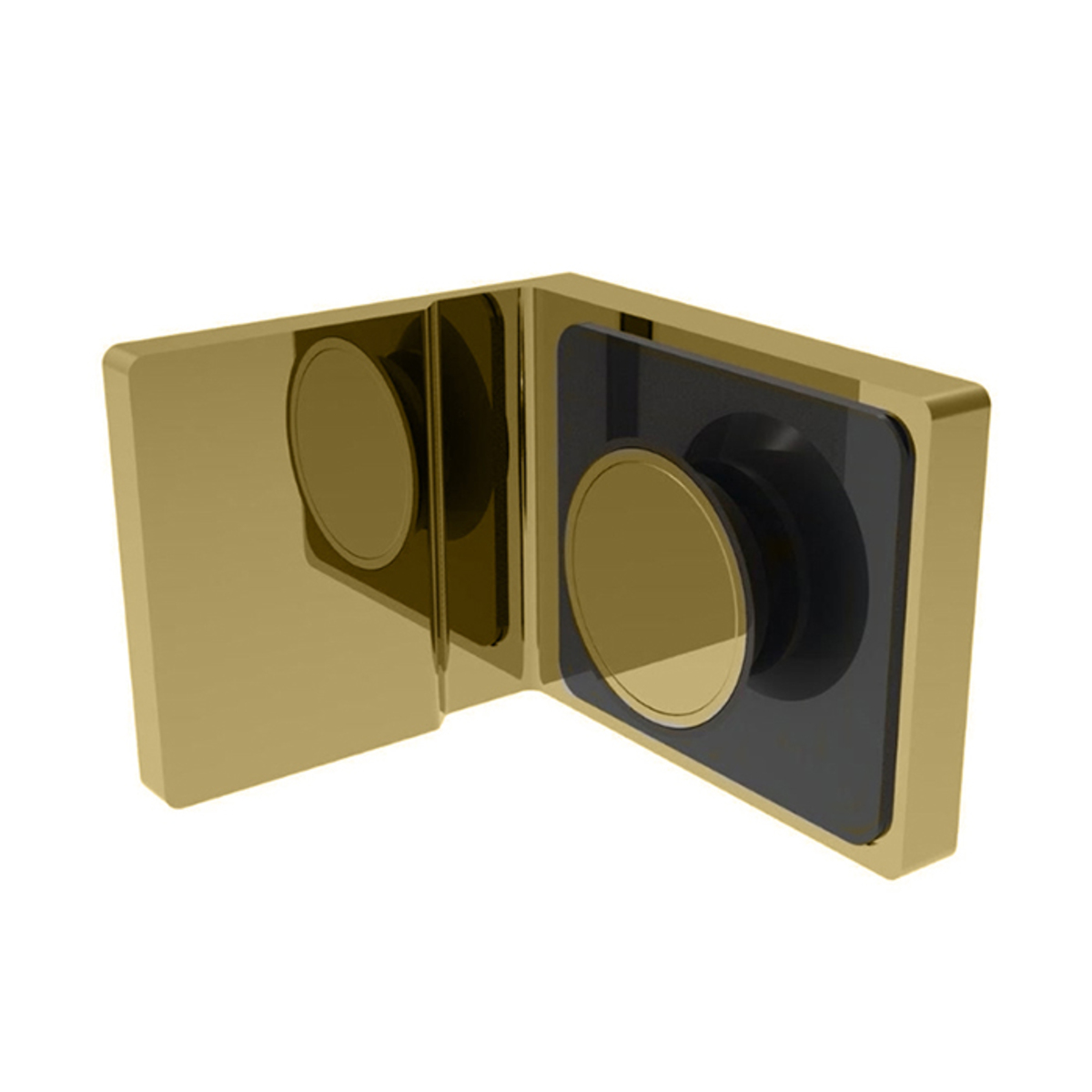

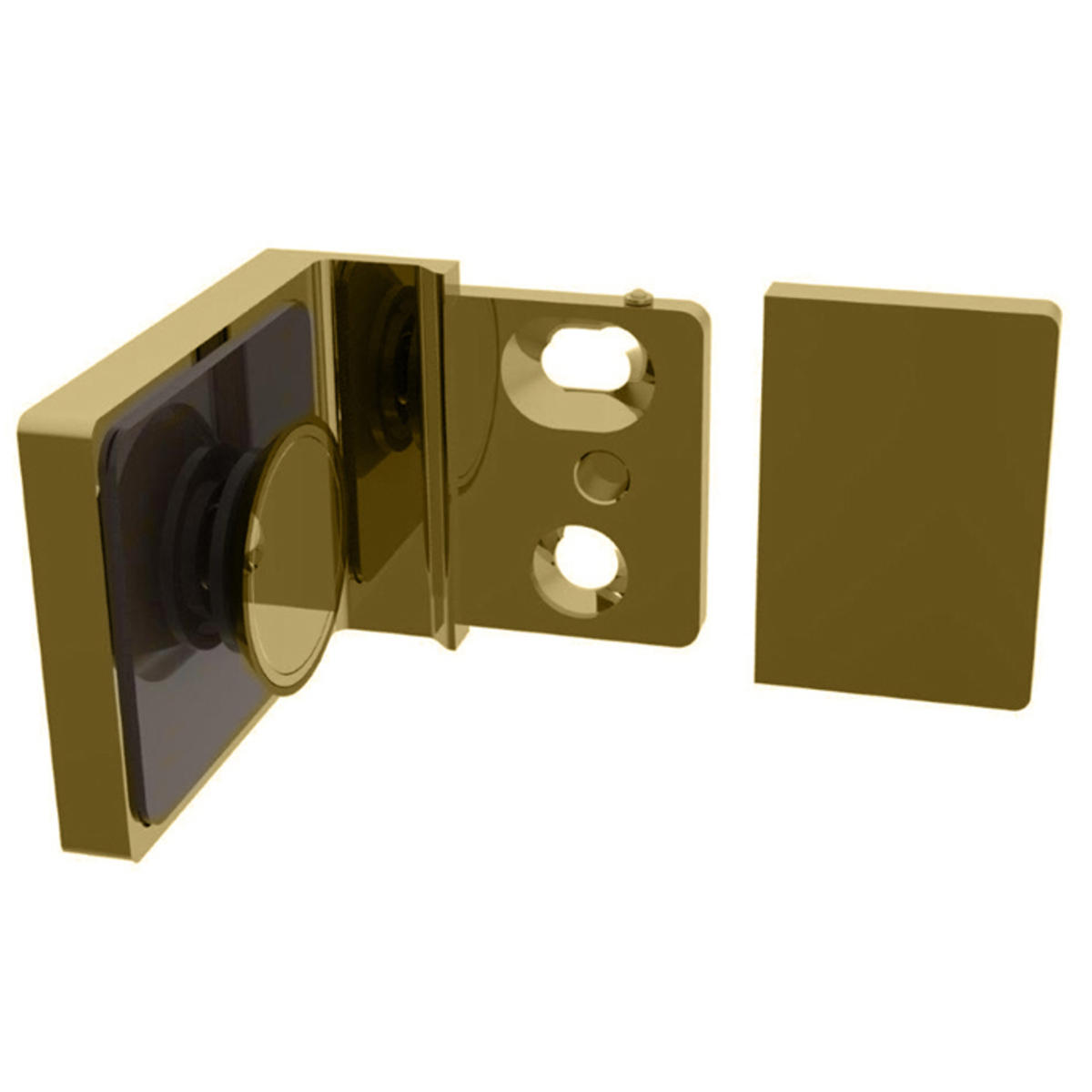

C.R. Laurence LU90SSB Satin Brass Lugano Series Wall Mount Bracket is expertly designed to accommodate 5/16" to 3/8" (8 mm to 10 mm) thick glass, making it an ideal choice for various applications, including the CRL All Glass Restroom Partition System. This ultra-compact bracket not only offers a sleek aesthetic but also features a flush mount design that simplifies glass cleaning, ensuring a polished look in any setting. Constructed from solid brass, the LU90SSB boasts durability while providing a stylish solution for attaching glass to walls. Its snap-on covers effectively conceal screws, contributing to a seamless appearance. The bracket's square corners and clean lines complement many popular hinge and clamp configurations, enhancing its versatility. For installation, this wall mount bracket requires a countersunk hole with diameters of 1" (25mm) and 1-1/4" (32mm), making it straightforward to fit into various designs. Moreover, it supports a maximum door weight of 99 lbs (44.9 kg) and a maximum door width of 35-7/16" (900 mm). With the LU90SSB, you gain a premium, concealed mounting option that combines functionality with an elegant satin brass finish, perfect for discerning professionals and homeowners alike.
Satin Brass Lugano Series Wall Mount Bracket
CRL Lugano Series Wall Mount Brackets are designed to work with 5/16" to 3/8" (8 mm to 10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Satin Brass
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 1-15/16 in. (49 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35-7/16 in. (900 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width - Sidelite Portion: 2-9/16
Width - Wall Portion: 2-15/16
