C.R. Laurence LUG044LBBRZ Brushed Bronze Lugano Series Wall Mount Outswing Hinge is the perfect solution for enhancing both functionality and aesthetics in your glass installations. Designed for right-hand doors, this hinge features a sleek, modern design that seamlessly accommodates 5/16 to 3/8 inch (8 to 10 mm) glass, making it an ideal choice for various applications, including corner and niche enclosures. One of its standout features is the rise and fall action of 3/16 inch (5 mm), ensuring smooth operation while maintaining a clean appearance. The flush mount design allows for easy cleaning of the glass, while snap-on covers effectively conceal screws for a polished look. This hinge supports a maximum door width of 35 inches and a weight capacity of up to 99 pounds (44 kg), ensuring durability without compromising style. Rigorously tested to withstand 100,000 cycles-five times the industry standard-this hinge guarantees long-lasting performance. Additionally, it is designed for wheelchair accessibility with no ledge required. Crafted from high-quality brass and finished in brushed bronze, the Lugano Series Hinge not only enhances your space's functionality but also adds a touch of elegance. Upgrade your glass door systems with this premium hinge that combines strength, style, and reliability.

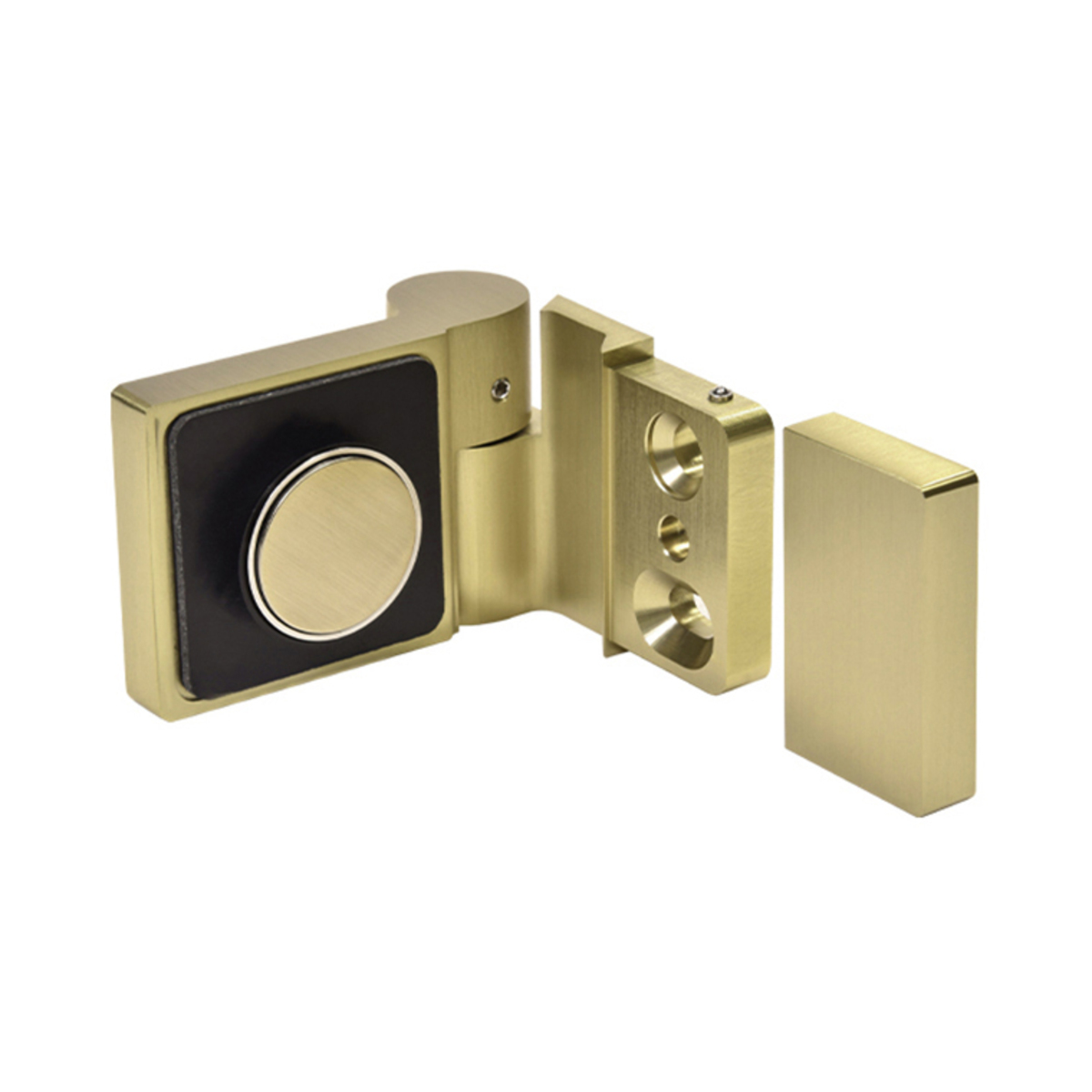

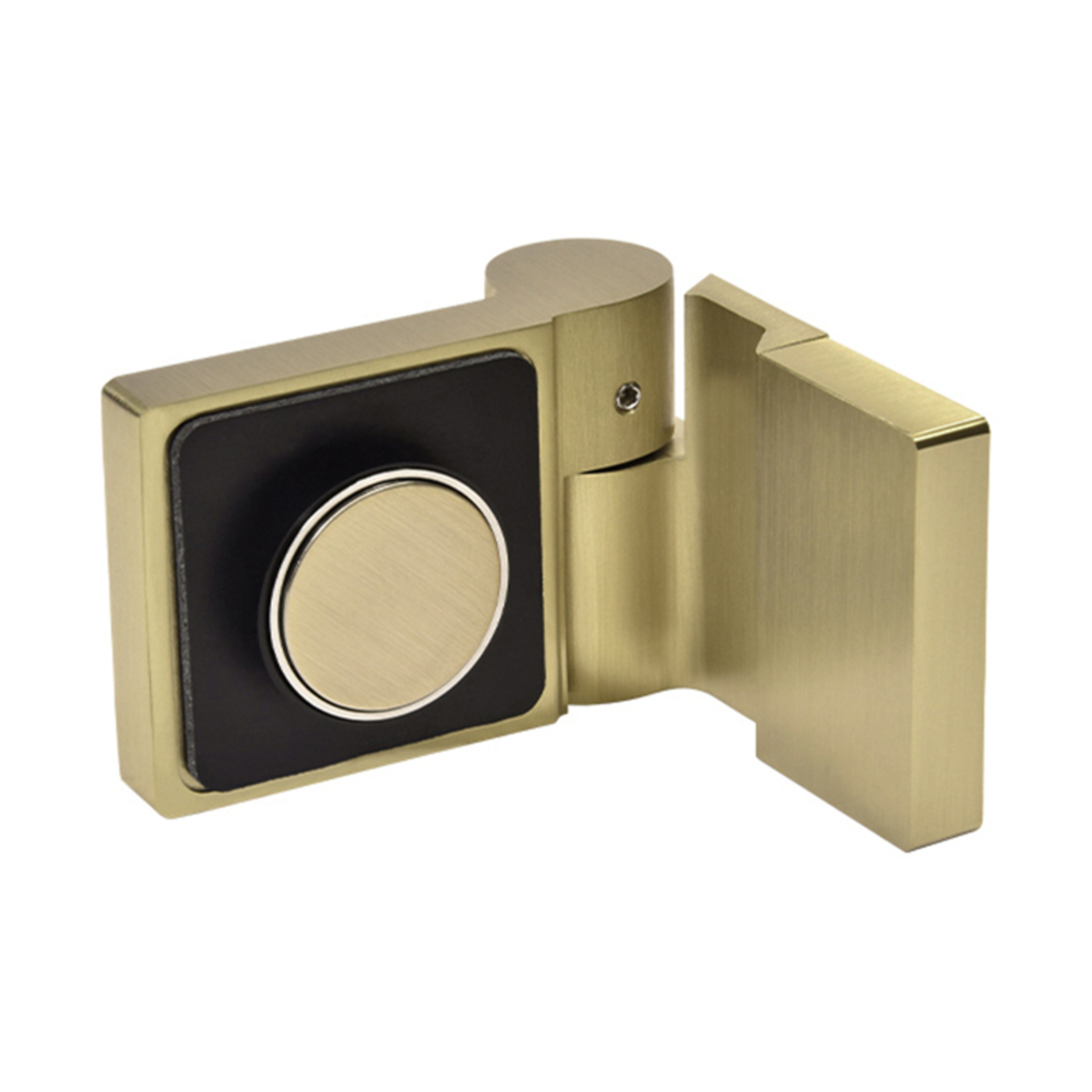

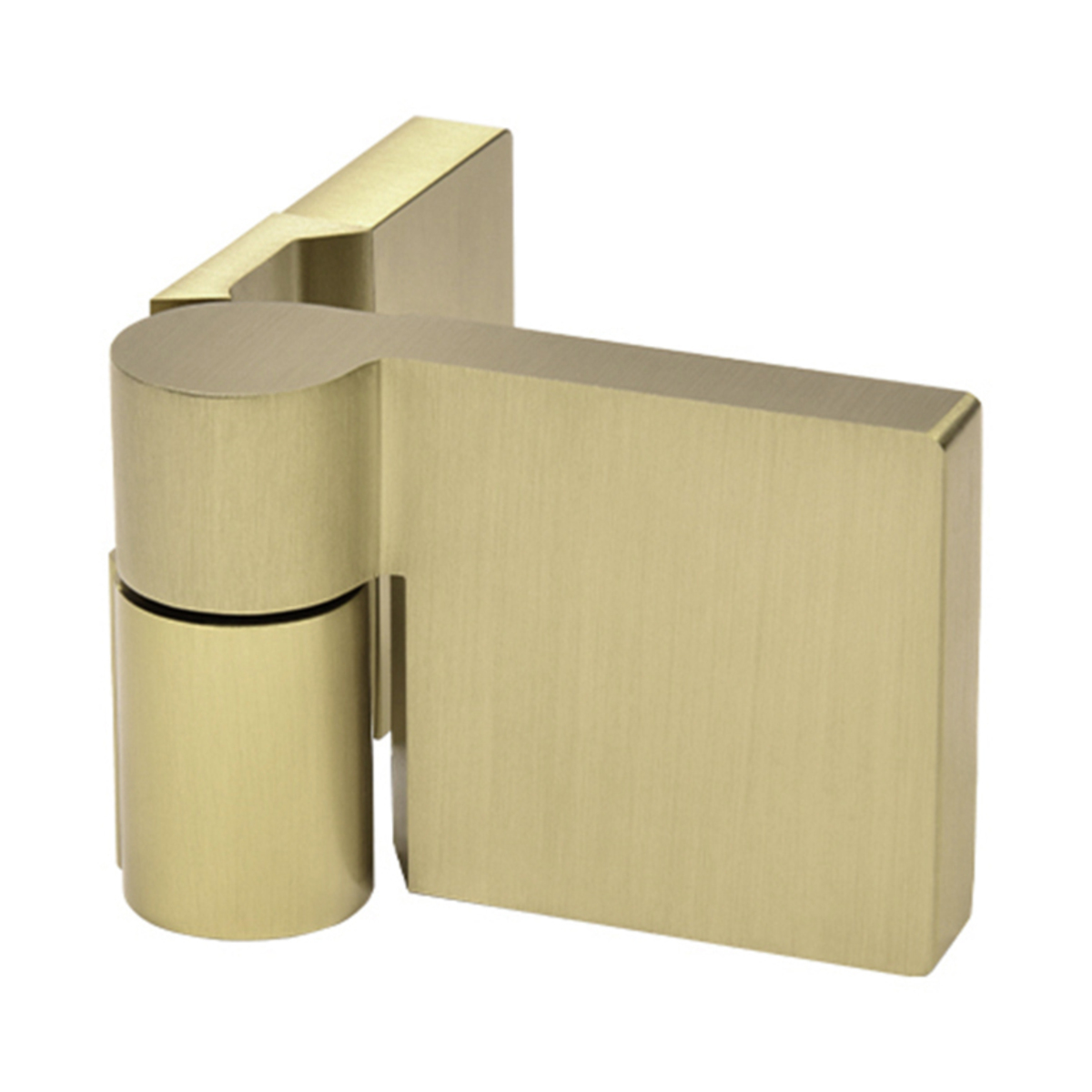

Brushed Bronze Lugano Series Wall Mount Outswing Hinge - For Right Hand Door
The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Bronze
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Right Hand
Height: 1-31/32 in. (50 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35 in. (889 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width: 1-31/32 in. (50 mm)
