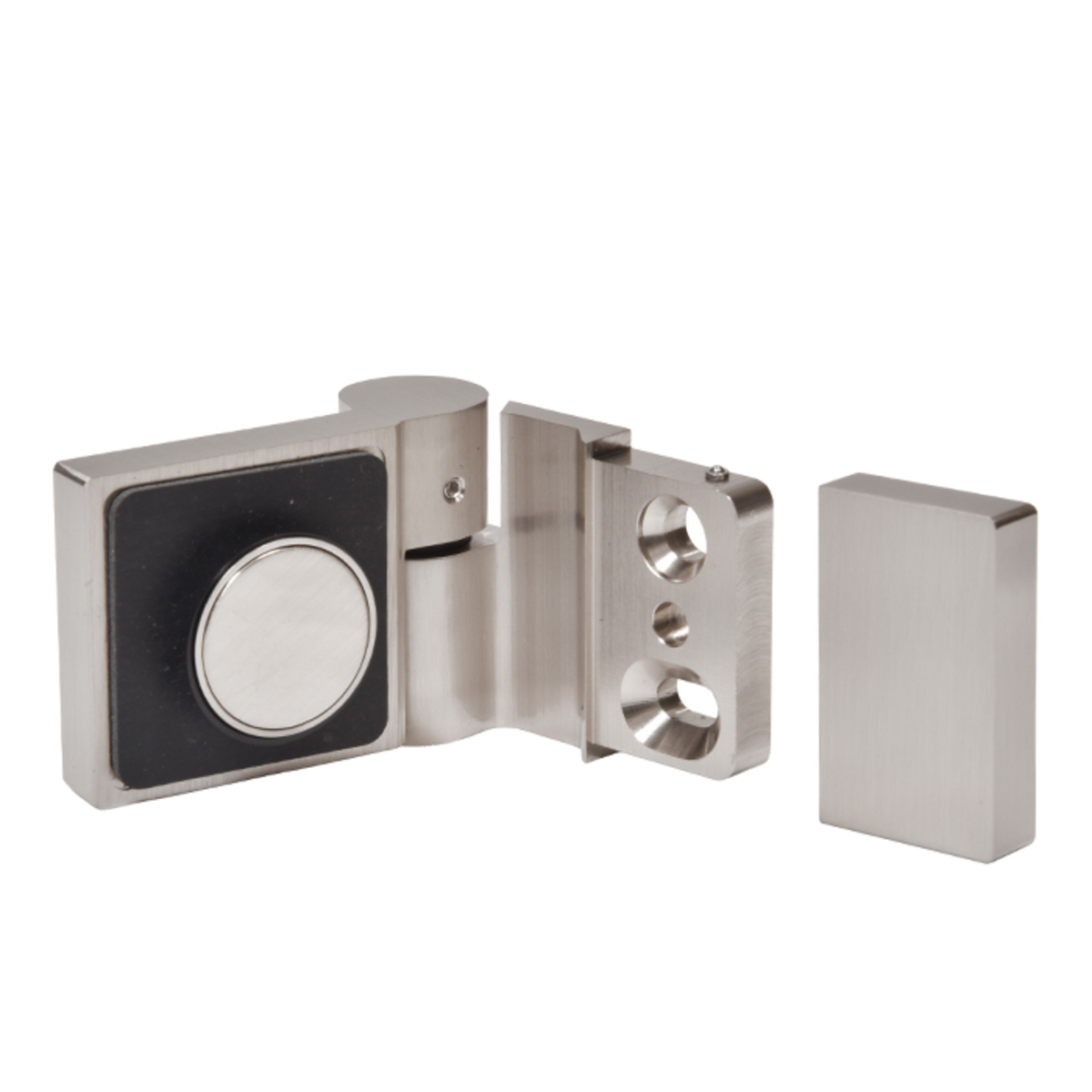

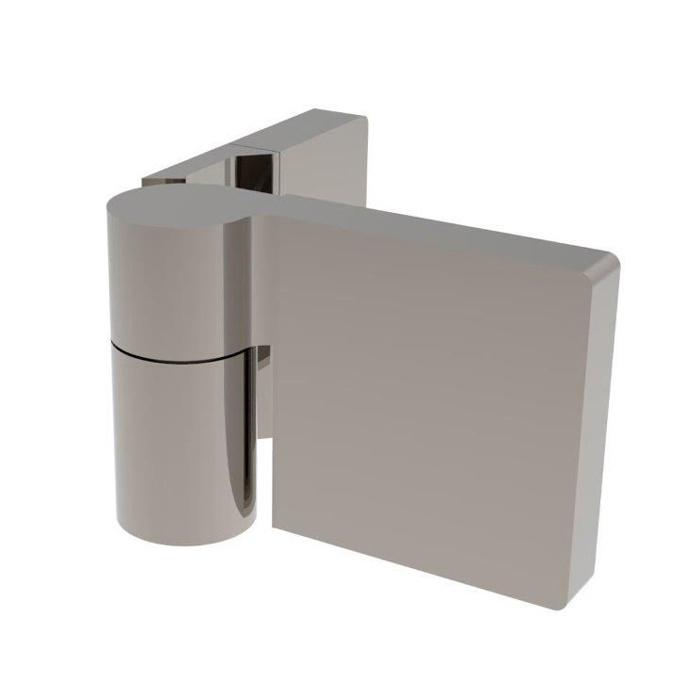

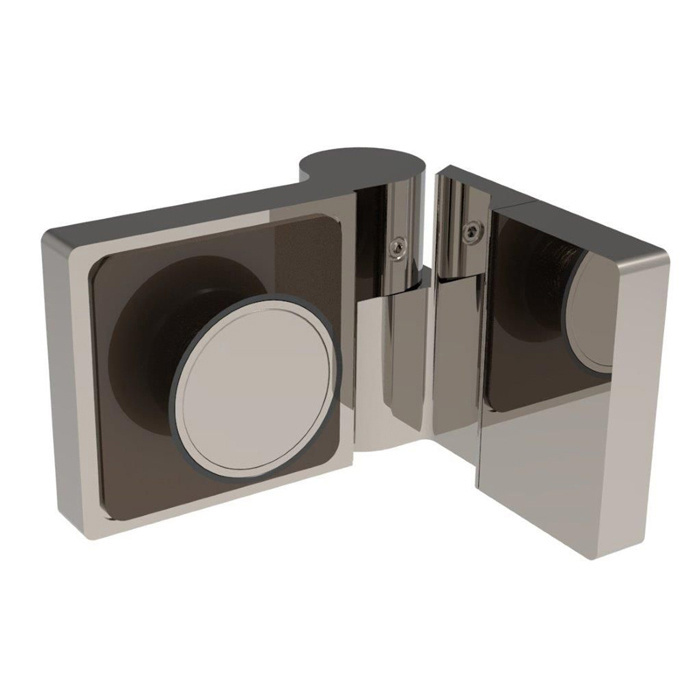

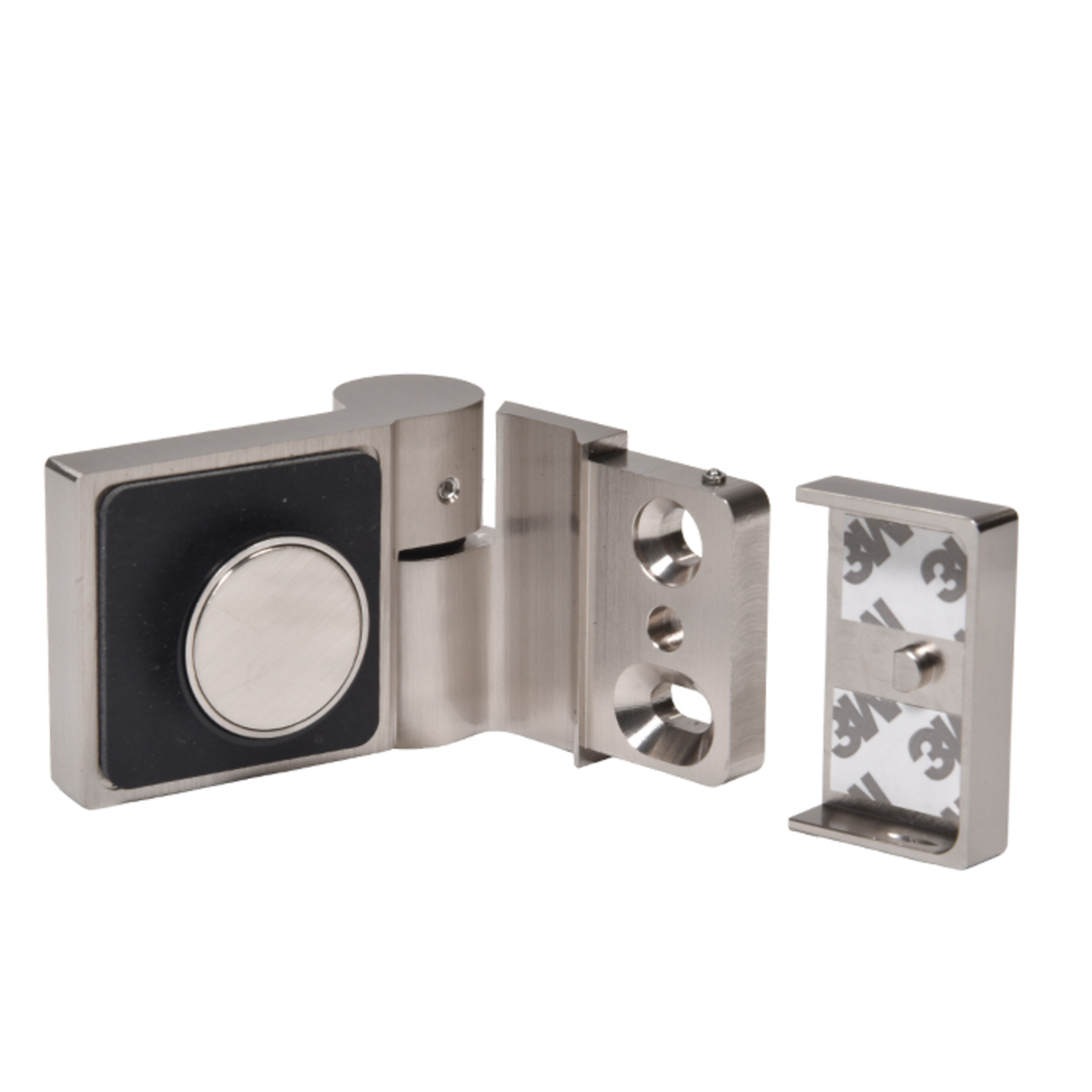

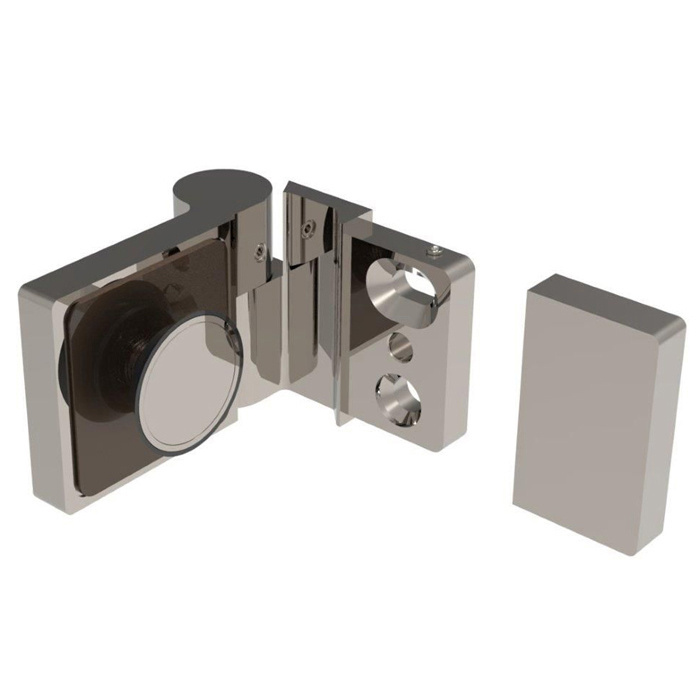

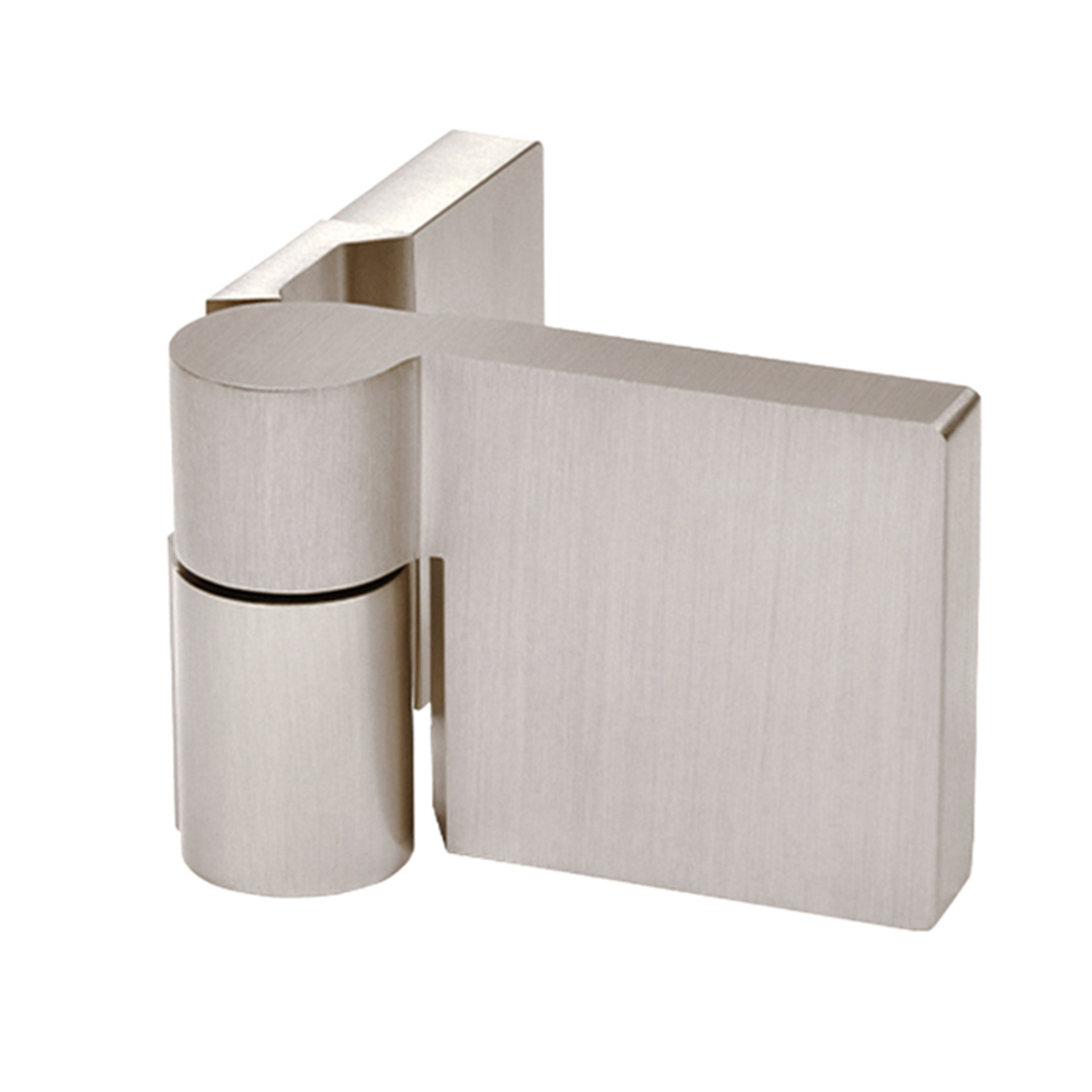

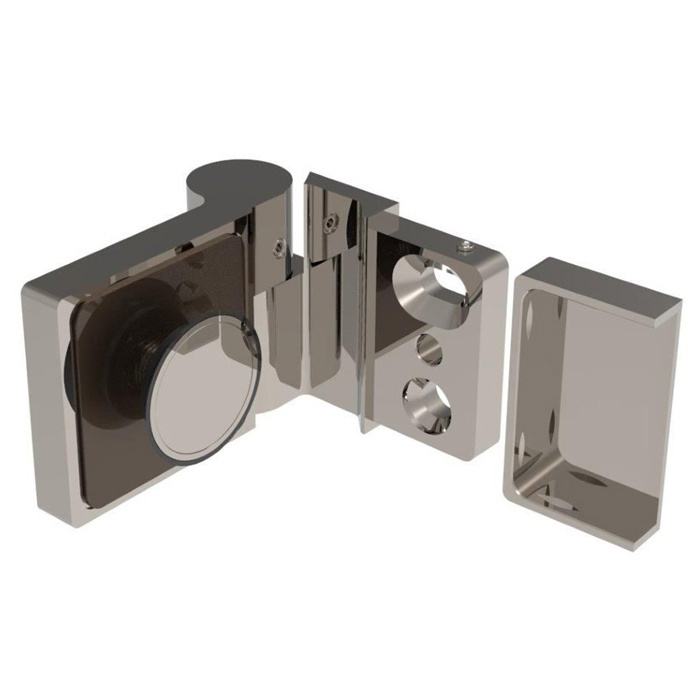

C.R. Laurence LUG044LBN Brushed Nickel Lugano Series Wall Mount Outswing Hinge is designed for right-hand doors, combining sleek aesthetics with robust functionality. This hinge features a rise and fall action of 3/16 inches (5mm), ensuring smooth operation for glass thicknesses ranging from 5/16 to 3/8 inches (8 to 10 mm). Its innovative design is particularly suited for pitched curbs and applications requiring wheelchair accessibility, as it operates effectively without a ledge. The LUG044LBN hinge is engineered for durability, rigorously tested to withstand 100,000 cycles-five times more than the industry standard. With a maximum door width of 35 inches and a weight capacity of 99 pounds (44 kg), it provides reliable support for your glass installations. The self-centering feature within 60° of the closed position enhances ease of use, while the flush mount design simplifies glass cleaning. For a seamless look, snap-on covers conceal screws, contributing to its premium, concealed design style. The hinge is crafted from brass with a brushed nickel finish, offering both elegance and resilience. Ideal for corner, niche, bathtub, and tailor-made solutions, the C.R. Laurence LUG044LBN is the perfect choice for modern architectural applications.

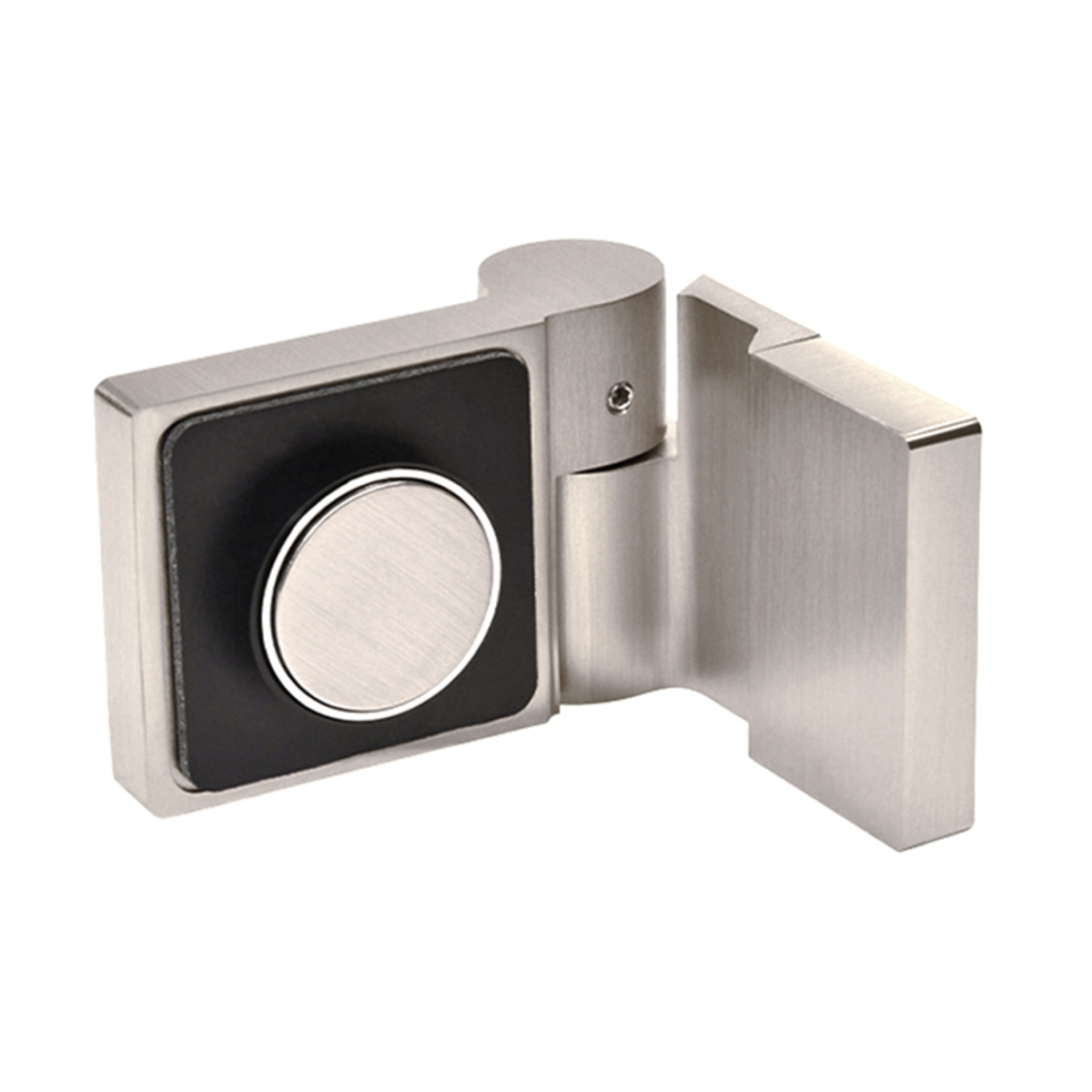

Brushed Nickel Lugano Series Wall Mount Outswing Hinge - For Right Hand Door
The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Right Hand

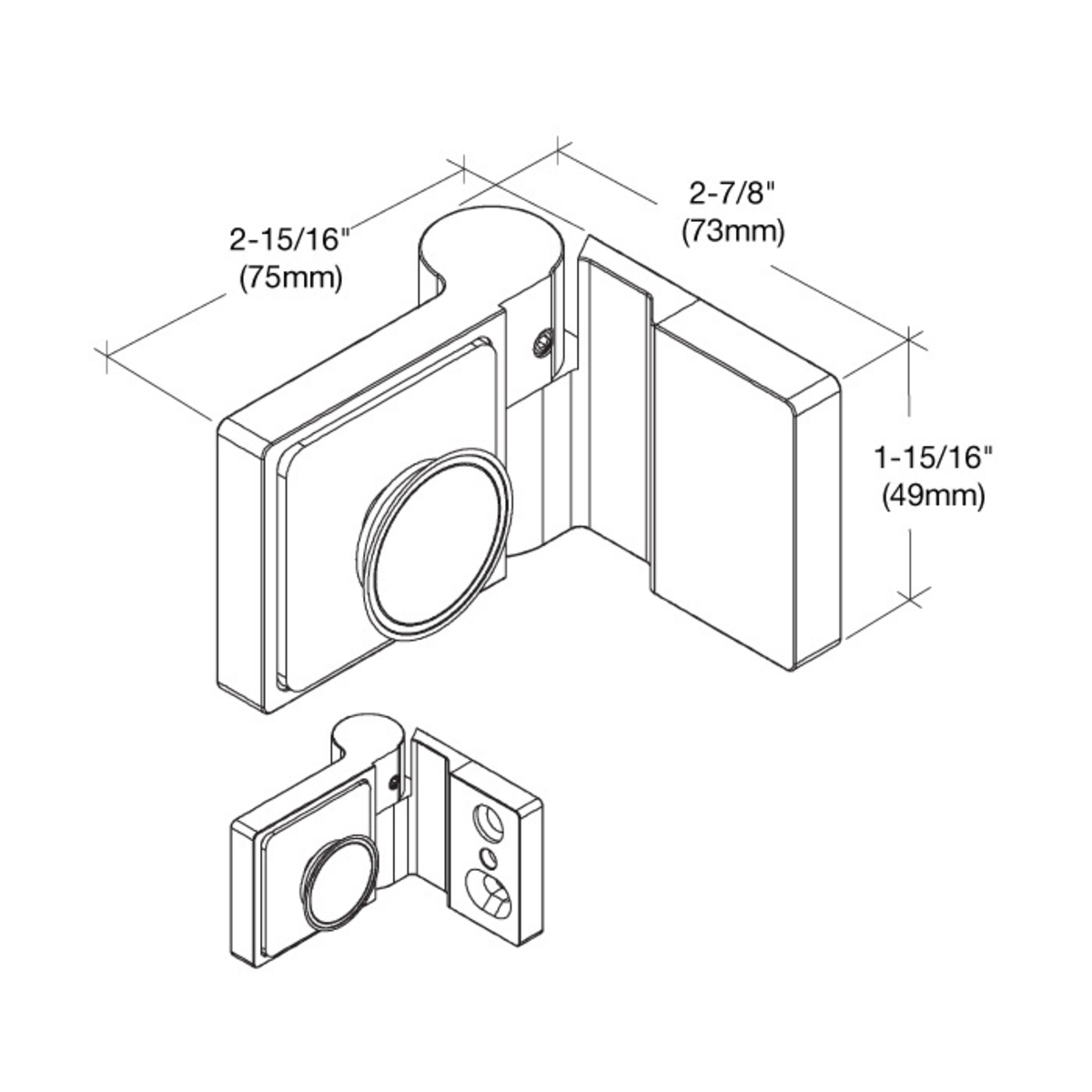

Height: 1-31/32 in. (50 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35 in. (889 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width: 1-31/32 in. (50 mm)
