C.R. Laurence LUG044LCH Polished Chrome Lugano Series Wall Mount Outswing Hinge for Right Hand Door offers a sophisticated solution for modern glass applications. Designed for 5/16 to 3/8 inch (8 to 10 mm) glass, this hinge features a sleek profile that blends seamlessly with contemporary aesthetics. Its innovative rise and fall action of 3/16 inch (5 mm) ensures smooth operation while accommodating pitched curbs without the need for a ledge, enhancing wheelchair accessibility. Constructed from durable brass and finished in polished chrome, the LUG044LCH hinge not only exudes elegance but also provides strength and reliability. With a maximum door width of 35 inches and a weight capacity of 99 lbs (44 kg), it supports substantial glass doors while ensuring a self-centering mechanism within 60° of the closed position. Installation is straightforward, featuring flush mounting for easy glass cleaning, and snap-on covers that conceal screws for a clean look. Furthermore, this hinge has been rigorously tested for 100,000 cycles-five times more than industry standards-demonstrating its durability and long-lasting performance. Ideal for corner, niche, or tailor-made solutions, the Lugano Series hinge is a premium choice for any architectural project.

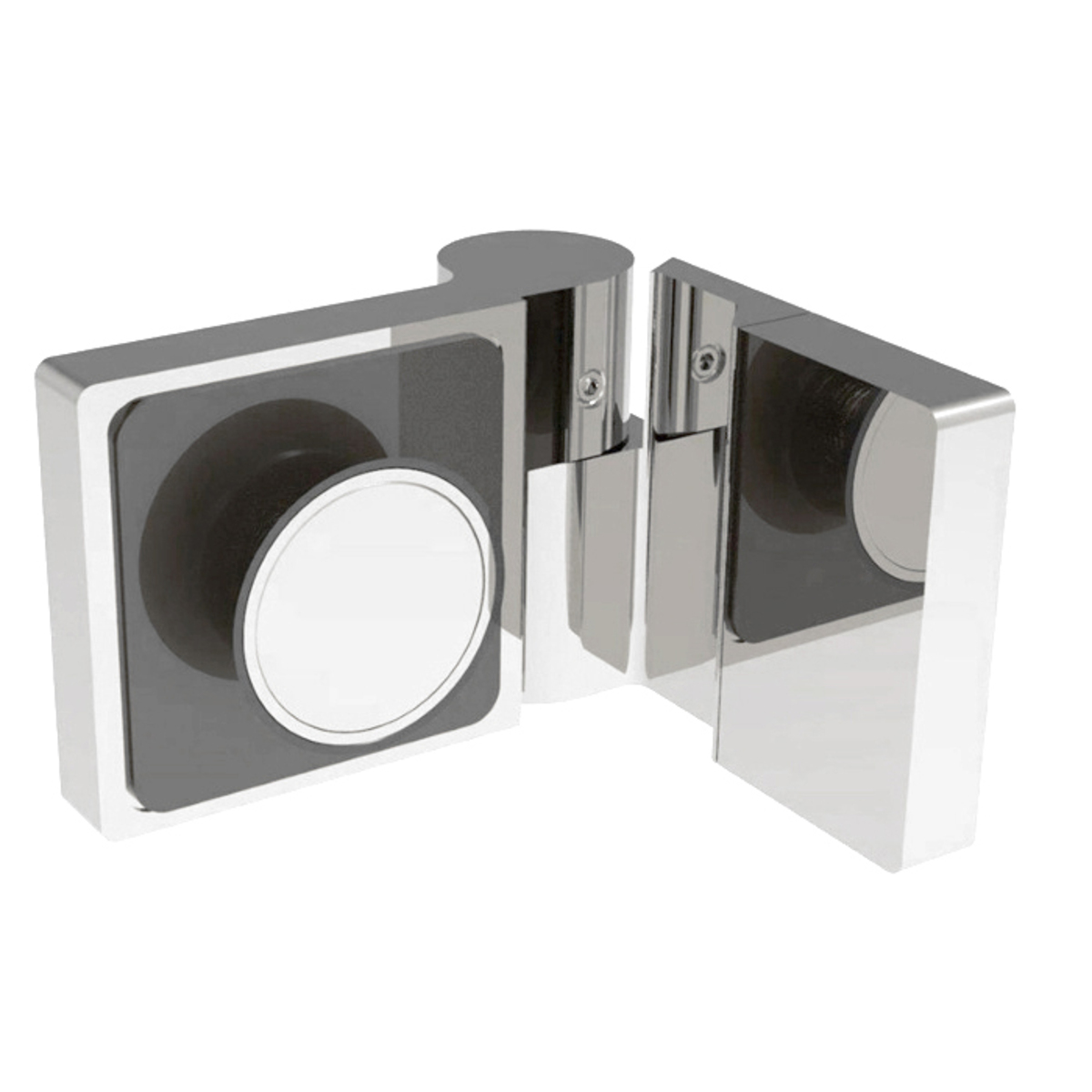

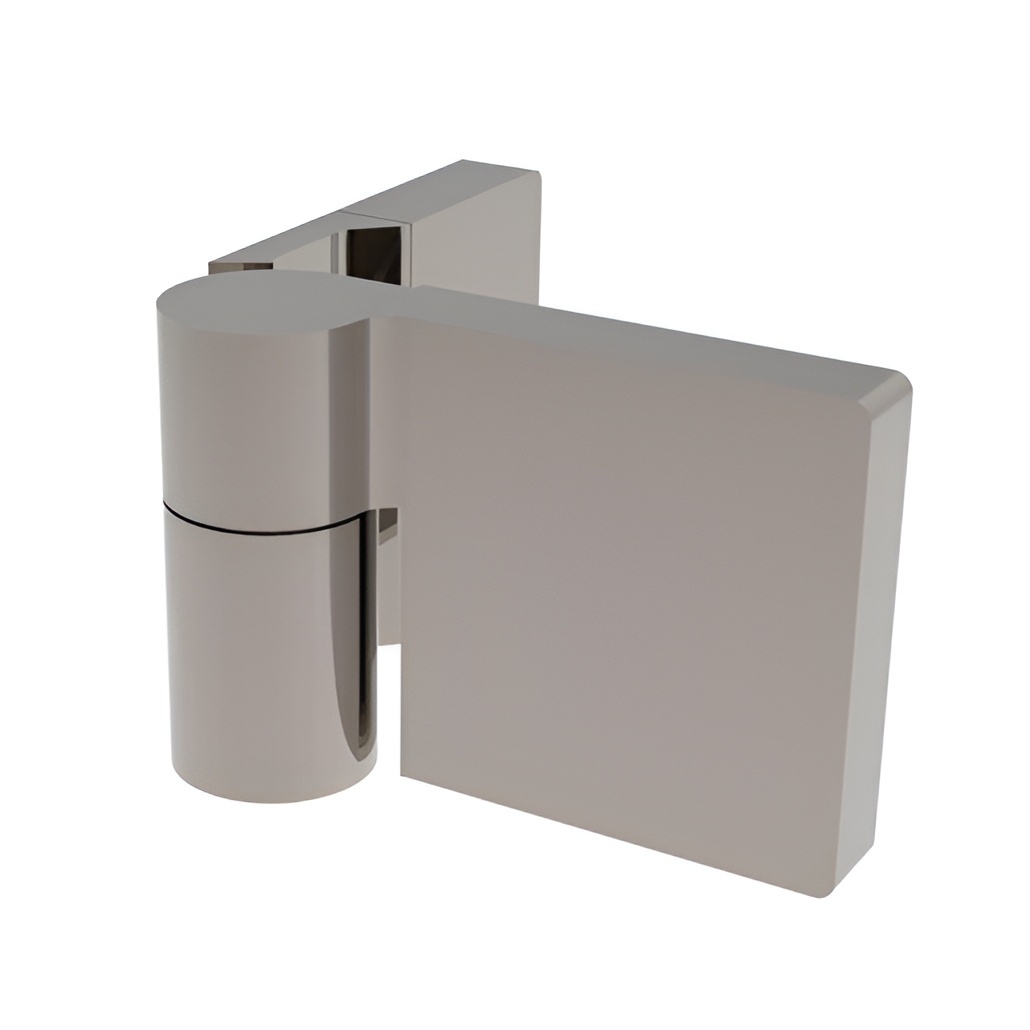

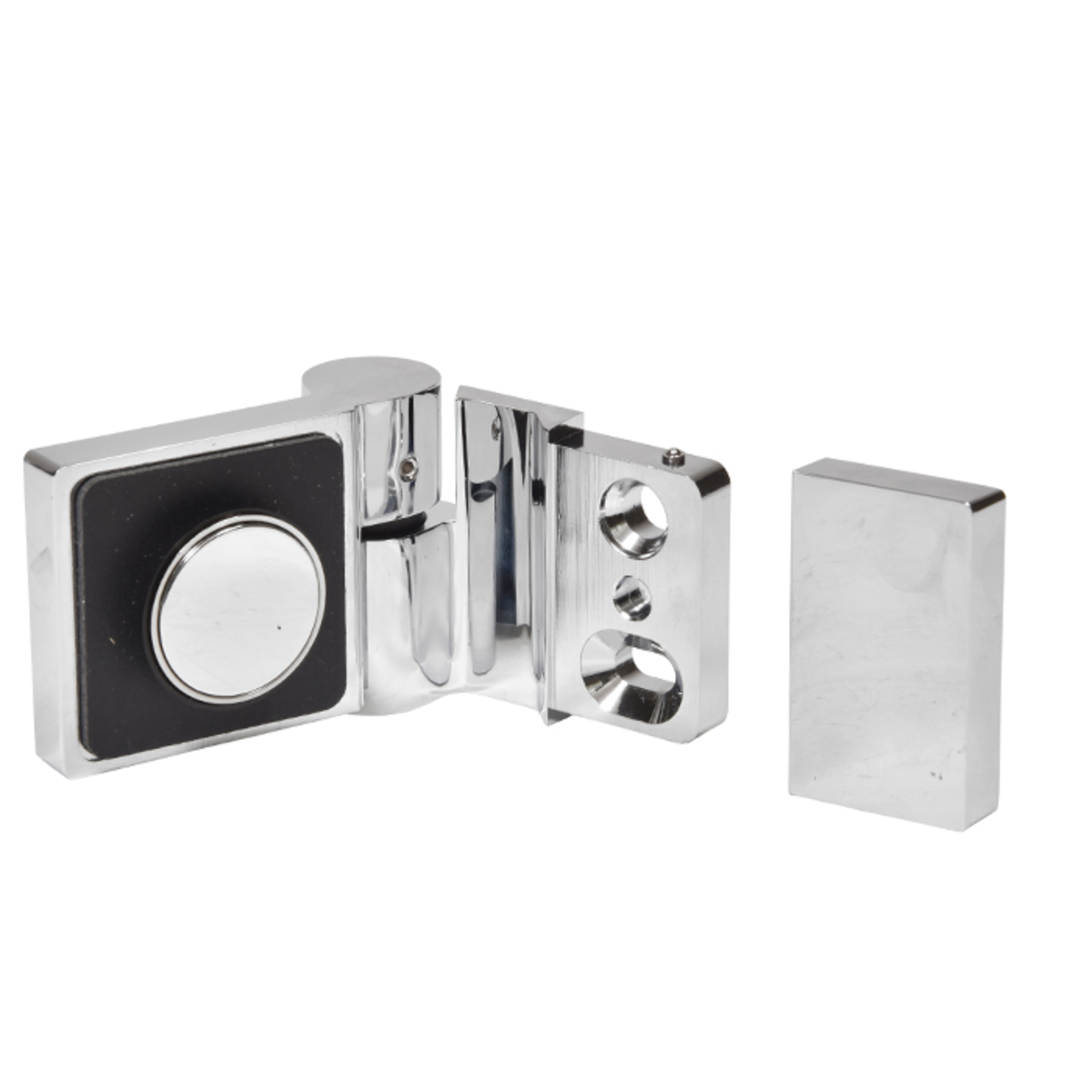

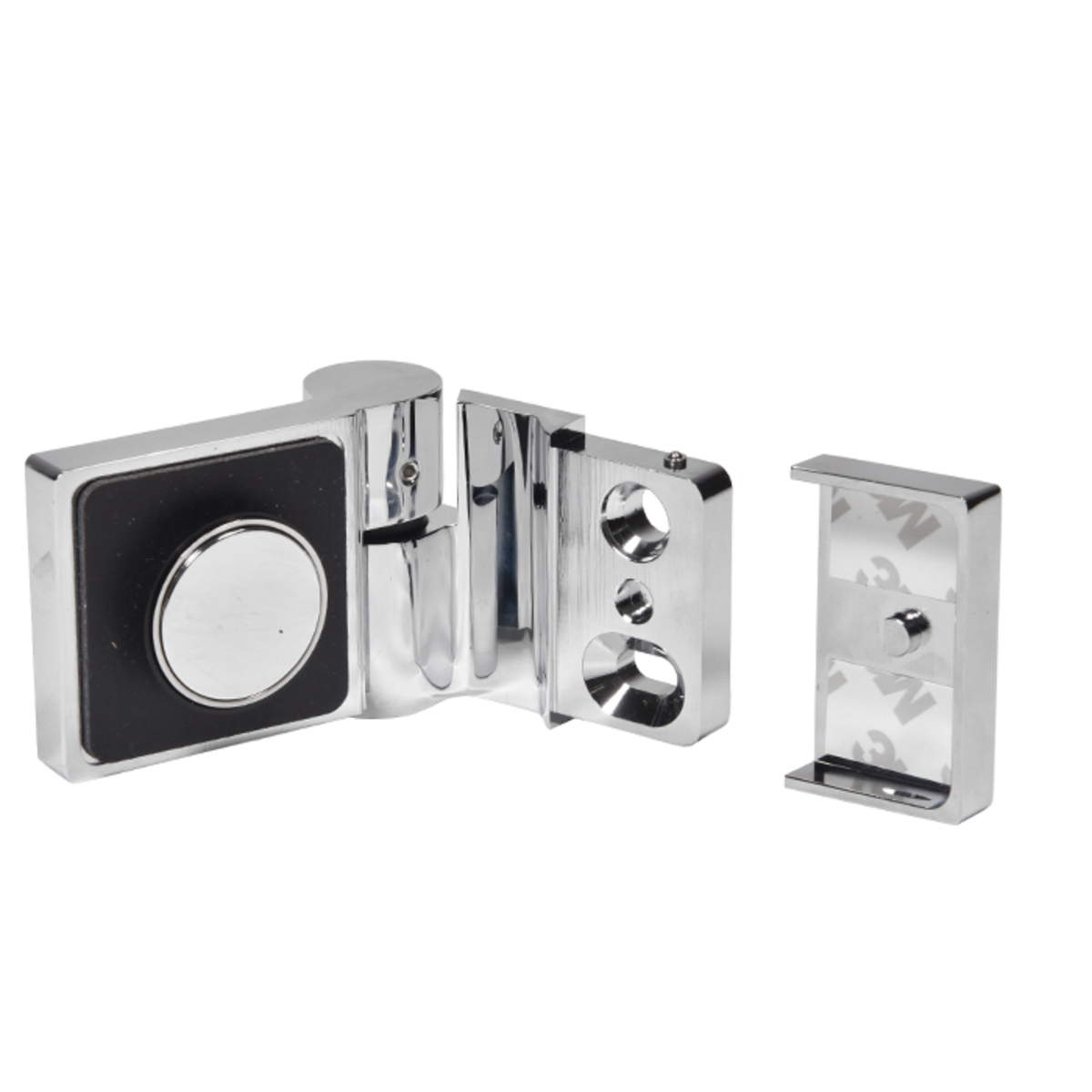

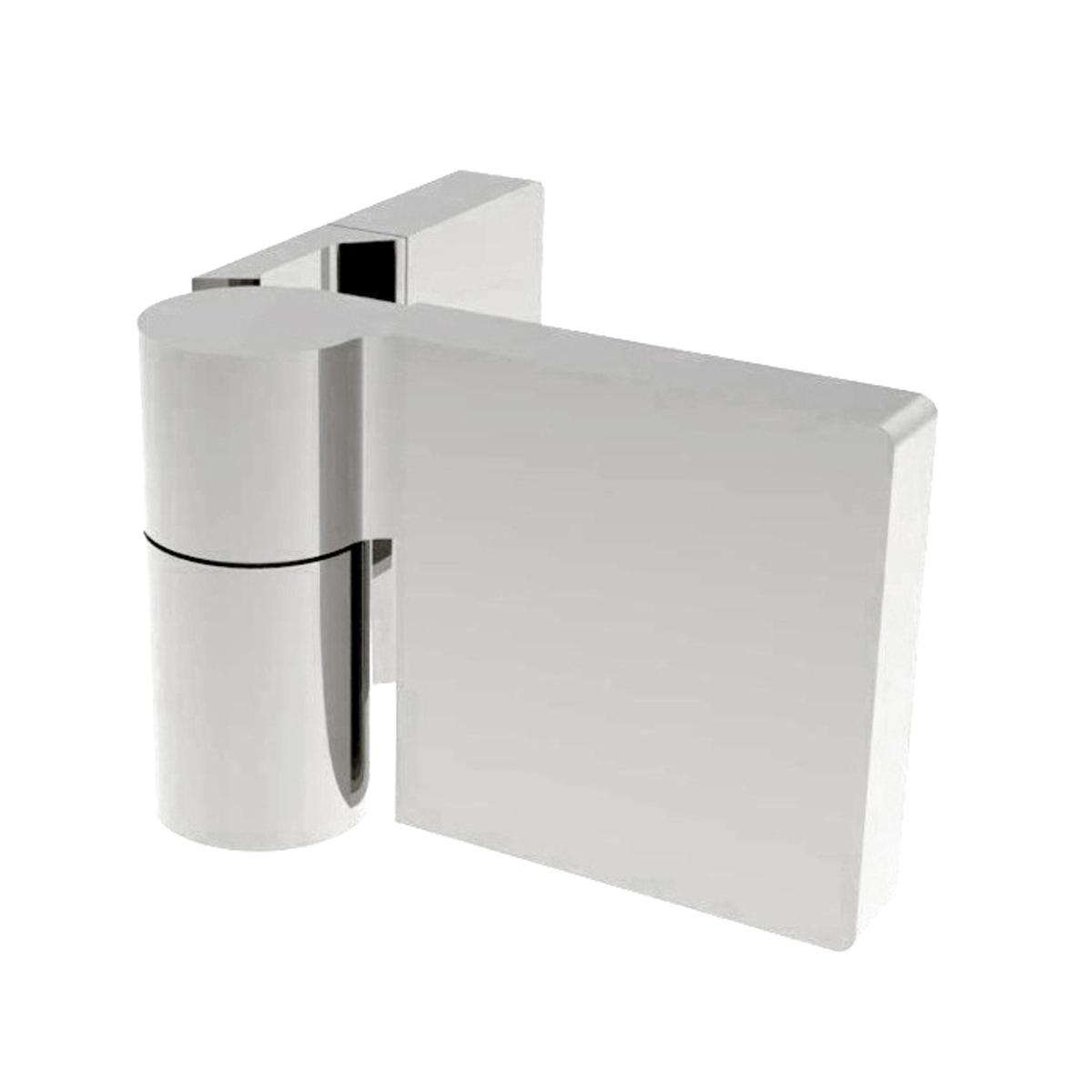

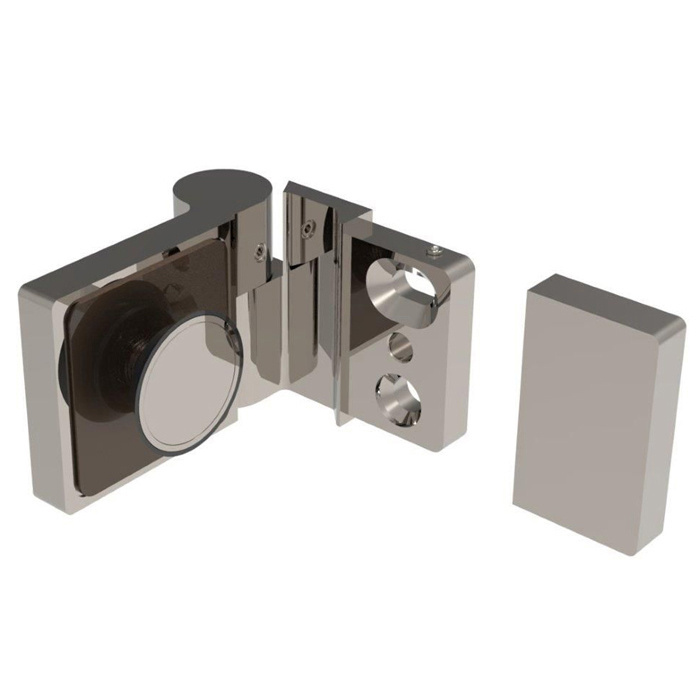

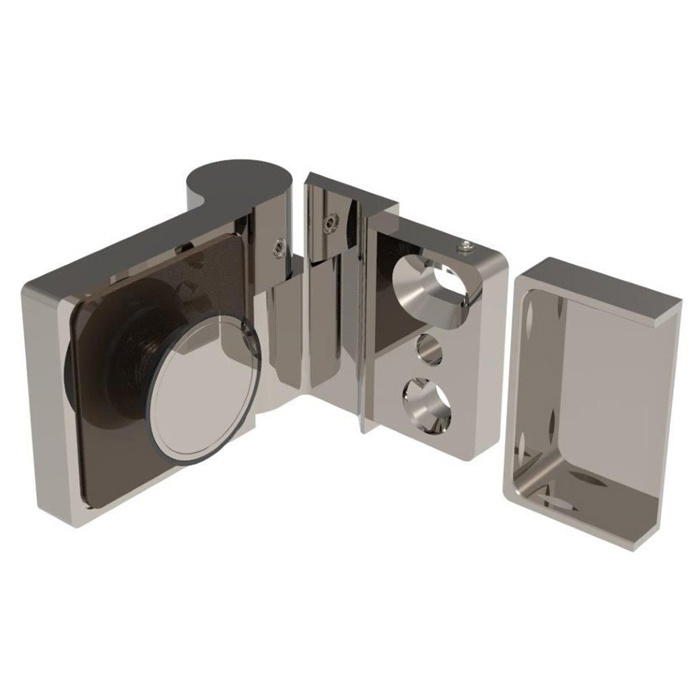

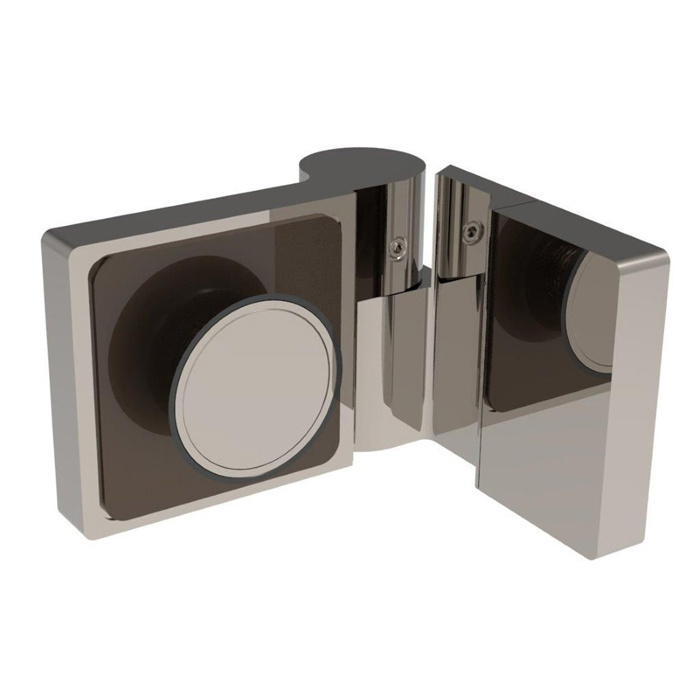

Polished Chrome Lugano Series Wall Mount Outswing Hinge - For Right Hand Door
The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Right Hand
Height: 1-31/32 in. (50 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35 in. (889 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width: 1-31/32 in. (50 mm)
