C.R. Laurence Matte Black Lugano Series Wall Mount Outswing Hinge is designed to enhance the functionality and aesthetic of your glass doors. This hinge features a sleek, modern design that complements contemporary spaces while providing a robust solution for doors up to 35 inches wide and 99 pounds in weight. Crafted for use with 5/16 to 3/8 inch (8 to 10 mm) glass, it is ideal for applications such as corner enclosures, niches, and bathtubs. The hinge incorporates a rise and fall action of 3/16 inch (5 mm), allowing for smooth operation even on pitched curbs. Its flush mount design ensures easy cleaning of glass surfaces, while snap-on covers conceal screws for a seamless look. Rigorously tested to withstand 100,000 cycles-five times more than the industry standard-this hinge promises durability and reliability. Additionally, the hinged design is perfect for wheelchair accessibility, as it can be used without a ledge. Constructed from high-quality brass and finished in matte black, the Lugano Series Hinge not only performs exceptionally but also adds a touch of elegance to any installation. Elevate your door hardware with C.R. Laurence's innovative and stylish hinge solution.
Matte Black Lugano Series Wall Mount Outswing Hinge - For Right Hand Door

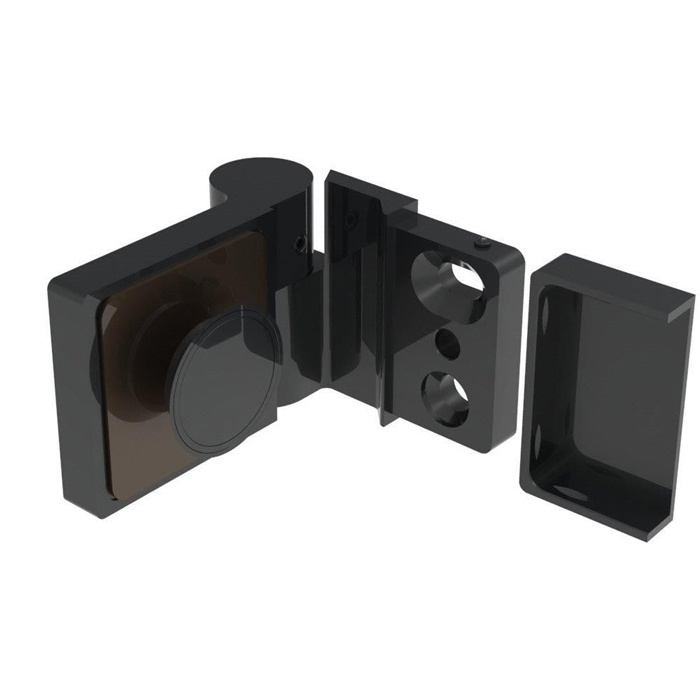

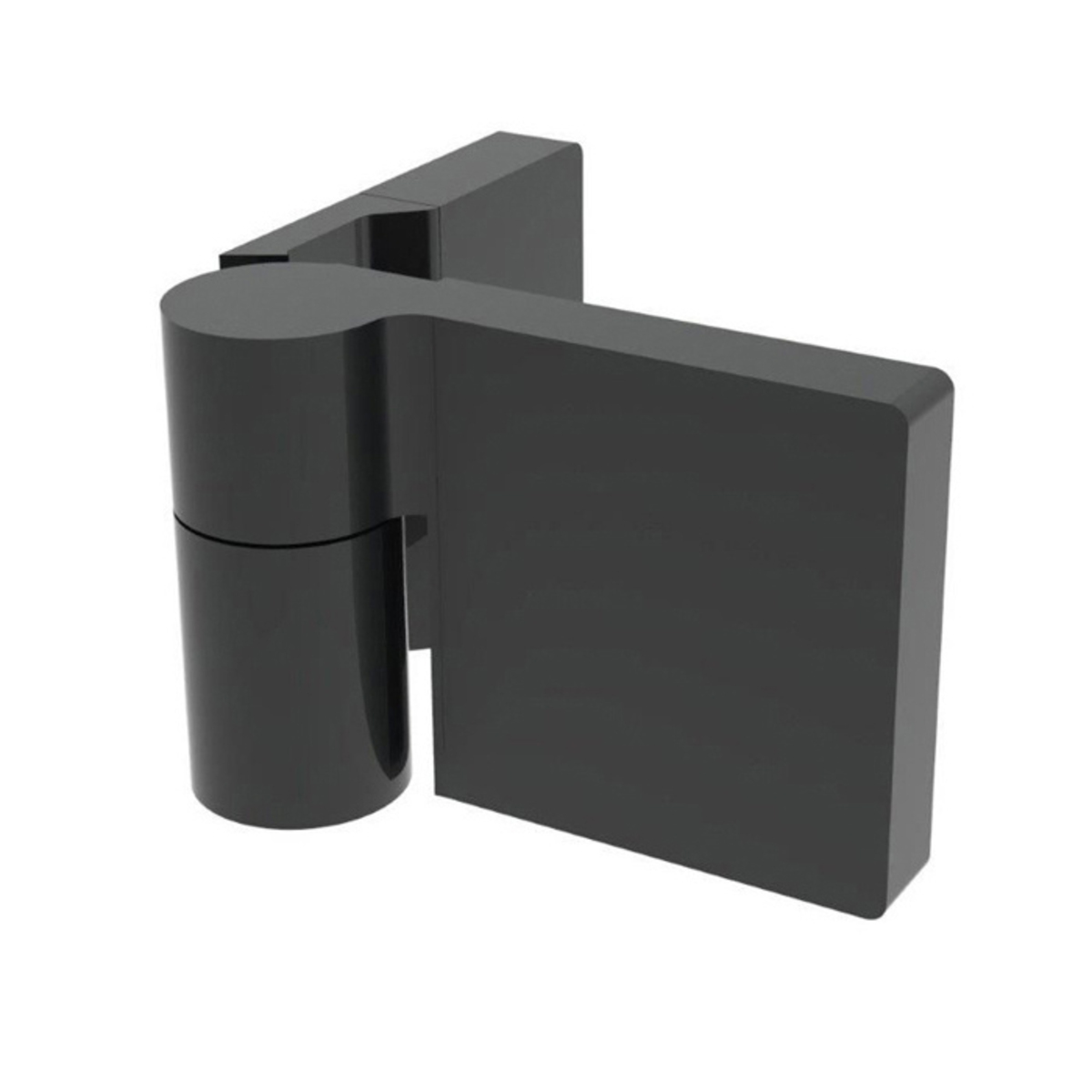

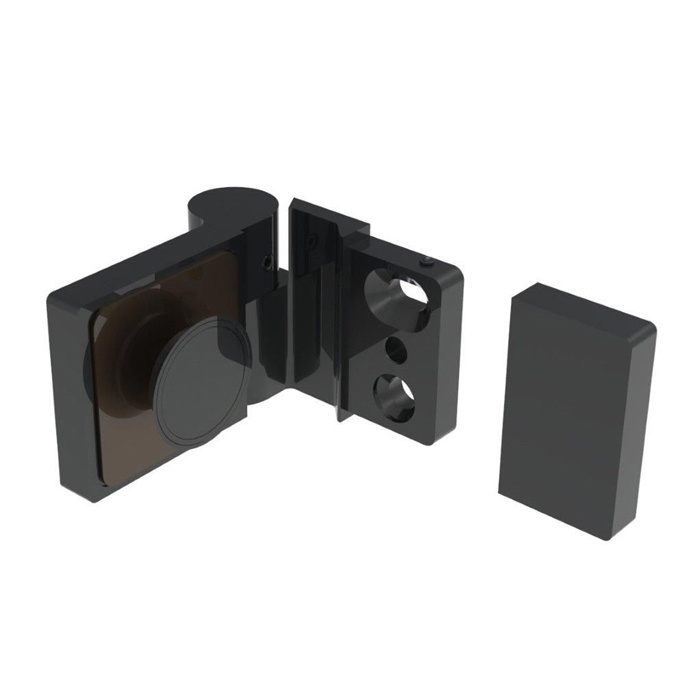

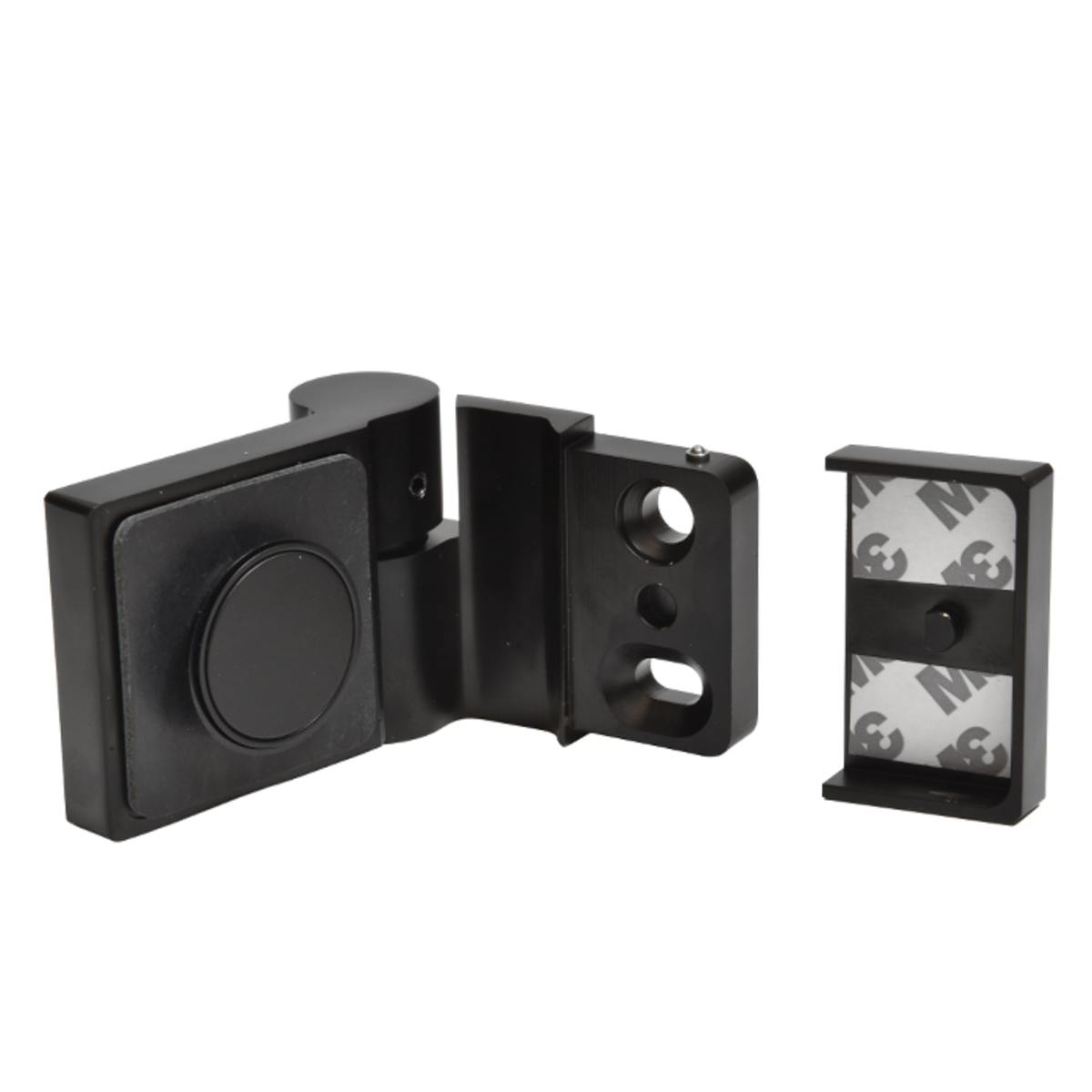

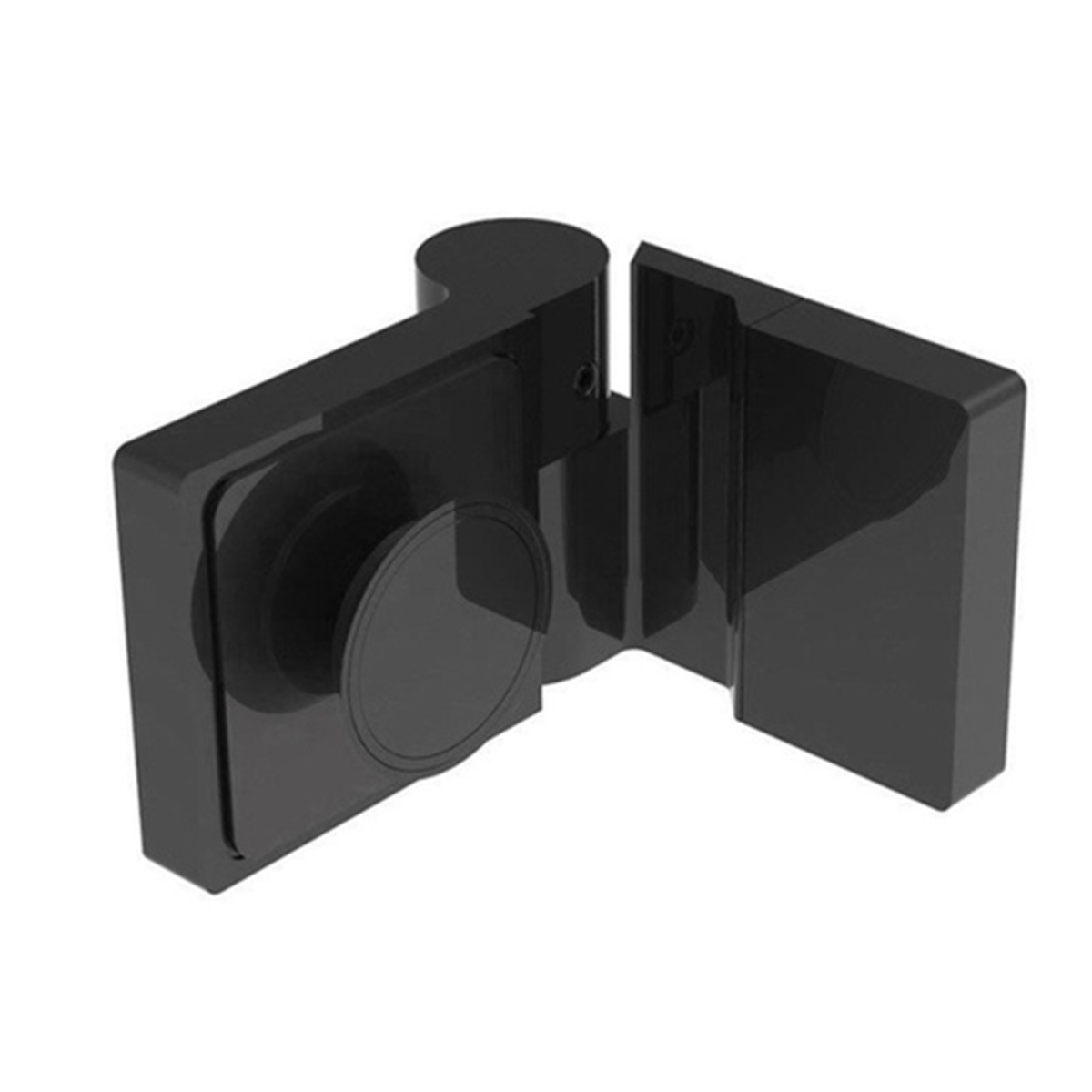

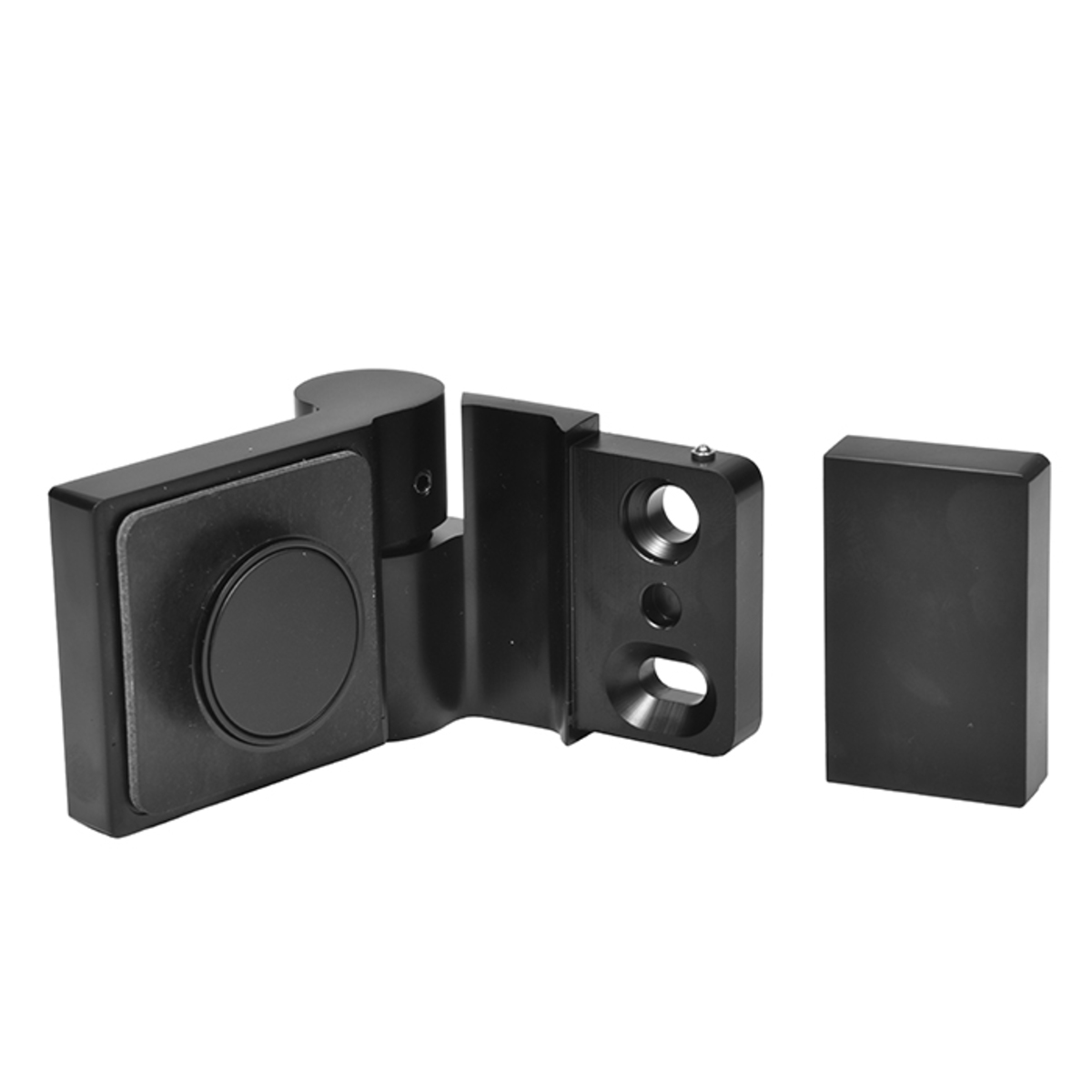

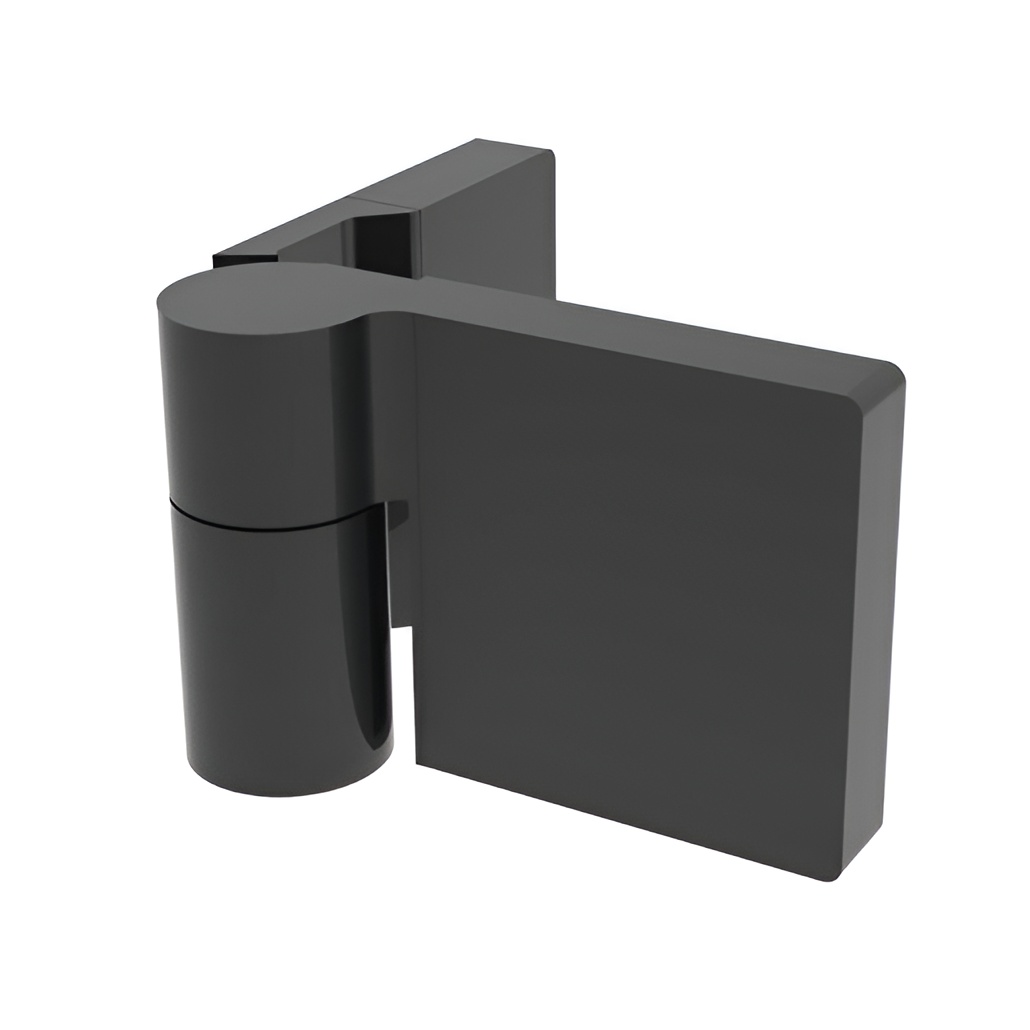

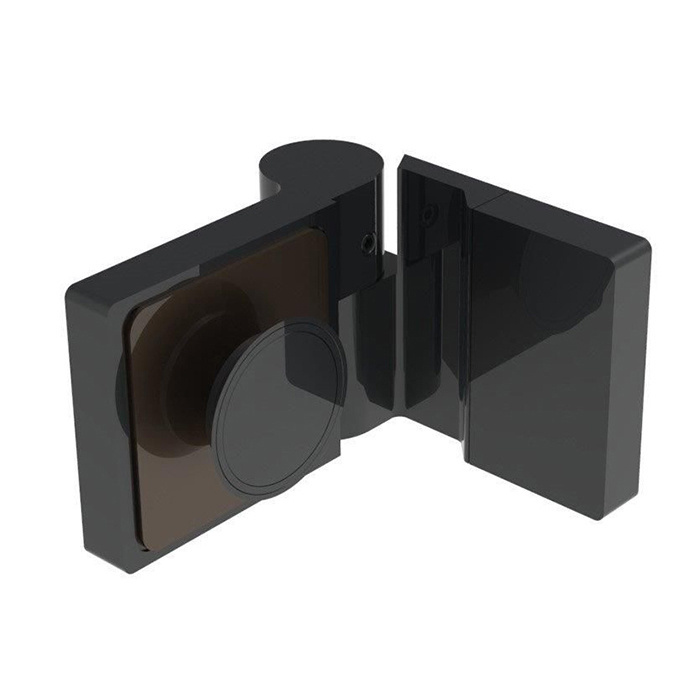

The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Matte Black
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Right Hand
Height: 1-31/32 in. (50 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35 in. (889 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width: 1-31/32 in. (50 mm)
