C.R. Laurence LUG044RBBRZ Brushed Bronze Lugano Series Wall Mount Hinge - For Left Hand Door is a sophisticated and innovative solution for your glass door needs. Designed specifically for 5/16 to 3/8 inch (8 to 10 mm) glass, this hinge features a sleek new design that enhances both aesthetics and functionality. With a rise and fall action of 3/16 inch (5 mm), it provides smooth operation while accommodating a maximum door width of 35 inches and a weight limit of 99 lbs (44 kg). The hinge's self-centering mechanism within 60° of the closed position ensures perfect alignment every time. Ideal for applications requiring wheelchair accessibility, it can be used without a ledge and offers a flush mount inside for easy cleaning of the glass surface. Snap-on covers conceal screws, contributing to its seamless appearance. Rigorously tested to 100,000 cycles-five times the industry standard-this hinge promises durability and reliability. The brushed bronze finish adds a touch of elegance, making it suitable for various enclosure types, including corner, niche, and bathtub solutions. Choose the C.R. Laurence Lugano Series Wall Mount Hinge for a blend of style, strength, and ease of maintenance in your architectural projects.

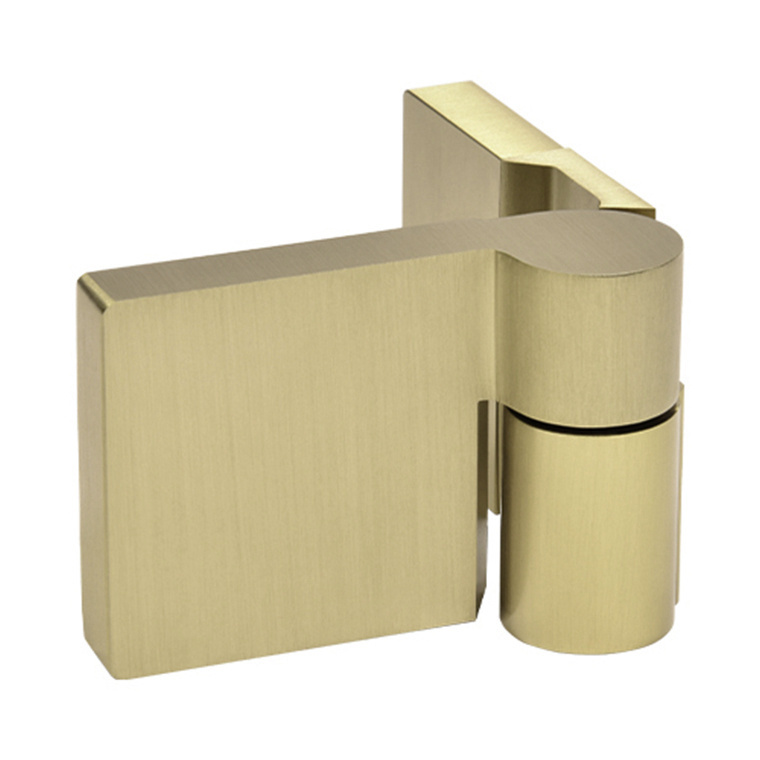

Brushed Bronze Lugano Series Wall Mount Hinge - For Left Hand Door
The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Bronze
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Left Hand

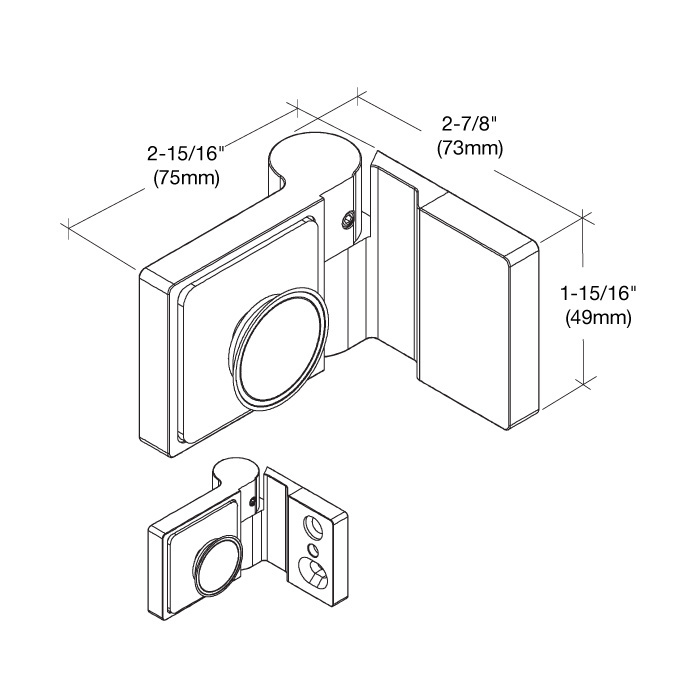

Height: 1-31/32 in. (50 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35 in. (889 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width: 1-31/32 in. (50 mm)
