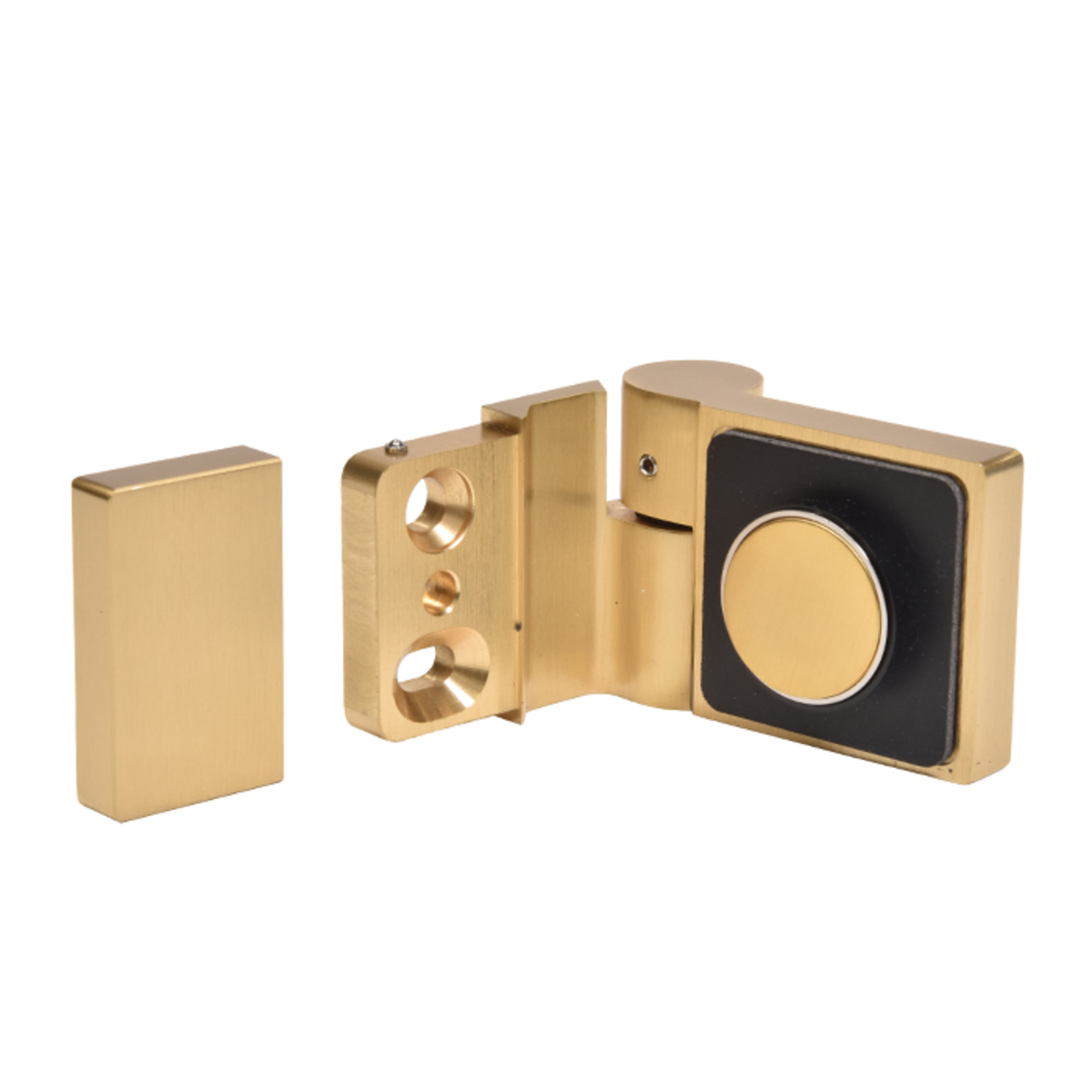

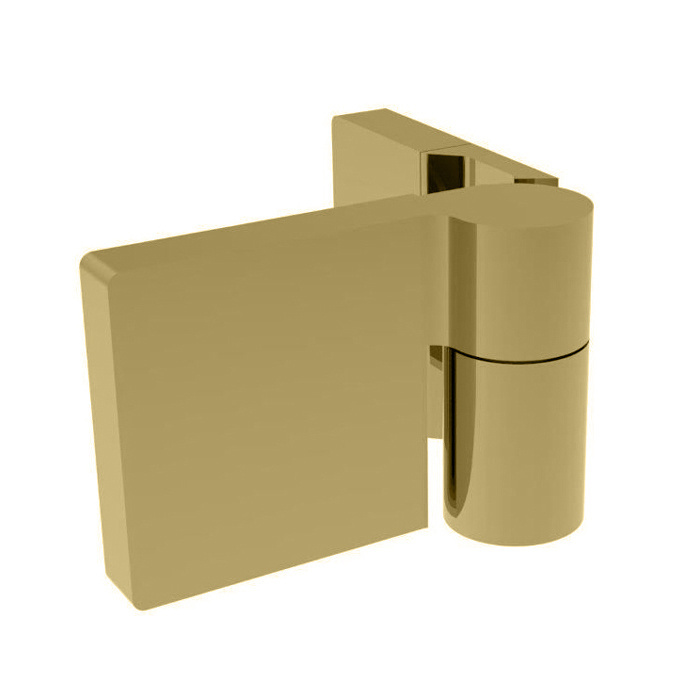

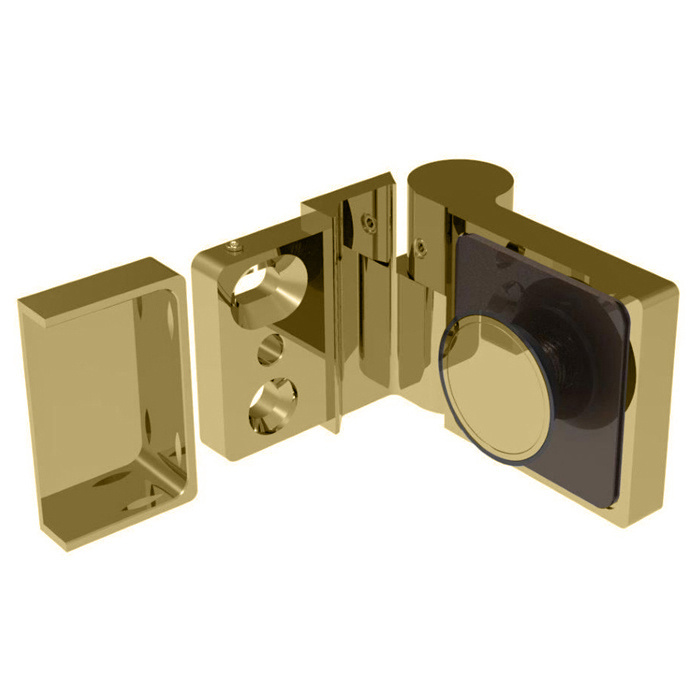

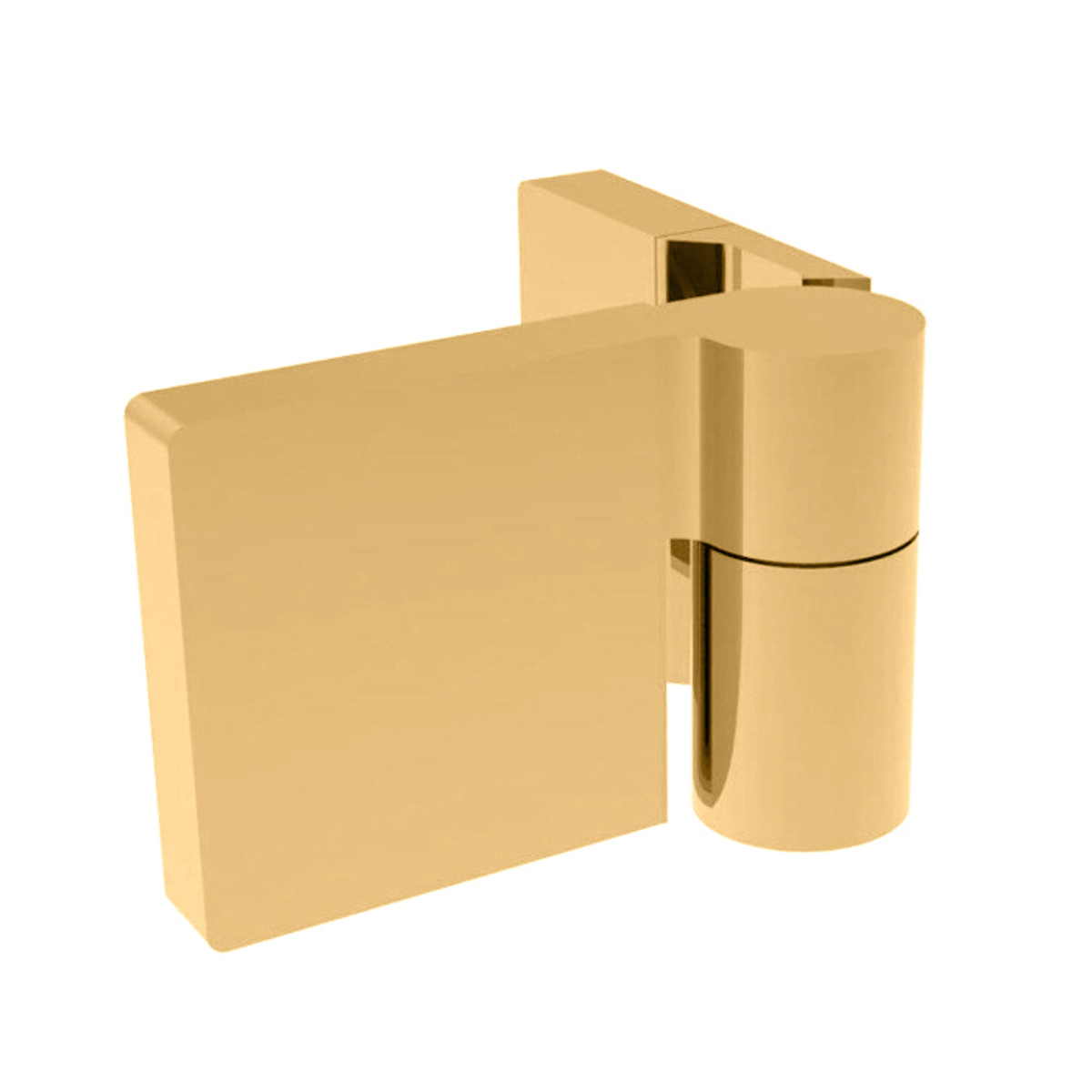

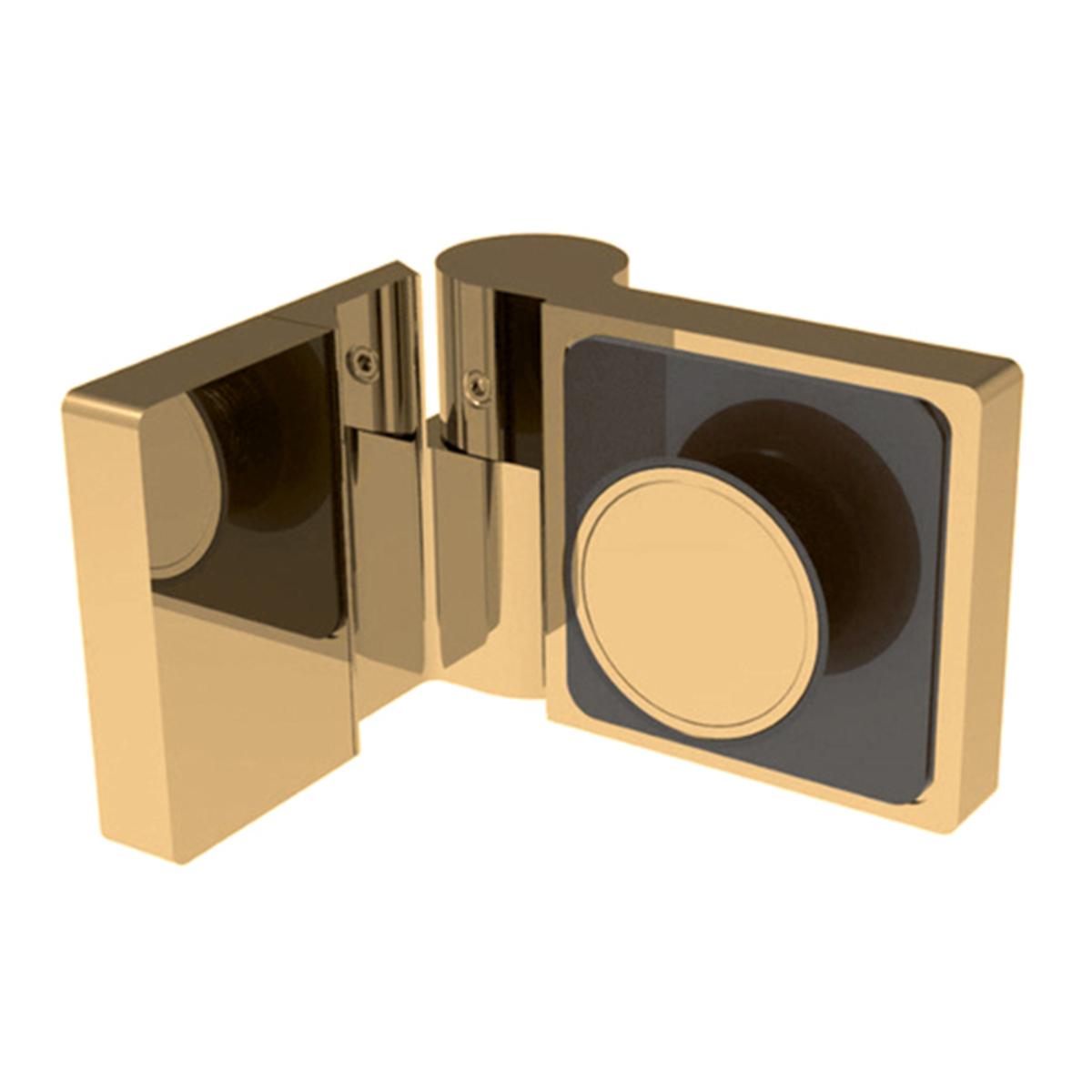

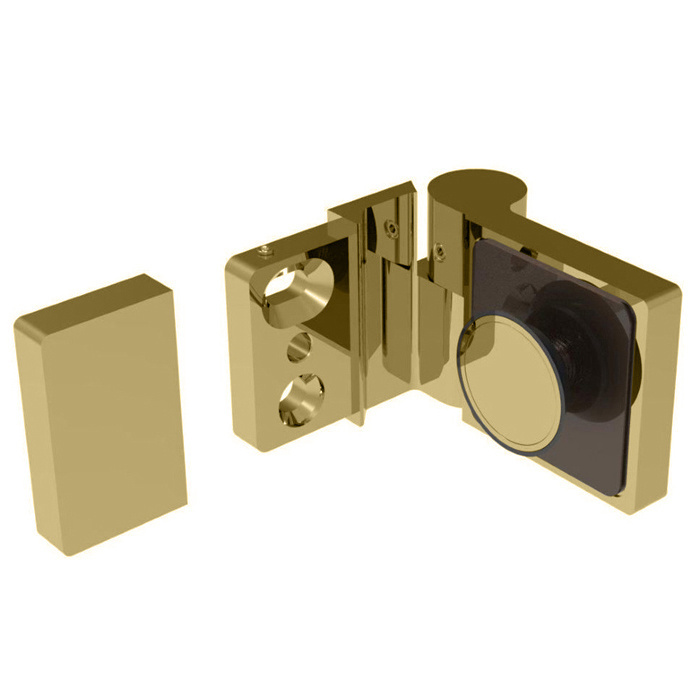

CRL LUG044RSB Satin Brass Lugano Wall Mount Hinge - Left Hand Door

C.R. Laurence LUG044RSB Satin Brass Lugano Series Wall Mount Hinge is designed for left-hand doors, showcasing a sleek and modern aesthetic that seamlessly integrates into any architectural style. This hinge accommodates 5/16 to 3/8 inch (8 to 10 mm) glass, providing versatility for a range of applications, from corner enclosures to custom solutions. The hinge features a rise and fall action of 3/16 inch (5 mm), ensuring smooth operation. With a self-centering mechanism that functions within 60° of the closed position, this hinge supports a maximum door width of 35 inches and a weight capacity of up to 99 pounds (44 kg) when two hinges are utilized. The flush mount design promotes easy cleaning of the glass surface, while snap-on covers efficiently conceal screws for a polished look. Rigorously tested to withstand 100,000 cycles-five times the industry standard-this hinge promises durability and reliability in high-traffic environments. Ideal for installations requiring wheelchair accessibility, the Lugano hinge operates without a ledge, making it a practical choice for modern spaces. The satin brass finish adds a touch of elegance, although care should be taken to prevent oxidation. Elevate your next project with the C.R. Laurence Lugano Series Wall Mount Hinge.

Satin Brass Lugano Series Wall Mount Hinge - For Left Hand Door

• Rise and Fall action - 3/16 (5mm)
• Sleek New Design
• Works with 5/16 to 3/8 (8 to 10 mm) glass
• Perfect for a Pitched Curb
• Use with No Ledge for Wheelchair Accessibility
• Flush Mount Inside - Easy to Clean Glass
• Snap-on Covers Conceal Screws
• Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.

Brass Finish Advisory:
