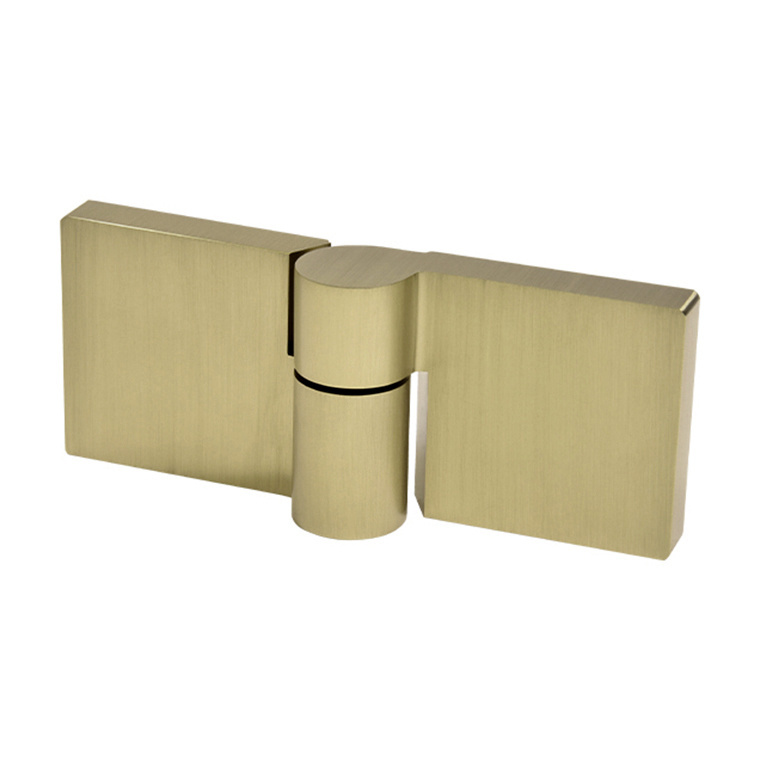

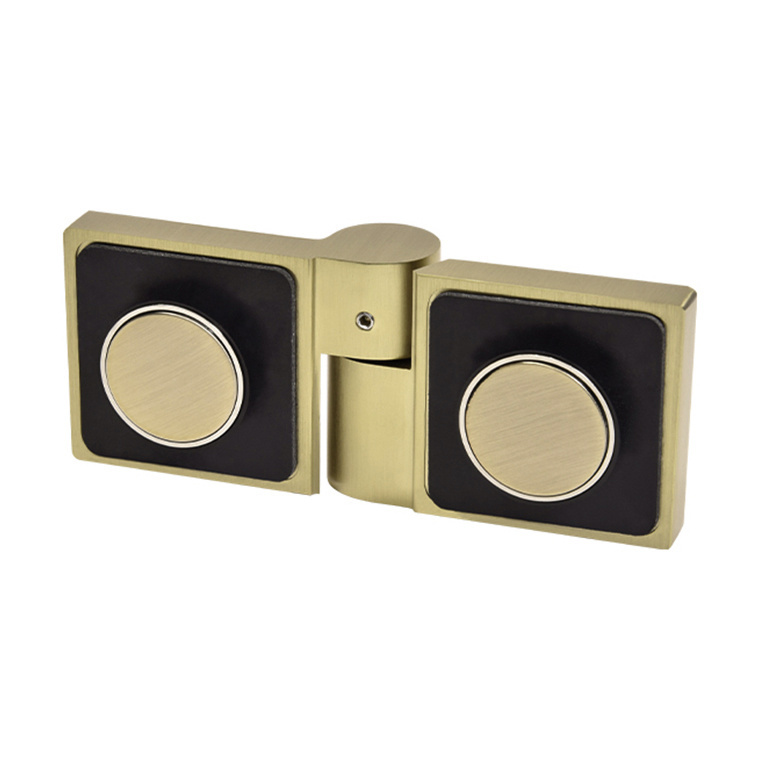

C.R. Laurence LUG180LBBRZ Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door is designed for both style and functionality. This sleek hinge accommodates 5/16 to 3/8 inch (8 to 10 mm) tempered glass, making it an ideal choice for modern glass installations. Featuring a rise and fall action of 3/16 inch (5 mm), it ensures smooth operation while maintaining a contemporary aesthetic. The hinge is self-centering within 60° of the closed position, providing a reliable and secure closure. When used in pairs, it can support a maximum door width of 35 inches and a weight capacity of 99 pounds (44 kg), making it perfect for larger glass doors. Its concealed fasteners enhance the clean look, while the brushed bronze finish adds an elegant touch to any bathroom or interior space. Designed for glass-to-glass mounting, the Lugano Series hinge is compatible with various enclosure types, including corner, niche, and tailor-made solutions. With a height and width of 1-31/32 inches (50 mm), this premium hinge combines durability and style, making it a standout choice for discerning builders and homeowners alike.
Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door
The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Bronze
Glass To Glass Angle: 180
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing: Right Hand
Height: 1-31/32 in. (50 mm)
Material: Brass
Maximum Door Weight: 99 lbs. (44.9 kg)
Maximum Door Width: 35 in. (889 mm)
Mounting Type: Glass To Glass
Opening Style: Swing(side)
Series: Lugano
Shipping Limitations: None
Width: 1-31/32 in. (50 mm)
