CRL MA01CH Madrid Series Polished Chrome Hinge Kit

CRL MA01CH Madrid Series Polished Chrome Hinge Kit

C.R. Laurence MA01CH Polished Chrome Madrid Series Hinge Kit offers a sophisticated solution for display and cabinet builders seeking a reliable pivot hinge without the need for glass fabrication. This innovative kit features notch-free top and bottom pivot hinges that allow for a simple installation process, exposing more glass and minimizing visible hardware. Designed to fit 3/8" tempered safety glass, the Madrid hinge utilizes tapered shims to secure the glass firmly in place, eliminating the need for drilling holes or cutting notches. Constructed from solid brass and finished in polished chrome, this hinge kit is not only durable but also adds a touch of elegance to any installation. The full rotation hinge swings open smoothly, ensuring precise closing to zero degrees, while accommodating door sizes up to 36 inches wide and weighing up to 120 pounds. The kit includes essential components such as tapered base plate shims, setting blocks, two hinges, an Allen wrench, and nylon bushings for a comprehensive installation experience. For optimal performance, ensure to order the Basic Kit and specify your finish. The Madrid Series is ideal for residential or hotel shower use; however, alternate applications require consultation with the CRL Shower Door Technical Sales Department.

Polished Chrome Madrid Series Hinge Kit

• Notch Free Top and Bottom Pivot Hinges with No Glass Fabrication Required
• Top and Bottom Mount Installation Exposes More Glass, Less Hardware
• Kit Fits 3/8" Glass
• Use Monolithic Tempered Glass

The CRL Madrid Series of Hinges gives the display and cabinet builder a versatile and functional pivot hinge that does not require glass fabrication. The unique hinge design utilizes tapered shims to hold the glass snug. Because there are no holes to drill, or notches to cut in the glass, the Madrid is one of the easiest-to-mount hinges you will ever use. For most display and cabinet applications, the Madrid's pivot can be mounted directly into the cabinet top and base to provide a quick and easy installation.


You must order the Basic Kit and specify the finish you desire. The Basic Kit contains everything you will need for your installation except for the Top Mounting Hardware, which may be purchased separately. The Basic Kits are available for two thickness of glass, 5/16" or 3/8". Pick the appropriate one which meets your needs.

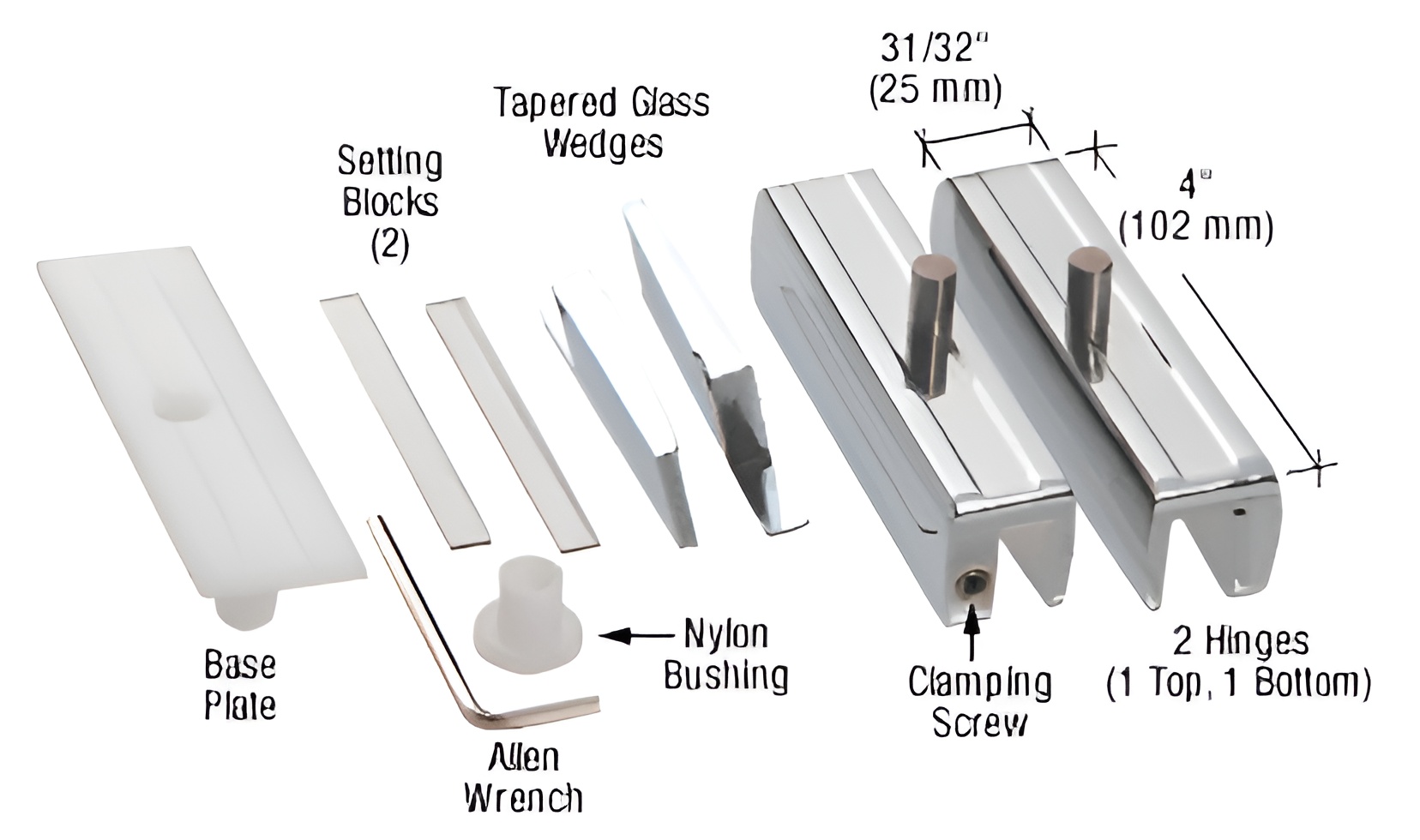

Kit Includes: Tapered Base Plate Shim; Base Plate; Setting Blocks; 2 Hinges (1 Top, 1 Bottom); Allen Wrench; Nylon Bushing; and Tapered Glass Shims.

SPECIFICATIONS:
Glass Thicknesses: 5/16" or 3/8" Tempered Safety Glass
Construction:Solid Brass
Hinge Swings: Full Rotation
Closing Type: Precise Closing to Zero Degrees
Maximum Door Size: Width 36" (914 mm); Weight 120 Lbs. (54 kg)
Includes: Gaskets and Mounting Hardware


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
