CRL MA03CH Madrid Series Polished Chrome Wall Block Mount Kit

CRL MA03CH Madrid Series Polished Chrome Wall Block Mount Kit

C.R. Laurence MA03CH Polished Chrome Madrid Series Wall Block Mount Kit offers a sleek and efficient solution for frameless shower door installations. This innovative wall block mount kit allows for easy installation without the need for glass fabrication, as it requires no holes or cut-outs. Designed for use with monolithic tempered glass, it accommodates glass thicknesses of 5/16" or 3/8", supporting doors up to 36" wide and weighing up to 120 lbs. The Madrid Series features a stylish design that seamlessly integrates with various bathroom décors, while the top and bottom mount installation exposes more glass and less hardware, enhancing the aesthetic appeal. With its full rotation hinge and precise closing capabilities, this kit ensures smooth functionality and longevity. Included in the kit are the wall block, mounting bracket, gaskets, screws, and anchors, making it a comprehensive package for installers. Additionally, a 3-year warranty provides peace of mind. Whether you choose a header, wall block, or soffit sleeve for mounting, the Madrid Series is versatile enough to suit your needs. Elevate your bathroom space with the refined elegance and practicality of the C.R. Laurence MA03CH Wall Block Mount Kit.

Polished Chrome Madrid Series Wall Block Mount Kit

• Wall Block Mount Kit
• These Frameless Shower Door Hinges are Notch-Free
• No Glass Fabrication Required (No Holes, No Cut-Outs)
• Use Monolithic Tempered Glass
• Top and Bottom Mount Installation Exposes More Glass, Less Hardware
• 3 Year Warranty

The CRL Madrid Series of Hinges gives the installer three mounting options. Because there are no holes to drill, or notches to cut in the glass, the Madrid is also one of the easiest hinges to mount. The Madrid's pivot can be mounted in a Header, in a Wall Block, or in a Soffit Sleeve. Take your choice, they can all be installed simply and quickly. Madrid is about choices, and you'll discover its elegant lines will blend with most any bathroom décor. There are Madrid Hinge Kits and Mounting Kits in eight of our most popular finishes, and custom finishes are available on special order.

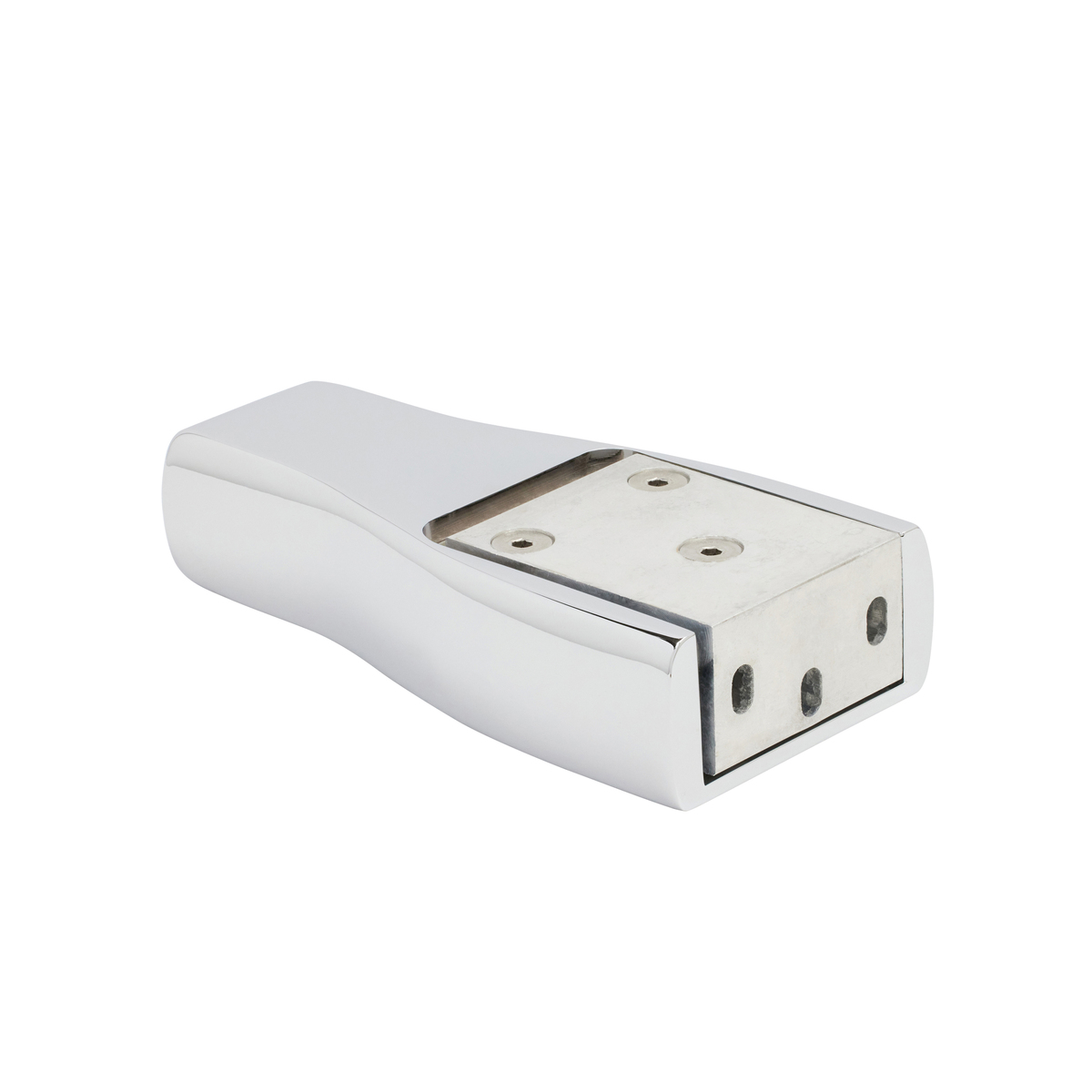

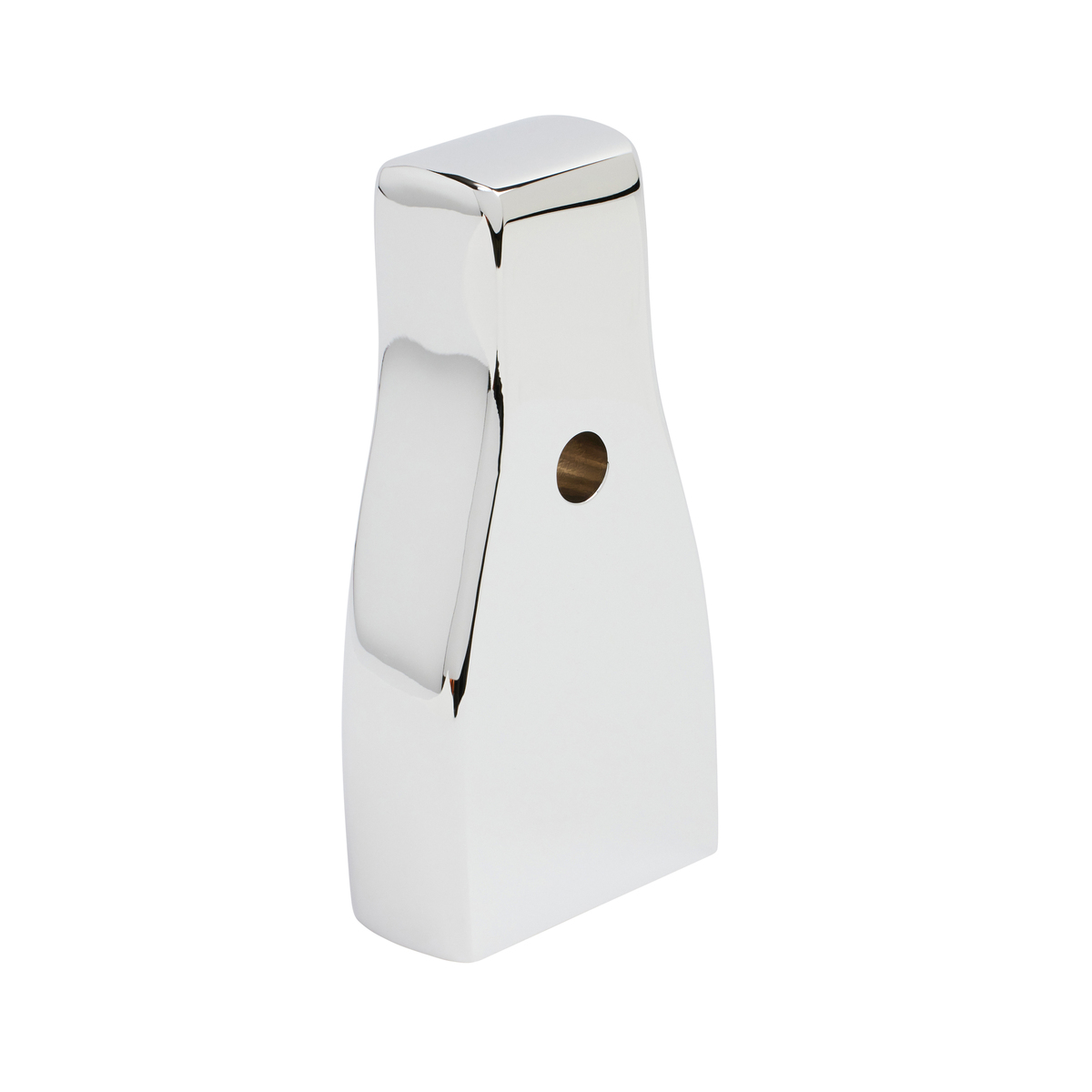

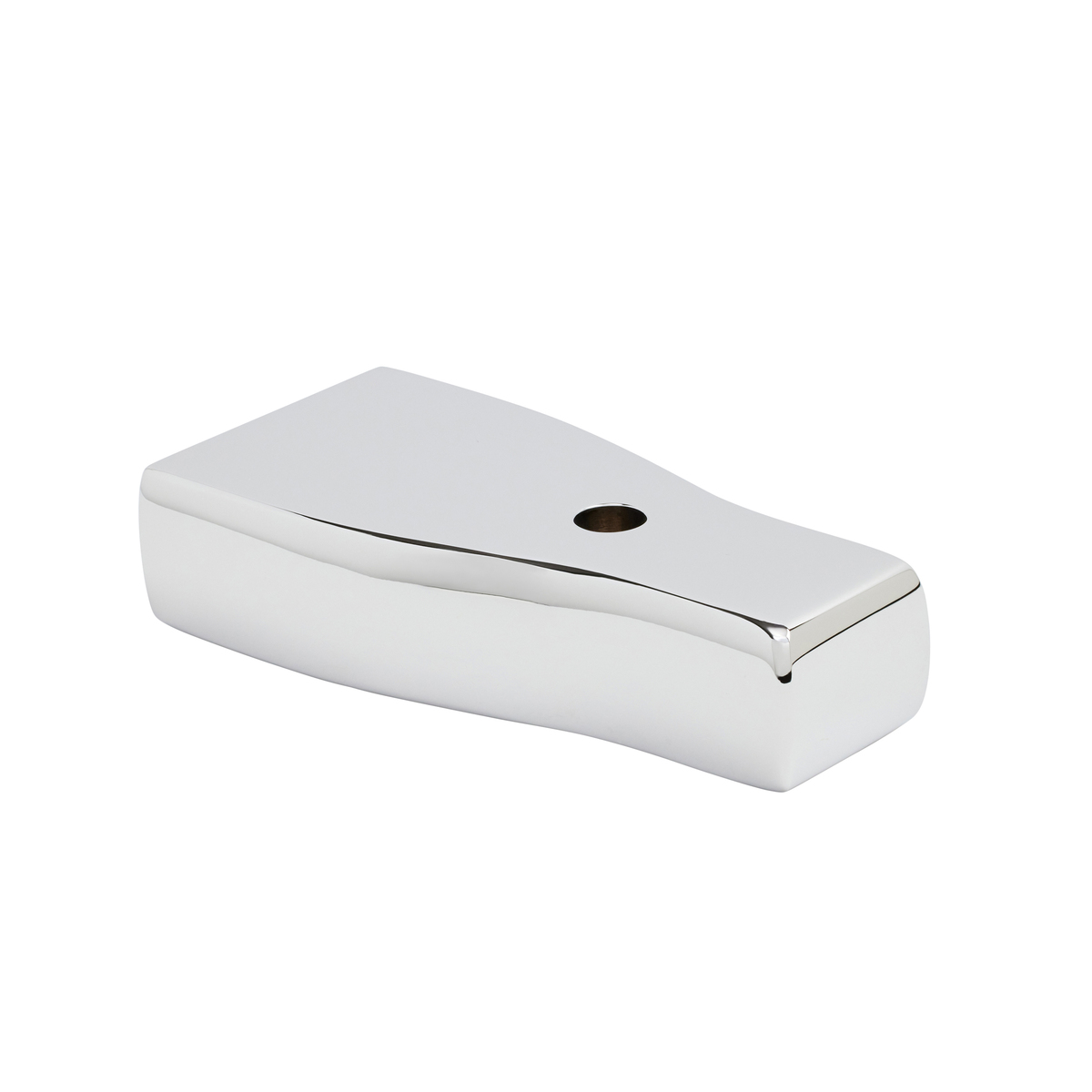

WALL BLOCK MOUNT KIT INCLUDES: Wall Block and Block Mounting Bracket, Screws, and Anchors.

SPECIFICATIONS:
Glass Thickness: 5/16" or 3/8" Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Precise Closing to 0 degree
Maximum Door Size: Width 36" (914 mm); Weight 120 Lbs. (54 kg) Do not exceed either width or weight.
Includes: Gaskets and Mounting Hardware

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 36" (914 mm).

IMPORTANT ORDERING TIPS - PLEASE READ:
(1) Choose either the MA01 for 3/8" (10 mm) thick glass, or the MA05 for 5/16" (8 mm) thick glass. This will give you the basic Hinge Kit for both top and bottom.
(2) Determine the mounting application for the top of the door, and select either the MA02 (Header Mount Kit), MA03 (Wall Block Mount Kit), or MA04 (Soffit Sleeve Mount Kit). Each of these Kits work with either 3/8" (10 mm) or 5/16" (8 mm) thick glass. Summary: You have ordered properly for one door when you have selected one each of either the MA01 or MA05 Hinge Kits, plus only one of the MA02, MA03 or MA04 Mount Kits.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
