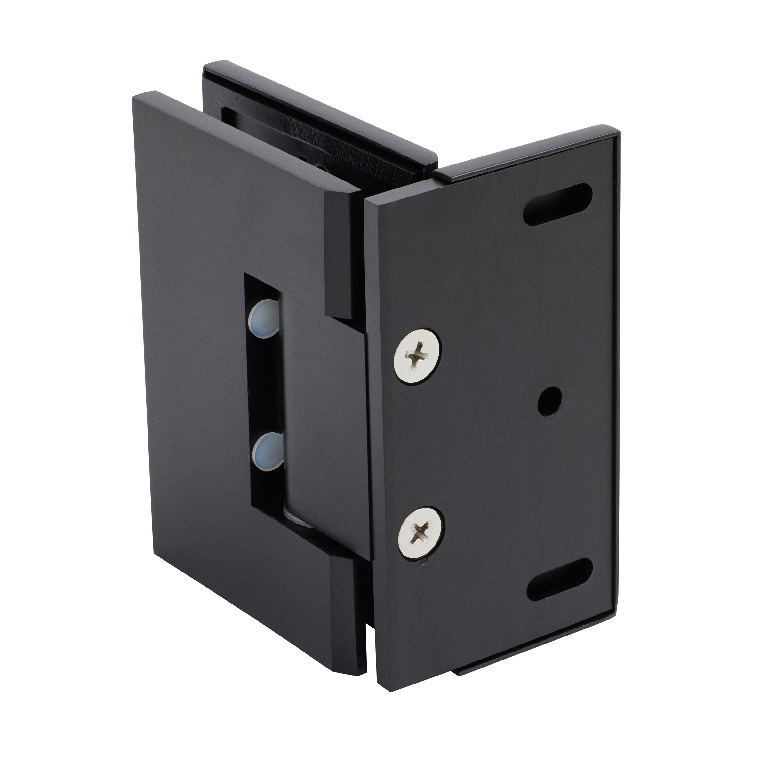

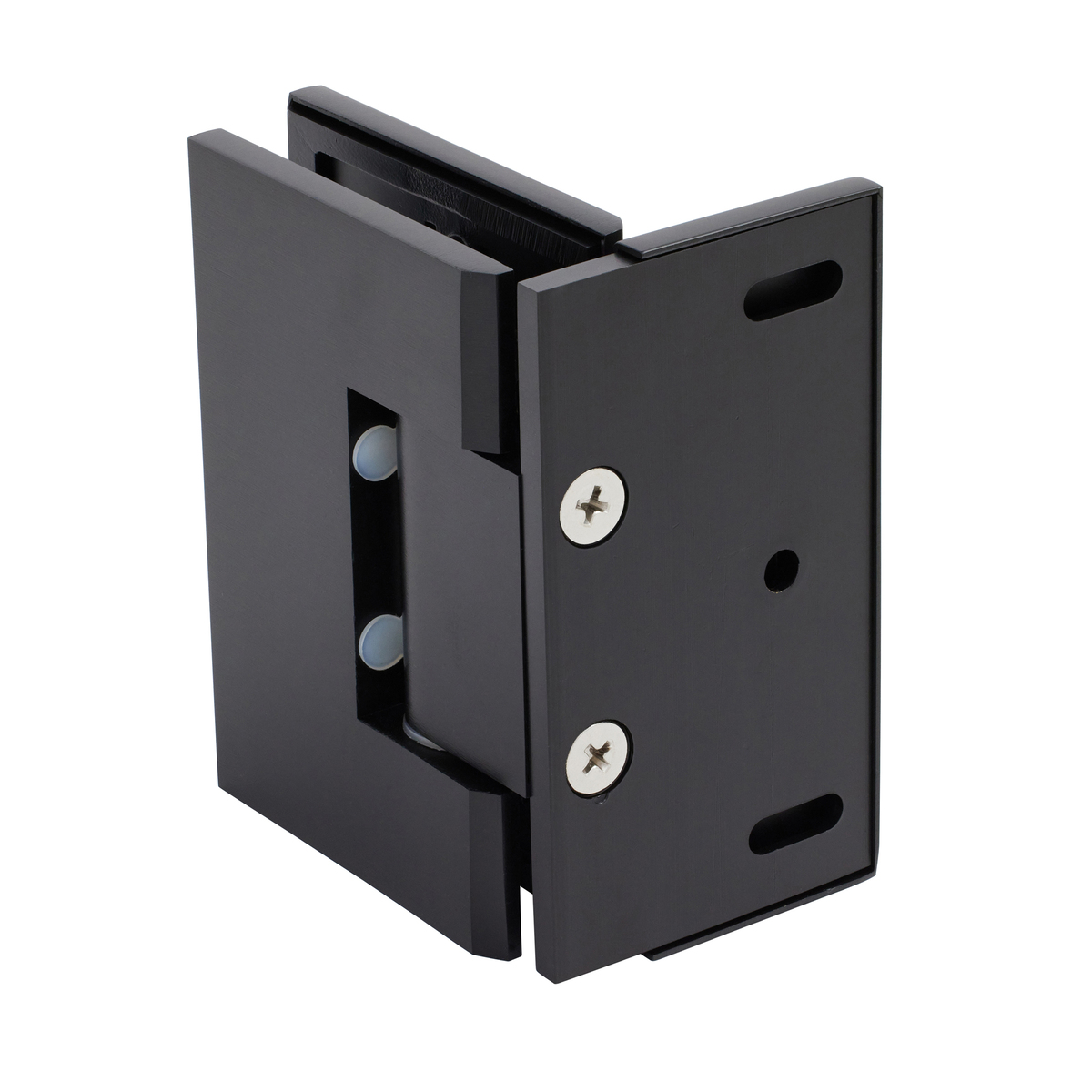

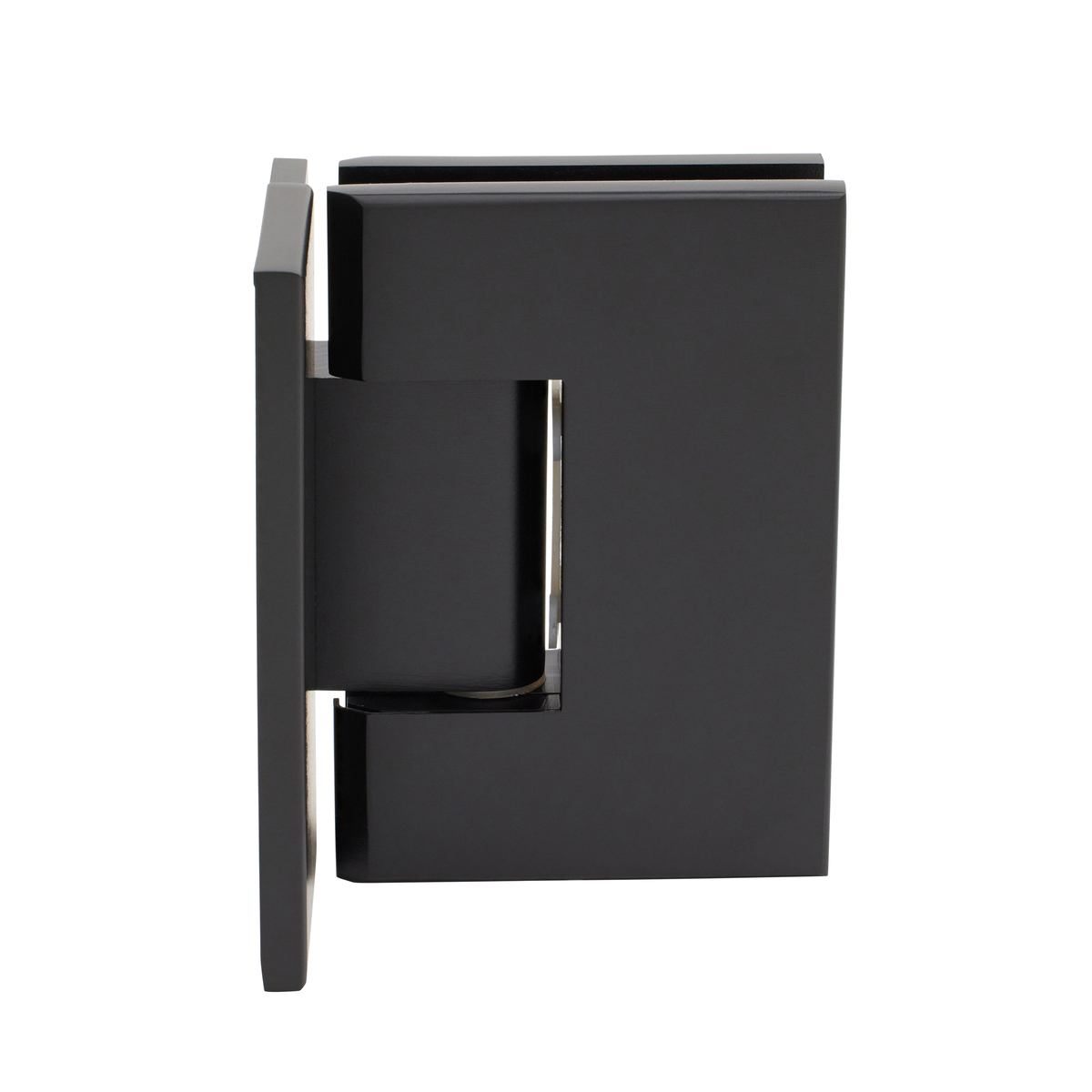

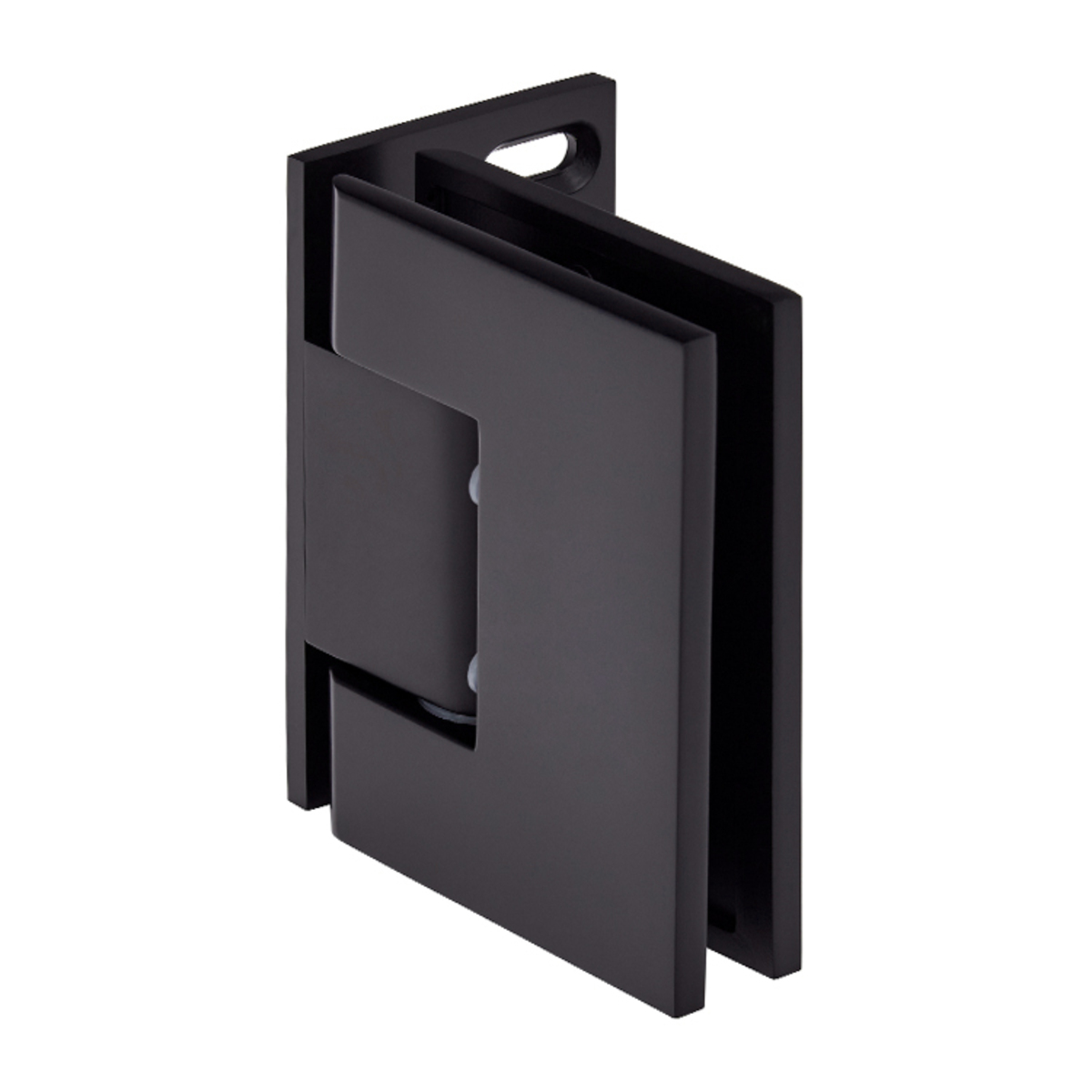

CRL MEL0240RB Oil Rubbed Bronze Melbourne Wall Mount Offset Back Plate with Cover Hinge

CRL MEL0240RB Oil Rubbed Bronze Melbourne Wall Mount Offset Back Plate with Cover Hinge

C.R. Laurence MEL0240RB Oil Rubbed Bronze Melbourne Wall Mount Offset Back Plate with Cover Plate Hinge is designed for both style and functionality, making it an ideal choice for residential and hotel shower applications. The large hinge plates enhance clamping force, ensuring a secure fit for your glass installations. Fabrication is simplified with a straightforward rectangular cut-out, allowing for seamless integration with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass. This hinge supports impressive weight capacities, holding up to 100 lbs. (45 kg) with two hinges for doors up to 30" (762 mm) wide, and up to 120 lbs. (54 kg) with three hinges for wider doors up to 34" (864 mm). Constructed from solid brass, the hinge also features a self-centering mechanism when within 15 degrees of the closed position, providing smooth and reliable operation. Stocked in three popular finishes, including the elegant oil-rubbed bronze, custom finishes are available to match your design aesthetic. Each package includes gaskets, screws, and precise glass fabrication dimensions, ensuring a complete installation solution. For any specific applications outside standard use, consultation with the CRL Shower Door Technical Sales Department is recommended.

Oil Rubbed Bronze Melbourne Wall Mount Offset Back Plate with Cover Plate Hinge

• Large Hinge Plates Provide More Clamping Force
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
• Stocked in Three Popular Finishes, with Custom Finishes Available

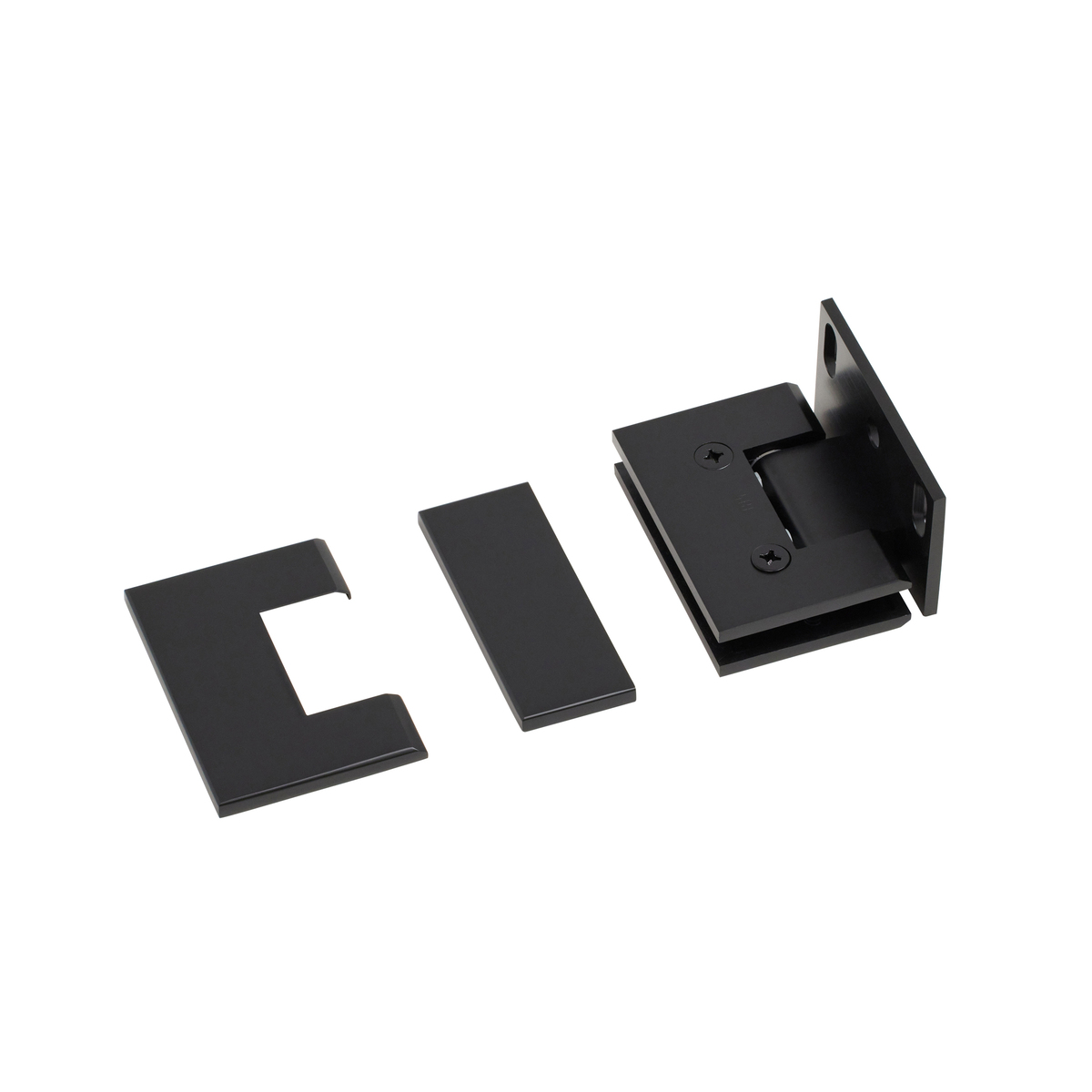

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.


Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

For more information contact CRL Shower Door Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
