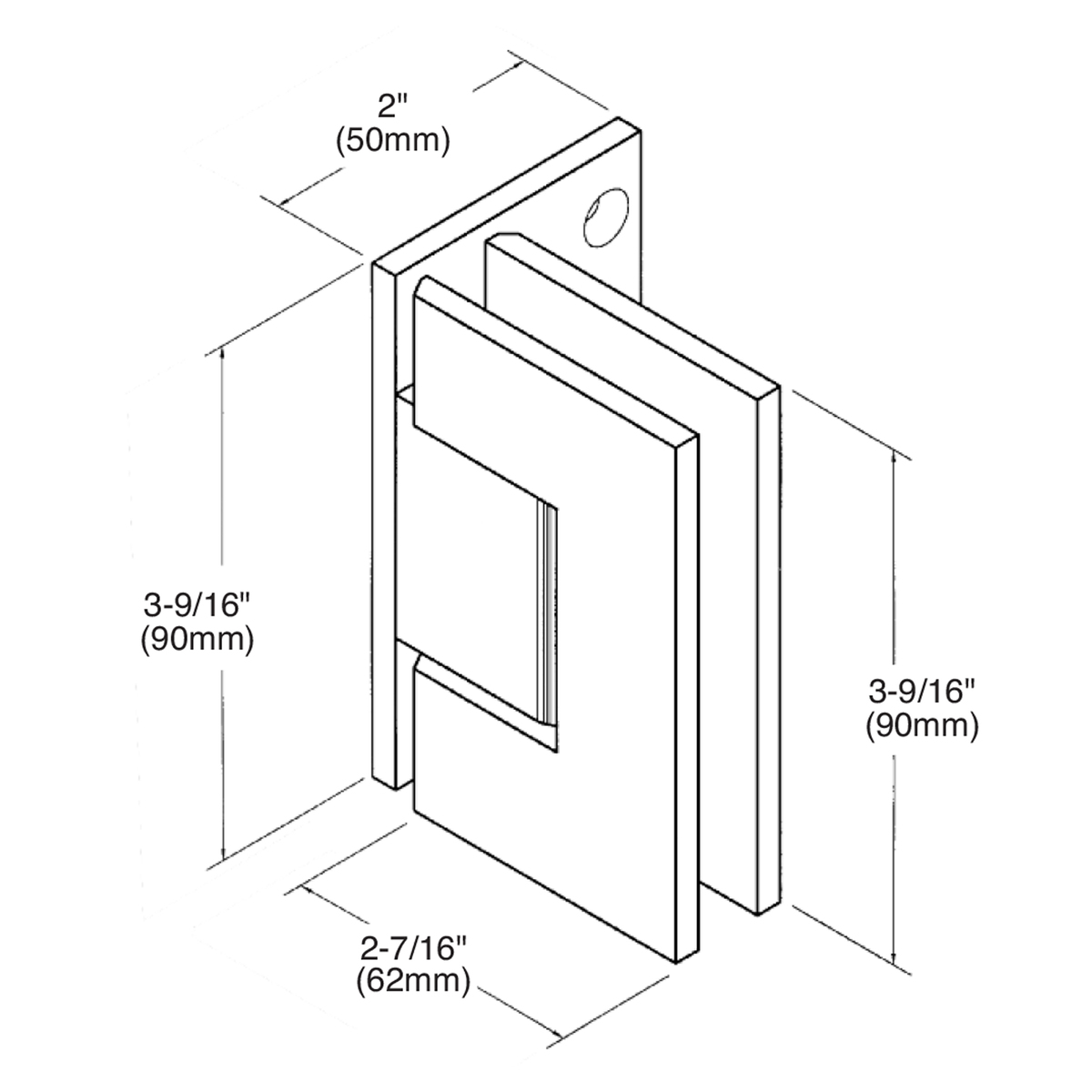

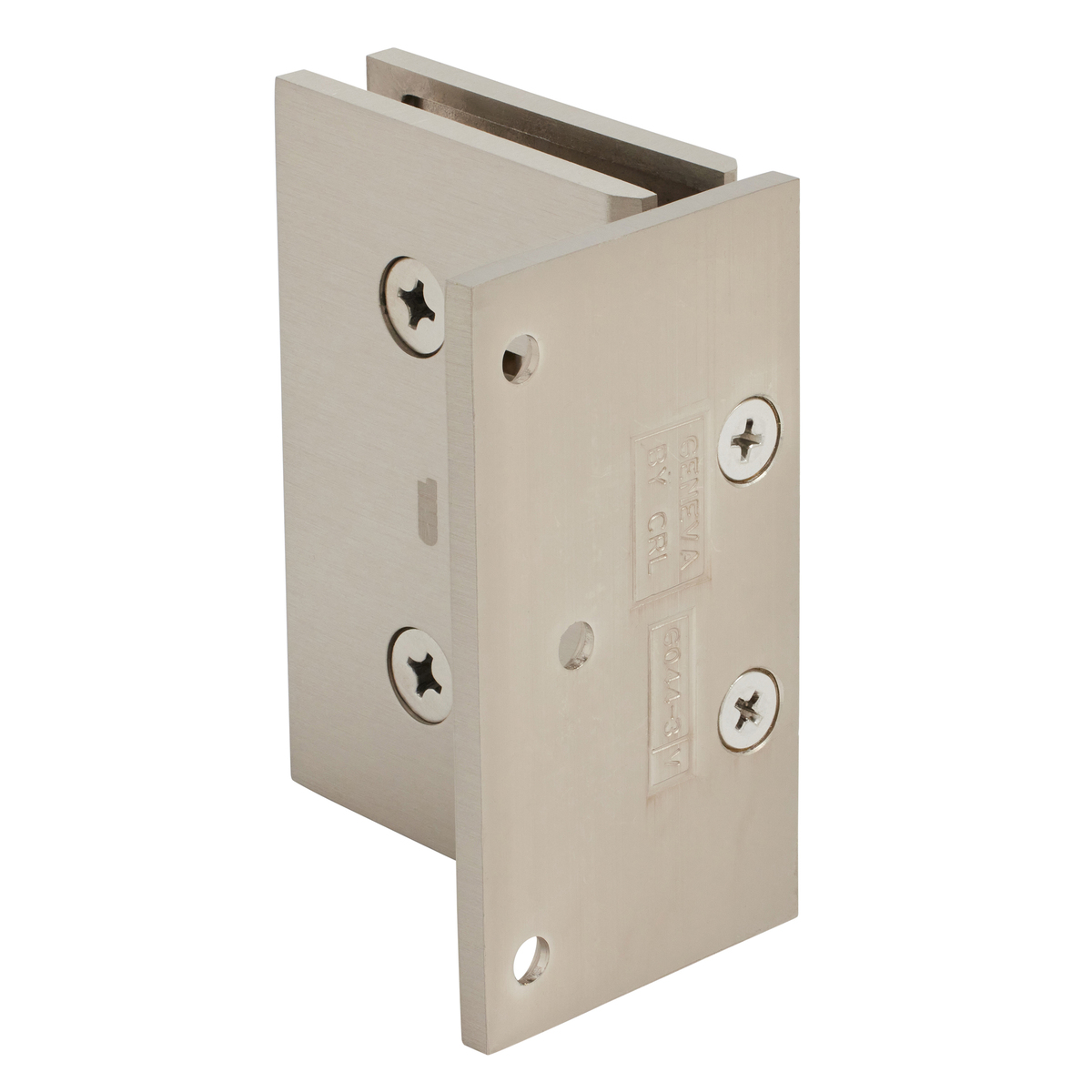

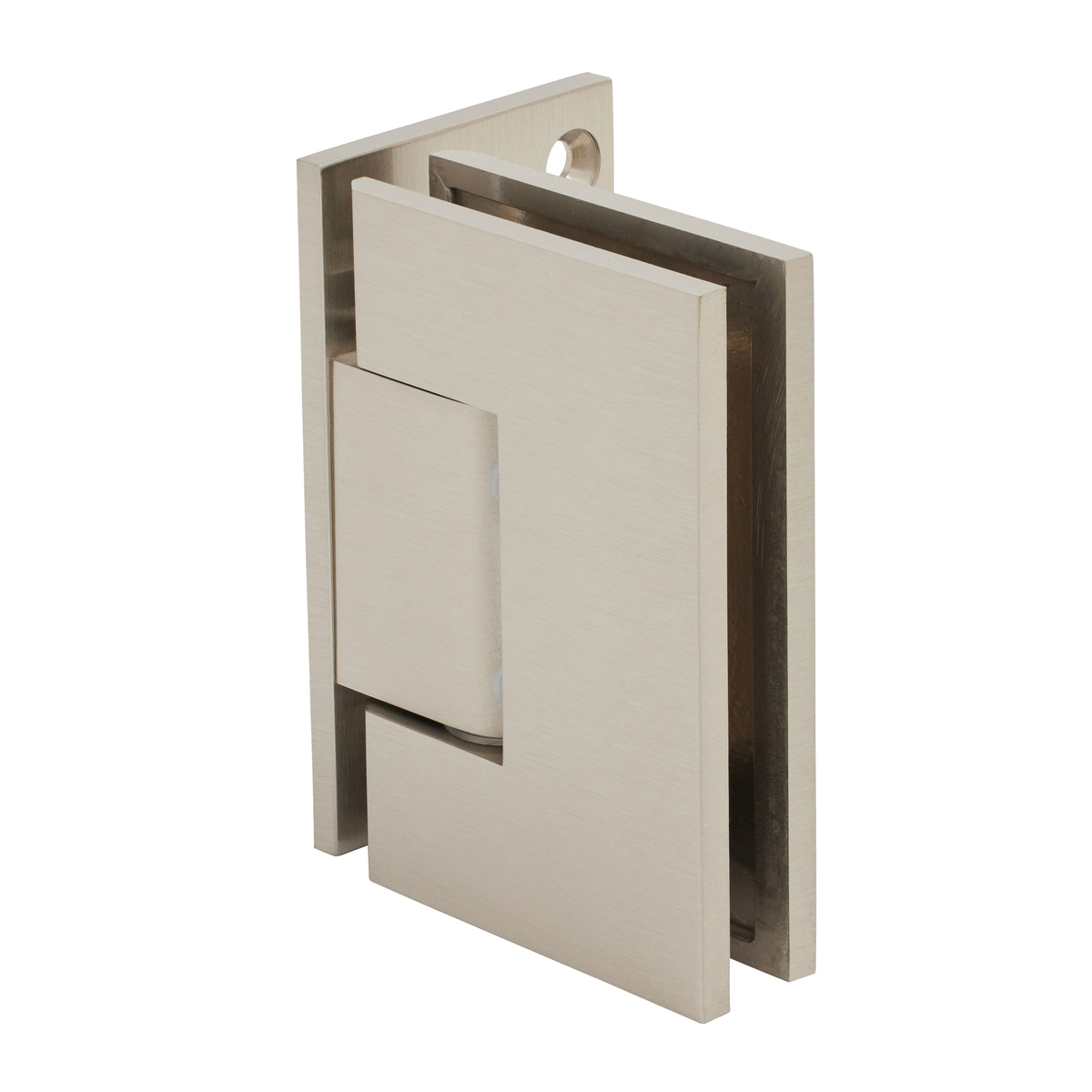

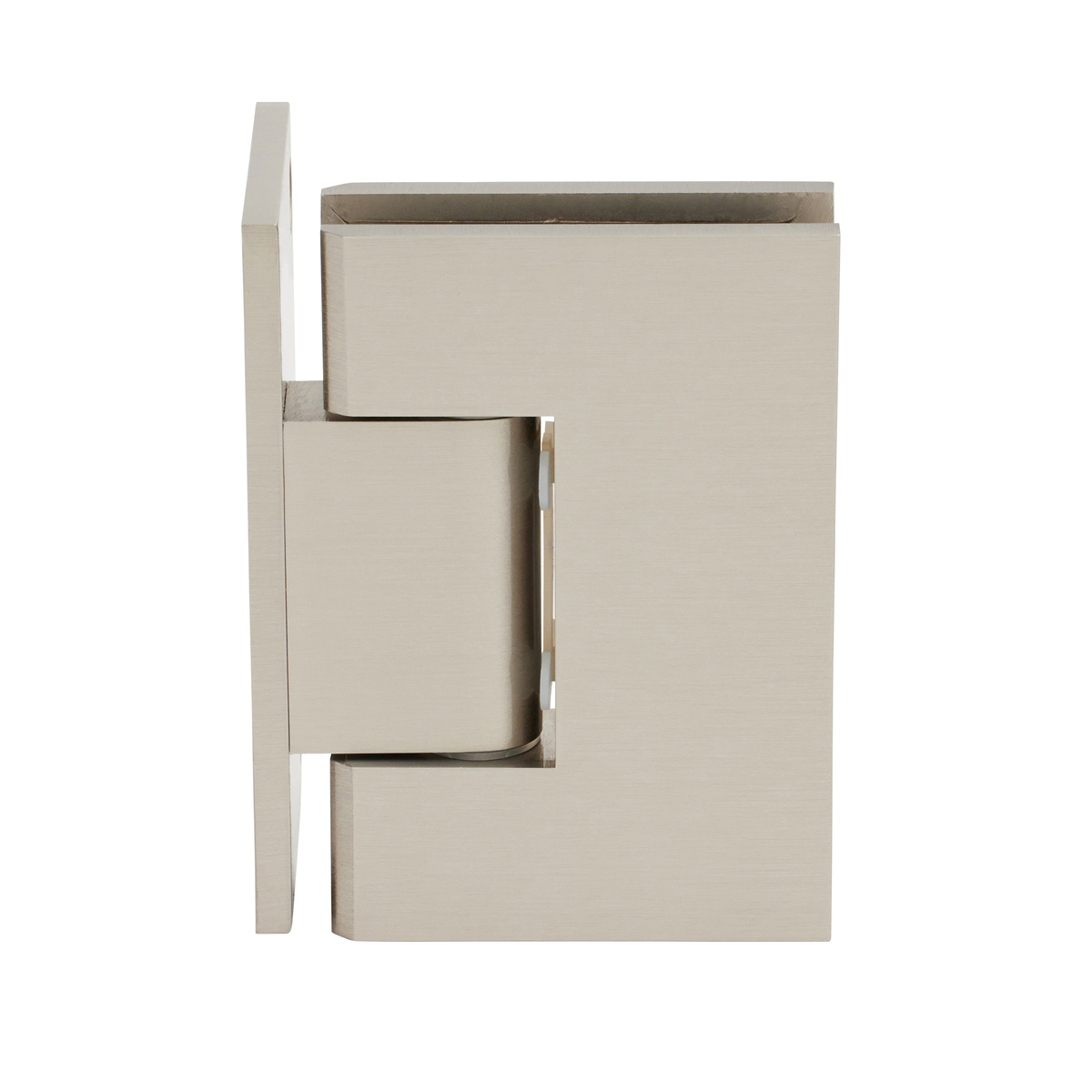

CRL MEL044BN Brushed Nickel Melbourne Wall Mount Offset Hinge Back Plate

CRL MEL044BN Brushed Nickel Melbourne Wall Mount Offset Hinge Back Plate

C.R. Laurence MEL044BN Brushed Nickel Melbourne Wall Mount Offset Back Plate Hinge is designed to deliver both strength and style for your glass installations. Featuring large hinge plates that provide exceptional clamping force, this hinge is an ideal choice for residential and hotel shower applications. It accommodates 1/2", 3/8", and 5/16" thick tempered glass, ensuring versatility in various projects. The hinge is constructed from solid brass, offering durability and a sophisticated brushed nickel finish that complements modern aesthetics. With a simple rectangular cut-out required for ease of glass fabrication, installation becomes a straightforward process. When using two hinges, the hinge holds up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm), while three hinges can support up to 120 lbs. (54 kg) with a maximum width of 34" (864 mm). This hinge swings 90 degrees in and out and features self-centering technology when within 15 degrees of the closed position. The MEL044BN includes gaskets, screws, and precise glass fabrication dimensions for a seamless installation. Stocked in three popular finishes with custom options available, the Melbourne Series Hinge combines functionality with exquisite design for any glass application.

Brushed Nickel Melbourne Wall Mount Offset Back Plate Hinge

• Large Hinge Plates Provide More Clamping Force
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
• Stocked in Three Popular Finishes, with Custom Finishes Available

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.


Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

For more information contact CRL Shower Door Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
