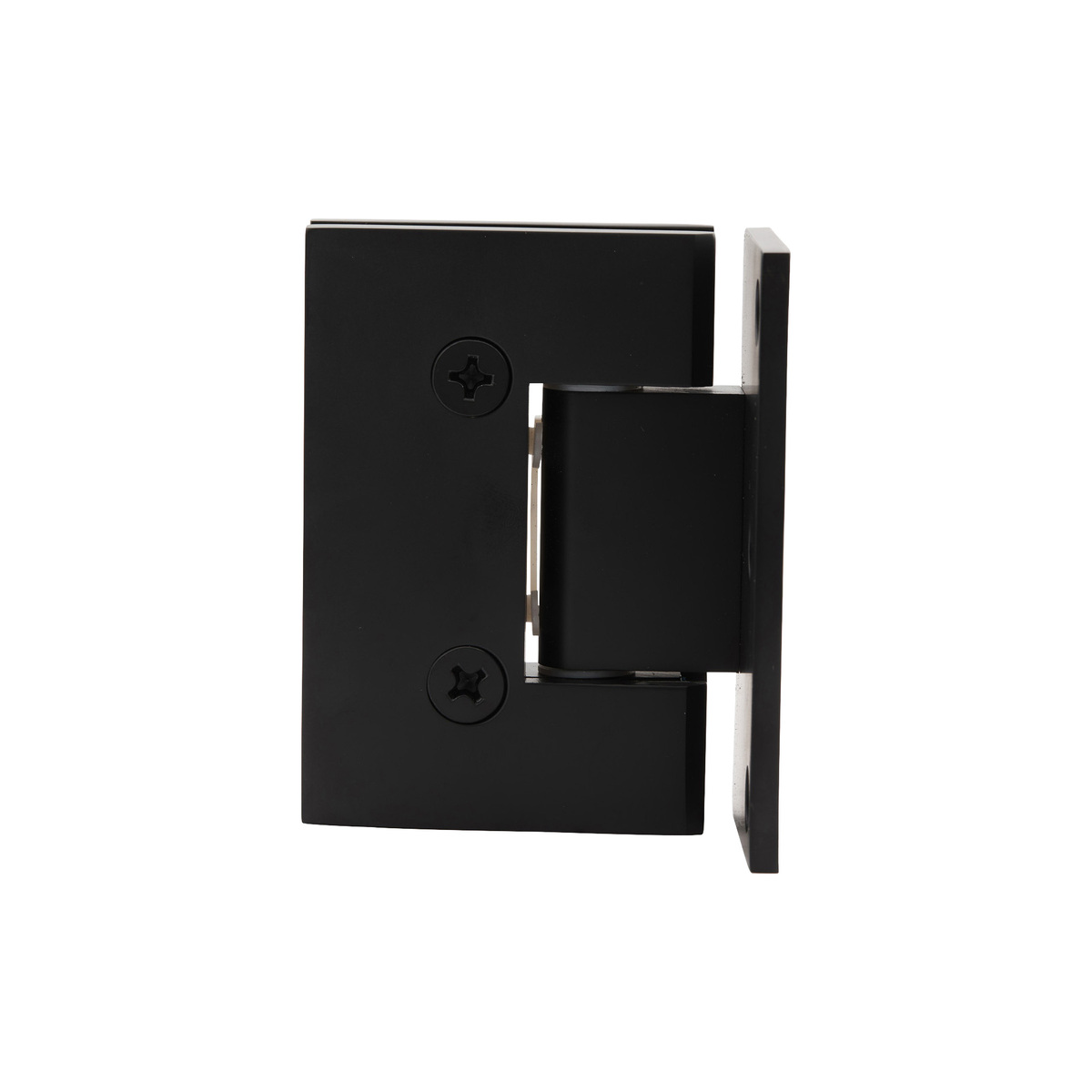

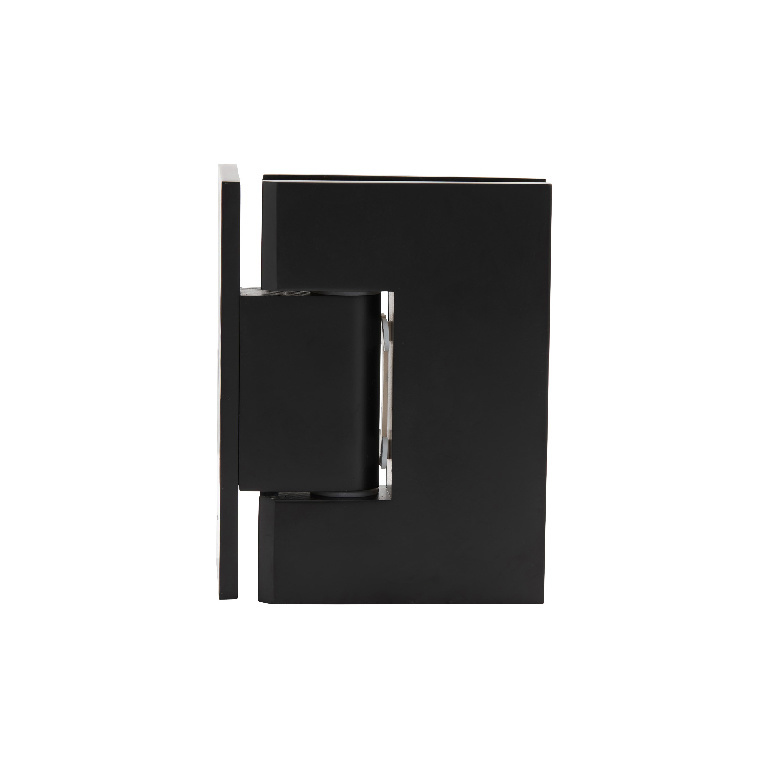

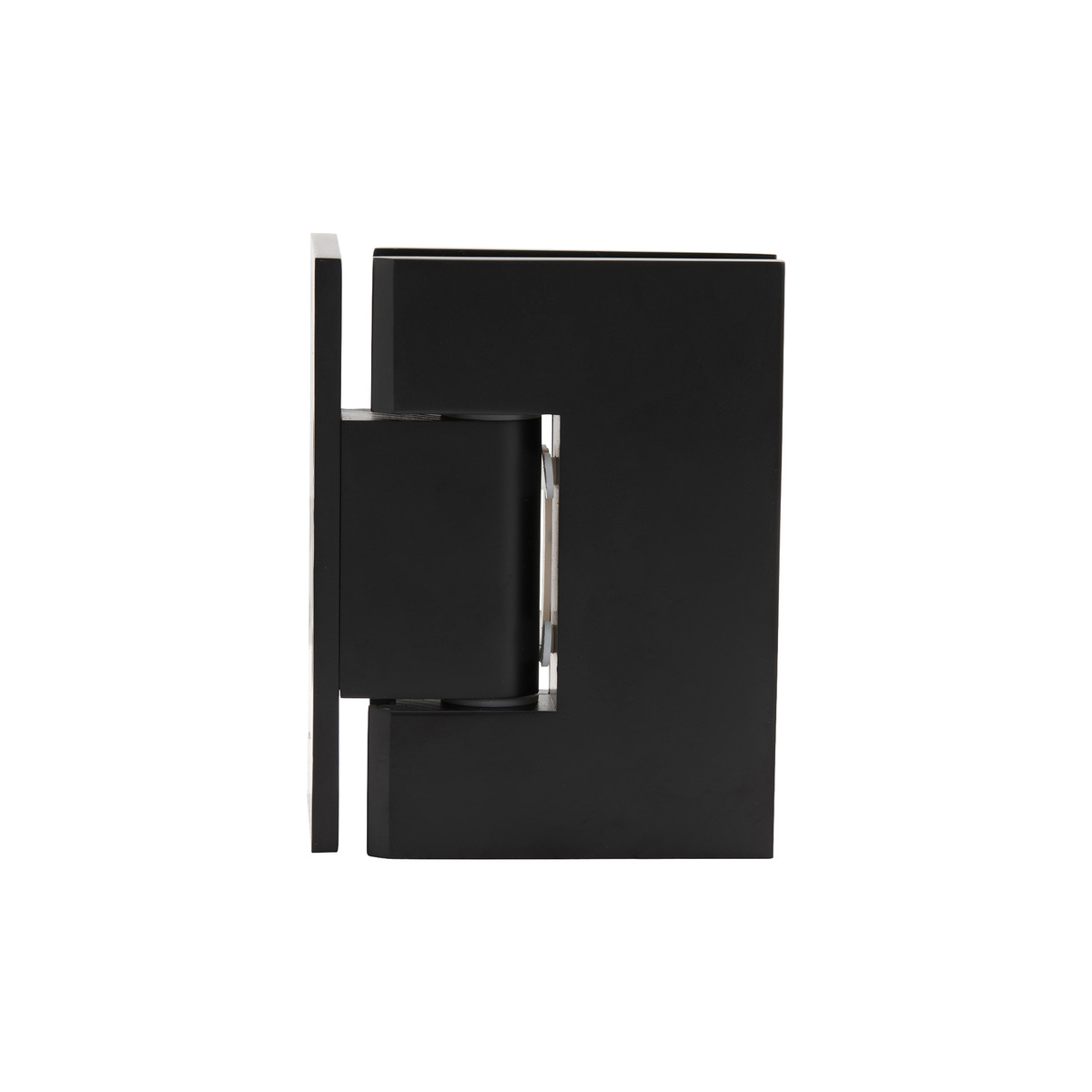

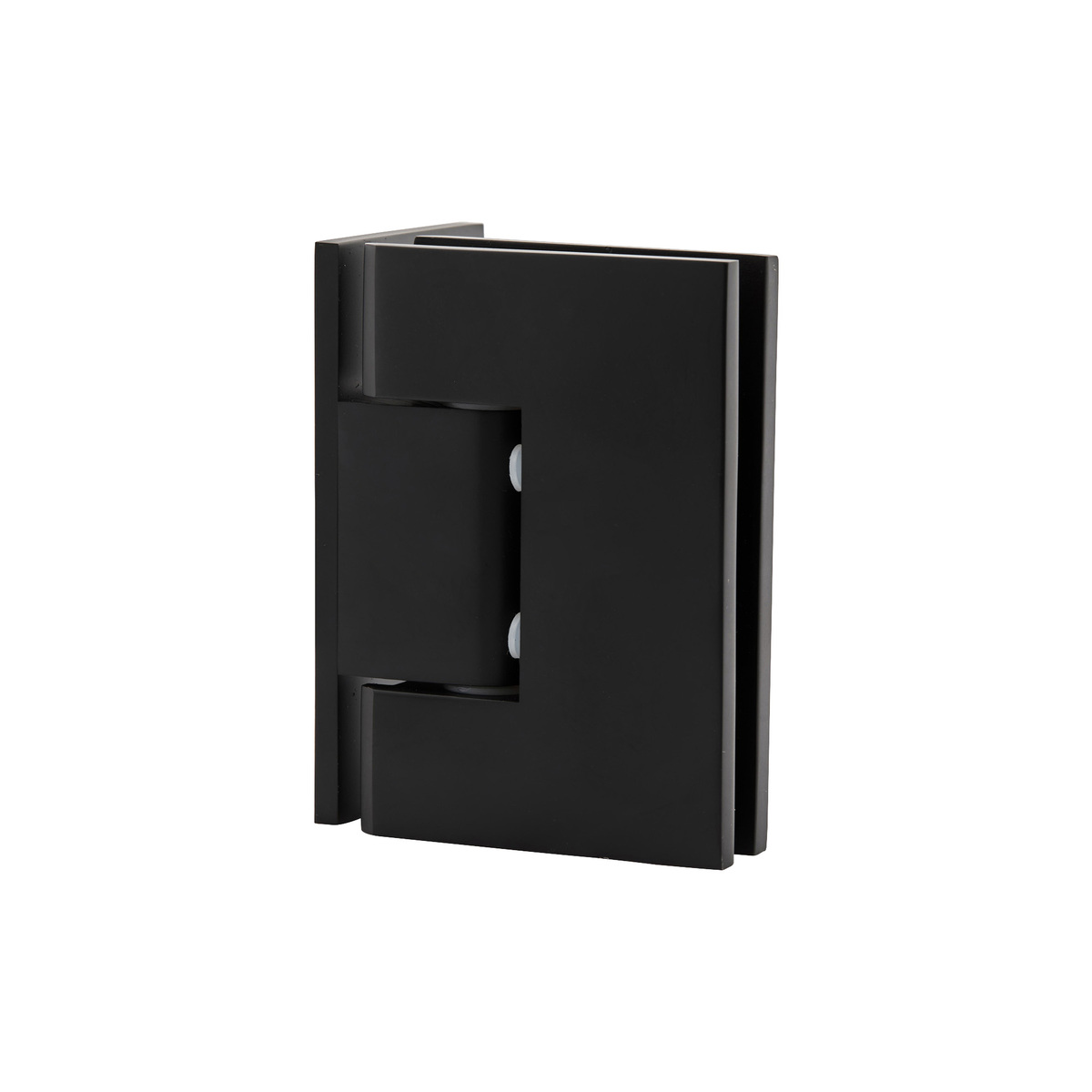

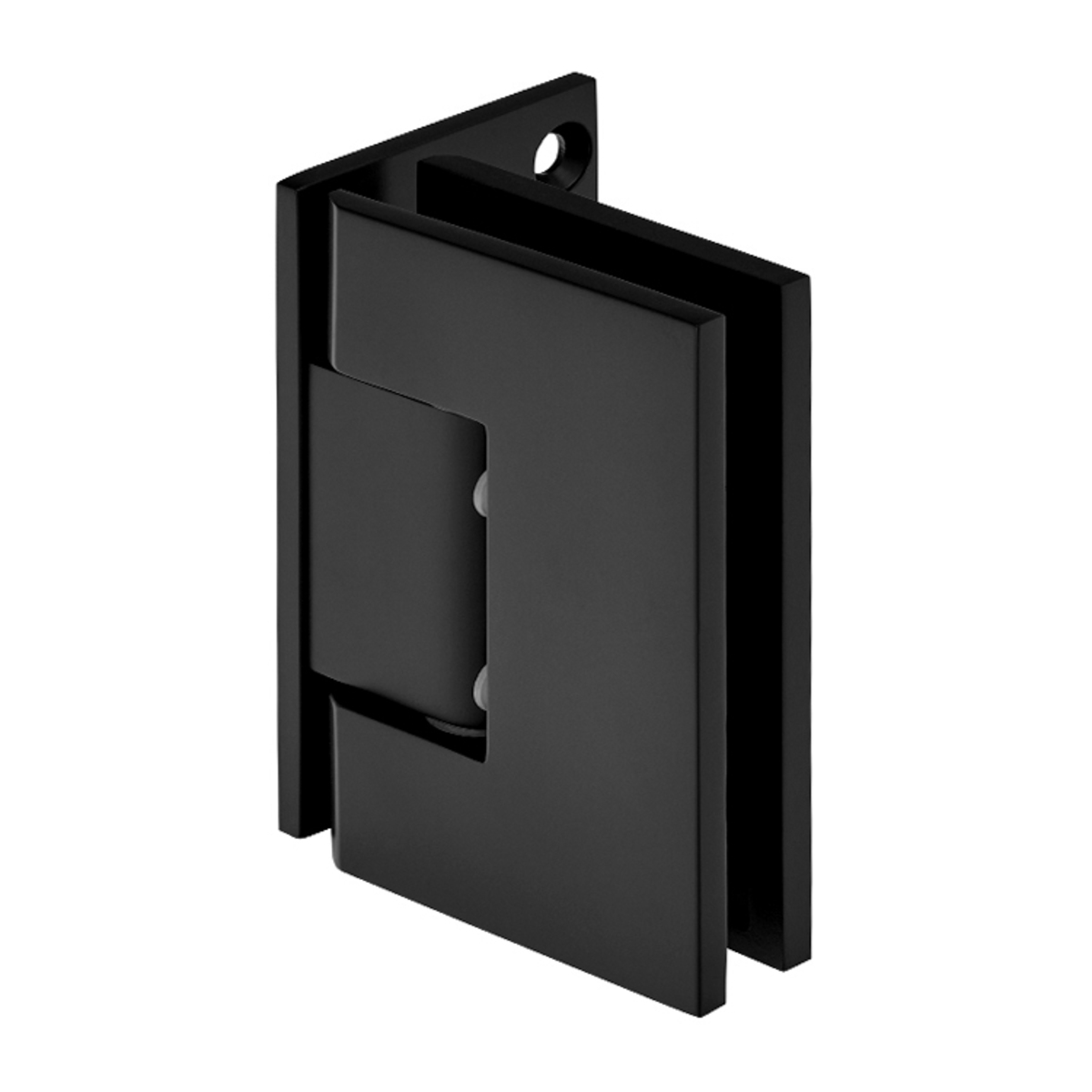

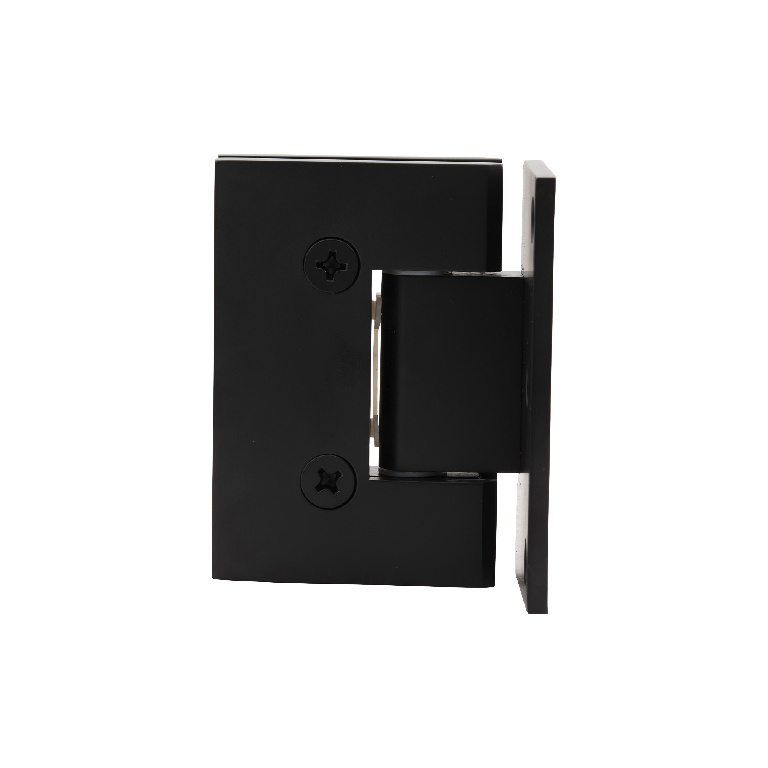

CRL MEL044MBL Matte Black Melbourne Wall Mount Offset Hinge Back Plate

CRL MEL044MBL Matte Black Melbourne Wall Mount Offset Hinge Back Plate

C.R. Laurence MEL044MBL Matte Black Melbourne Wall Mount Offset Back Plate Hinge combines elegance with functionality to enhance your glass installations. Crafted from solid brass, this hinge features large hinge plates that provide superior clamping force, ensuring secure and reliable operation. Designed to accommodate 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass, it is an ideal choice for both residential and hotel shower applications. The simple rectangular cut-out simplifies glass fabrication, making installation straightforward. With a maximum door weight capacity of 100 lbs. (45 kg) when using two hinges, and up to 120 lbs. (54 kg) with three, this hinge is robust enough to handle larger doors, with width capabilities of up to 30" (762 mm) and 34" (864 mm) respectively. The self-centering feature ensures that the door returns smoothly to the closed position when within 15 degrees, enhancing usability. Available in a sleek matte black finish, the Melbourne hinge adds a modern touch to any space and can be customized to meet specific design requirements. This package includes gaskets, screws, and glass fabrication dimensions, making it a complete solution for your glazing needs. For further inquiries, please contact the CRL Shower Door Technical Sales Department.

Matte Black Melbourne Wall Mount Offset Back Plate Hinge

• Large Hinge Plates Provide More Clamping Force
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
• Stocked in Three Popular Finishes, with Custom Finishes Available

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.


Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

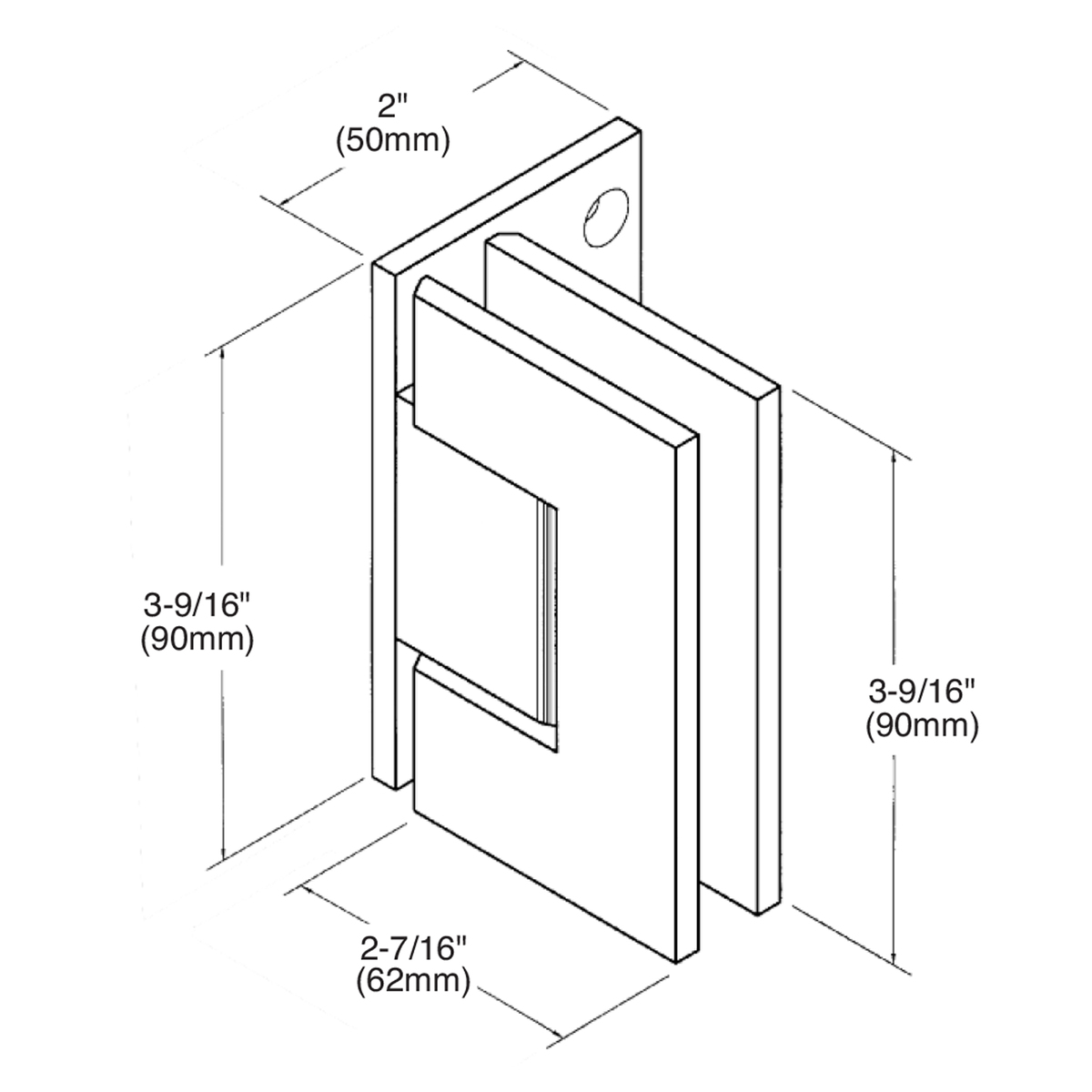

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

For more information contact CRL Shower Door Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
