C.R. Laurence MFC14 Polished Stainless 2" Diameter Mall Front Clamp is an essential component for creating seamless glass installations in mall interiors. This versatile clamp is designed to join vertical glass lites, providing both aesthetic appeal and structural support. Suitable for 3/8" to 1/2" (10 to 12 mm) thick monolithic tempered glass, it ensures a secure fit and a sleek appearance. Crafted from type 304 stainless steel, the MFC14 features a polished finish that complements any modern interior design. The clamp attaches easily with a single beveled nut, which is included in the package. It is recommended to maintain a minimum gap of 7/32" (5.6 mm) between glass panels to ensure optimal performance and rigidity, reducing flex when pressure is applied. Not only does the MFC14 provide structural integrity, but it also acts as a floating indicator in dimly lit areas, enhancing safety by alerting pedestrians to the presence of glass panels. Available in polished brass, polished stainless, and brushed stainless finishes, this clamp combines functionality with style. Ideal for interior applications, the MFC14 is a reliable choice for any professional glazing project.

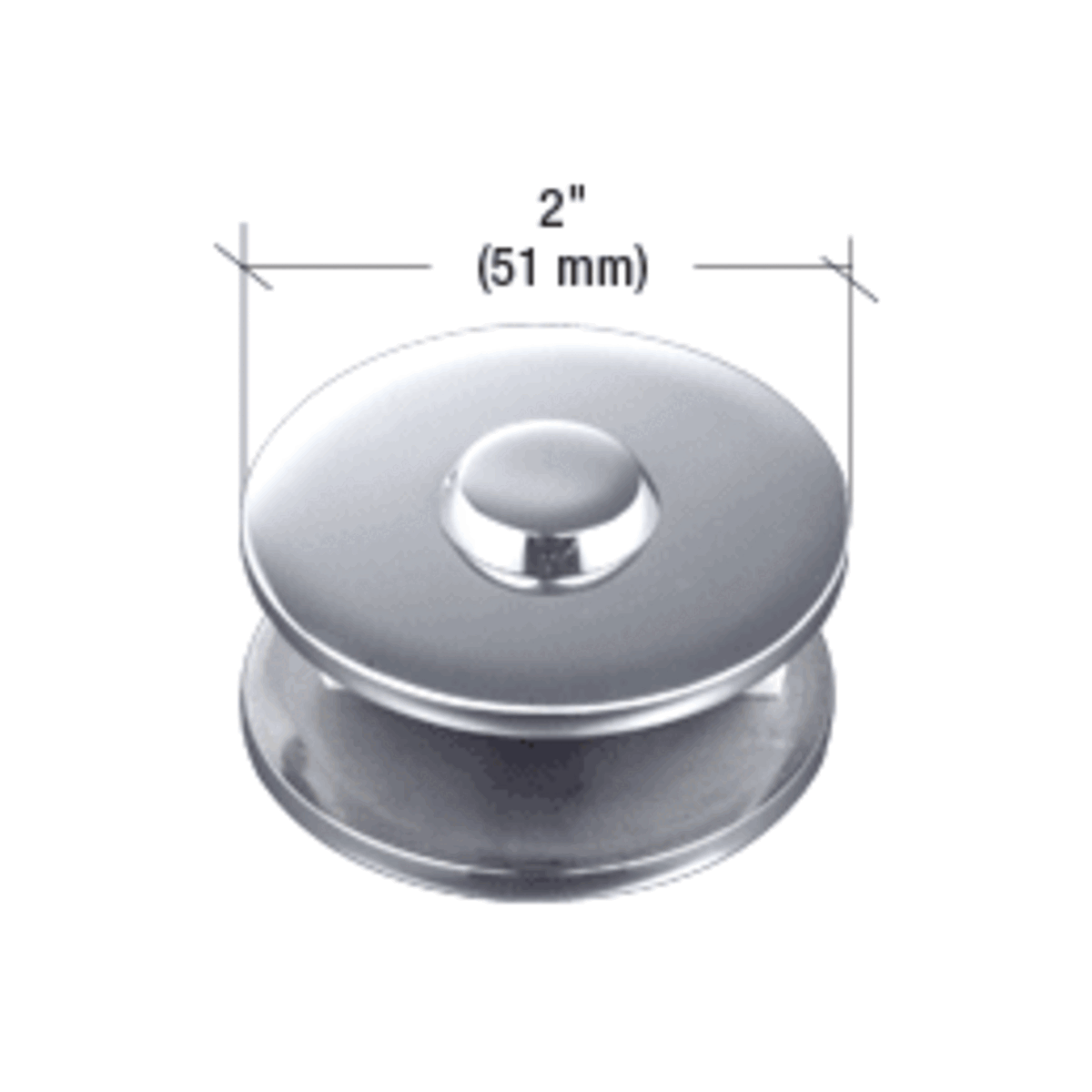

Polished Stainless 2" Diameter Mall Front Clamp
This CRL 2" (51 mm) Diameter Round 180 Degree Round Mall Front Clamp attaches with a single beveled nut (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). They join vertical glass wall panels and provide rigidity to reduce flexing when pressure is applied. They can also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.
P612** replacement screws
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 2 in. (51 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)
Material: 304 Stainless Steel
Shipping Limitations: None
