C.R. Laurence MFC18 Polished Stainless 2" x 2" Square Mall Front Clamp is expertly designed for use in commercial environments, particularly for joining vertical interior glass panels in malls. This robust clamp accommodates tempered glass thicknesses ranging from 3/8" to 3/4" (10 to 19 mm), ensuring a secure and stable installation. Special order studs are required for 3/4" glass, allowing for versatility in applications. Constructed from durable 304 stainless steel or 260 brass, this clamp is available in brushed or polished finishes, providing aesthetic options to complement any design. It is equipped with two flat head Phillips screws for easy attachment, and the suggested minimum gap between glass panels is 7/32" (5.6 mm), promoting a clean and professional look. In addition to providing structural integrity and reducing flexing, these clamps can also serve as visual indicators, alerting pedestrians to the presence of glass panels in low-light conditions. For optimal performance, CRL recommends using monolithic tempered glass. With its combination of style, strength, and practicality, the C.R. Laurence MFC18 Square Mall Front Clamp is an essential component for any modern glass installation.
Polished Stainless 2" x 2" Square Mall Front Clamp

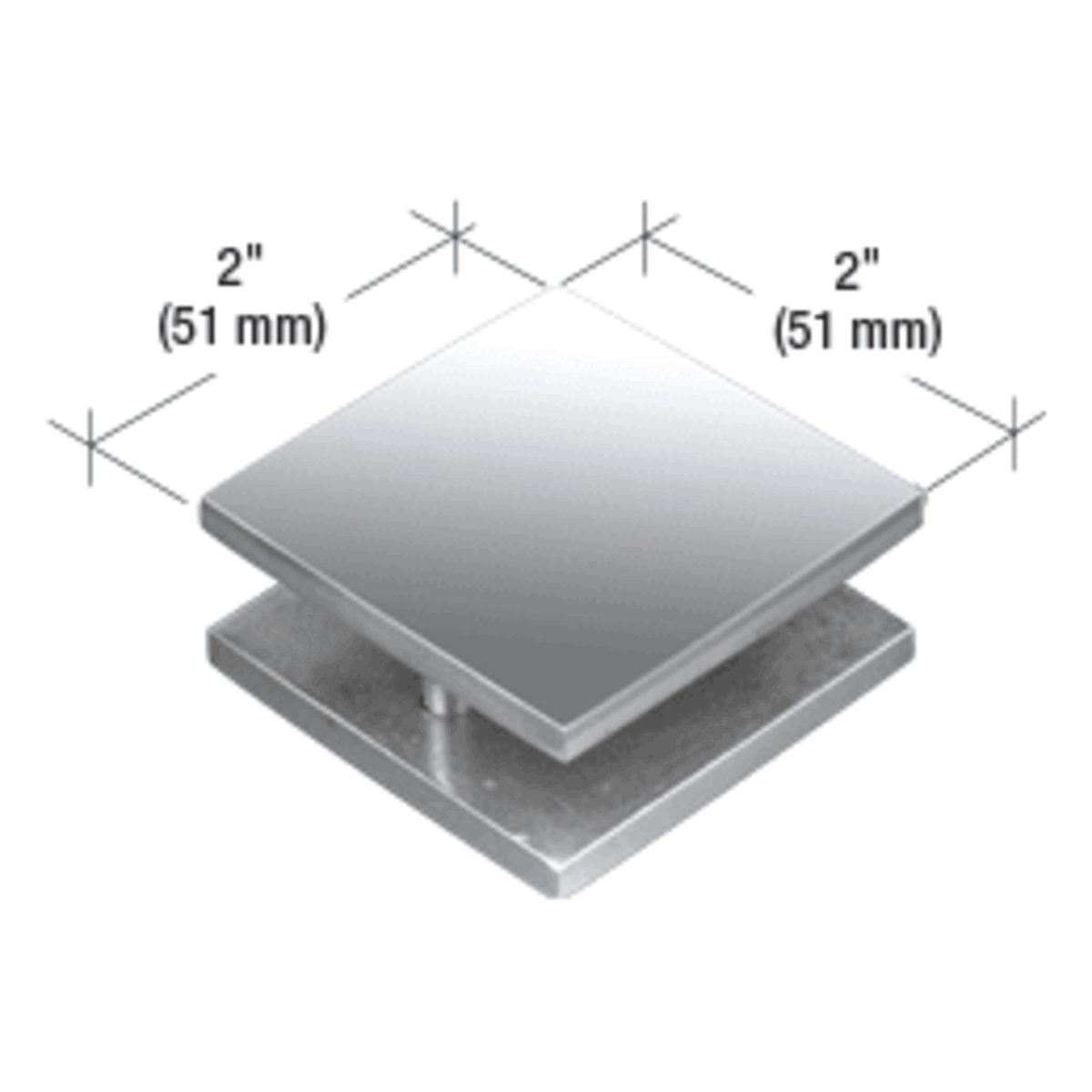

This CRL 2" x 2" (51 x 51 mm) 180 Degree Square Mall Front Clamp attaches with two flat head Phillips screws (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). They join vertical glass wall panels and provide rigidity to reduce flexing when pressure is applied. They can also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.
P612** replacement screws
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Shipping Limitations: None
