CRL MFC18MBL Matte Black 2" Square Mall Front Clamp

C.R. Laurence MFC18MBL Matte Black 2" x 2" Square Mall Front Clamp is an essential component for joining vertical interior glass lites in commercial settings, particularly malls. Designed to accommodate tempered glass thicknesses ranging from 3/8" (10 mm) to 3/4" (19 mm), this clamp provides the necessary rigidity to reduce flexing under applied pressure, ensuring a stable installation. Constructed from high-quality materials, the MFC18MBL is available in a sleek matte black finish, with options in brushed or polished 304 stainless steel and 260 brass to suit your design preferences. The clamp attaches securely using two flat head Phillips screws, which are included in the package, and requires a minimum gap of 7/32" (5.6 mm) between glass panels for optimal performance. For installations using 3/4" glass, special order studs are necessary. This mall front clamp not only enhances structural integrity but also serves as a visible indicator for pedestrians in low-light environments, promoting safety. With its versatile design and variety of finishes, the C.R. Laurence Matte Black Square Mall Front Clamp is an excellent choice for any architectural project requiring elegant and reliable glass panel connections.

Matte Black 2" x 2" Square Mall Front Clamp

• Commonly Used in Malls for Joining Vertical Interior Lites of Glass
• Available in Brushed or Polished 304 Stainless and 260 Brass
• For 3/8" to 3/4" (10 to 19 mm) Thick Tempered Glass
• Special Order Studs Required for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass

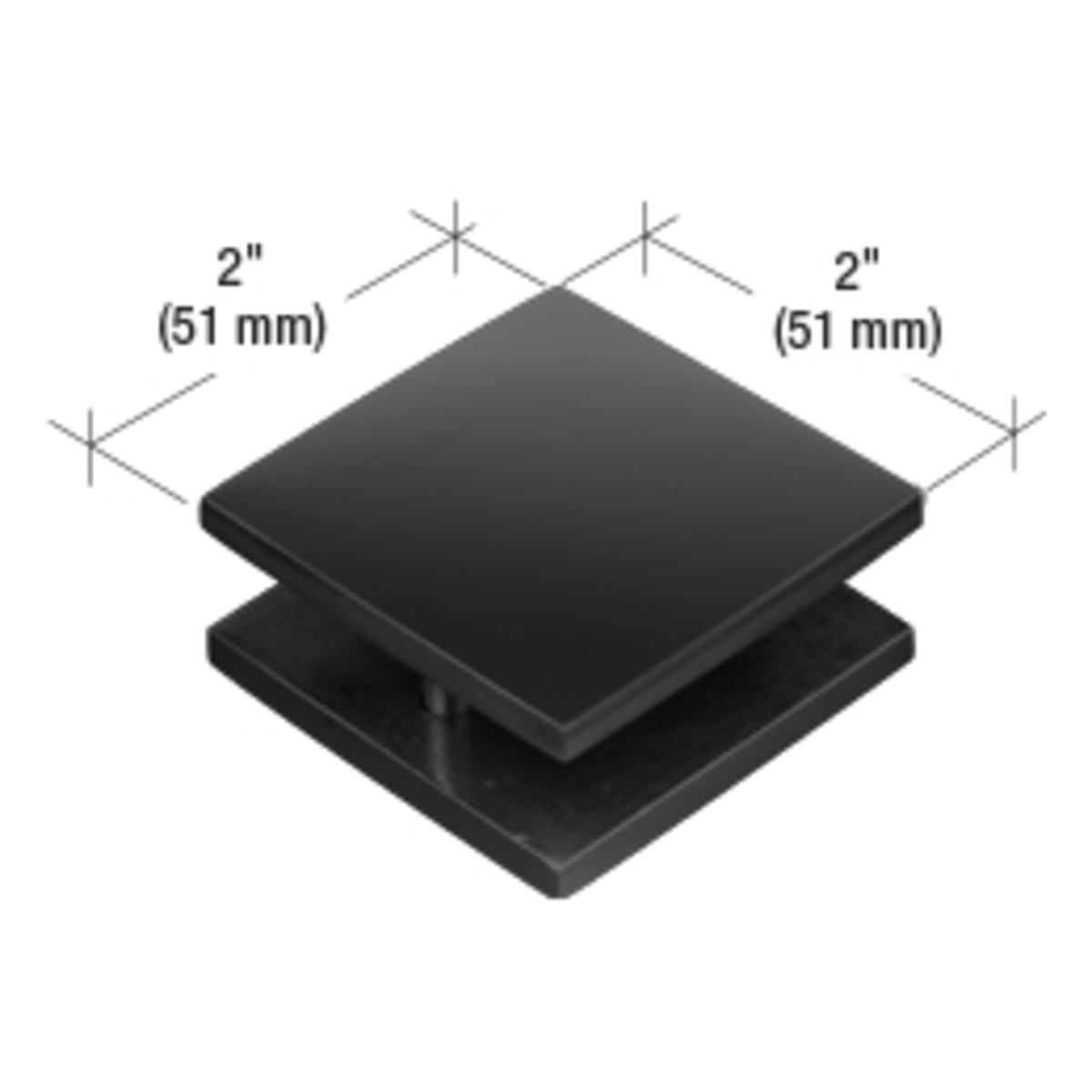

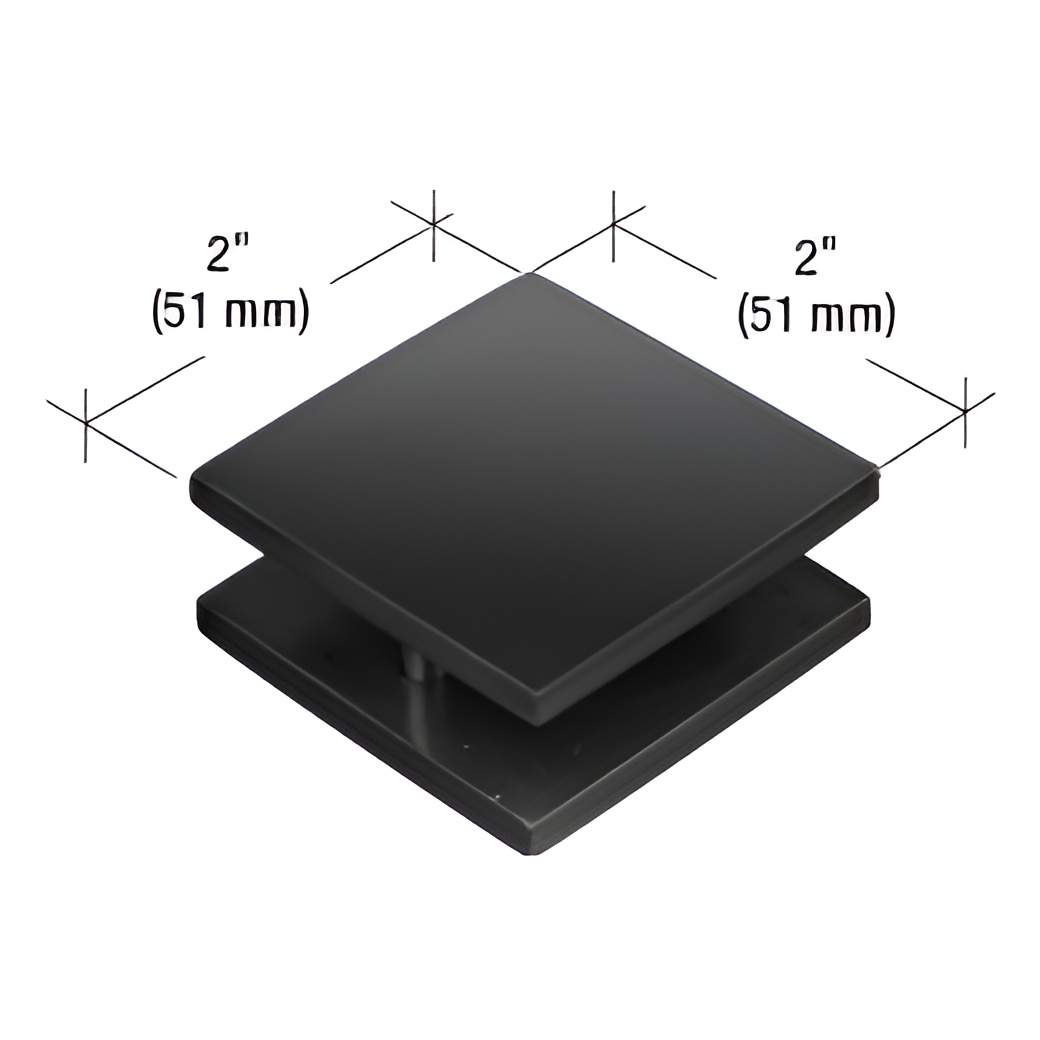

This CRL 2" x 2" (51 x 51 mm) 180 Degree Square Mall Front Clamp attaches with two flat head Phillips screws (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). They join vertical glass wall panels and provide rigidity to reduce flexing when pressure is applied. They can also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.

Resources

• Mall Front Clamps Product Information
