CRL MFC20 Polished Brass 2" Square Mall Front Clamp

C.R. Laurence MFC20 Polished Brass 2" x 2" Square Mall Front Clamp is expertly designed for use in malls, providing a reliable solution for joining vertical interior glass lites. This clamp is compatible with 3/8" to 3/4" (10 to 19 mm) thick tempered glass, making it versatile for various applications. For installations involving 3/4" (19 mm) glass, special order studs are required, ensuring a secure fit. Constructed from durable materials, the MFC20 is available in both polished brass and brushed or polished 304 stainless finishes, allowing for aesthetic flexibility. Its robust construction helps to reduce flexing under pressure, enhancing the stability of glass wall panels. The clamp attaches easily with two included flat head Phillips screws, while maintaining a suggested minimum gap of 7/32" (5.6 mm) between glass panels. Additionally, the clamp serves as a floating indicator, effectively alerting pedestrians to the presence of glass panels in low-light conditions. With a focus on quality and performance, the C.R. Laurence MFC20 is a dependable choice for professional-grade installations in commercial settings. Ensure your projects meet both functional and design standards with this essential glazing accessory.

Polished Brass 2" x 2" Square Mall Front Clamp

• Commonly Used in Malls for Joining Vertical Interior Lites of Glass
• Available in Brushed or Polished 304 Stainless and 260 Brass
• For 3/8" to 3/4" (10 to 19 mm) Thick Tempered Glass
• Use Monolithic Tempered Glass

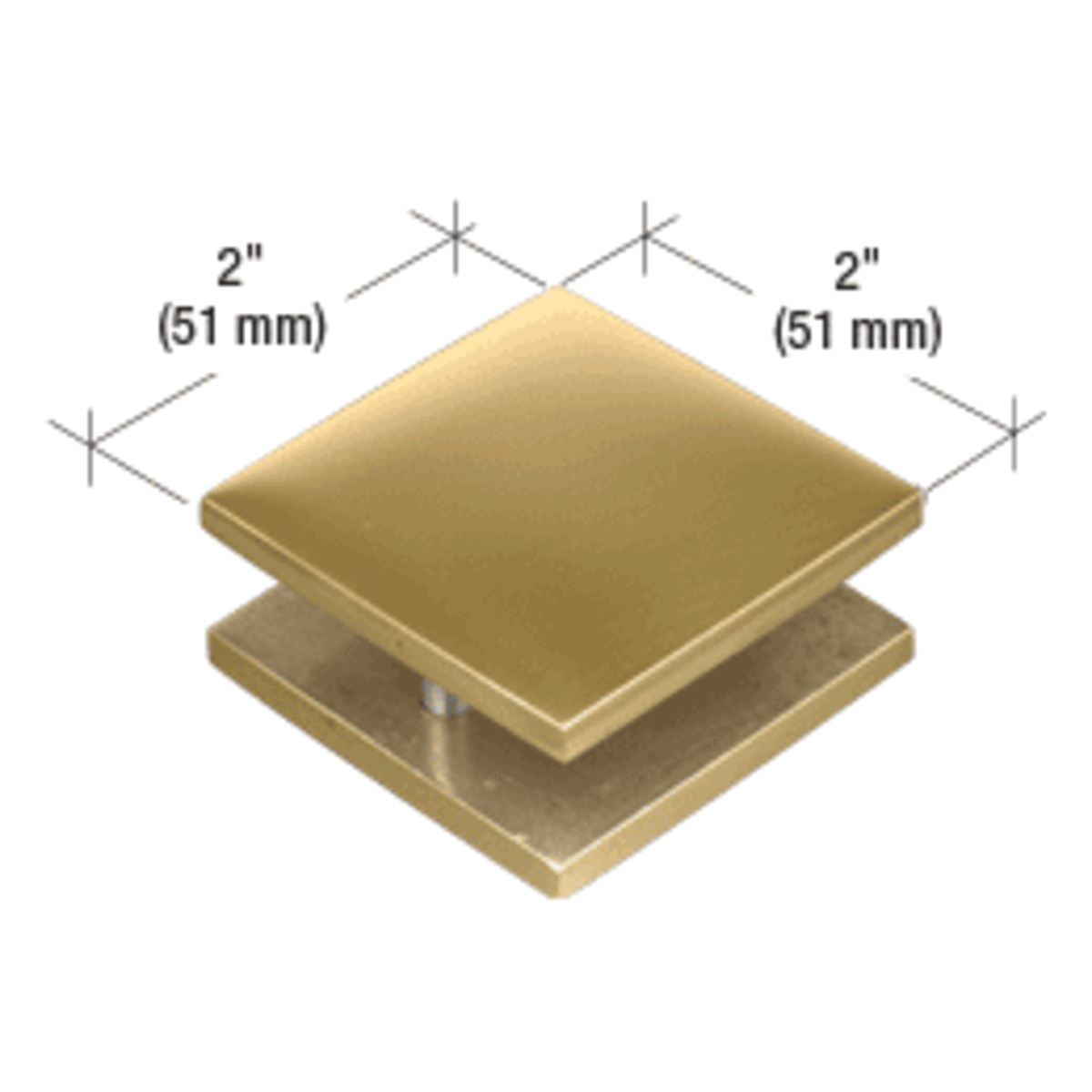

This CRL 2" x 2" (51 x 51 mm) 180 Degree Square Mall Front Clamp attaches with two flat head Phillips screws (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). They join vertical glass wall panels and provide rigidity to reduce flexing when pressure is applied. They can also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.

P612** replacement screws

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• Mall Front Clamps Product Information
• Mounting Options 56SC 57SC 58SC.pdf
