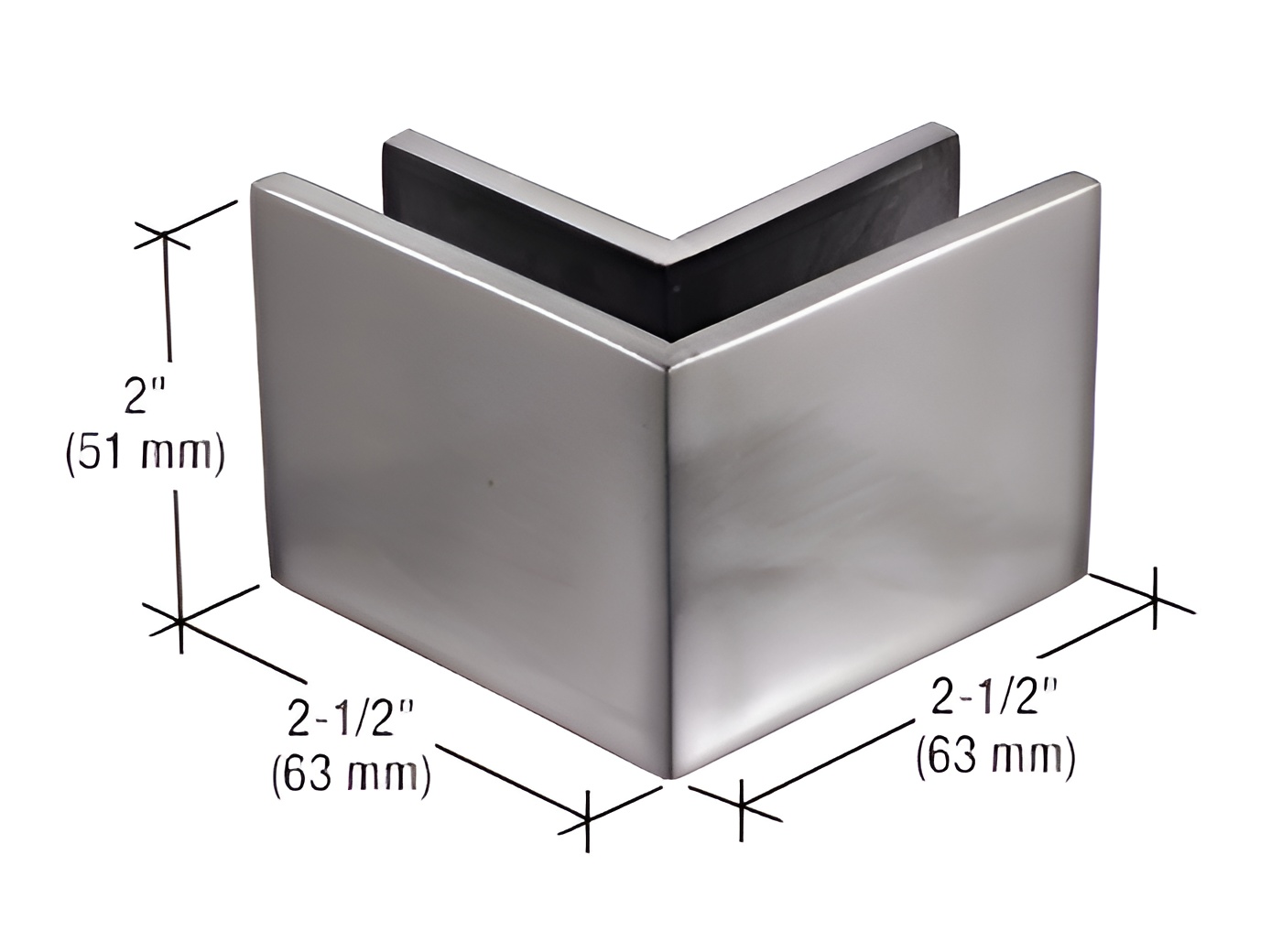

CRL MFC23 2-1/2" x 2" Brushed Stainless 90 Outside Corner Clamp

C.R. Laurence MFC23 2-1/2" x 2" Brushed Stainless 90 Outside Corner Mall Front Clamp is expertly designed for seamless integration in mall environments, efficiently joining vertical glass panels at right angles. Specifically crafted for use with 3/8" to 1/2" (10 to 12 mm) thick tempered glass, this clamp provides remarkable rigidity, minimizing flex when pressure is applied, and enhancing the structural integrity of your installations. Available in brushed or polished 304 stainless steel and C260 brass, the MFC23 not only boasts high-tech contemporary aesthetics but is also offered at competitive prices. This clamp serves as a floating indicator, alerting pedestrians to the presence of glass panels in dimly lit areas, ensuring safety without compromising style. Easy to install, the MFC23 utilizes CRL's Cat. No. 491012 or AT04012 Clear Very Hi-Bond Tape along with the recommended RTV408C Neutral Cure Silicone. These clamps are suited for interior applications only, with periodic maintenance advised to preserve their finish. For optimal performance and durability, consider the P612** replacement screws, ensuring your installations remain secure and visually appealing over time. Embrace the blend of functionality and elegance with the C.R. Laurence MFC23 clamp for your next architectural project.

2-1/2" x 2" Brushed Stainless 90 Outside Corner Mall Front Clamp

• Commonly Used in Malls for Joining Vertical Interior Lites of Glass
• For 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass
• Available in Brushed or Polished 304 Stainless and C260 Brass
• High Tech Contemporary Designs with New Lower Prices
• Use Monolithic Tempered Glass

This CRL 90 Degree Square Mall Front Clamp is installed using our Cat. No. 491012 or AT04012 Clear Very Hi-Bond Tape and Cat. No. RTV408C Neutral Cure Silicone. They join vertical glass wall panels set at right angles and provide rigidity to reduce flexing when pressure is applied. They also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.

P612** replacement screws

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Mall Front Clamps Product Information
• Mounting Options 56SC 57SC 58SC.pdf
