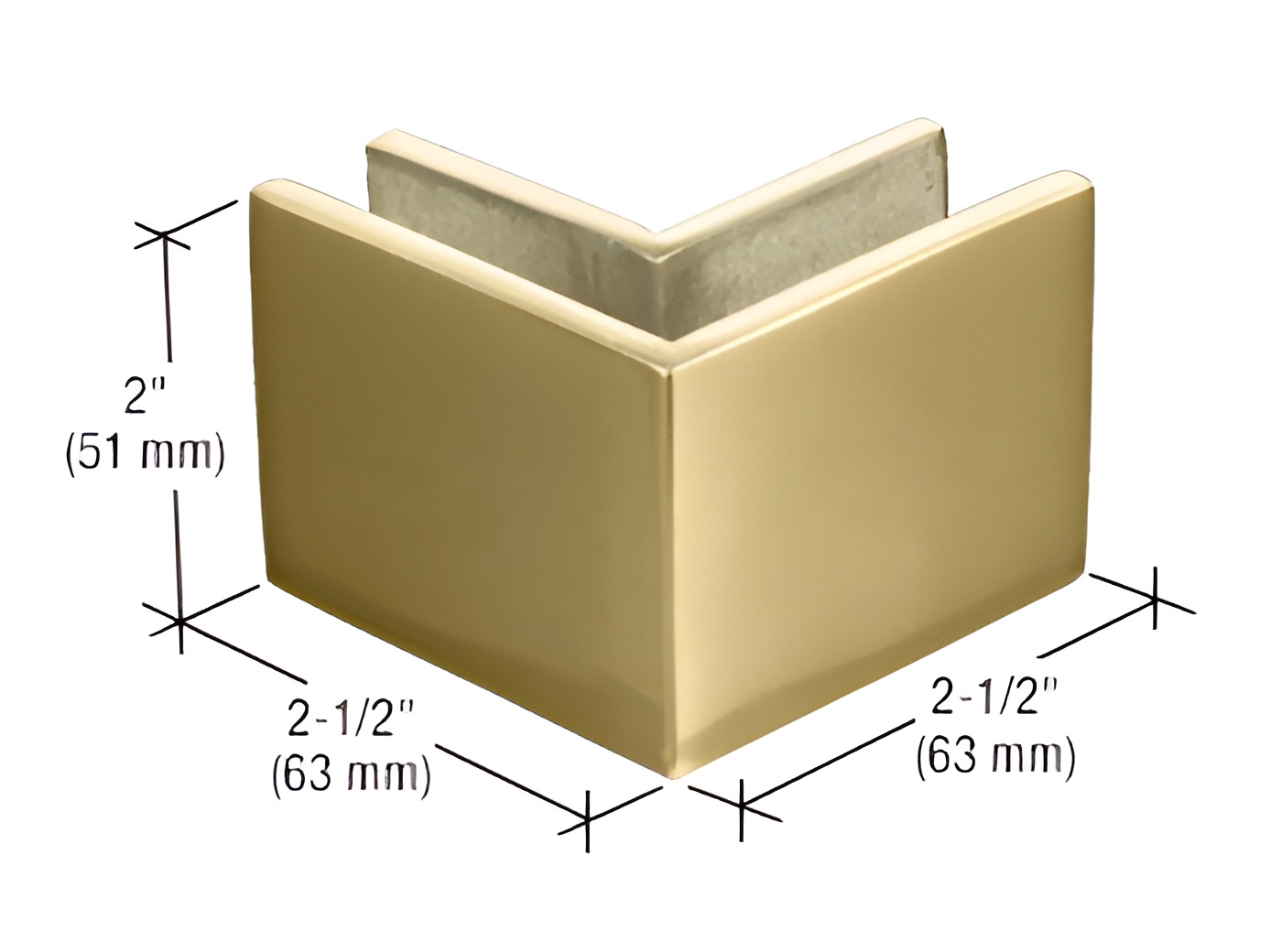

CRL MFC24 2-1/2" x 2" Polished Brass 90 Outside Corner Mall Clamp

C.R. Laurence MFC24 2-1/2" x 2" Polished Brass 90 Outside Corner Mall Front Clamp is expertly designed for joining vertical interior lites of glass, making it an ideal choice for modern mall environments. This clamp accommodates tempered glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), ensuring a secure fit for various applications. Available in both brushed and polished finishes of 304 stainless and C260 brass, it complements any aesthetic while delivering durability and style. Installation is straightforward with the use of CRL’s Cat. No. 491012 or AT04012 Clear Very Hi-Bond Tape and Cat. No. RTV408C Neutral Cure Silicone. Designed to join vertical glass wall panels at right angles, the MFC24 provides essential rigidity, reducing flexing under pressure, while also serving as a floating indicator to enhance pedestrian safety in low-light areas. For added convenience, replacement screws are available (P612**). Please note that this clamp is intended for interior applications only, and it is important to be aware that brass may oxidize over time, which can affect its appearance. Choose the CRL MFC24 for a sophisticated, reliable solution in architectural glass fittings.

2-1/2" x 2" Polished Brass 90 Outside Corner Mall Front Clamp

• Commonly Used in Malls for Joining Vertical Interior Lites of Glass
• For 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass
• Available in Brushed or Polished 304 Stainless and C260 Brass
• High Tech Contemporary Designs with New Lower Prices
• Use Monolithic Tempered Glass

This CRL 90 Degree Square Mall Front Clamp is installed using our Cat. No. 491012 or AT04012 Clear Very Hi-Bond Tape and Cat. No. RTV408C Neutral Cure Silicone. They join vertical glass wall panels set at right angles and provide rigidity to reduce flexing when pressure is applied. They also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.

P612** replacement screws

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• Mall Front Clamps Product Information
• Mounting Options 56SC 57SC 58SC.pdf
