CRL MRTALPCH611LDC Wood's DC Low Profile Manual Rotator/Tilter, 1,100 lbs Capacity

CRL MRTALPCH611LDC Wood's DC Low Profile Manual Rotator/Tilter, 1,100 lbs Capacity

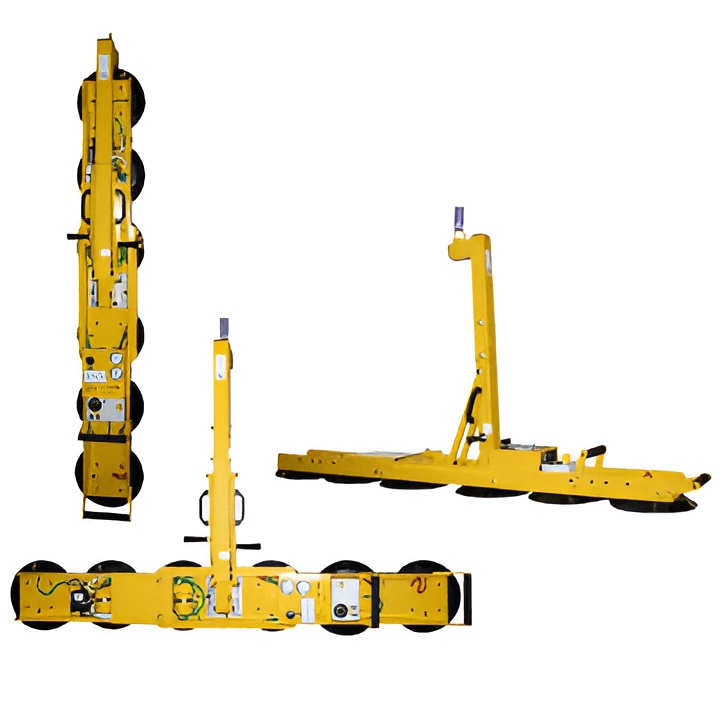

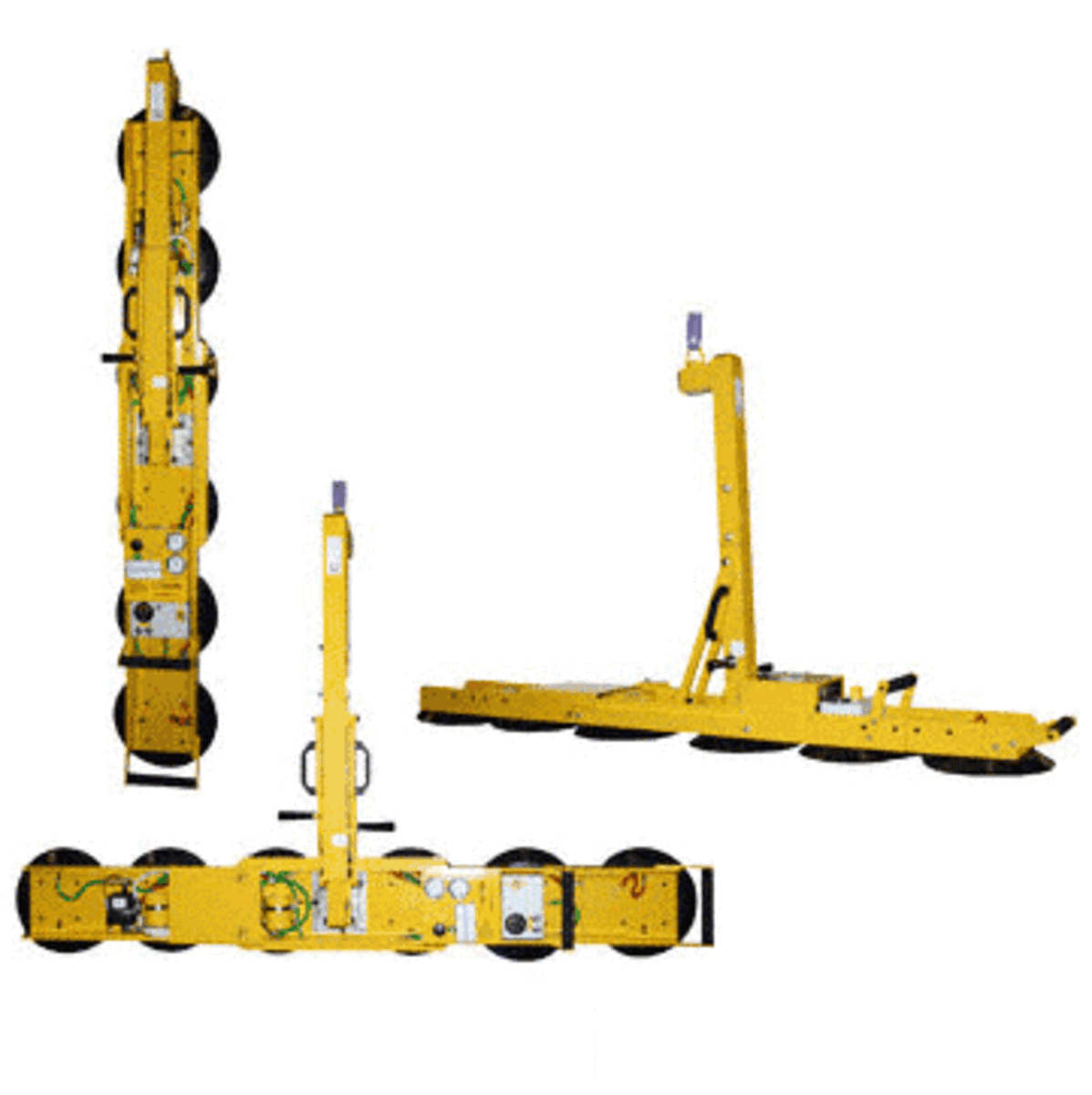

C.R. Laurence MRTALPCH611LDC Wood's DC Low Profile Manual Rotator/Tilter with Pad Channel offers unparalleled versatility for handling heavy loads up to 1,100 lbs. (500 kg). This remarkably low-profile lifter is designed to facilitate glass movement between scaffolding and buildings, making it an essential tool for high-rise window installations and fabrication shops, especially in tight vertical storage areas. Powered by an on-board 12V DC system, the MRTALPCH611LDC operates seamlessly at construction sites or any location lacking AC power. Its manual rotation capability allows for 180 degrees of edgewise movement, with locking positions for secure handling. Additionally, the assisted manual tilt feature provides a 90-degree adjustment between upright and flat positions, ensuring ease of use. The lifter comes equipped with six vacuum pads, ensuring a standard pad spread of 79-1/4" x 12" (2.01 m x 305 mm). With an average weight of 125 lbs. (57 kg), it is manageable for operators while maintaining stability during use. Standard features include a vacuum gauge, low vacuum warning light, and a spring-mounted vacuum pad system. For added functionality, users can explore available options like dual vacuum systems and alternative vacuum pads. The MRTALPCH611LDC is a reliable choice for professionals seeking efficiency and safety in their glazing operations.

Wood's DC Low Profile Manual Rotator/Tilter with Pad Channel - 1,100 Lbs.

• Remarkably Low Profile, for Maximum Flexibility in Handling Loads Between Buildings and Scaffolding
• On-Board DC Power Allows for Use at Construction Sites or Any Location Lacking AC Power
• Load Capacity 1,100 Lbs. (500 Kg)

The low-profile design of these CRL Wood's Powr-Grip® Low Profile Channel Lifters allow a way to lift glass between scaffolding and buildings during high-rise window installations and in fabrication shops, between tight vertical storage racks.


Standard Pad Spread Cat. No. MRLPCH611LDC:
With 6 vacuum pads in use - 77" x 12" (1.96 m x 305 mm) and with 4 vacuum pads in use - 52" x 12" (1.32 m x 305 mm)

Standard Pad Spread Cat. No. MRTALPCH611LDC:
With 6 vacuum pads in use - 79-1/4" x 12" (2.01 m x 305 mm) and with 4 vacuum pads in use - 54" x 12" (1.37 m x 305 mm)

Lifting Capacity:
With 6 vacuum pads in use - 1,100 Lbs. (500 kg) and 4 vacuum pads in use - 736 Lbs. (334 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)

Average Weight Of Vacuum Lifter:
Cat. No. MRLPCH611LDC: 110 Lbs. (50 kg)
Cat. No. MRTALPCH611LDC: 125 Lbs. (57 kg)

Standard Operating Power:
Cat. No. MRLPCH611LDC: 12V DC, 10 AMP
Cat. No. MRTALPCH611LDC: 12V DC, 10 AMP

Load Movement:
Cat. No. MRLPCH611LDC: Manual rotation, 180 degrees edgewise, with locking in three positions and Cat. No. MRTALPCH611LDC: Manual rotation, 180 degrees edgewise, with locking in three positions. Assisted manual tilt, 90 degrees between upright and flat, with automatic latching in upright position.

Profile:
Cat. No. MRLPCH611LDC: 7-1/2" (191 mm) and
Cat. No. MRTALPCH611LDC: 7-3/4" (197 mm)
(Does not include load.)

Standard Features:
Removable Pad Frame Extensions Adjustable Length Lift Bar On-board Battery and Charger Battery Energy Gauge Low Vacuum Warning Light Vacuum Gauge Vacuum Line Filter Vacuum Reserve Tank Spring-mounted Vacuum Pads Dual Vacuum System (MRTA Frame only) Green Lift Light (MRTA Frame only) Blow-off for Quick Release (MRTA Frame only)

Available Options For MRLPCH611LDC:

Dual Vacuum System Cat. No. E010DVS

Remote Control System Cat. No. E08RC

Individual Vacuum Pad Shutoffs Cat. No. CM1C0WB

Alternative Vacuum Pads:
10" (254 mm) Diameter Concave Vacuum Pads Cat. No. 49590TA 10" (254 mm) Diameter Flat Lipped Vacuum Pads Cat. No. 49614T Closed Cell Foam Vacuum Pad Rings Cat. No. FRHV11 (Available on Cat. No. HV11 Pads only)

Available Options for Cat. No. MRTALPCH611LDC:
Alternative Vacuum Pads:

9" (229 mm) Diameter Vacuum Pad Cat. No. VPFS9

10" (254 mm) Diameter Concave Vacuum Pad Cat. No. 49590TA

10" (254 mm) Diameter Flat Lipped Vacuum Pad Cat. No. 49614T

For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
