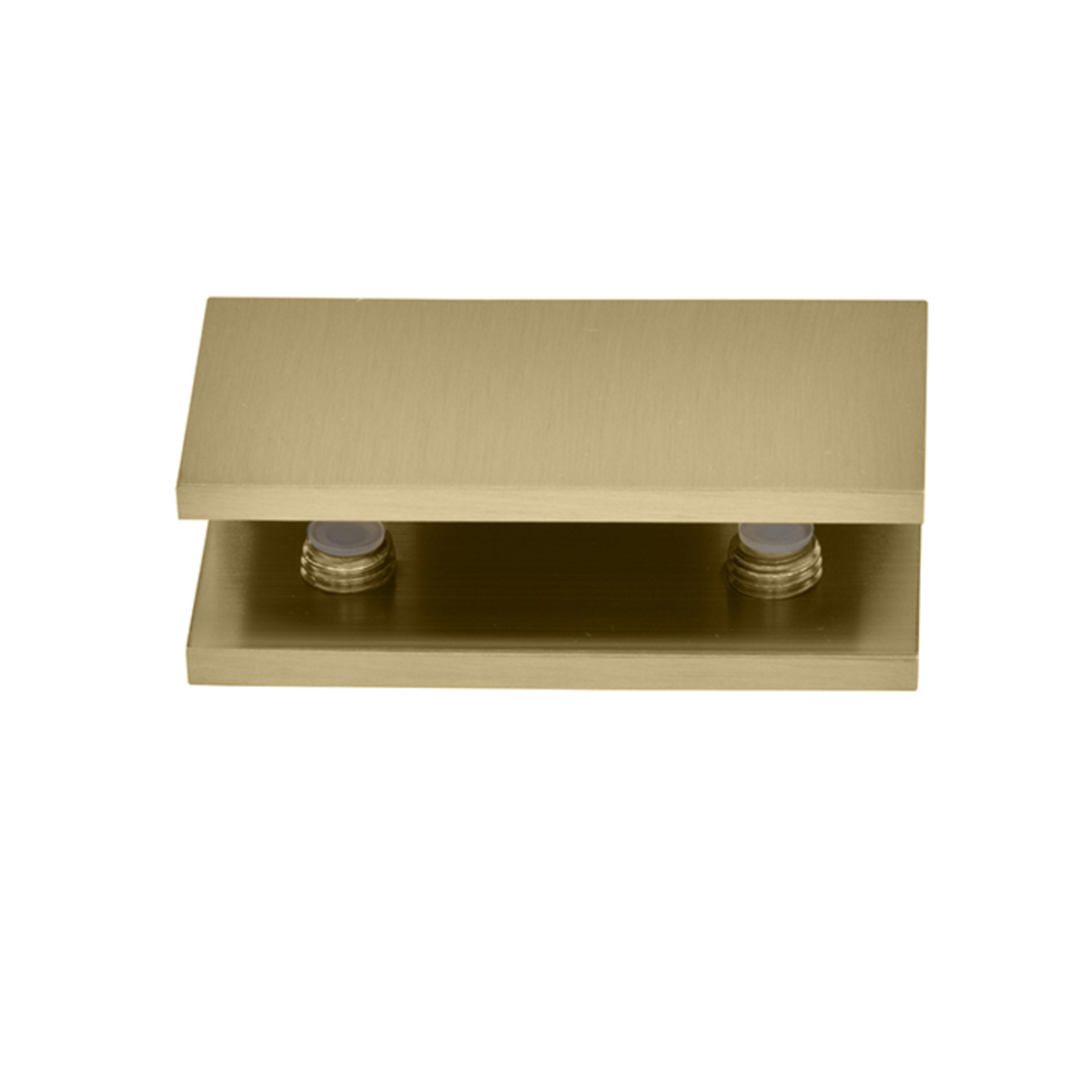

CRL NDC4BBRZ Brushed Bronze No-Drill Fixed Panel Glass ClampC.R. Laurence NDC4BBRZ Brushed Bronze No-Drill Fixed Panel Glass Clamp offers a sleek and versatile solution for securing fixed glass panels without the need for glass fabrication. Crafted from solid brass, this clamp combines functionality with an attractive brushed bronze finish, making it a stylish addition to any modern space. Designed for use with monolithic tempered glass, the NDC4BBRZ allows for seamless installation with no drilling required. Two nylon tipped set screws are included to ensure a secure grip on the glass, while mounting screws provided facilitate wall, ceiling, or floor attachment. Each clamp is compatible with glass thicknesses ranging from 5/16 inch to 3/8 inch (8 mm to 10 mm), accommodating various architectural needs. It is important to note that these clamps must be used on a minimum of three sides of the fixed panel-top, bottom, and at least one side-ensuring structural integrity. Additionally, silicone reinforcement along all edges of the glass is mandated for optimal support. With dimensions of 2-3/8 inches in length, 1-3/16 inches in width, and a height of 3/4 inch, the C.R. Laurence No-Drill Fixed Panel Glass Clamp is a reliable choice for professionals seeking both elegance and strength in their glass installations.
Brushed Bronze No-Drill Fixed Panel Glass Clamp
- Made of Solid Brass
- No Glass Fabrication Required

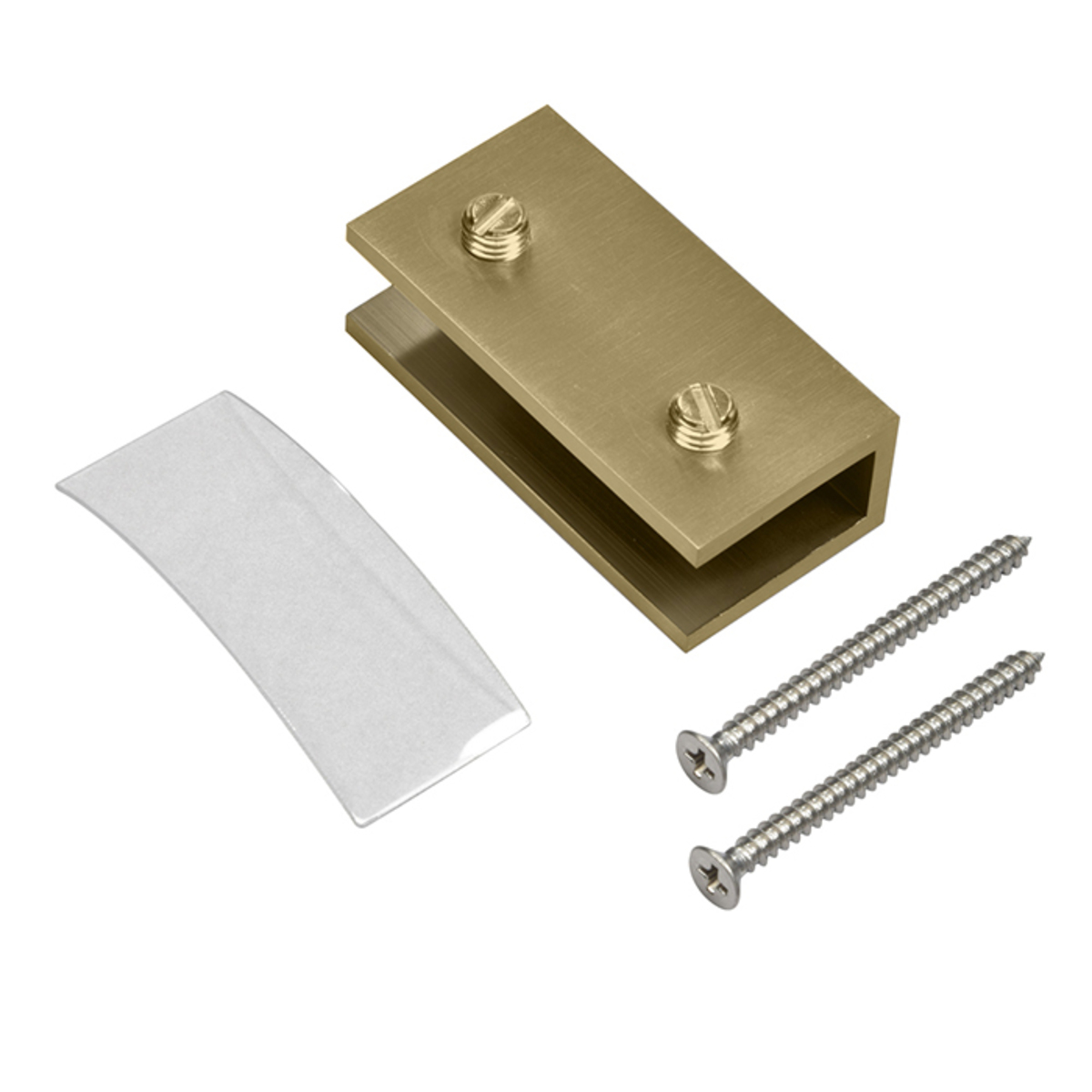

- Includes Clear Gaskets and Mounting Screws
- No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
- Use Monolithic Tempered Glass
Made of solid brass, and available in numerous stock finishes, these
CRL No-Drill Fixed Panel Clamps provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
IMPORTANT NOTE: Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required
Product Warning:
Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Case Quantity: 50
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Bronze
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

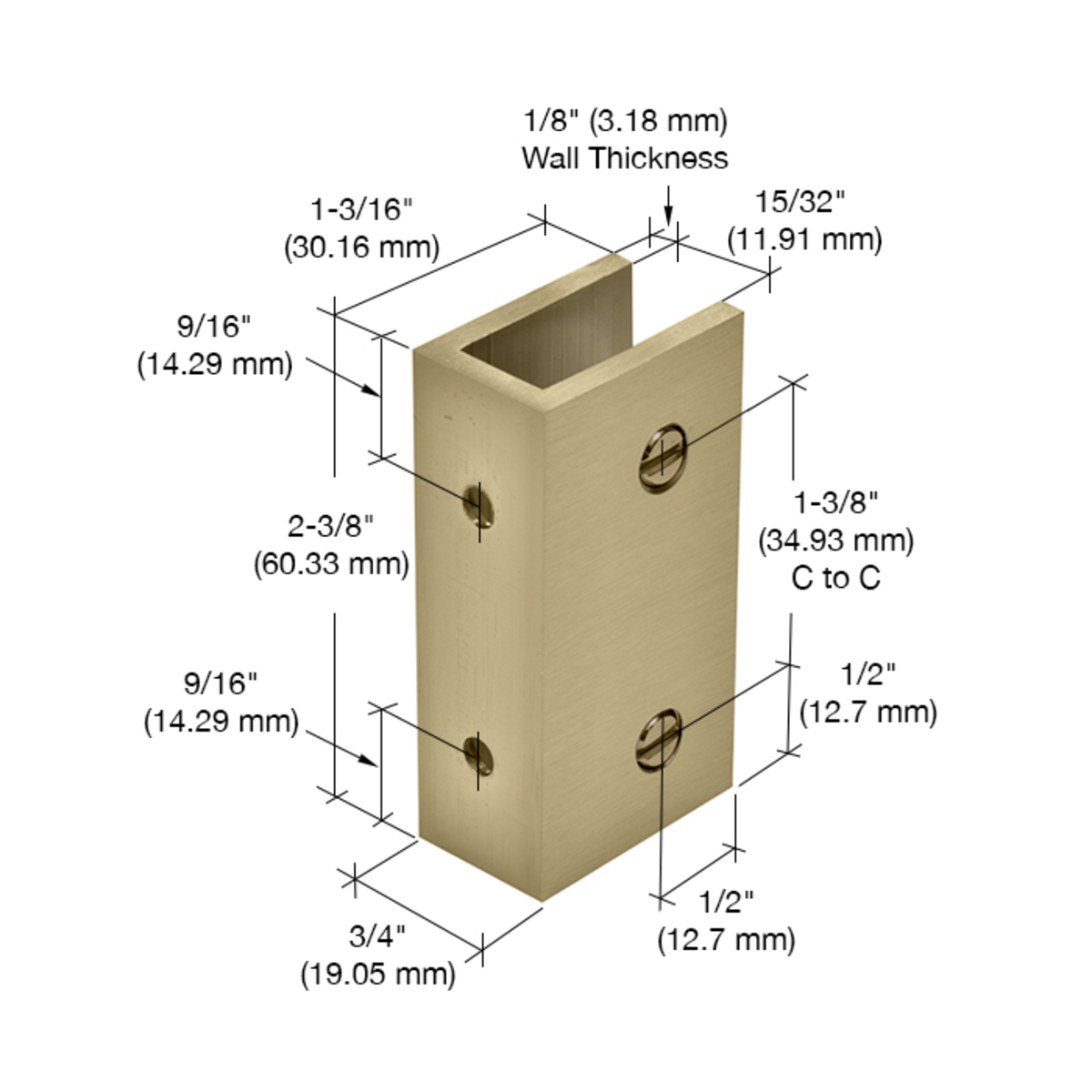

Height: 3/4 in. (19 mm)
Length: 2-3/8 in. (60 mm)
Material: Brass
Mounting Type: Wall Mount
Shipping Limitations: None
Width: 1-3/16 in. (30 mm)
