CRL NDC4BR Polished Brass No-Drill Fixed Panel Glass ClampC.R. Laurence NDC4BR Polished Brass No-Drill Fixed Panel Glass Clamp is a premium solution for securing fixed glass panels without the need for drilling. Crafted from solid brass, this clamp offers durability and elegance, available in a polished brass finish that complements a variety of architectural styles. Designed for monolithic tempered glass, it accommodates glass thicknesses ranging from 5/16" to 3/8" (8 mm to 10 mm). One of the standout features of the NDC4BR is its no-drill design, which eliminates the need for glass fabrication and simplifies installation. The clamp secures the glass using two nylon-tipped set screws, ensuring a tight fit with minimal effort. Included with the product are mounting screws and clear gaskets for seamless integration into your project. It is crucial to note that these clamps should not be used to hinge doors off fixed panels and must be installed on a minimum of three sides-top, bottom, and at least one side. For added safety, silicone reinforcement is required along all glass edges where clamps are installed. Ideal for building professionals and discerning homeowners, the C.R. Laurence NDC4BR provides a reliable, stylish solution for glass panel installations.
Polished Brass No-Drill Fixed Panel Glass Clamp
- Made of Solid Brass
- No Glass Fabrication Required
- Includes Clear Gaskets and Mounting Screws
- No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
- Use Monolithic Tempered Glass
Made of solid brass, and available in numerous stock finishes, these

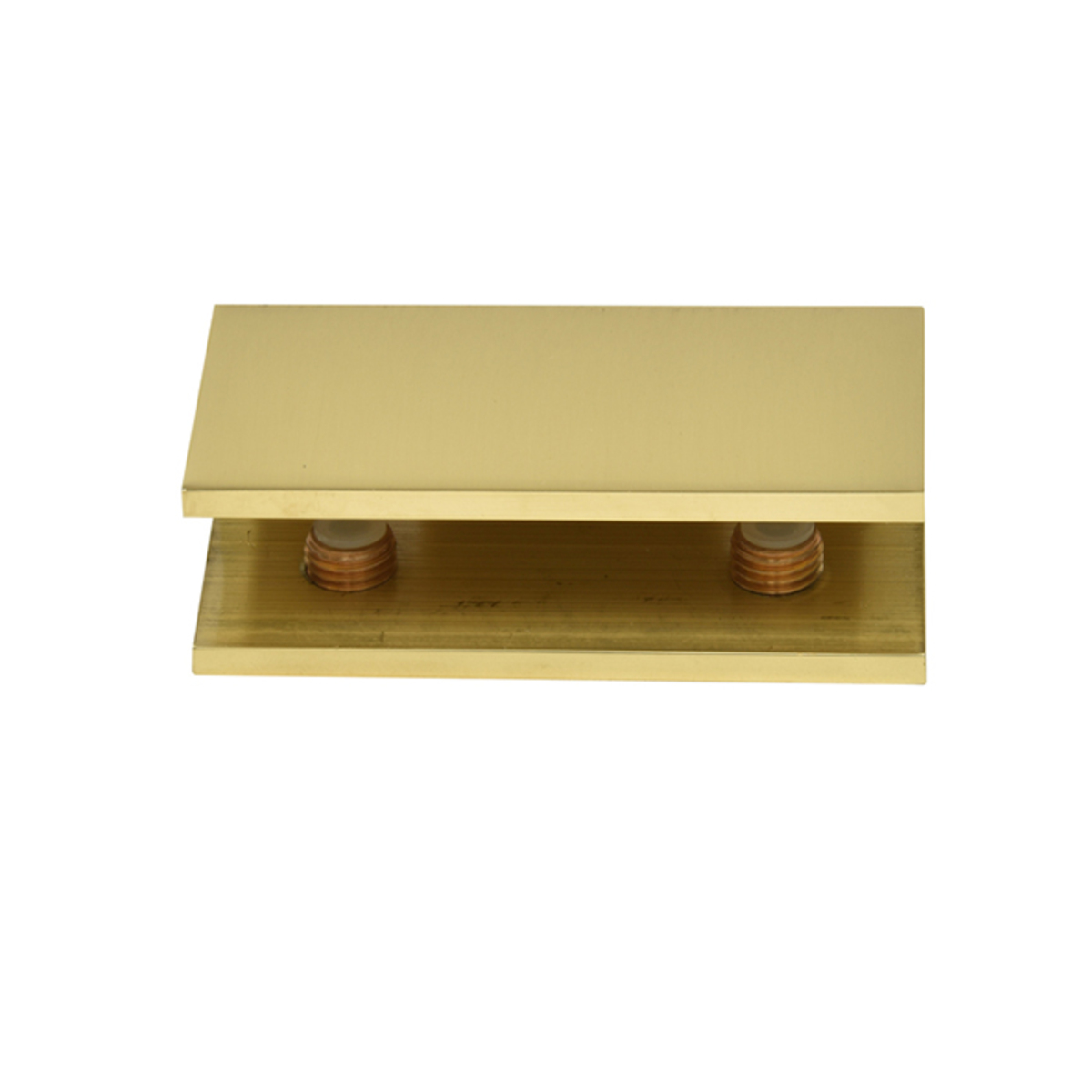

CRL No-Drill Fixed Panel Clamps provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
IMPORTANT NOTE: Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass

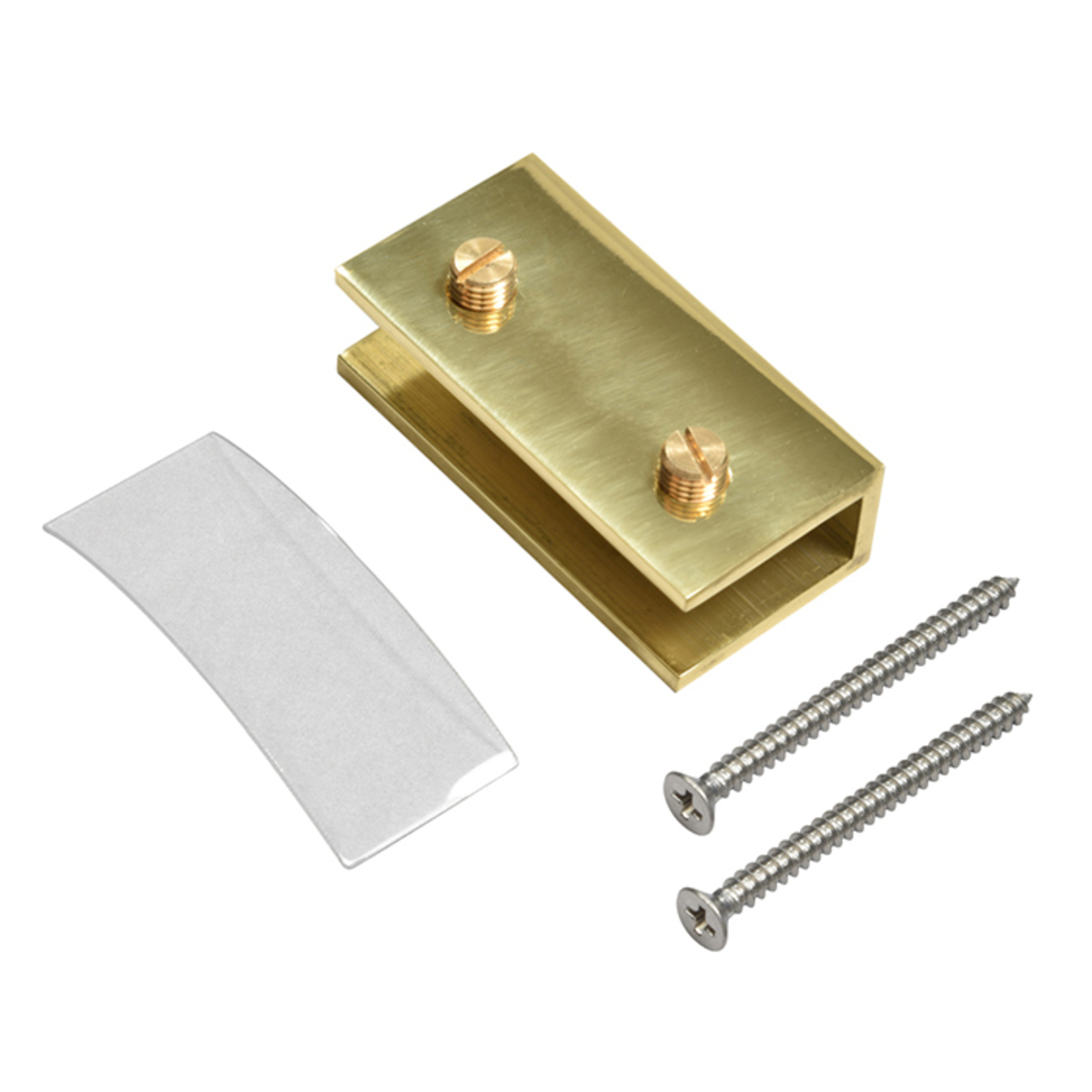

Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required
Product Warning:
Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Case Quantity: 50
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

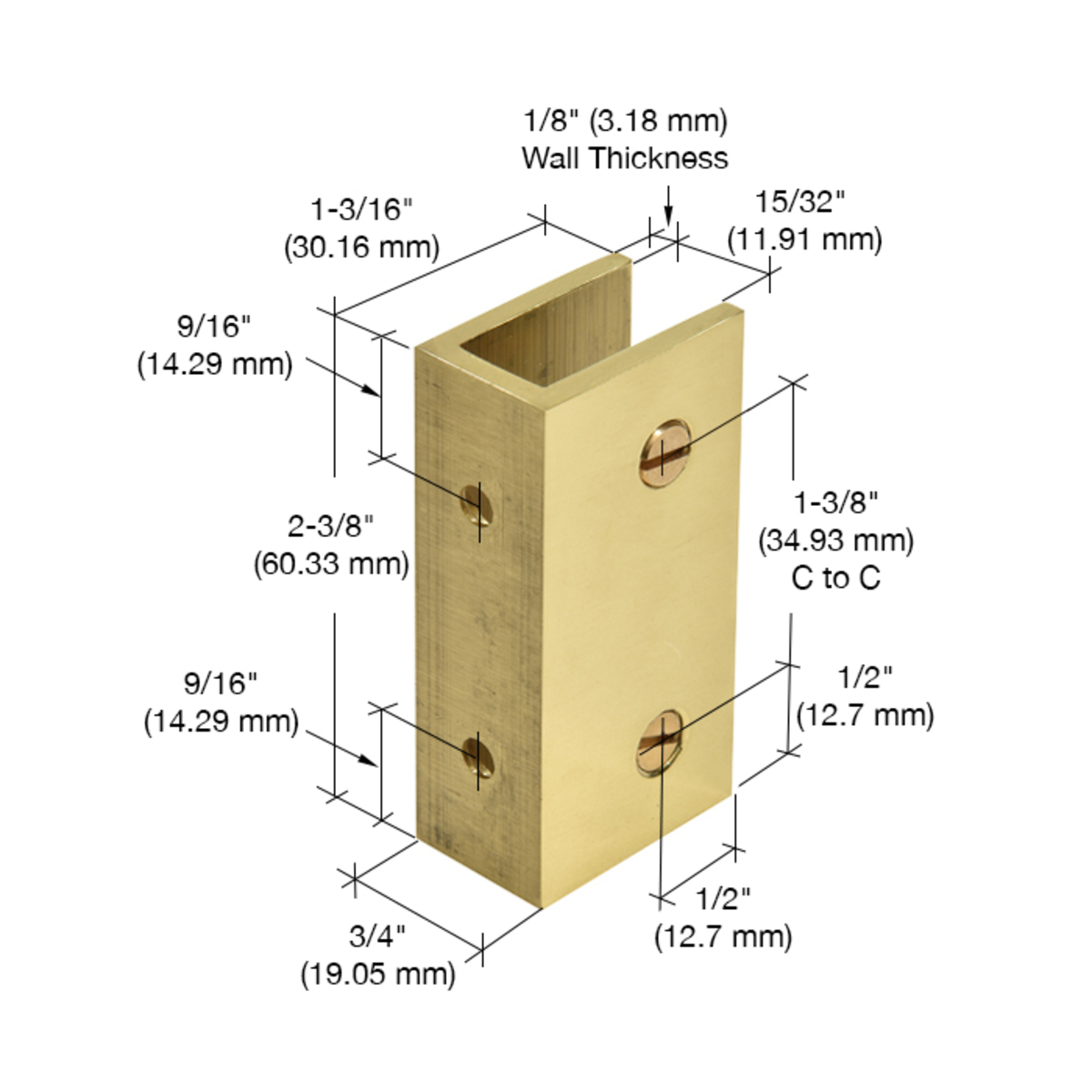

Height: 3/4 in. (19 mm)
Length: 2-3/8 in. (60 mm)
Material: Brass
Mounting Type: Wall Mount
Shipping Limitations: None
Width: 1-3/16 in. (30 mm)
