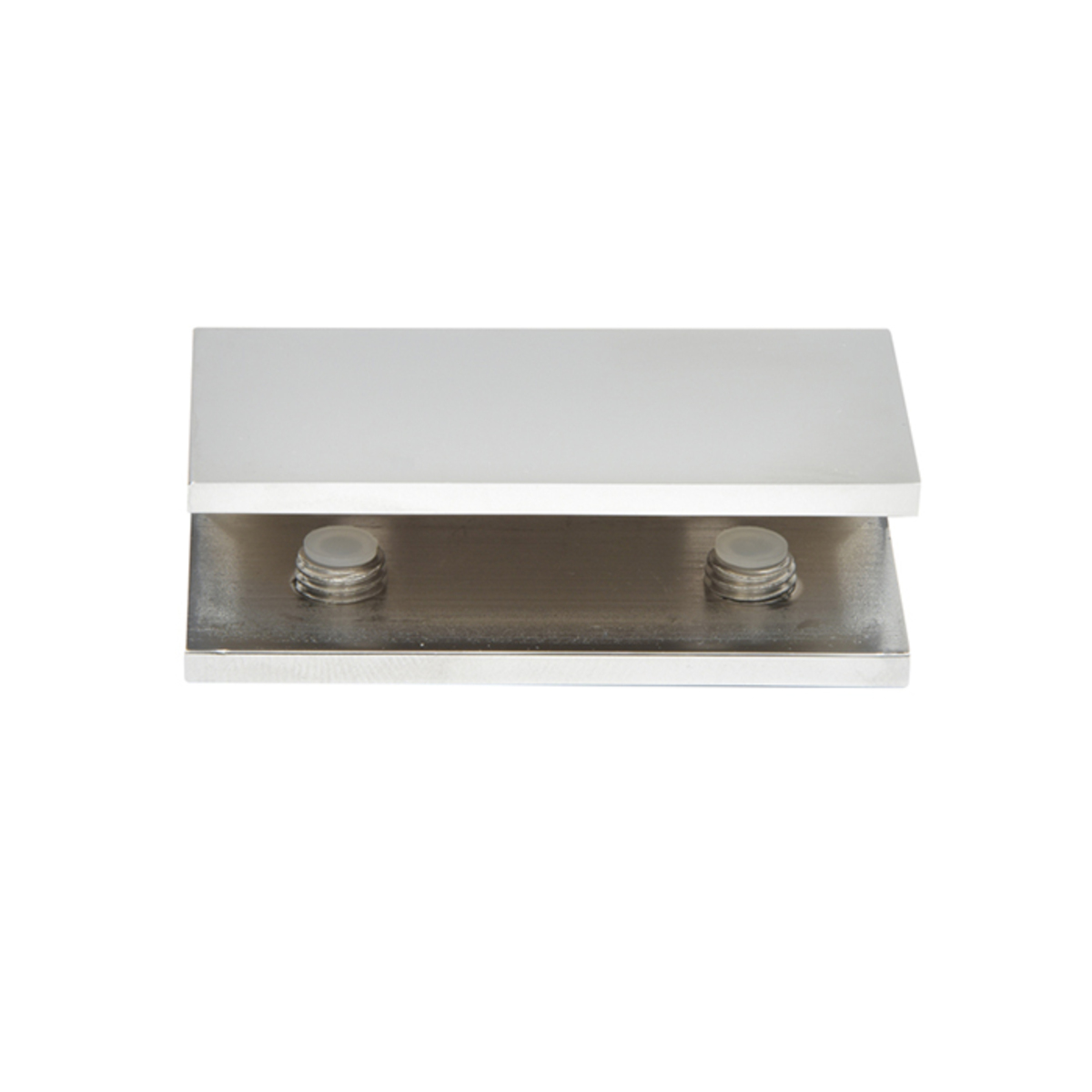

CRL NDC4CH Polished Chrome No-Drill Fixed Panel Glass Clamp

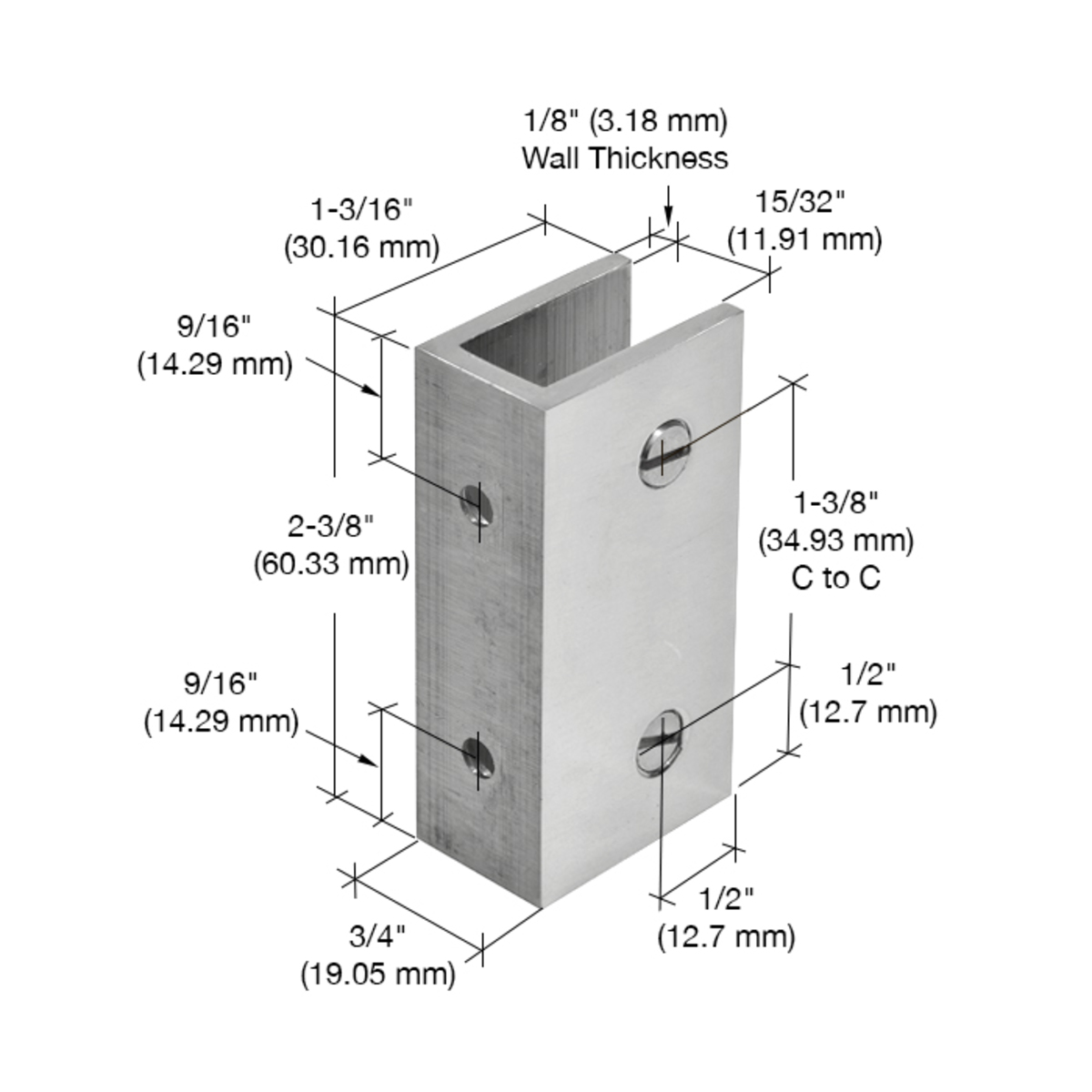

C.R. Laurence NDC4CH Polished Chrome No-Drill Fixed Panel Glass Clamp offers a sleek and innovative solution for securing fixed glass panels without the need for drilling. Crafted from solid brass and finished in polished chrome, this clamp not only provides durability but also enhances the visual appeal of your installation. Designed to accommodate monolithic tempered glass with a thickness range of 5/16" to 3/8" (8 to 10 mm), the NDC4CH includes nylon-tipped set screws that ensure a secure hold on the glass. Installation is further simplified with the inclusion of clear gaskets and mounting screws, allowing for a straightforward wall, ceiling, or floor attachment. It’s important to note that these clamps must be used on a minimum of three sides of the fixed panel, and silicone reinforcement along the edges is essential for added stability. Ideal for a variety of glass applications, this clamp is specifically not intended for use as a hinge for doors. As an installer, ensure adequate structural backing support is in place to guarantee optimal performance. With a height of 3/4" (19 mm) and a length of 2-3/8" (60 mm), the NDC4CH is both practical and stylish for contemporary designs.

Polished Chrome No-Drill Fixed Panel Glass Clamp

• Made of Solid Brass
• No Glass Fabrication Required

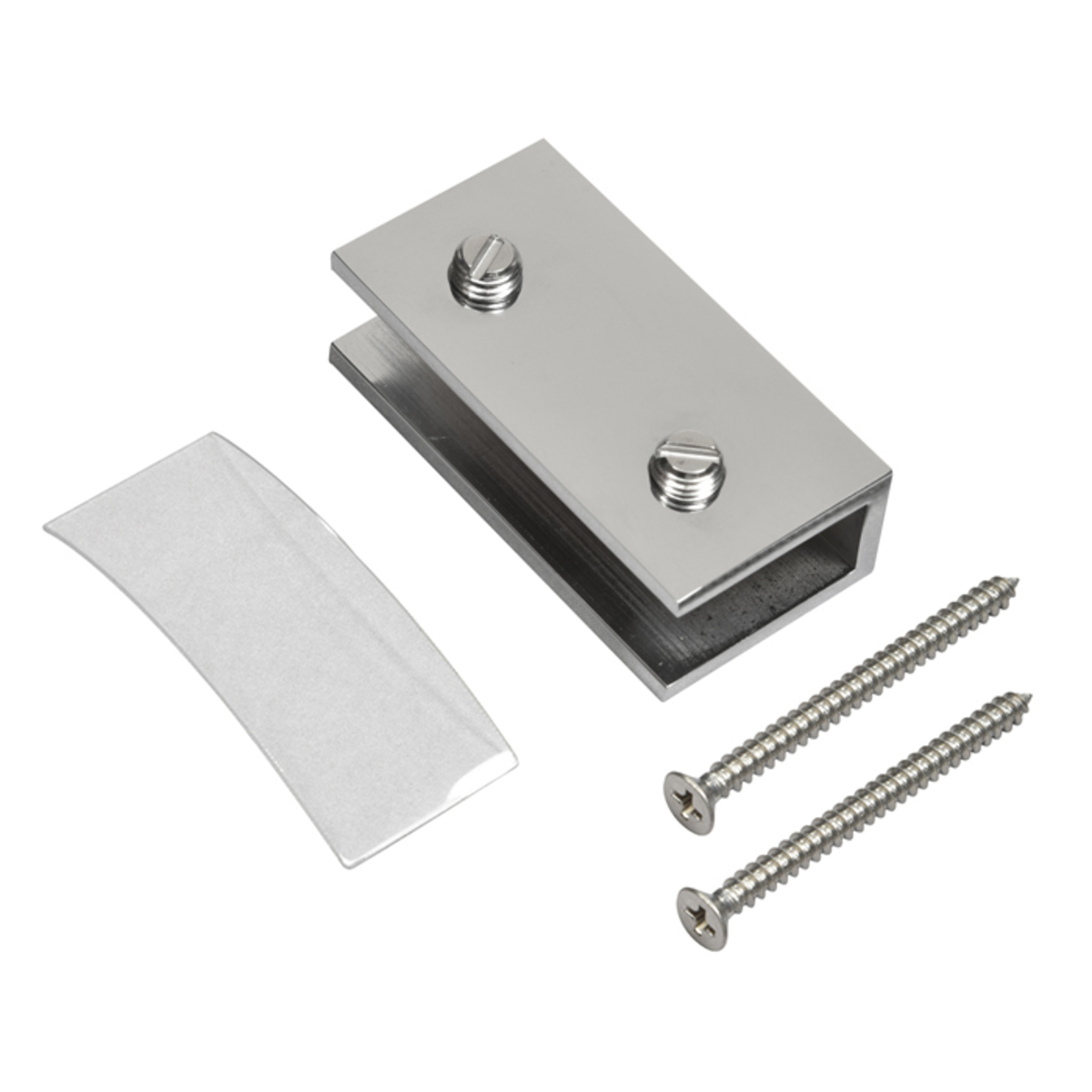

• Includes Clear Gaskets and Mounting Screws
• No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
• Use Monolithic Tempered Glass
