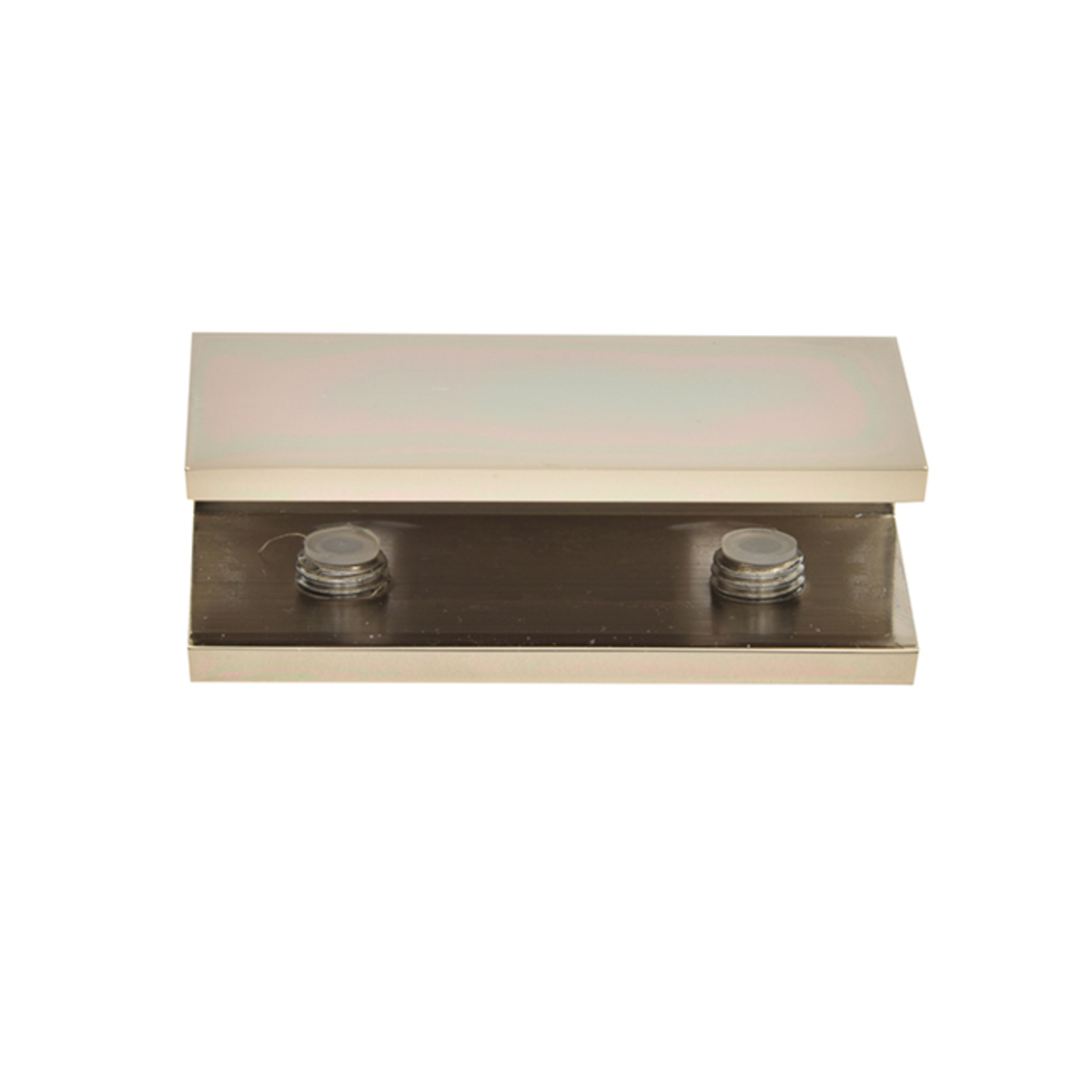

CRL NDC4PN Polished Nickel No-Drill Fixed Glass Panel Clamp

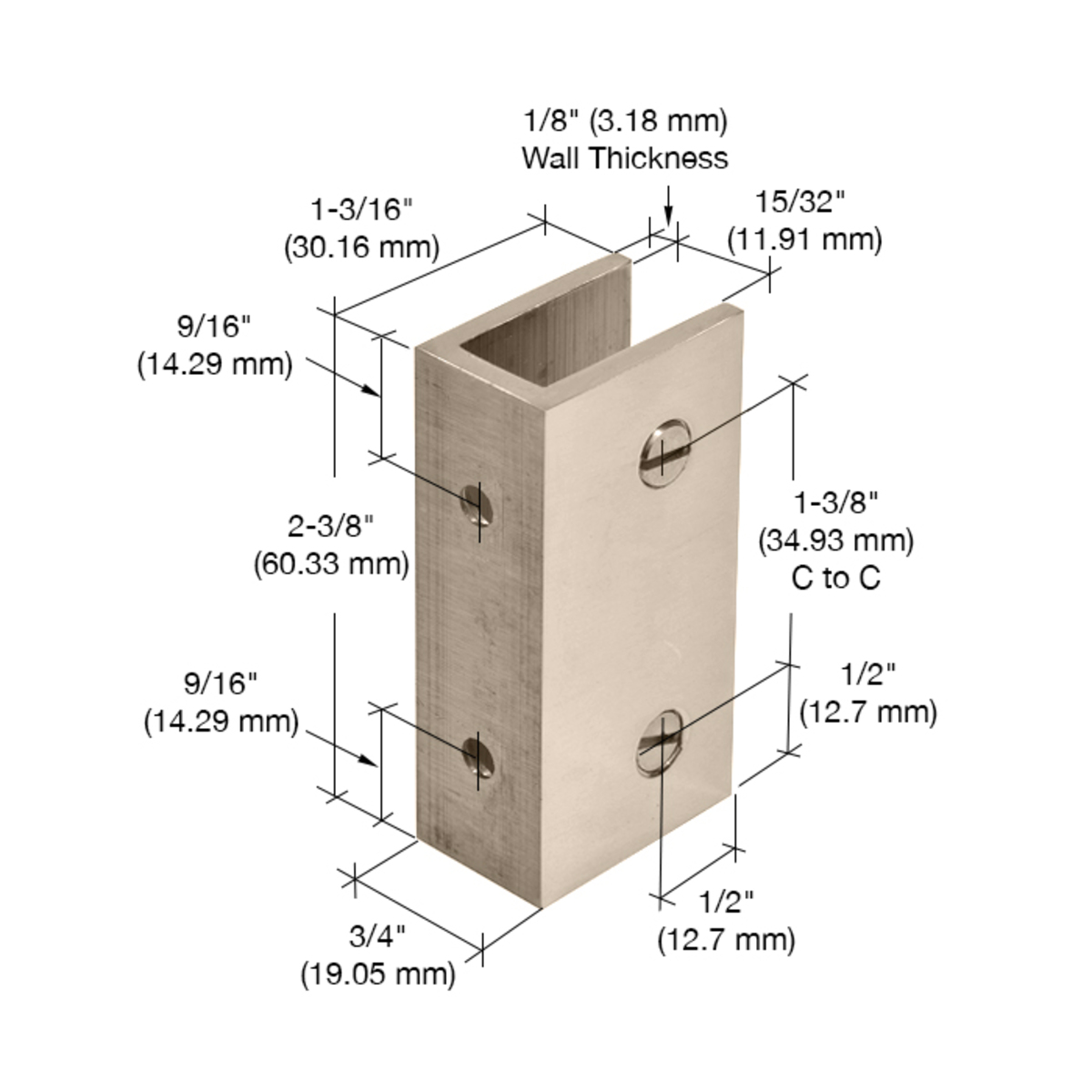

C.R. Laurence NDC4PN Polished Nickel No-Drill Fixed Panel Glass Clamp offers a sleek and innovative solution for securing fixed glass panels without the need for drilling. Crafted from solid brass, this clamp provides durability and a polished finish that enhances any architectural design. Its no-drill feature allows for easy installation, as no glass fabrication is required. Designed for use with monolithic tempered glass, the NDC4PN accommodates glass thicknesses ranging from 5/16" to 3/8" (8 mm to 10 mm). Two nylon-tipped set screws securely hold the glass in place, while clear gaskets and mounting screws facilitate a robust installation on walls, ceilings, or floors. It is essential to apply silicone reinforcement along the edges of the glass to ensure structural integrity, especially as these clamps should be utilized on a minimum of three sides of the fixed panel. However, it's important to note that the clamps are not suitable for hinging doors off fixed panels. The dimensions of the clamp measure 2-3/8" in length, 1-3/16" in width, and 3/4" in height. With no shipping limitations, the C.R. Laurence NDC4PN is a reliable choice for professionals seeking high-quality glass solutions.

Polished Nickel No-Drill Fixed Panel Glass Clamp

• Made of Solid Brass
• No Glass Fabrication Required

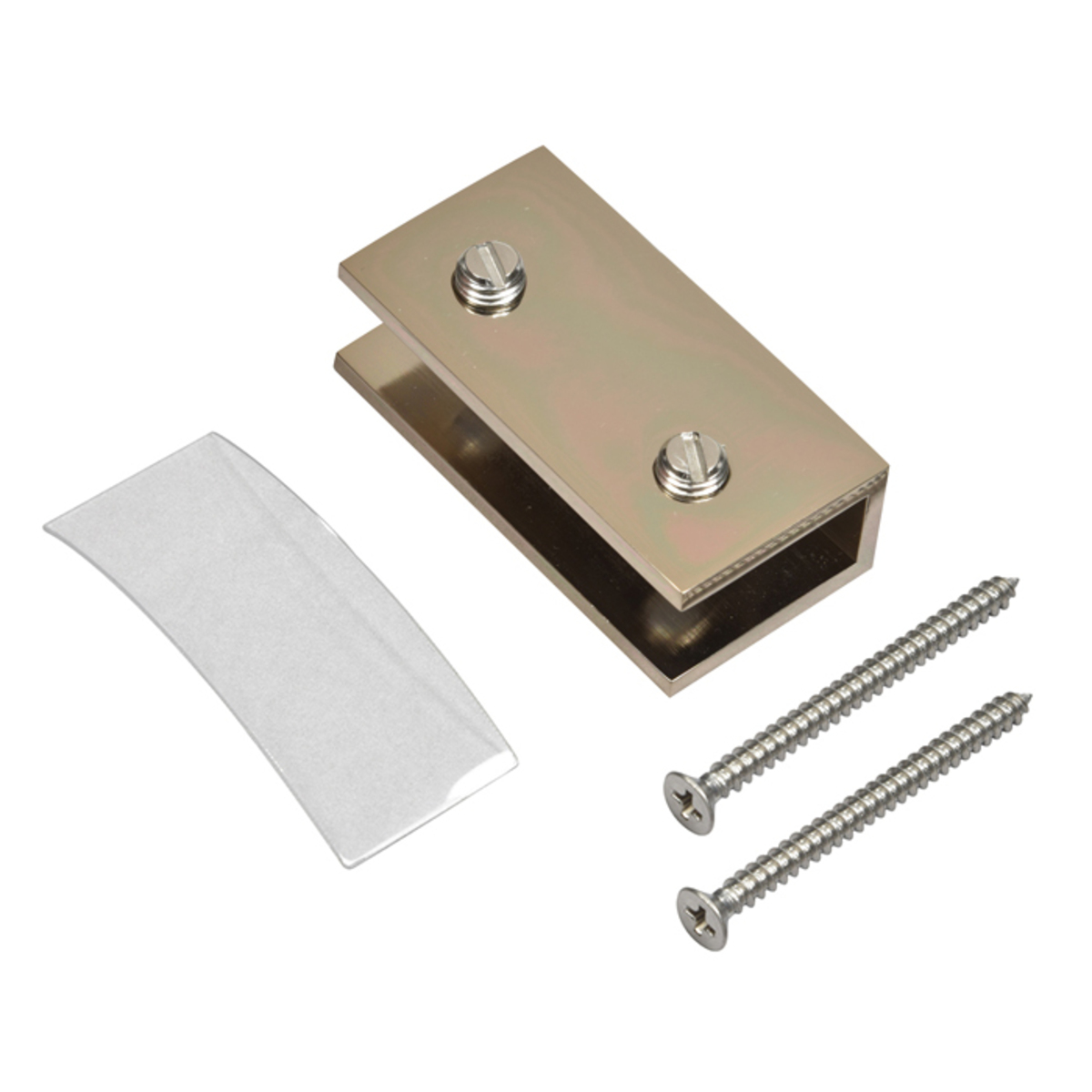

• Includes Clear Gaskets and Mounting Screws
• No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
• Use Monolithic Tempered Glass
