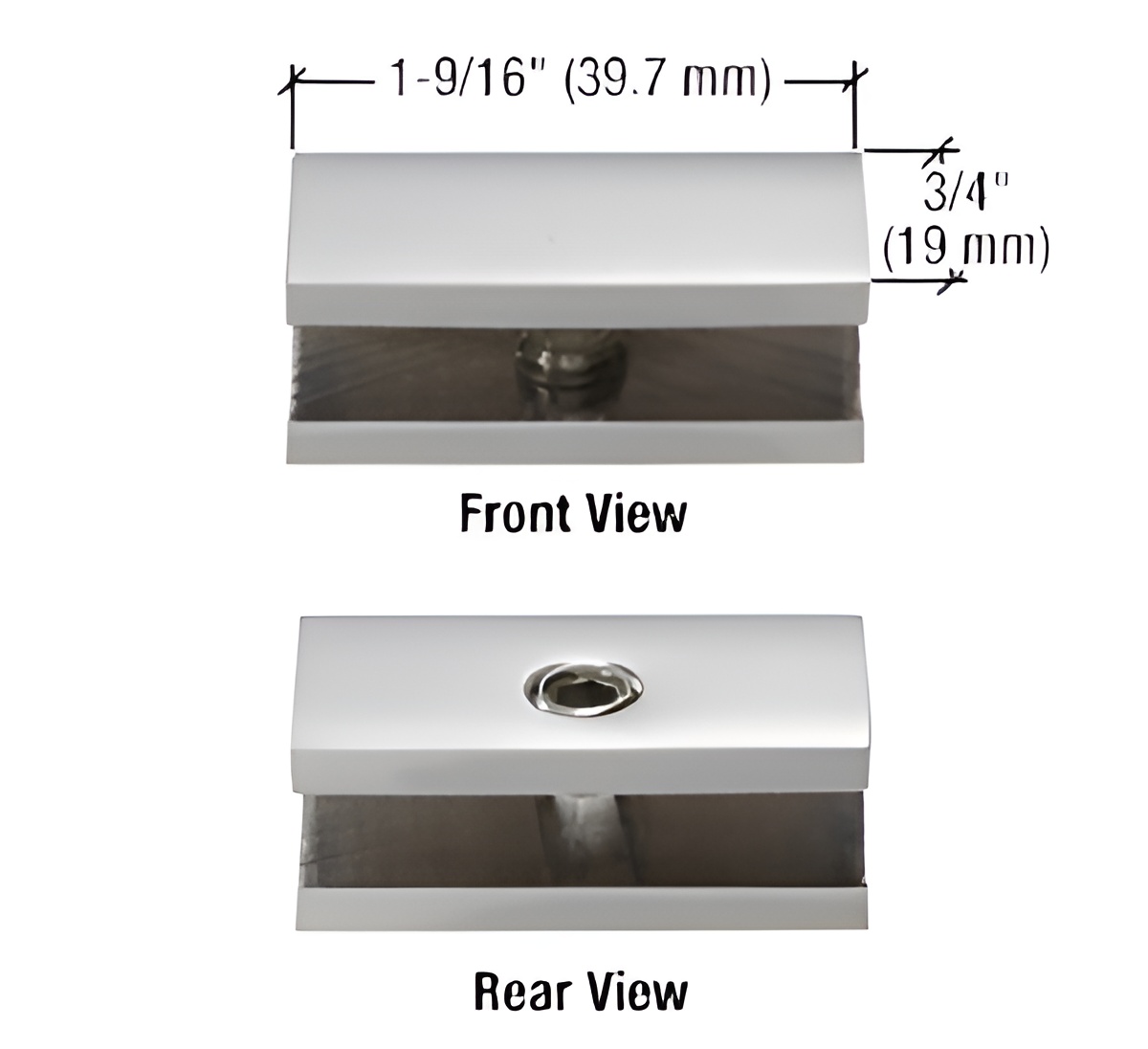

CRL NDC6CH Polished Chrome No-Drill Fixed Panel Glass Clamp

C.R. Laurence NDC6CH Polished Chrome No-Drill Fixed Panel Glass Clamp combines functionality with a sleek design, making it an ideal choice for securing glass panels without the need for drilling. Crafted from solid brass, this clamp not only ensures durability but also enhances the aesthetic appeal of any installation. One of its standout features is that it requires no glass fabrication, simplifying the installation process. This clamp is designed for use with monolithic tempered glass, accommodating a glass thickness of 1/4" (6 mm). It includes clear gaskets and mounting screws, providing everything you need for a secure fit. The no-drill design employs two nylon tipped set screws that tighten to hold the glass firmly in place. However, it’s crucial to note that these clamps should be used on a minimum of three sides of the fixed panel-top, bottom, and at least one side-and must be reinforced with silicone along all glass edges. Please remember that these clamps are not suitable for hinging doors off fixed panels. Ensure adequate structural backing support is in place for safety and stability. The polished chrome finish adds a modern touch, making it a versatile solution for various architectural applications.

Polished Chrome No-Drill Fixed Panel Glass Clamp

• Made of Solid Brass
• No Glass Fabrication Required
• Includes Clear Gaskets and Mounting Screws
• No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
• Use Monolithic Tempered Glass
