CRL NFH4SAD Satin Anodized Double Narrow Floating Header with Surface-Mounted Pivots

CRL NFH4SAD Satin Anodized Double Narrow Floating Header with Surface-Mounted Pivots

C.R. Laurence NFH4SAD Satin Anodized Double Narrow Floating Header with Surface Mounted Top Pivots is engineered for use with 1/2" (12 mm) monolithic tempered glass, allowing for seamless integration in modern architectural designs. This versatile header is supported by glass side panels, ensuring stability while creating an even sight line when paired with CRL Door Rails. Designed for 72" wide openings, it is available in stock sizes, including a 36" single header, with custom sizes also offered to meet specific project requirements. The NFH4SAD features six standard architectural finishes, and custom finishes can be ordered to align with your design vision. Ideal for glass-to-glass configurations, this header works perfectly with CRL PH20 and PH21 Series Top Door Patch Hardware Fittings. Its innovative design accommodates Free-Swinging Bottom Pivots or Floor Closers, providing flexibility in installation. For optimal safety and performance, it is essential to consult a structural engineer to ensure the header’s suitability for your specific application. Should the transom weight exceed 100 lbs. (45.4 kg), additional support from the ceiling is recommended. Elevate your space with the reliability and style of the C.R. Laurence NFH4SAD header, a perfect choice for discerning professionals and homeowners alike.

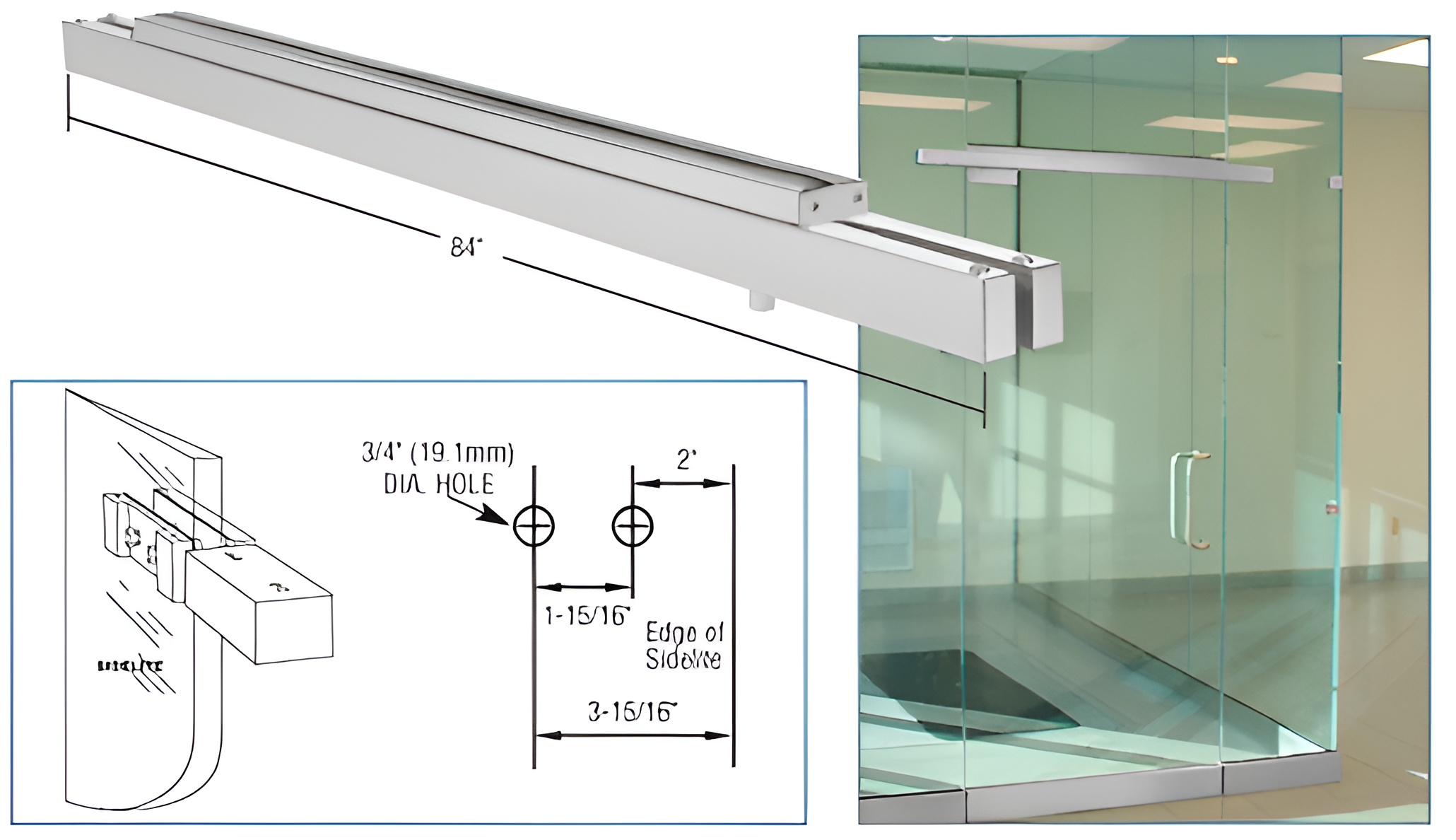

Satin Anodized Double Narrow Floating Header With Surface Mounted Top Pivots for 72" Wide Opening

• For Use with 1/2" (12 mm) Glass Only
• Use Monolithic Tempered Glass
• Supported by Glass Side Panels
• Creates an Even Sight Line When Used with CRL Door Rails
• Stock Single 36" (914 mm) and Double 72" (1.83 m) Headers, with Custom Sizes Available
• Six Standard Architectural Finishes
• Custom Finishes Available on Special Order

CRL Narrow Floating Headers with Walking Beam Top Pivots work with CRL PH20 and PH21 Series Top Door Patch Hardware Fittings, and with all CRL 1/2" (12 mm) Heavy Glass Door Rails. When used with CRL Door Rails you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free-Swinging Bottom Pivots or Floor Closers, Standard Narrow Floating Headers with Walking Beam Top Pivots are fabricated for use in 1/2" (12 mm) glass-to-glass configurations. Custom lengths, glass-to-wall configurations, and Floating Headers for offset pivots are also available.


For more information, contact CRL Technical Sales at Department.

Application Tip: When trying to show the maximum amount of glass, but still looking for the security of a magnetic shear lock, the CRL Narrow Floating Header offers that functionality.

Stock Narrow Floating Headers: For 1/2" (12 mm) glass-to-glass installations, with CRL9040WBP Walking Beam Top Pivots.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales for assistance.

Resources

• NFH4 3NFH4 Glass Fabrication Template.dwg
• NFH4 3NFH4 Glass Fabrication Template.pdf
• Narrow Floating Header Clad Detailed CAD Drawings.dwg
• Narrow Floating Header Clad Detailed CAD Drawings.pdf
• Narrow Floating Header Installation Instructions
