CRL P11104DC3 Wood's Powr-Grip DC Vacuum Lifting Frame with Intelli-Grip Technology

CRL P11104DC3 Wood's Powr-Grip DC Vacuum Lifting Frame with Intelli-Grip Technology

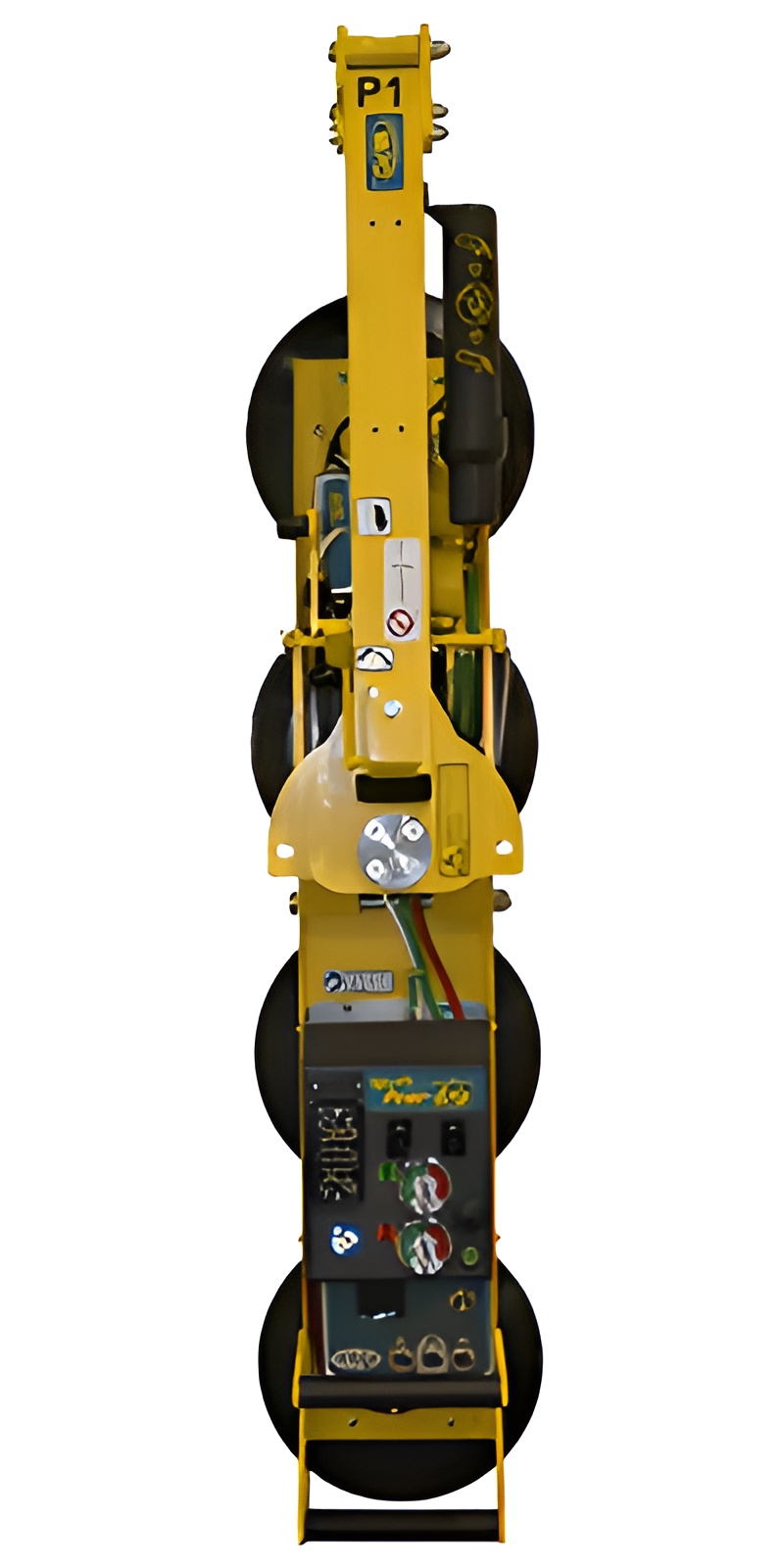

C.R. Laurence P11104DC3 Wood's Powr-Grip Single Channel DC Vacuum Lifting Frame with Intelli-Grip Technology is designed for lifting flat materials efficiently and safely. This advanced lifting system features Intelli-Grip® Technology, which includes automatic self-testing to ensure readiness for use with each lift, coupled with a color display that provides critical information at a glance. The system is equipped with four robust 11" (280 mm) diameter lipped vacuum pads, allowing for a substantial lifting capacity of up to 700 lbs (317 kg) on smooth, non-porous surfaces. The P11104DC3 facilitates manual rotation up to 180° edgewise and a 90° manual tilt, adjusting smoothly from vertical to flat positions. The dual vacuum system enhances reliability, providing redundancy that limits the risk of failure and protects personnel and equipment. The unit operates on 12V DC with a 4.5 amp draw, and includes a high-flow vacuum pump, vacuum gauges, and multiple alarm levels for safety. Weighing 95 lbs (44 kg), this vacuum lifter is versatile and can be expanded with additional components as needed. Available options include a remote control system and various alternative pads, ensuring the P11104DC3 meets diverse lifting applications effectively.

Wood's Powr-Grip Single Channel DC Vacuum Lifting Frame with Intelli-Grip Technology for Flat Material

• Intelli-Grip® Technology
• Big 11" (279 mm) Diameter Vacuum Pads
• 180° Edgewise Rotation
• 90° Manual Tilt, Vertical to Flat
• Charger Operates on 110 Volts AC

CRL Channel Lifters comprise one or more Pad Channels and interchangeable Lift Frames for manually rotating and tilting materials. These Vacuum Lifters may be ordered as complete units or as individual components to expand existing Channel Lifter systems. Lift Frames are available in single-channel or double-channel styles. Pad Channels can be switched from one frame to another in minutes.


Standard Vacuum Pad Spread:
51" x 12" (1295 x 305 mm)

Number/Size Of Vacuum Pads:
4/11" (280 mm) Diameter Lipped Vacuum Pads

Lifting Capacity:
700 Lb. (317 kg) On smooth, non-porous surfaces. Call for recommendations on other surfaces.

Average Weight of Vacuum Lifter:
95 lb. (44 kg)

Operating Power:
12V DC, 4.5 amp

Intelli-Grip® Technology: Automatic self-testing ensures lifter is ready for use with every lift. Color display provides critically relevant information at a glance. Anticipates threats and alerts operator beforehand with clearly visible and audible warnings. Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low. Multiple alarm levels plainly identify the severity of hazards.

Load Movement: Manual rotation, 180 degree edgewise, with automatic latching in three positions. Manual tilt, 90 degrees between upright and flat, with automatic latching in upright position. Lifter can be tilted ONLY when lift bar is locked in center position.

Standard Features:
Intelli-Grip® Technology
Adjustable-position Lift Spool
Dual Vacuum System
High-flow Vacuum Pump
Battery and Charger
Low Vacuum Strobe Light
Low Vacuum/Power Loss Warning Buzzer
Green Lift Light
Vacuum Gauges
Vacuum Line Filters
Vacuum Reserve Tanks
Blow-off for Quick Release
Two-action, Push-button Release

Dual Vacuum System:
Features Two Completely Independent Vacuum Circuits
Provides Vacuum System Redundancy
Limits Possibility of a Catastrophic Failure
Reduces Chance of Harm to Personnel or Equipment

Available Options:
Remote Control System (Cat. No. 59906)
Shipping Case (Cat. No. 53005)
Alternative vacuum pads (Specifications not as listed above. Please contact us for more information):

9" (230 mm) Diameter Pad Cat. No. VPFS9

10" (250 mm) Diameter, Lipped Pad Cat. No. HV11

10" (250 mm) Diameter Concave Pad (Special Order)

10" (250 mm) Diameter Pad with Replaceable Sealing Ring (Special Order). Specifications not as listed above. Please contact us for more information.

Alternative pad compounds, including ones for low-marking, temperature resistant and coated surface applications (special order).

Counterbalance Lifter (Cat. No. CB2DCS)


Product Warning:

CRL offers large Power Lifting Frames on a weekly rental basis. Customers are responsible for all common carrier freight charges and may need to provide a security deposit. Usage time is based on a one week minimum and begins on the day the frame arrives at the customer. Rental billing ends on the day the frame is shipped back to the originating point. Billing is for full weeks only, no partial weeks.

NOTE: For details, availability and actual pricing please contact the Door and Window Department.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
