CRL P136CBS 316 Brushed Stainless 36" P1 Series 180 Center Post Railing Kit

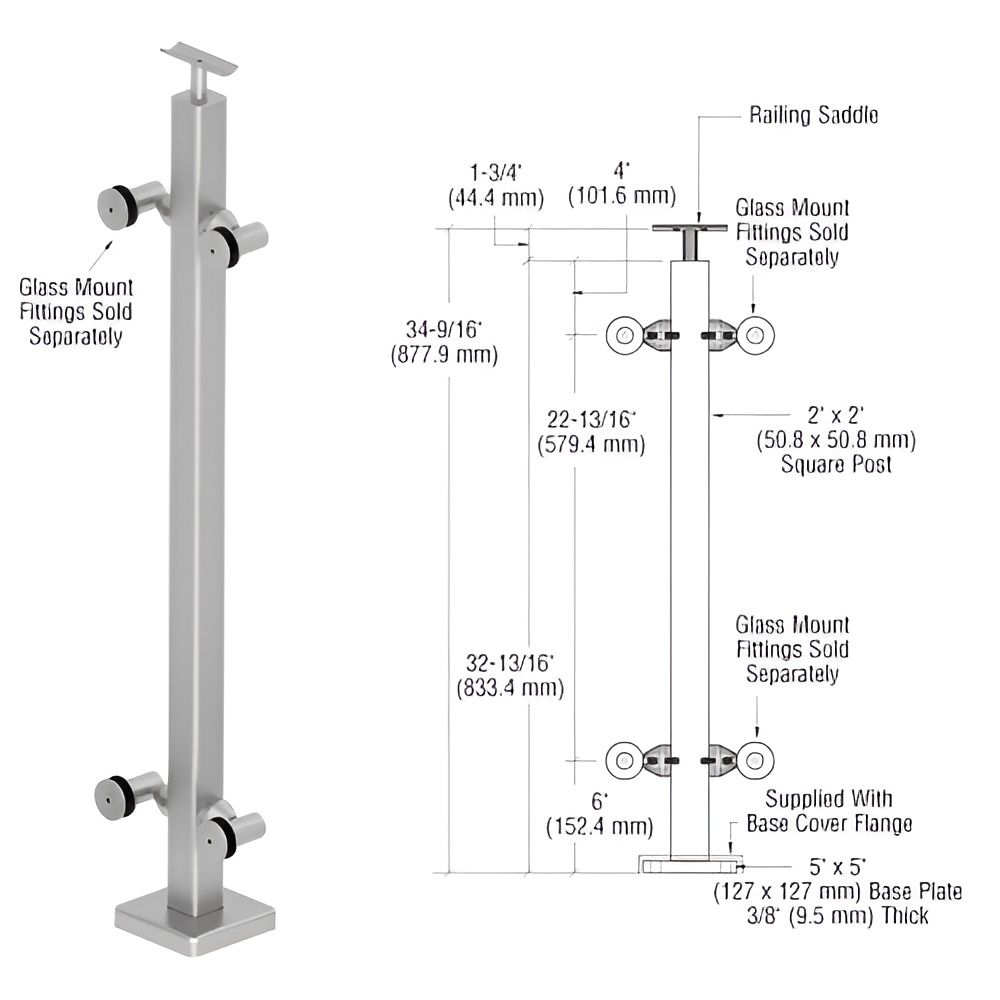

C.R. Laurence P136CBS 316 Brushed Stainless 36" P1 Series 180 Degree Center Post Railing Kit is expertly designed for both commercial and residential applications. Crafted from 316 Alloy Stainless Steel, this robust railing kit features a 2" square tubing with a 3/16" wall thickness, ensuring long-lasting durability and strength. It supports glass panels ranging from 1/2" to 1" thick, providing versatility for various design preferences. This kit comes complete with a 5" x 5" base plate, base cover flange, and a welded top saddle, ensuring a secure and stable installation. The top saddle is compatible with 1-1/4" or 1-1/2" diameter Schedule 40 handrail tubing, allowing for easy integration into existing structures. Standard post heights are available at 36" and 42", with custom heights offered to meet specific project requirements. Designed to meet or exceed guard rail and hand rail code standards, the P1 Series railing kit is a reliable choice for safety without compromising style. It is available in a brushed stainless steel finish, with custom powder paint finishes upon request. Note that glass attachment fittings are sold separately, allowing for tailored configurations to suit your project needs. Enjoy a blend of functionality and aesthetic appeal with this high-quality railing system.

316 Brushed Stainless 36" P1 Series 180 Degree Center Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Meets or Exceeds Code Standards
• Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P1 Series Post Railing System CAD Drawings.dwg
• P1 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
