CRL P142CBS 316 Brushed Stainless 42" P1 Series 180 Center Post Railing Kit

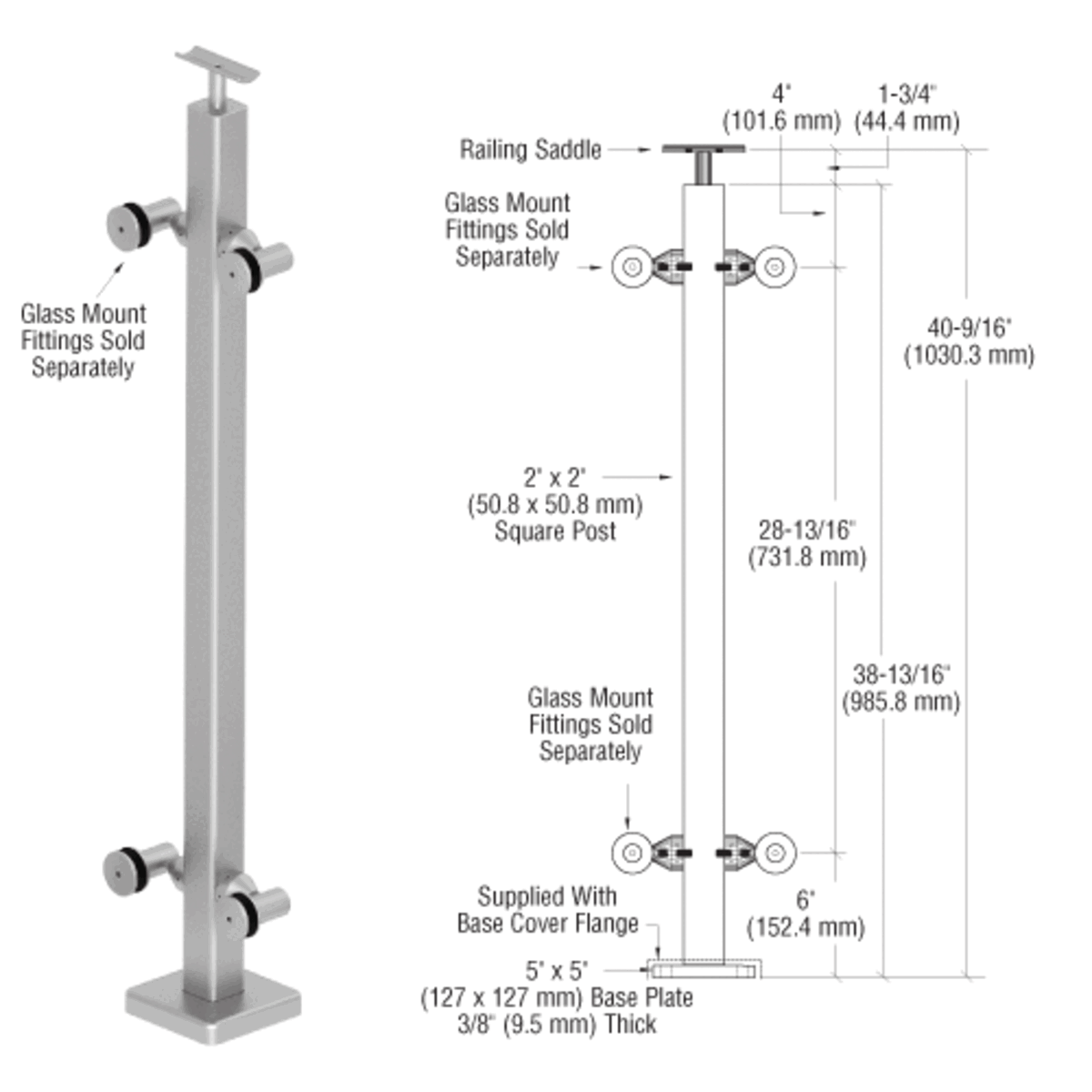

C.R. Laurence P142CBS 316 Brushed Stainless 42" P1 Series 180 Degree Center Post Railing Kit offers a robust and elegant solution for both commercial and residential spaces. Crafted from premium 316 Alloy Stainless Steel, this railing kit ensures durability and resistance to corrosion, making it ideal for long-lasting installations. The kit is designed for use with glass panels ranging from 1/2" (12 mm) to 1" (25 mm) thick, allowing for versatility in design. The P1 Series features a square 2" (51 mm) tubing with a wall thickness of 3/16" (4.8 mm), providing structural integrity while complying with guard rail and hand rail code standards. Included in the kit are a 5" x 5" (127 x 127 mm) base plate, base flange cover, and a welded top saddle, ensuring a complete installation package. The top saddle supports standard hand rail tubing of 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter. Standard post heights are available in 36" (914 mm) and 42" (1.07 m), with custom heights to meet specific project requirements. While the brushed stainless finish is standard, custom powder paint finishes can be ordered for a personalized touch. Please note that glass attachment fittings are sold separately, allowing for tailored configurations to suit your design needs.

316 Brushed Stainless 42" P1 Series 180 Degree Center Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Meets or Exceeds Code Standards
• Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available
