CRL P142EPS 316 Polished Stainless 42" P1 Series End Post Railing Kit

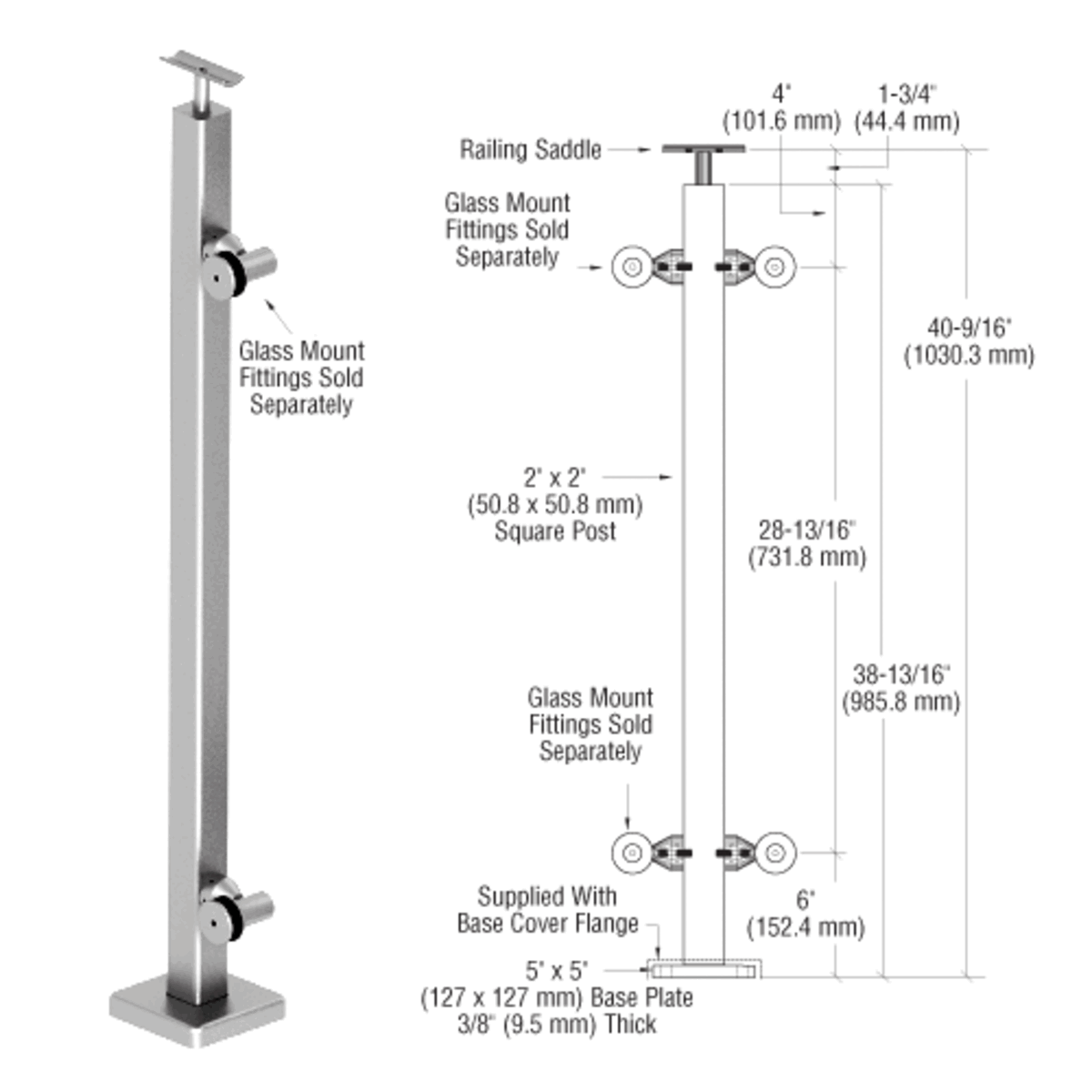

C.R. Laurence P142EPS 316 Polished Stainless 42" P1 Series End Post Railing Kit offers a robust solution for both commercial and residential applications, ensuring compliance with guardrail and handrail code standards. Crafted from high-quality 316 alloy stainless steel, this railing kit features a durable 2" square tubing with a 3/16" wall thickness, promising longevity and resilience. Designed for use with 1/2" (12 mm) to 1" (25 mm) thick panels, this kit includes a 5" x 5" base plate, a base flange cover, and a welded top saddle, which accommodates 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter schedule 40 handrail tubing. Standard post heights are available at 36" (914 mm) and 42" (1.07 m), with custom heights to meet specific project needs. This polished stainless steel finish enhances aesthetic appeal while ensuring resistance to corrosion; however, periodic maintenance is recommended to maintain its factory appearance. Note that glass attachment fittings are sold separately. With a base plate thickness of 3/8" (10 mm) and a mounting hole diameter of 9/16" (14 mm), the P1 Series End Post Railing Kit is an excellent choice for those seeking reliability and style in their railing systems.

316 Polished Stainless 42" P1 Series End Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Meets or Exceeds Code Standards
• Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P1 Series Post Railing System CAD Drawings.dwg
• P1 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
