CRL P142LBS 42" P1 Series 90 Corner Post Railing Kit - 316 Brushed Stainless

C.R. Laurence P142LBS 316 Brushed Stainless 42" P1 Series 90 Degree Corner Post Railing Kit offers a robust solution for both commercial and residential installations, ensuring compliance with guardrail and handrail code standards. Constructed from durable 316 Alloy Stainless Steel, this railing kit features a 2" square design with a wall thickness of 3/16", providing exceptional strength and resistance to corrosion. This kit accommodates glass panels ranging from 1/2" (12 mm) to 1" (25 mm) thick, allowing for versatile design options. The top saddle supports handrail tubing with diameters of 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm), enhancing the structural integrity of your railing system. The standard post heights are available at 36" (914 mm) and 42" (1.07 m), with custom heights to meet specific project requirements. Included are a 5" x 5" (127 x 127 mm) base plate, base flange cover, and a welded top saddle. Note that glass attachment fittings are sold separately, providing flexibility in your installation choices. Available in two standard finishes, with custom powder paint options, the P1 Series is designed not only for safety but also for aesthetic appeal, making it an excellent choice for any architectural project.

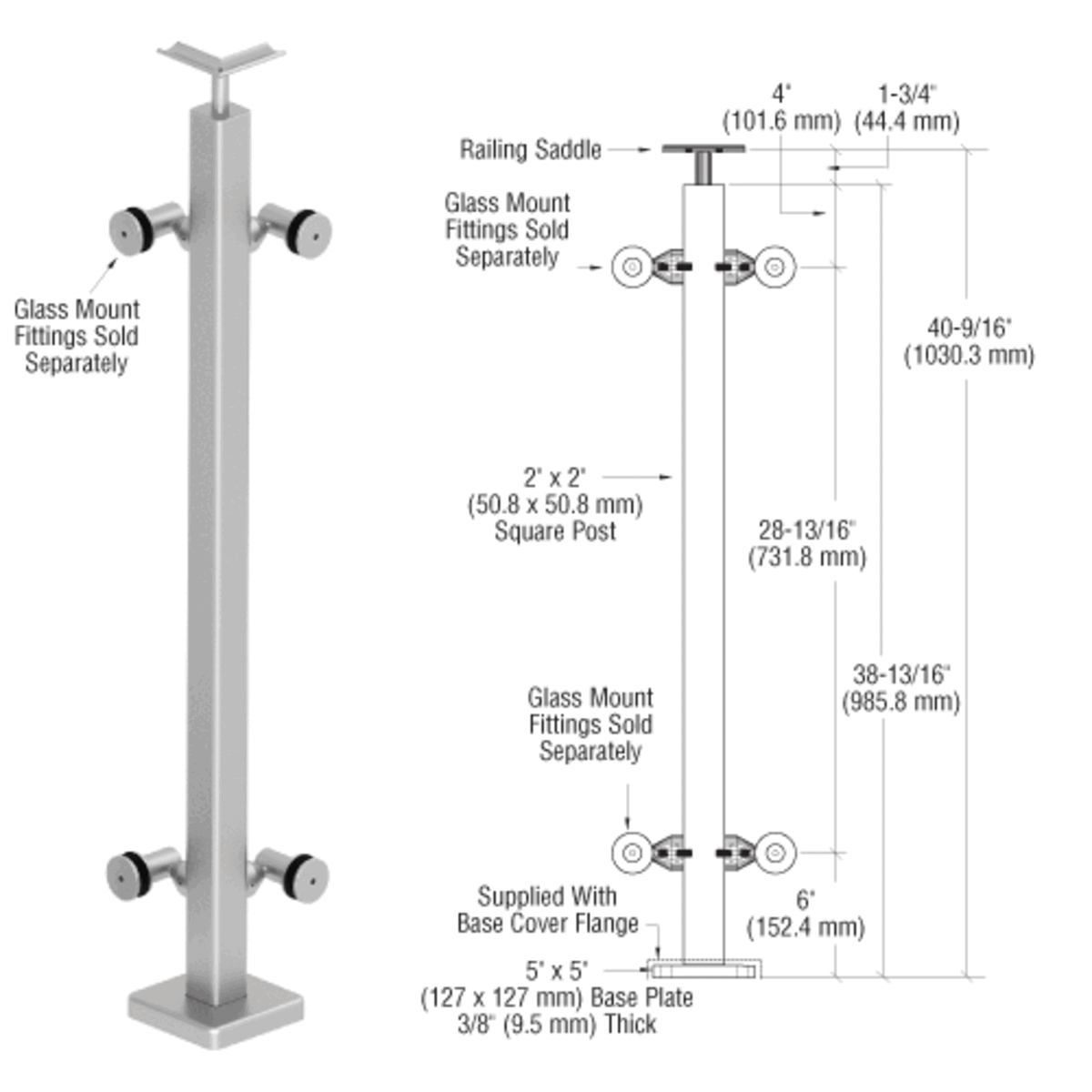

316 Brushed Stainless 42" P1 Series 90 Degree Corner Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Meets or Exceeds Code Standards
• Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P1 Series Post Railing System CAD Drawings.dwg
• P1 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
