CRL P142LPS 316 Polished Stainless 42" P1 Series 90 Corner Post Railing Kit

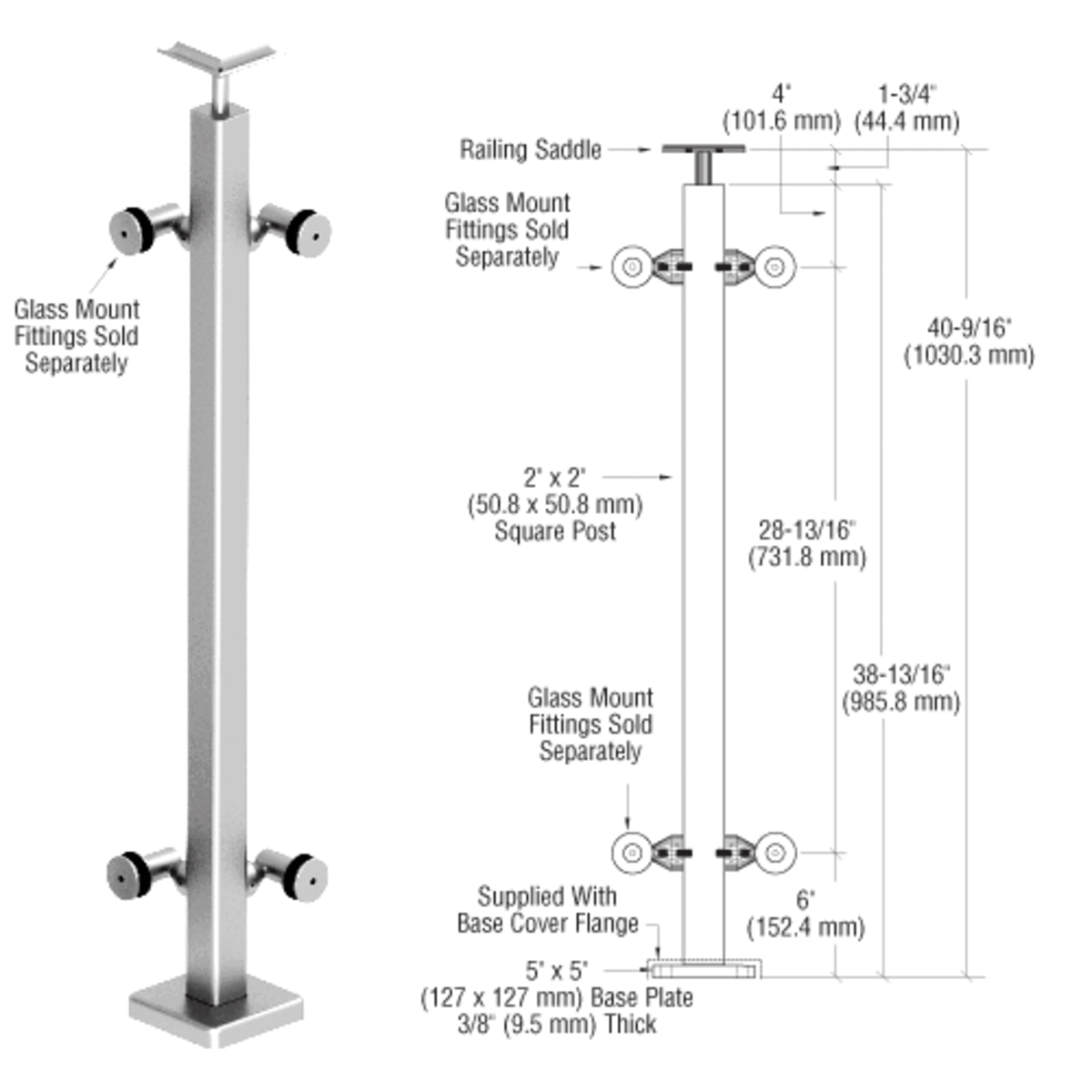

C.R. Laurence P142LPS 316 Polished Stainless 42" P1 Series 90 Degree Corner Post Railing Kit offers a robust solution for both commercial and residential applications requiring reliable guard and hand rail systems. Constructed from durable 316 alloy stainless steel, each post features a 2" (51 mm) square design with a wall thickness of 3/16" (4.8 mm), ensuring long-lasting performance and structural integrity. This kit is compatible with 1/2" (12 mm) to 1" (25 mm) thick panels, providing versatility in design. The top saddle supports accommodate 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing, making it suitable for various configurations. Standard post heights of 36" (914 mm) and 42" (1.07 m) are available, with options for custom heights to perfectly fit your project’s needs. Included in the kit are a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle, ensuring a comprehensive installation package. Please note that glass attachment fittings are sold separately. With polished stainless steel finishes and custom powder paint options available, this railing kit not only meets but exceeds code standards, making it an ideal choice for any building professional or knowledgeable homeowner.

316 Polished Stainless 42" P1 Series 90 Degree Corner Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Meets or Exceeds Code Standards
• Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P1 Series Post Railing System CAD Drawings.dwg
• P1 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
