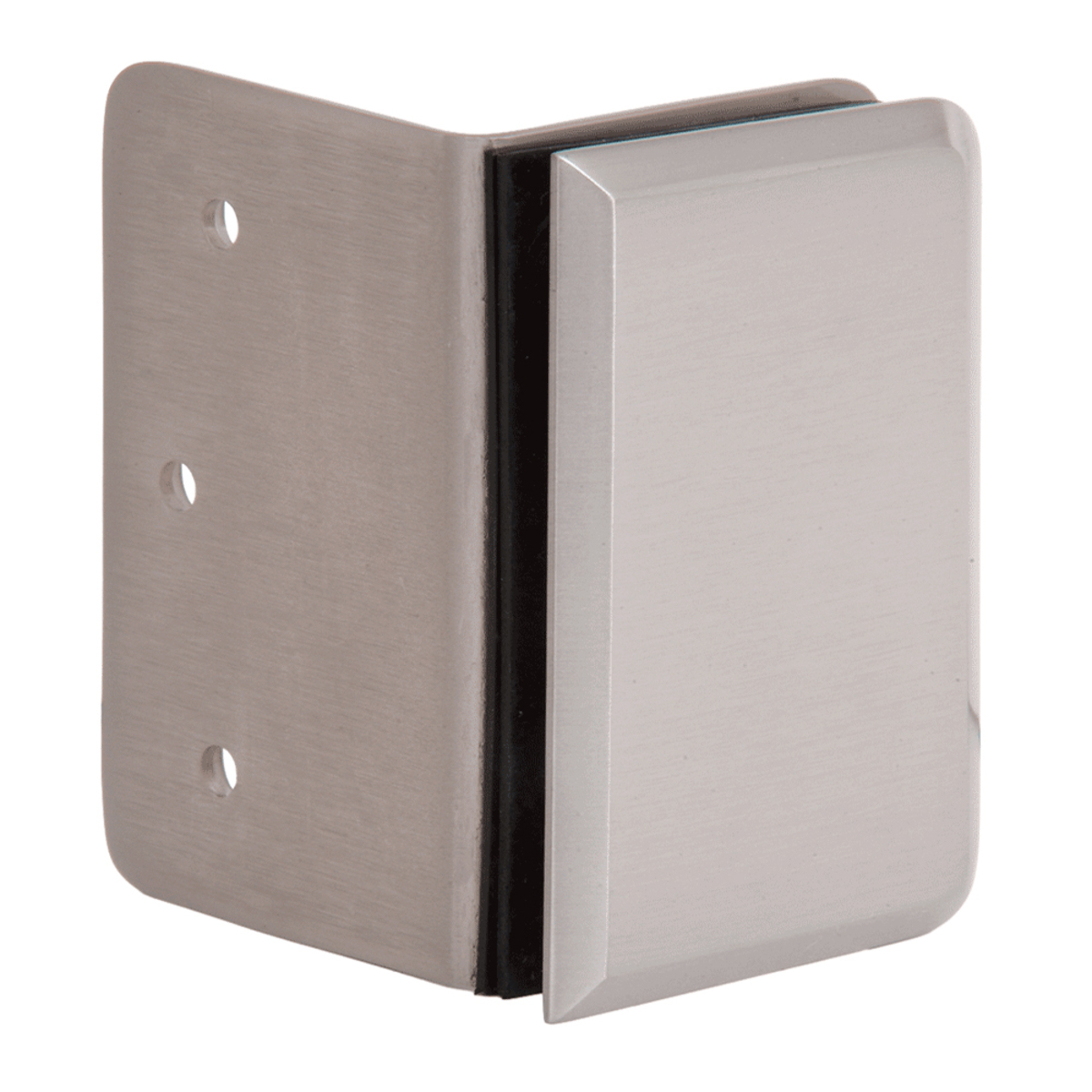

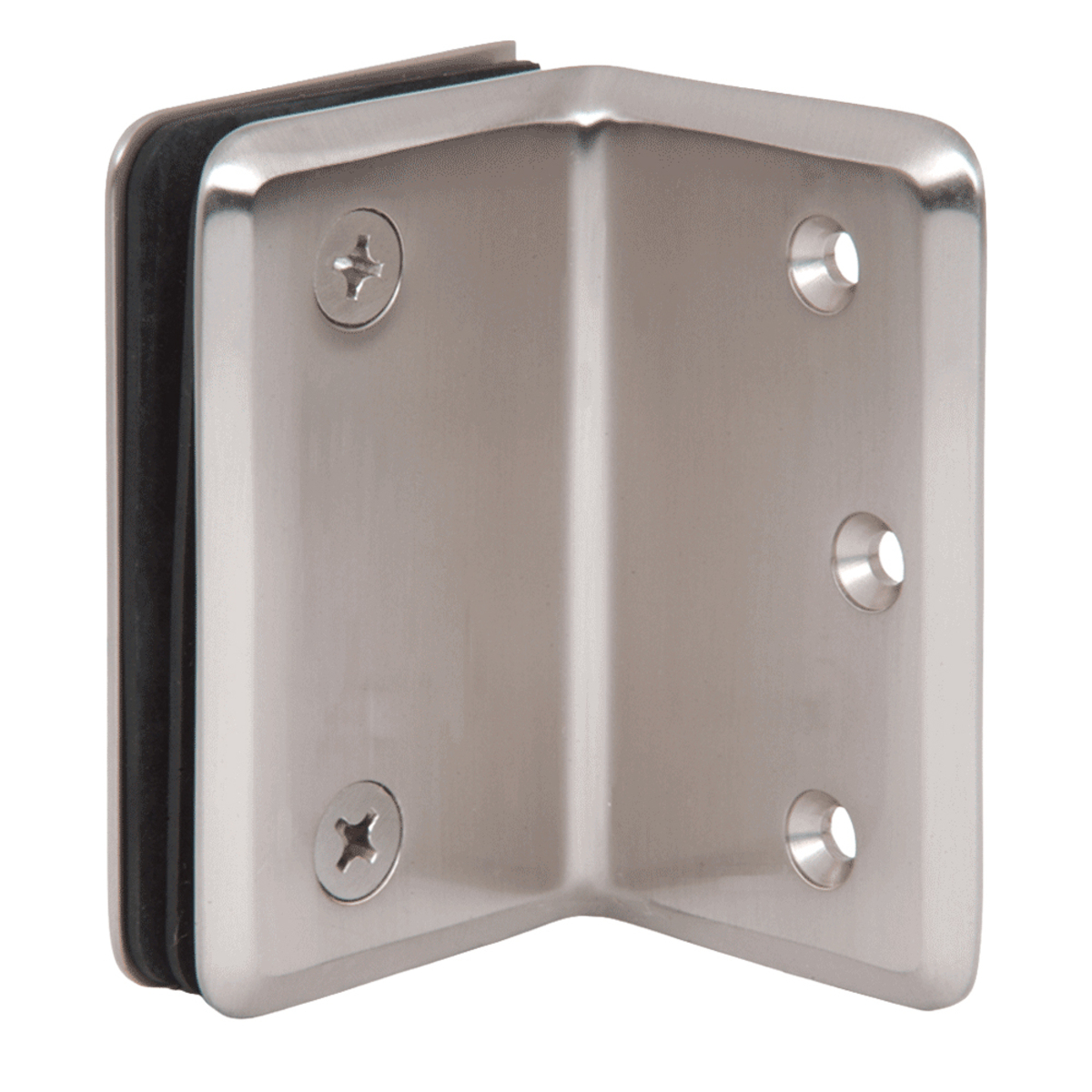

CRL P190SBN Brushed Nickel Pinnacle Prima Series Wall Mount Bracket

C.R. Laurence P190SBN Brushed Nickel Pinnacle and Prima Series Wall Mount Bracket offers a sophisticated solution for securing glass panels while ensuring a seamless aesthetic. Designed to accommodate glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), this wall mount bracket is perfect for both residential and commercial applications. Its solid brass construction guarantees durability and longevity, making it an ideal choice for high-traffic areas. The P190SBN features beveled clamps that align perfectly with C.R. Laurence's Pinnacle, Prima, Senior Prima, Cologne, and Estate Series Hinges, allowing for a cohesive design throughout your space. The rounded corners and beveled edges not only enhance its visual appeal but also contribute to a streamlined installation process. This versatile bracket can also function as a horizontal shelf support, adding to its utility in various settings. Included with the bracket are gaskets and mounting screws, ensuring a complete installation package. Each panel requires two 3/4" (19 mm) holes for secure mounting. Available in a stylish brushed nickel finish, the P190SBN is a noteworthy addition to any architectural project seeking both function and elegance. Custom finishes can be requested to better match your design vision.

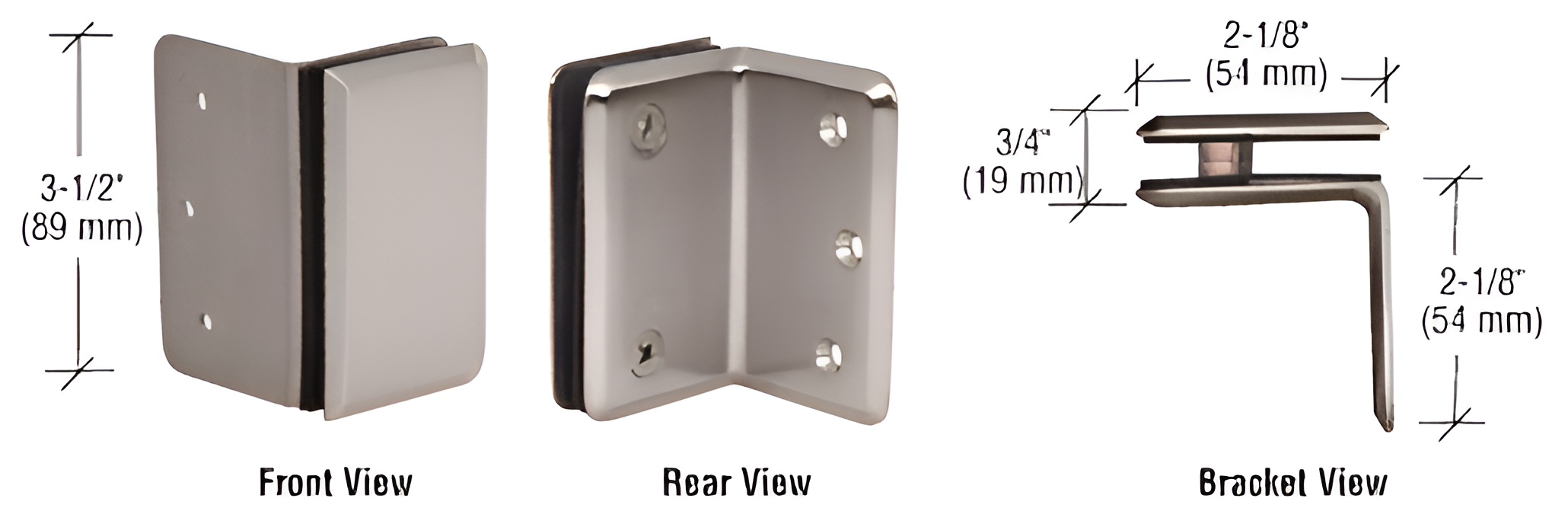

Brushed Nickel Pinnacle and Prima Series Wall Mount Bracket

• Beveled Clamps to Match Pinnacle, Prima, Senior Prima, Cologne, and Estate Series Hinges
• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Solid Brass
• Use Monolithic Tempered Glass

CRL Prima Series Wall Mount Glass Brackets are designed to work with 5/16" to 1/2" (8 to 12 mm) thick glass. Can also be used as a horizontal shelf bracket. The Prima Wall Brackets have the identical configuration as the Prima and Pinnacle Hinges which will help provide continuity of design. They feature rounded corners and beveled edges in several decorator finishes and are constructed of solid brass. Custom finishes are available upon request.

P612** replacement screws

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• GE90S ME90S P190S Template
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Product Template p190s template.pdf
• Technical Drawing/Spec of Product P190S.pdf
