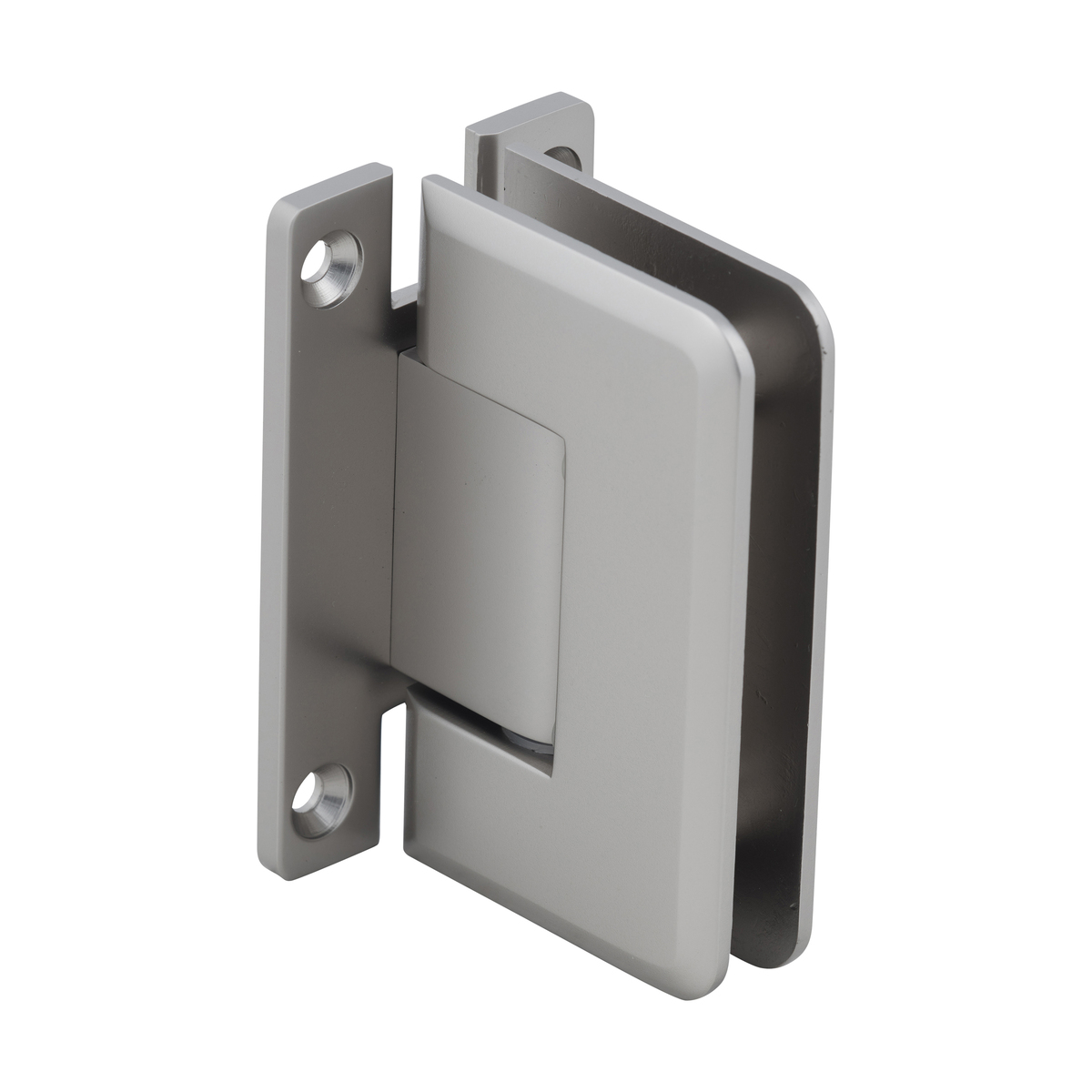

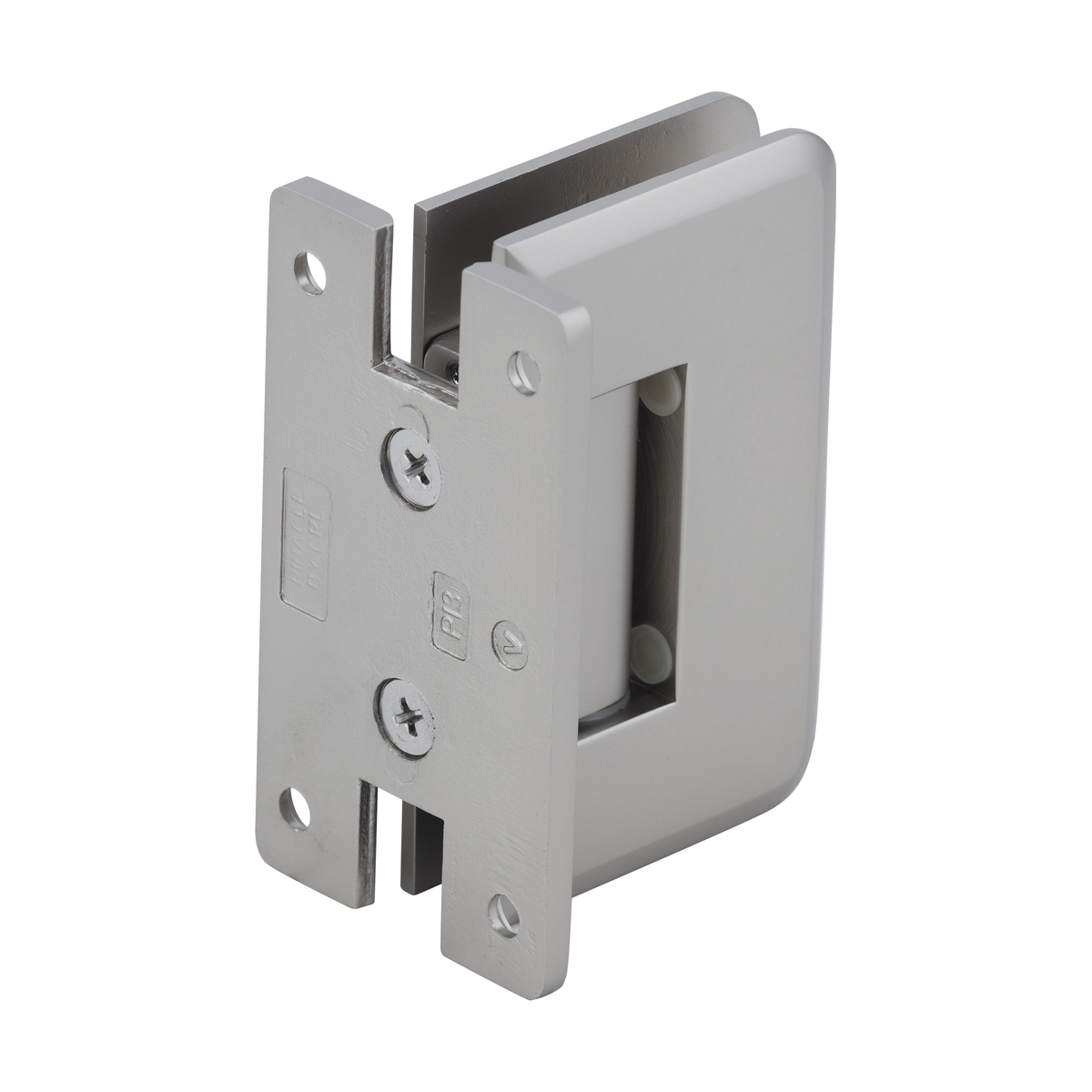

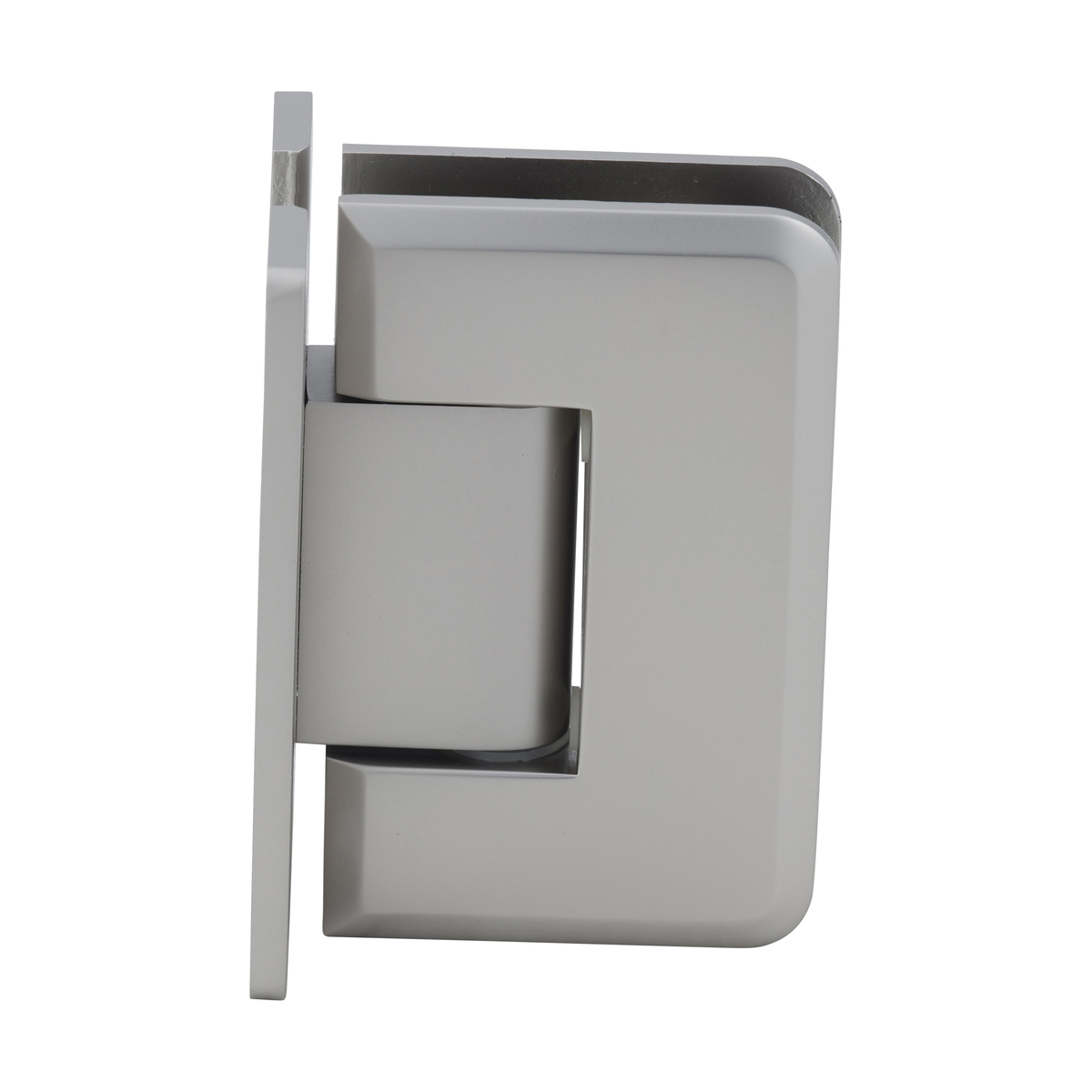

CRL P1N037SN Satin Nickel Pinnacle 037 Wall Mount 'H' Back Plate HingeC.R. Laurence P1N037SN Satin Nickel Pinnacle 037 Series Wall Mount 'H' Back Plate Hinge offers a sophisticated solution for your glass door installations. Designed for use with monolithic tempered glass, this hinge is compatible with glass thicknesses ranging from 5/16" (8 mm) to 1/2" (12 mm), ensuring versatile application for various settings. Constructed from solid brass with stainless steel plunger tips, pins, and springs, the Pinnacle Hinge is built to last, providing long service life and reliable door closure. The hinge features a self-centering design, activated within 15 degrees of the closed position, which promotes seamless operation. It can support door weights of up to 80 lbs. (36 kg) with two hinges or up to 120 lbs. (54 kg) with three hinges, accommodating door widths of 28" (711 mm) and 32" (813 mm), respectively. The standard reversible 5-degree pivot pin allows for easy adjustments between 90 and 85-degree closing positions, making it suitable for tighter installations. Additionally, the Pinnacle 037 series is available in several beautiful finishes, including the elegant satin nickel, ensuring it complements your design aesthetic. With a three-year warranty and included gaskets and screws, the CRL Pinnacle Hinge is a reliable choice for any residential or hotel shower application.
Satin Nickel Pinnacle 037 Series Wall Mount 'H' Back Plate Hinge
- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Several Beautiful Finishes
- Three Year Warranty
- Wall Mount 'H' Back Plate Standard Model (Factory Set for Standard Closing Position)
- Use Monolithic Tempered Glass
The
CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Replacement Hardware :
P102** - Wall plate replacement screws
P615** - Cover plate replacement screws
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Satin Nickel
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28
Maximum Door Width - 3 Hinges: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Pinnacle
Shipping Limitations: None
Width: 2-3/16 in. (56 mm)
