CRL P1N045BN Brushed Nickel Pinnacle 045 135 Glass-to-Glass Standard HingeC.R. Laurence P1N045BN Brushed Nickel Pinnacle 045 Series 135 Degree Glass-to-Glass Standard Hinge combines elegance and functionality for modern shower installations. Designed with radius corners and beveled edges, this hinge not only enhances the aesthetic appeal but also ensures a sleek, sophisticated look. It accommodates 5/16" to 1/2" (8 mm to 12 mm) thick tempered safety glass, making it versatile for various glass thicknesses. This self-centering hinge features a reversible 5-degree pivot pin, allowing for customizable closing angles. The solid brass construction, paired with stainless steel components, guarantees durability and reliable performance, capable of supporting doors up to 120 lbs. (54 kg) when using three hinges. The hinge swings a full 90 degrees in and out, providing optimal accessibility. Included with the hinge are gaskets and screws for easy installation, while custom pivot pins can be ordered for unique off-angle installations. With a three-year warranty backing its quality, the C.R. Laurence Pinnacle Hinge is an ideal choice for both residential and hotel shower applications. Its brushed nickel finish adds a stylish touch, ensuring it complements any modern design scheme.

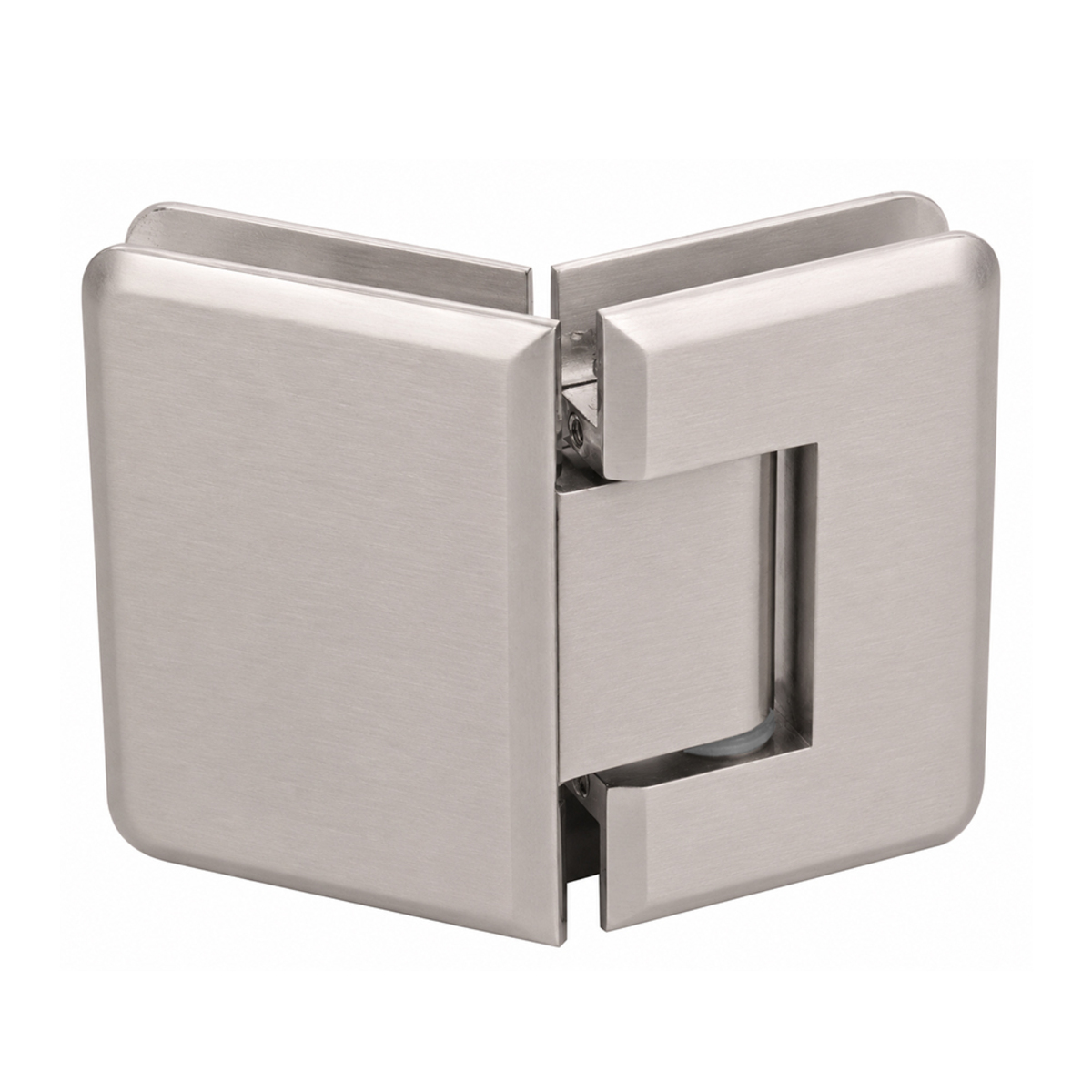

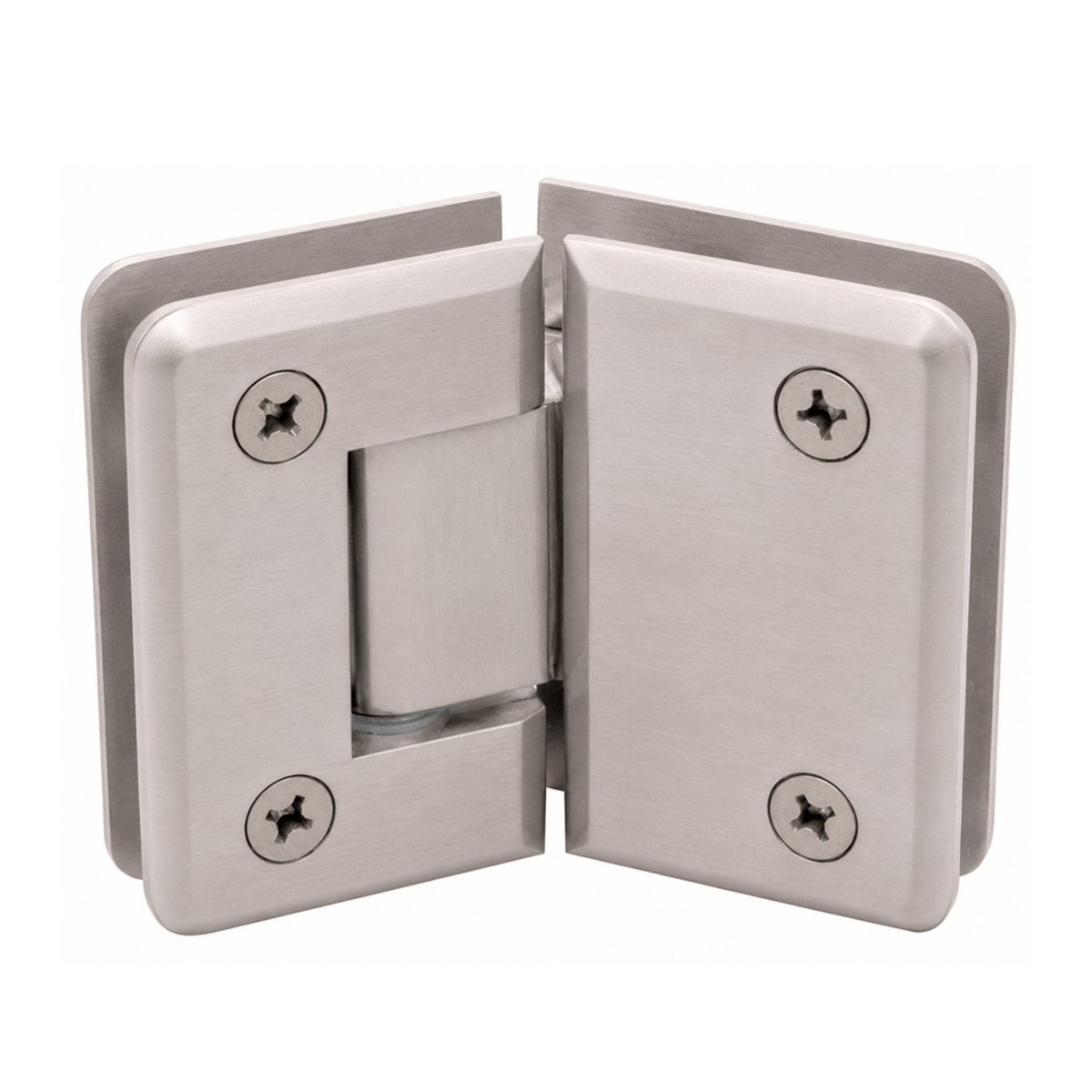

Brushed Nickel Pinnacle 045 Series 135 Degree Glass-to-Glass Standard Hinge
- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Several Beautiful Finishes
- Three Year Warranty
- 135 Degree Glass-to-Glass
- Use Monolithic Tempered Glass
The
CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Replacement Hardware :
P102** - Wall plate replacement screws
P615** - Cover plate replacement screws
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Brushed Nickel
Glass To Glass Angle: 135
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

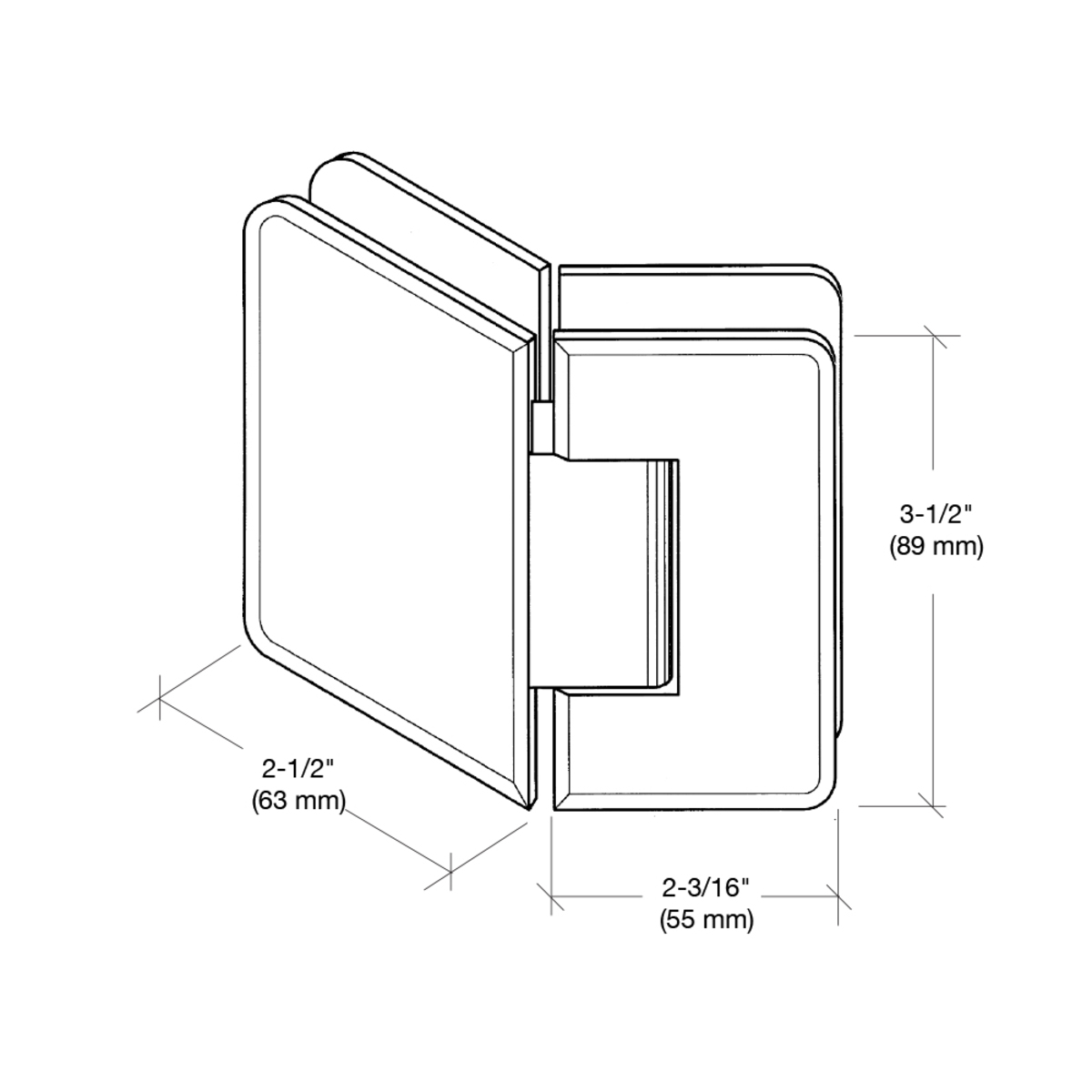

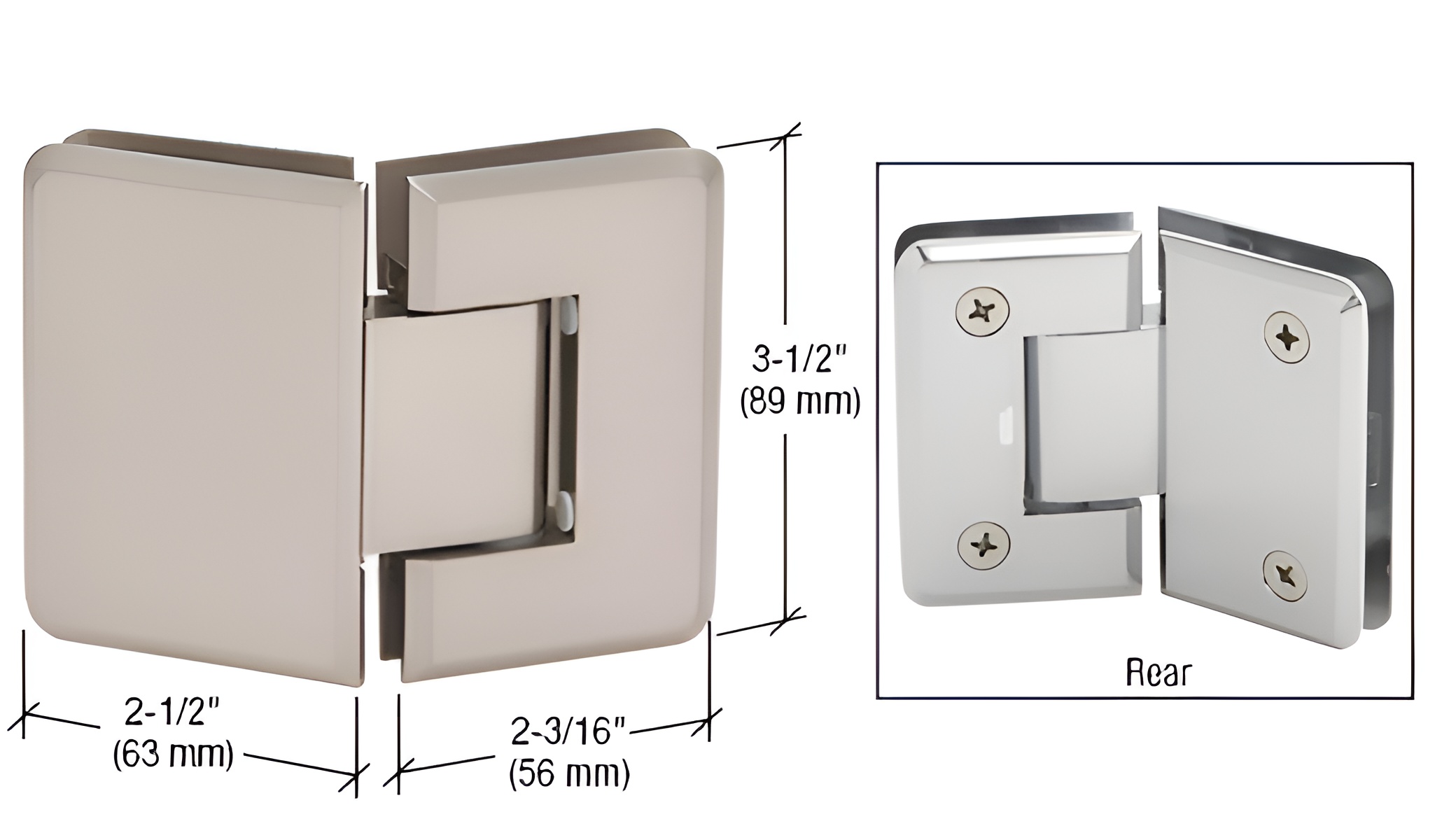

Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28
Maximum Door Width - 3 Hinges: 32
Mounting Type: Glass To Glass
Self- Centering: Yes
Series: Pinnacle
Shipping Limitations: None
Width - Door Portion: 2-3/16 in. (56 mm)
Width - Sidelite Portion: 2-1/2
