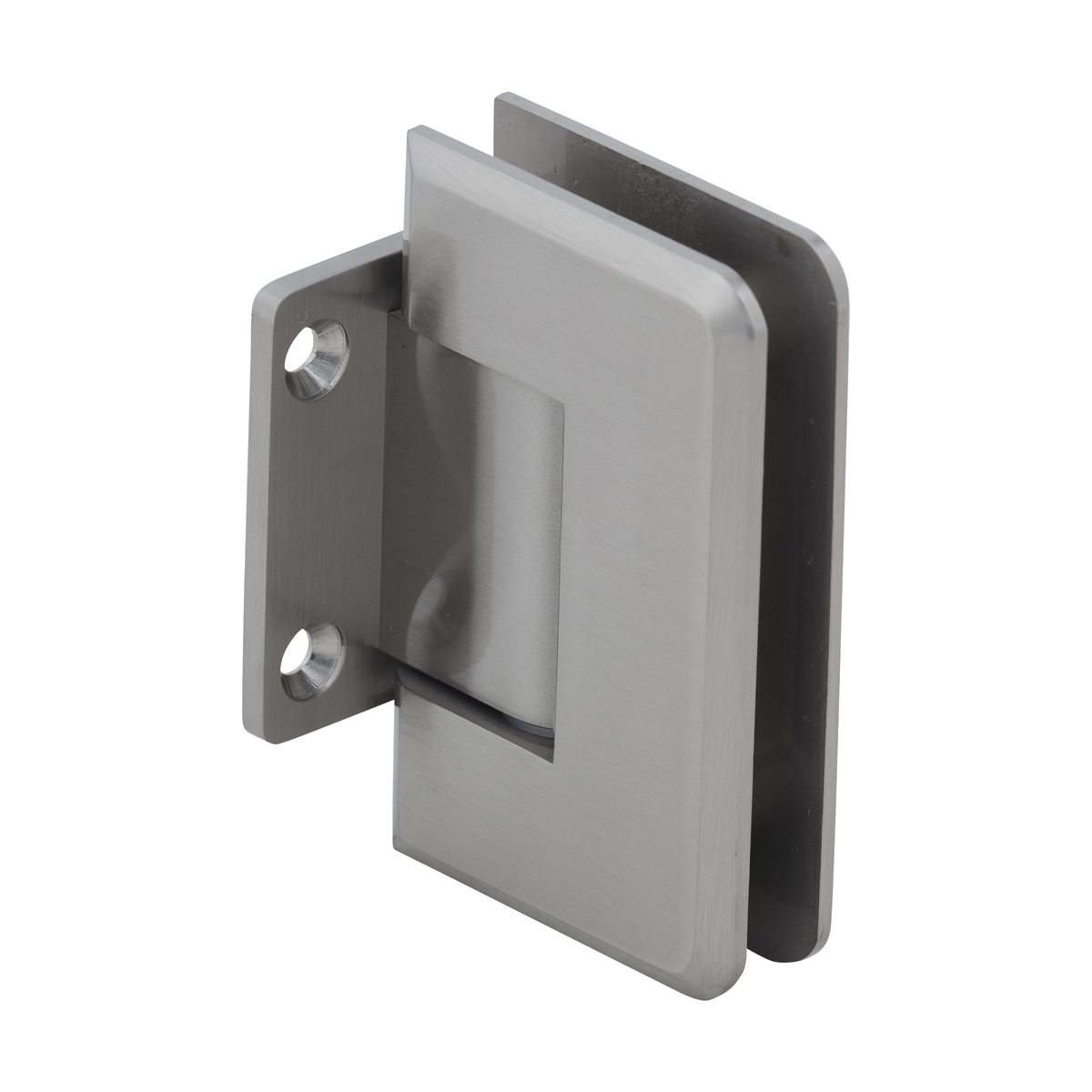

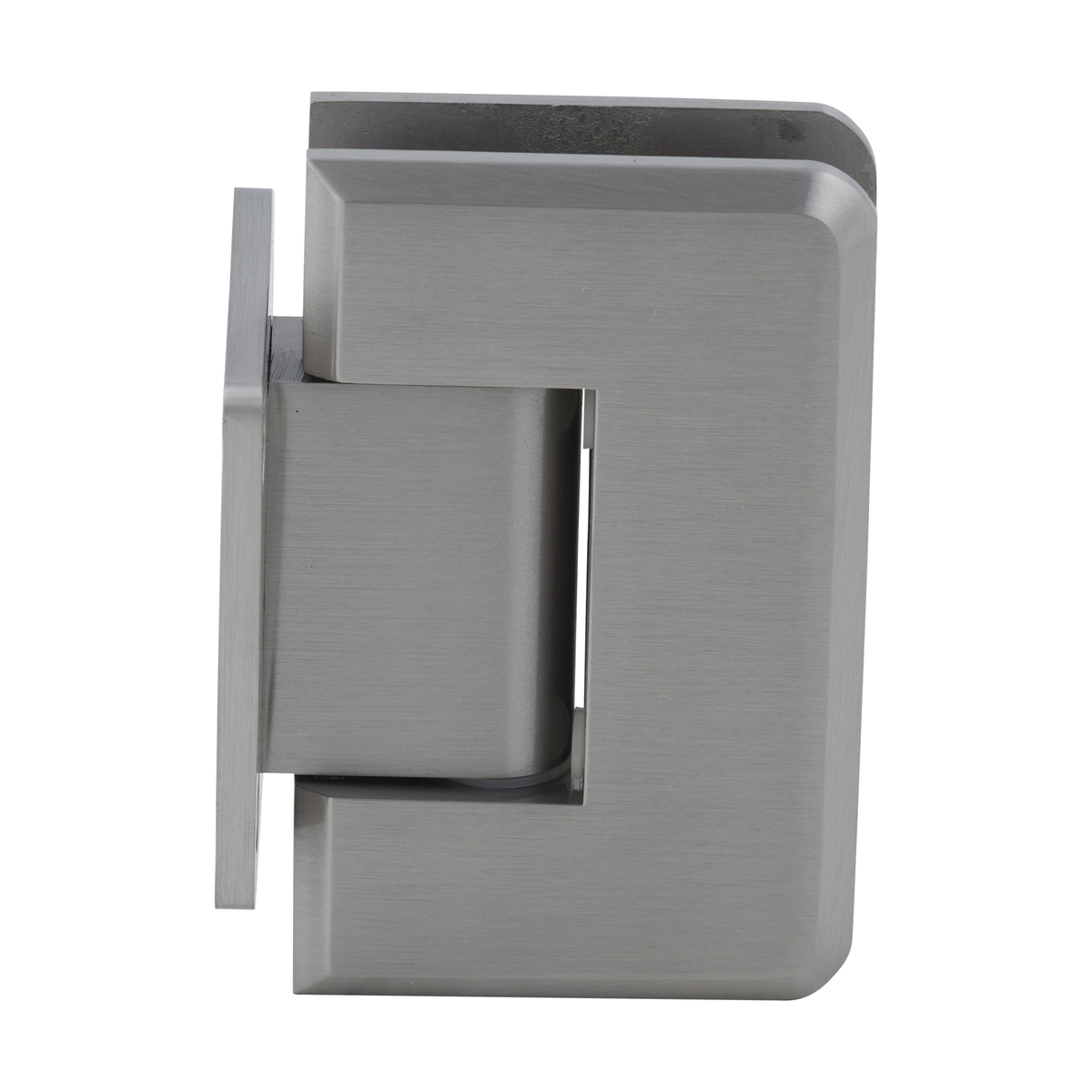

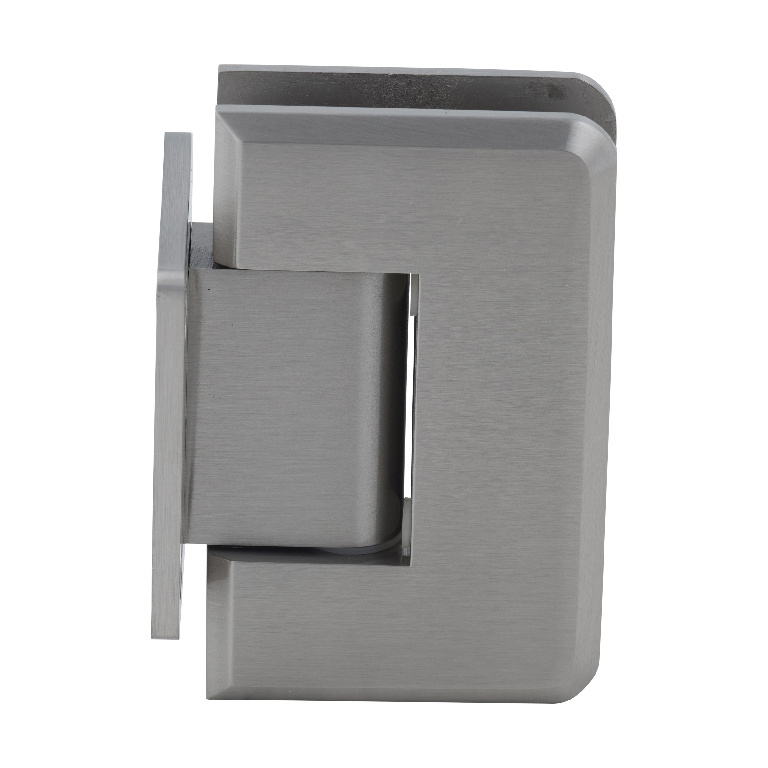

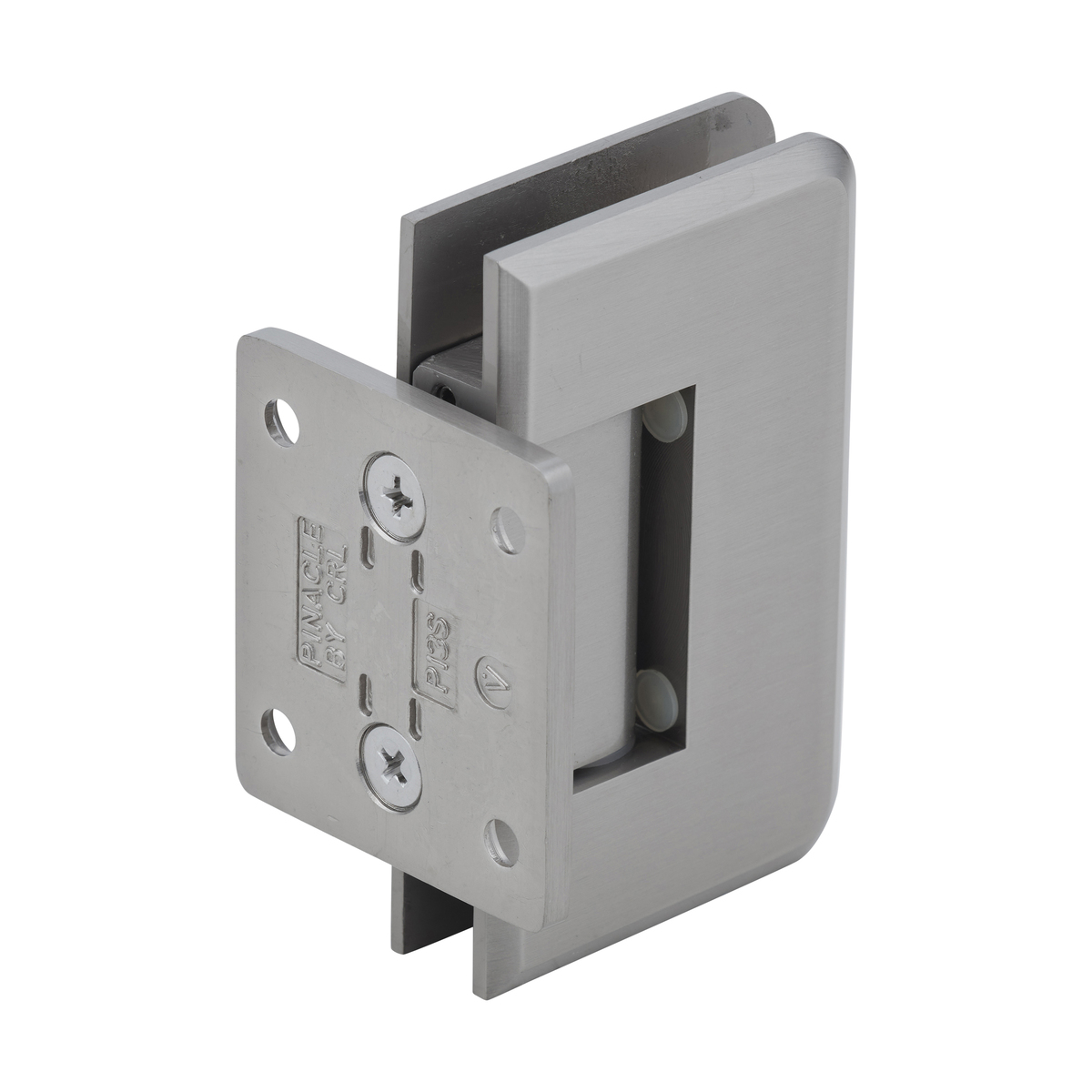

CRL P1N074BN Brushed Nickel Pinnacle 074 Wall Mount Short Back Plate HingeC.R. Laurence P1N074BN Brushed Nickel Pinnacle 074 Series Wall Mount Short Back Plate Hinge combines elegance with functionality. Designed for monolithic tempered glass, this hinge accommodates glass thicknesses from 5/16" (8 mm) to 1/2" (12 mm) and supports impressive weight capacities-up to 80 lbs. (36 kg) with two hinges and 120 lbs. (54 kg) with three. The solid brass construction ensures durability, while the stainless steel plunger tips, pins, and springs enhance the hinge's reliability and longevity. This self-centering hinge features a reversible 5-degree pivot pin, enabling precise alignment for a seamless closing experience. The Pinnacle Hinge's radius corners and beveled edges not only elevate its aesthetic appeal but also make it a standout choice in modern design. With a standard model set for a 90-degree closing position, it can also be adjusted for a tighter 85-degree closure, accommodating various installation needs. Included with the hinge are gaskets, screws, and glass fabrication dimensions, ensuring a straightforward installation process. With a three-year warranty, the CRL Pinnacle Hinge is an excellent investment for both residential and hotel shower applications, providing a sophisticated touch to any space.
Brushed Nickel Pinnacle 074 Series Wall Mount Short Back Plate Hinge
- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Several Beautiful Finishes
- Three Year Warranty
- Wall Mount Short Back Plate Standard Model (Factory Set for Standard Closing Position)
- Use Monolithic Tempered Glass
The
CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Replacement Hardware :
P102** - Wall plate replacement screws
P615** - Cover plate replacement screws
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Short
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28
Maximum Door Width - 3 Hinges: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Pinnacle
Shipping Limitations: None
Width: 2-3/16 in. (56 mm)
