CRL P1N337BN Brushed Nickel Pinnacle 337 Adjustable Wall Mount 'H' Hinge Back PlateC.R. Laurence P1N337BN Brushed Nickel Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge seamlessly combines style and functionality for modern shower installations. Designed for use with monolithic tempered glass, this hinge allows for an adjustable angle of up to 90 degrees without the need to remove the door. Installation is straightforward; simply adjust the door's position by loosening the Allen set screws, ensuring a precise self-centering closure when within 15 degrees of the closed position. Crafted from solid brass, the P1N337BN hinge is available in multiple beautiful finishes, enhancing any décor. With a robust capability, it supports doors weighing up to 80 lbs (36 kg) using two hinges or 120 lbs (54 kg) with three. The maximum door widths are 28 inches (711 mm) and 32 inches (813 mm) respectively, accommodating a range of design preferences. Included with the hinge are gaskets, screws, and glass fabrication dimensions, ensuring a comprehensive installation experience. Please note that a separate gasket pack (Cat. No. P1N13) is required for 5/16" (8 mm) thick tempered glass. For custom finishes or further inquiries, the CRL Technical Sales Shower Door Department is ready to assist. This hinge is ideal for residential and hotel shower applications, bringing both elegance and durability to any space.

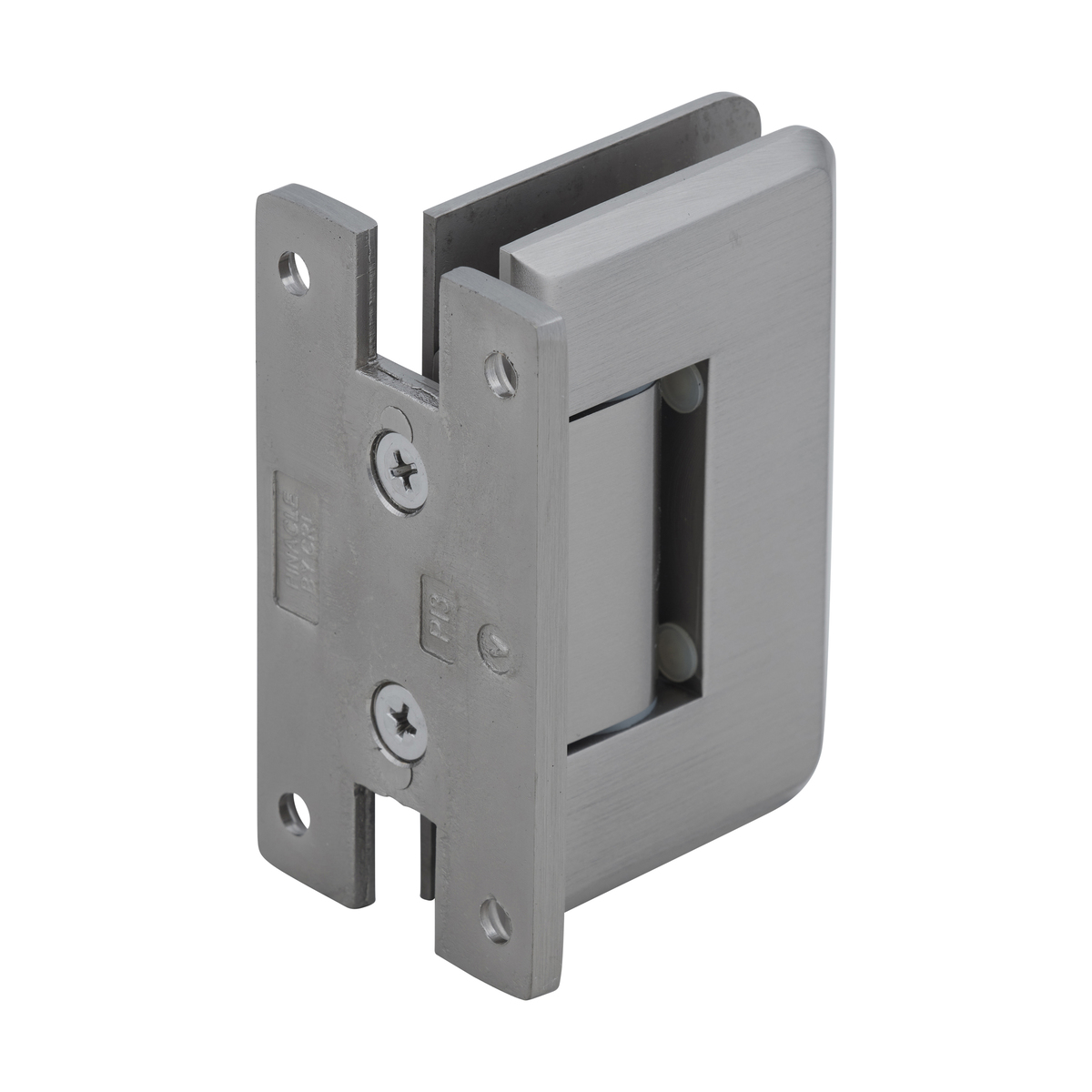

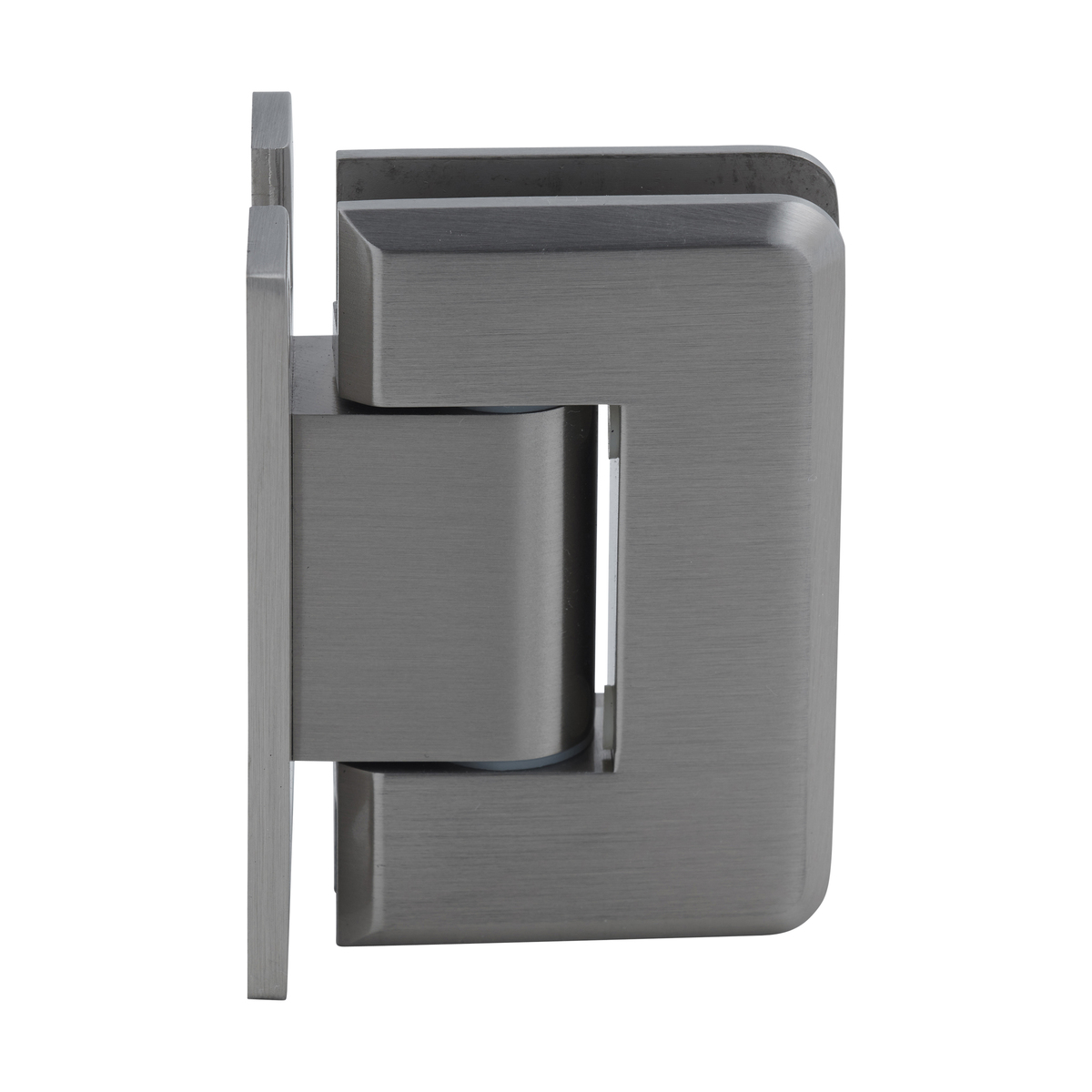

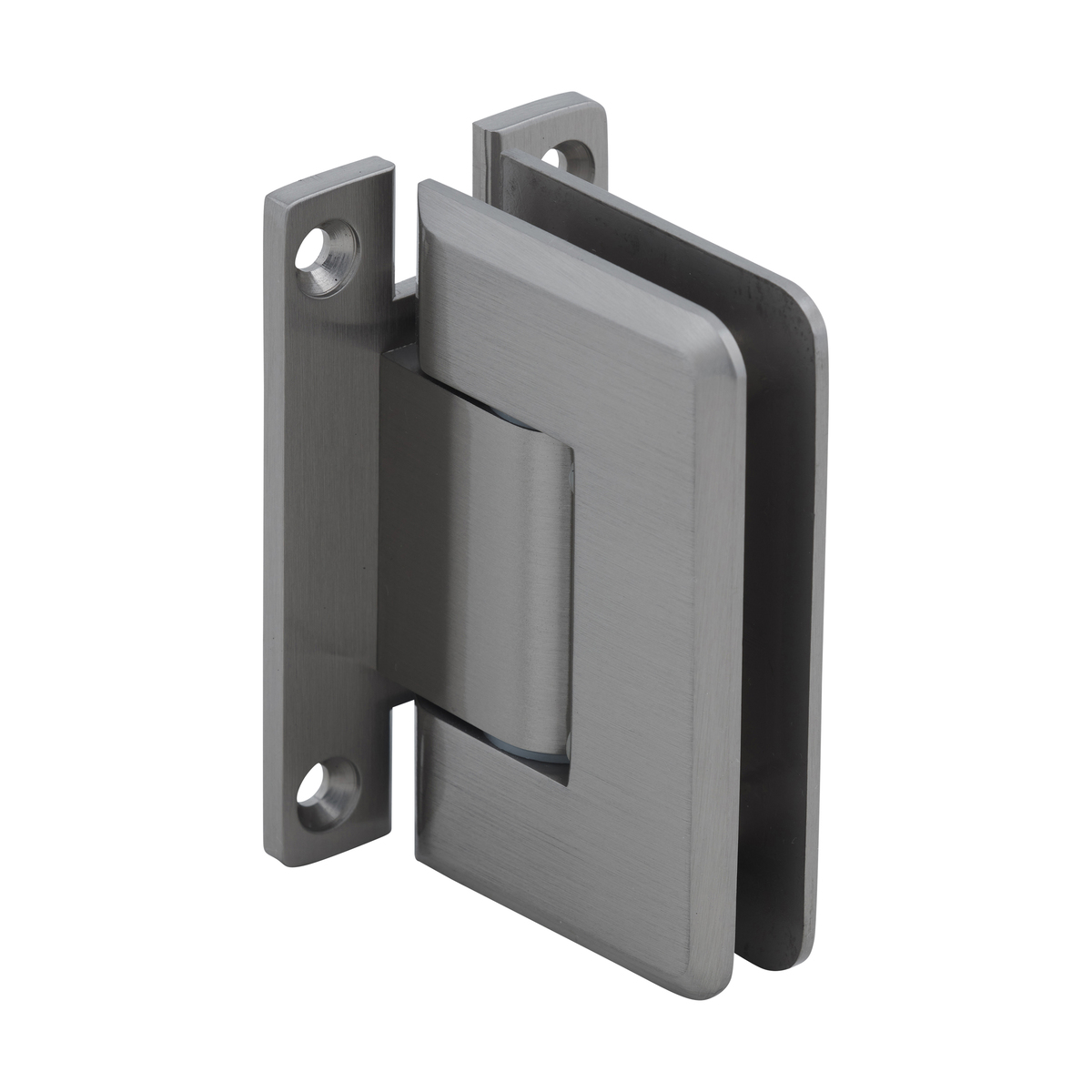

Brushed Nickel Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
- Adjustable to Any Angle Up To 90 Degree Without Removing Door
- Available in Several Beautiful Finishes
- Three Year Warranty
- Adjustable Wall Mount 'H' Back Plate
- Use Monolithic Tempered Glass
CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Replacement Hardware:
P102** - Wall plate replacement screws
P615** - Cover plate replacement screws
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: Yes
Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28
Maximum Door Width - 3 Hinges: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Pinnacle
Shipping Limitations: None
Width: 2-3/16 in. (56 mm)
